Rotation lasers
![GRL 600 CHV]( "GRL 600 CHV")
![GRL 600 CHV]( "GRL 600 CHV")
![GRL 600 CHV]( "GRL 600 CHV")
![GRL 600 CHV]( "GRL 600 CHV")
![GRL 600 CHV]( "GRL 600 CHV")
![GRL 600 CHV]( "GRL 600 CHV")
![GRL 600 CHV]( "GRL 600 CHV")
![GRL 600 CHV]( "GRL 600 CHV")
![GRL 600 CHV]( "GRL 600 CHV")
![GRL 600 CHV]( "GRL 600 CHV")
![GRL 600 CHV]( "GRL 600 CHV")
![GRL 600 CHV]( "GRL 600 CHV")
![GRL 600 CHV]( "GRL 600 CHV")

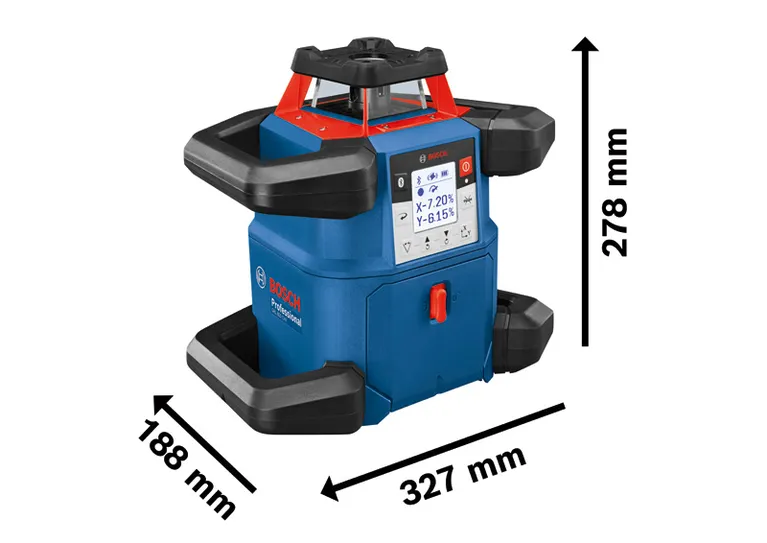

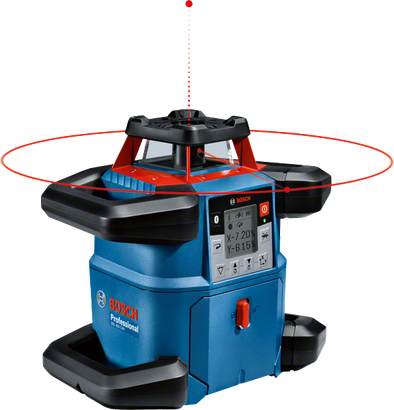

GRL 600 CHV Professional
Rotation Laser
Get accurate results and save time with the GRL 600 CHV – perfect for heavy-duty jobs

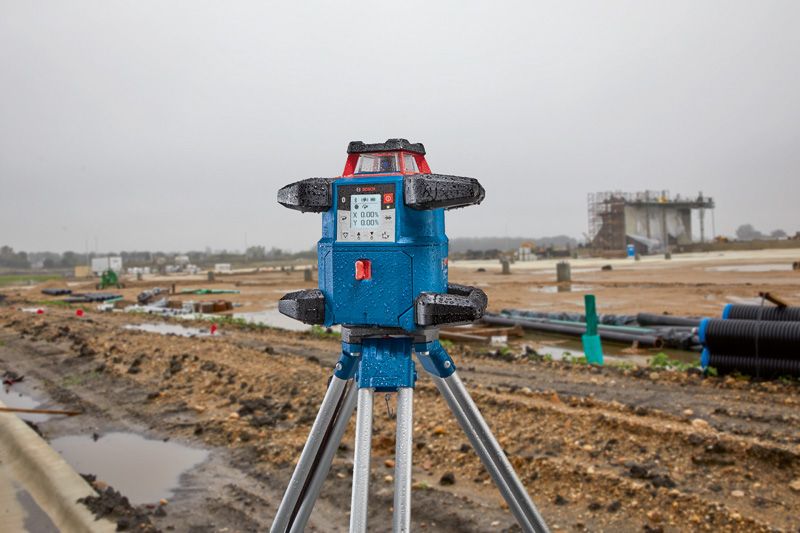

- Highly flexible in bad weather with robust design, impact protection, and IP68 rating against dust and water

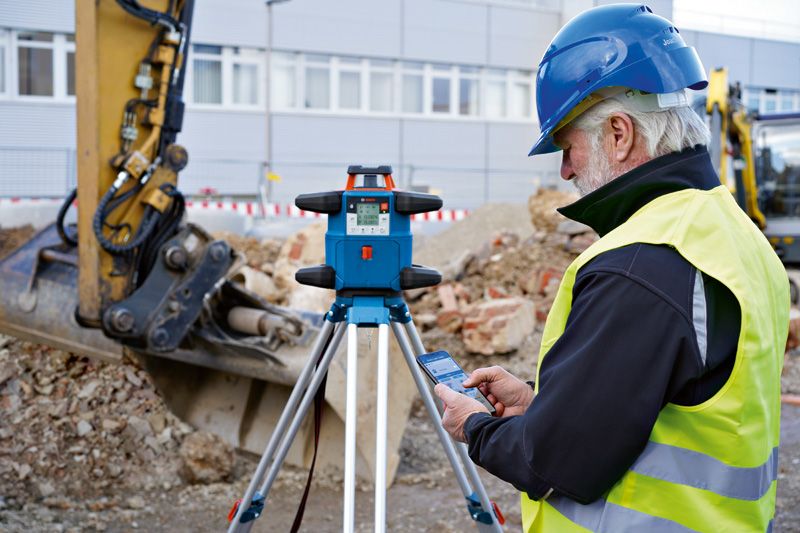

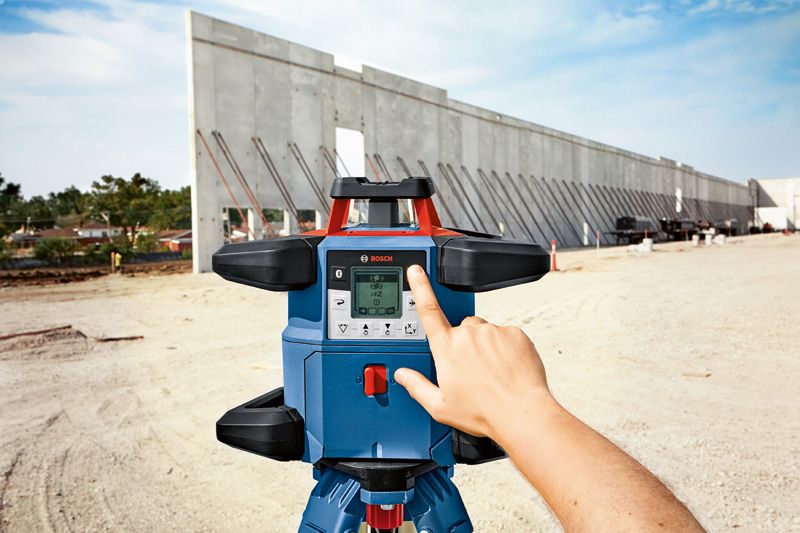

- Intuitive via screen and access to levelling remote app that visualises all functions including dual slope setting to save time

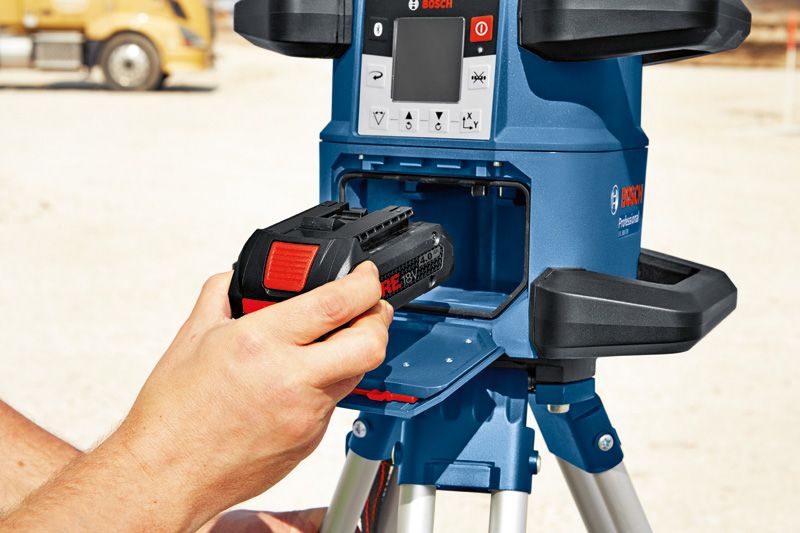

- Conveniently long runtime both with 18V battery system and alkaline batteries (adapter included)
Functions & key features
Your Selection
- in carrying case with 1 x 4.0 Ah ProCORE18V Li-ion battery, laser receiver
in carrying case with 1 x 4.0 Ah ProCORE18V Li-ion battery, laser receiver
0 601 061 F00
GRL 600 CHV Professional
Your Selection
in carrying case with 1 x 4.0 Ah ProCORE18V Li-ion battery, laser receiver
Order number: 0 601 061 F00

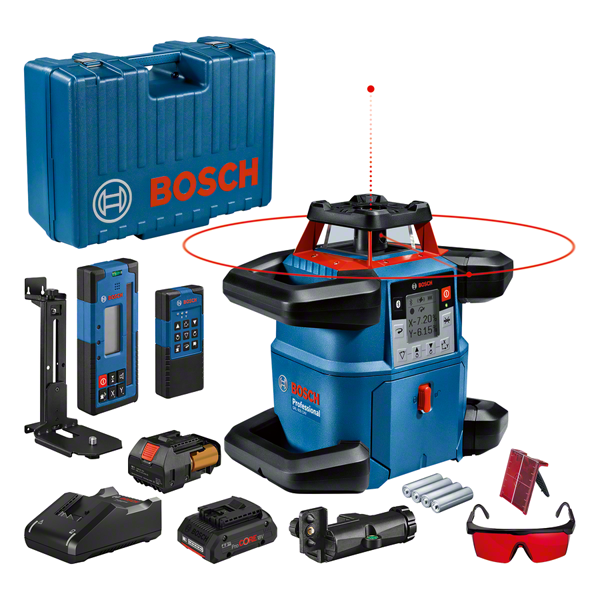

Included in this variant
-
Remote control RC 6 Professional
-
Receiver bracket RB 60 Professional
-
Battery adapter BA 1 Professional
-
4 x 1.5 V LR6 battery (AA)
-
Quick charger GAL 18V-40 ProfessionalOrder number: 1 600 A01 9RJ
-

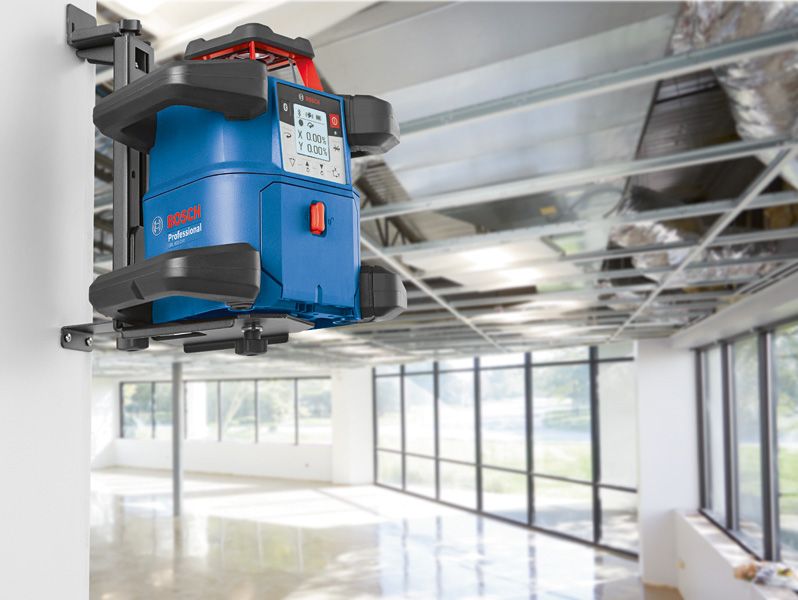

Wall mount WM 6 Professional
-
Laser viewing glasses, red, BL-GLASS (spare part number 1 608 M00 05B)
-

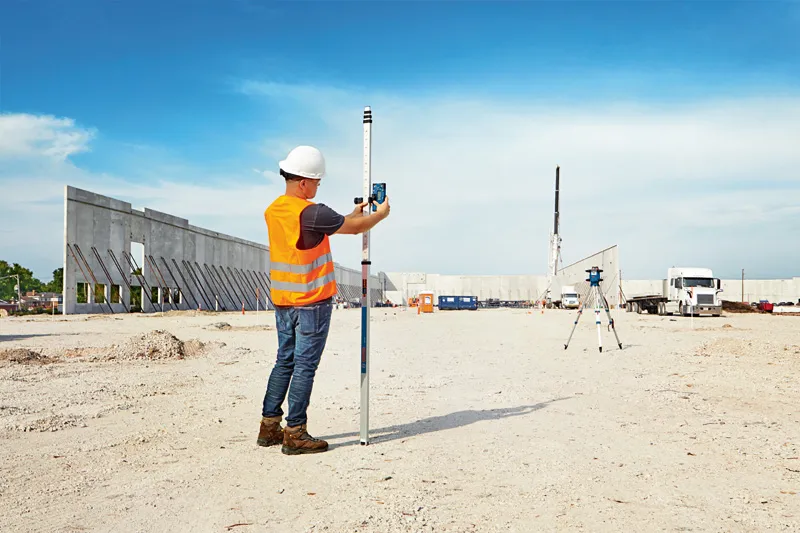

Laser receiver LR 60 ProfessionalOrder number: 0 601 069 P00
-
4 x 1.5 V LR20 battery (D)
-
Laser target plate
-

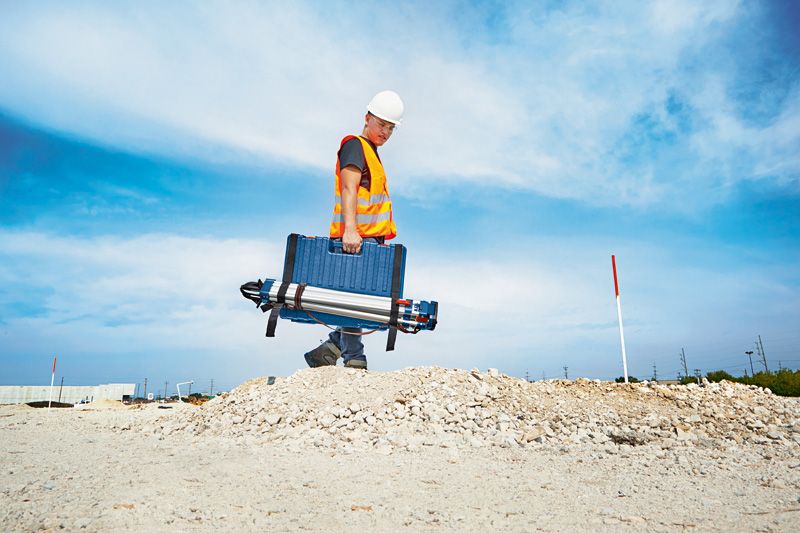

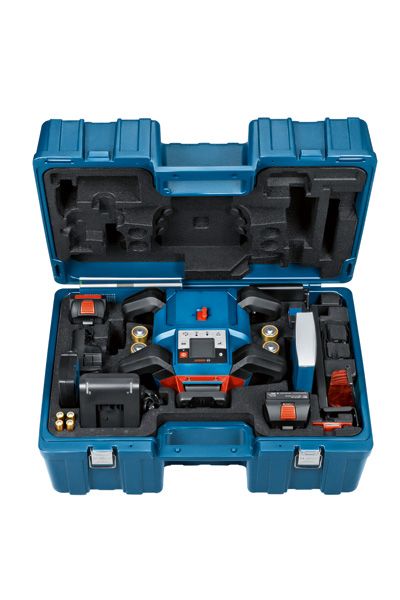

Carrying case
-
1 x battery ProCORE18V 4.0AhOrder number: 1 600 A01 6GB
Technical data
Additional data |
|
|---|---|
| Slope function | yes |
| Battery voltage | 18.0 V |
| Laser diode | 630 – 650 nm, < 1mW |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 50 °C |
| Laser class | 2 |
| Working range with receiver | up to 600 m (Diameter) |
| Working range without receiver | up to 60 m (Diameter) |
| Accuracy | ± 1.5 mm at 30 m* horizontal (*plus use-dependent deviation), ± 3.0 mm at 30 m* vertical (*plus use-dependent deviation) |
| Self-levelling range | ±8.5% (±5°) |
| Dust and splash protection | IP 68 |
| Rotation speed | 150/300/600 min−1 |
| Power supply | 18 V Li-ion battery, 4 x D cell batteries |
| Operating time (max.) | 60 h, 70 h |
| Tripod thread | 2 x 5/8" |
| Projection | 1 x 360° line |
| Compatible laser receivers | LR 60 |
| Weight with 4.0 Ah battery | 4,3 kg |
| Weight with alkaline batteries | 4,6 kg |
| Working range with receiver, value | 600 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
GRL 600 CHV Professional: Further information
Product Highlights
Heavy duty, jobsite-proof – the robust GRL 600 CHV Professional endures even the harshest environments. Its sturdy design offers impact protection and has an IP68 rating against dust and water – including the battery compartment for highly flexible work in bad weather conditions. It provides convenient connectivity, enabling more focused work with less wasted time. Operating the tool is intuitive thanks to its screen and access to the levelling remote app that visualises all functions, including a dual slope setting, to save valuable time. This highly accurate laser has a long runtime, both with the 18V battery system and alkaline batteries included for continuous working.
Equipment & Application

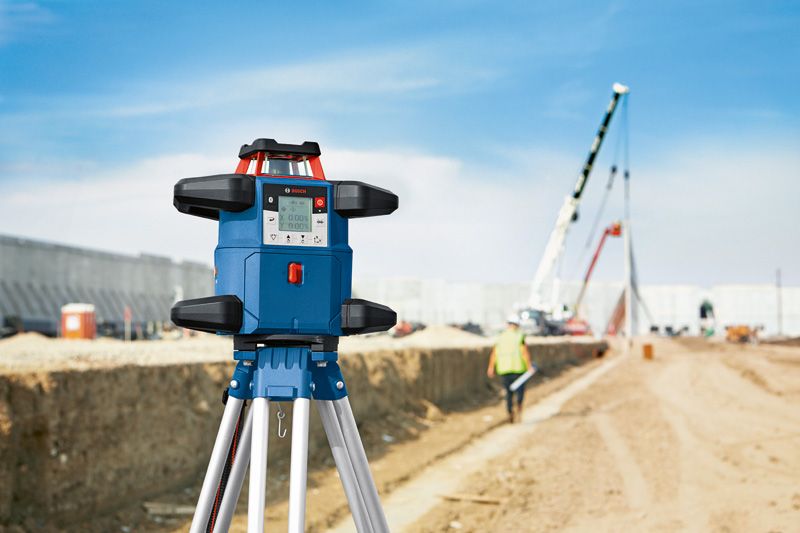

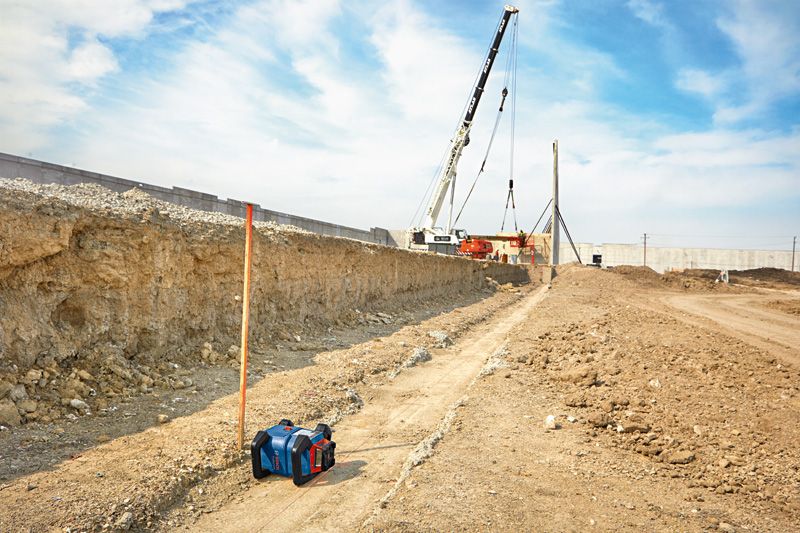

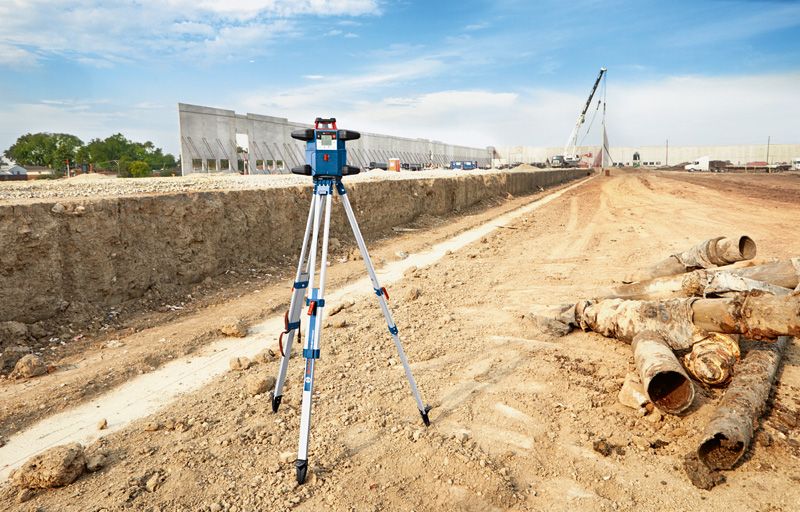

Use this tool for exterior applications when determining cut-and-fill excavation work, concrete forms, landscaping, and façade work.
Additional Information
The GRL 600 CHV also features a high-quality receiver with a 125-mm reception area, a dual-sided display, and an offset feature in millimetres. Calibrating the tool is quick and easy – follow the step-by-step instructions via the intuitive app to save time and resources and ensure accurate results on every job. Use the handy 'mask mode' available in the app to avoid reflection and interference with other devices on the jobsite.
