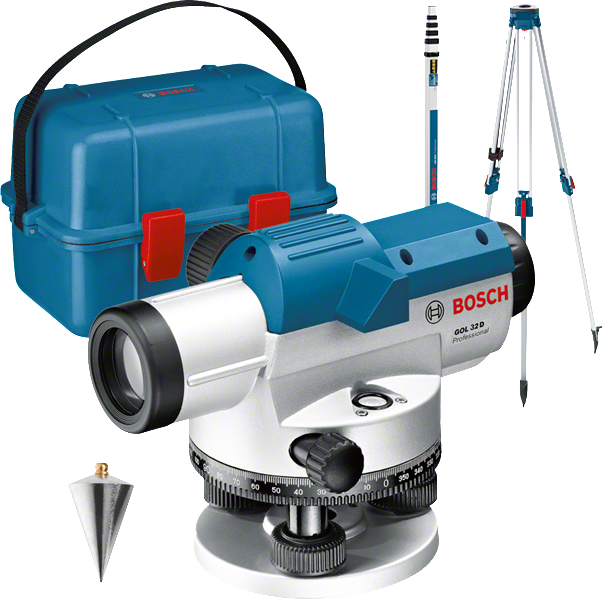

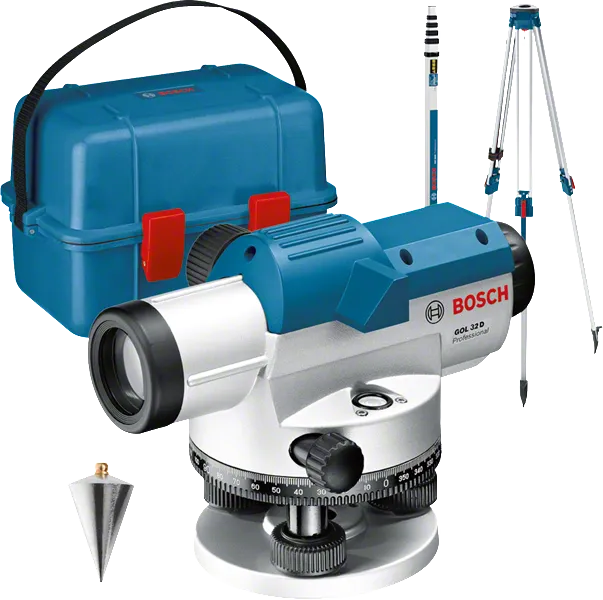

GOL 32 D Professional
Optical Level
Robust and reliable – ideal for outdoor use
- Ideal for outdoor use due to a robust housing with dust and splash protection (IP54)
- Fast aperture for a sharp image of the target
- Compensator lock for safe transport
Functions & key features
Your Selection
- in carrying case with accessory set
Available in 4 onlineshop(s)
Buy now
in carrying case with accessory set
0 601 068 502
Select a variant
Your Selection
in carrying case with accessory set
Order number: 0 601 068 502
Included in all variants
-
Plumb bob
-
Carrying caseOrder number: 1 600 A00 0LF
-
Lens cover
-
Adjusting pin
Additional in this variant
-
Building tripod BT 160 ProfessionalOrder number: 0 601 091 200
-
Measuring rod GR 500 ProfessionalOrder number: 0 601 094 300
Your Selection
in carrying case with accessory set
Order number: 0 601 068 500
Included in all variants
-
Plumb bob
-
Carrying caseOrder number: 1 600 A00 0LF
-
Lens cover
-
Adjusting pin
Technical data
Additional data |
|
|---|---|
| Tripod thread | 5/8" |
| Unit of measure | 360 degrees |
| Magnification | 32 x |
| Accuracy | ± 1 mm at 30 m |
| Dust and splash protection | IP 54 |
| Working range | 120 m |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Weight, approx. | 1,5 kg |
| Working range, value | 120 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
