GLL 3-80 Professional
Line Laser
3 x 360° for visibility on a new level
- High visual clarity is provided by high-powered diodes
- 3 x 360° lines allow for simultaneous horizontal and vertical levelling applications for highly efficient work
- Intuitive user interface offers easy operation
Functions & key features
GLL 3-80 Professional
Your Selection
Order number: 0 601 063 S00

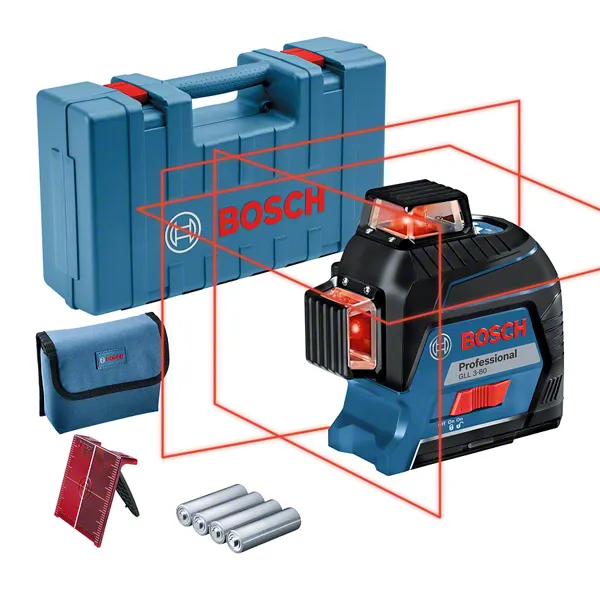

Included in this variant
-
4 x 1.5 V LR6 battery (AA)
-
Pouch
-
Laser target plate
-
Carrying case
Technical data
Additional data |
|
|---|---|
| Colour of laser line | red |
| Laser diode | Line: 630 - 650 nm, < 10mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range | up to 30 m |
| Working range with receiver | up to 120 m |
| Accuracy | ± 0.3 mm/mᵃ |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 54 |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 4 h in 3-line mode |
| Tripod thread | 1/4", 5/8" |

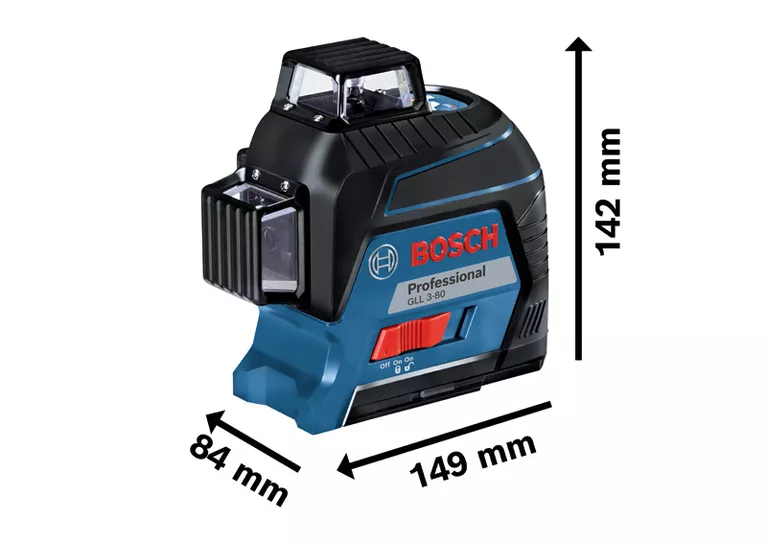

| Weight, approx. | 0,82 kg |
| Projection | 3 x 360° line |
| Compatible laser receivers | LR 6 + 7 |
| Working range, value | 30 m |
| Working range with receiver, value | 120 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᵃ Applies for the four horizontal intersection points
GLL 3-80 Professional: Further information
Product Highlights

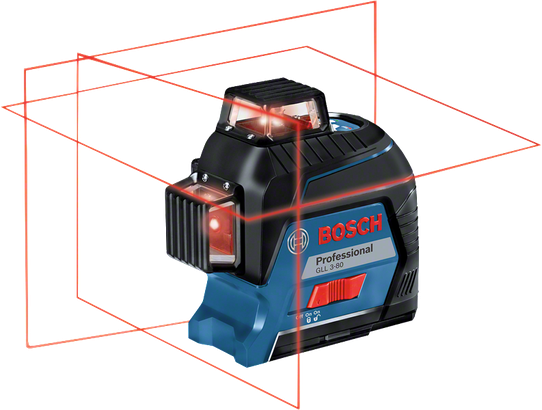

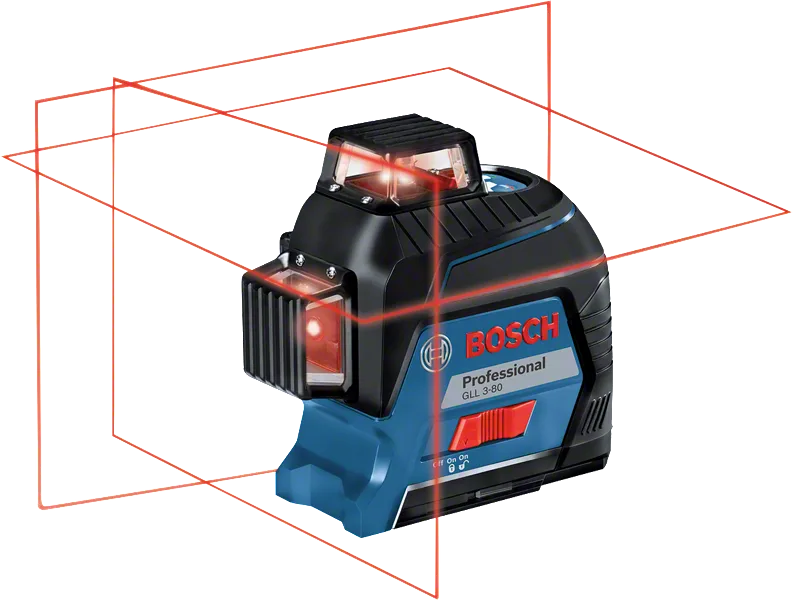

The line laser GLL 3-80 Professional projects 3 x 360° lines for next level visibility. High visual clarity is provided by high-powered diodes. This tool's 3 x 360° lines allow for simultaneous horizontal and vertical levelling applications around the entire room for highly efficient work, while the tool´s intuitive user interface offers easy operation.
Equipment & Application

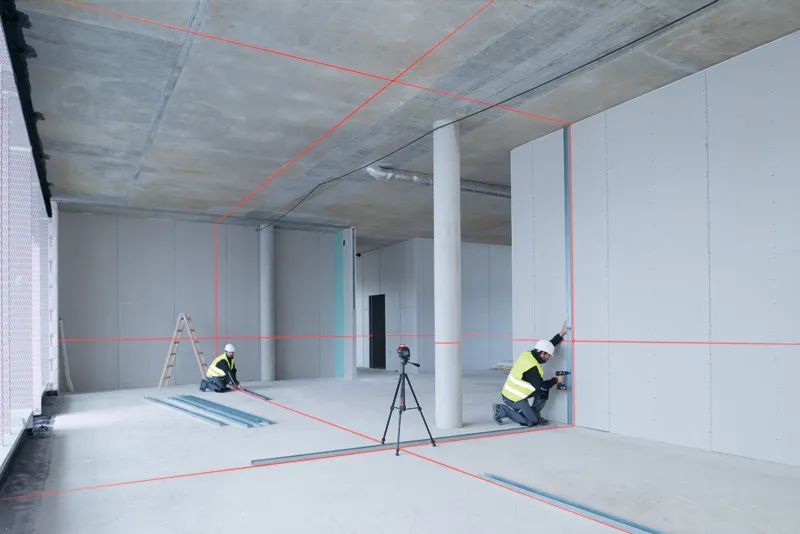

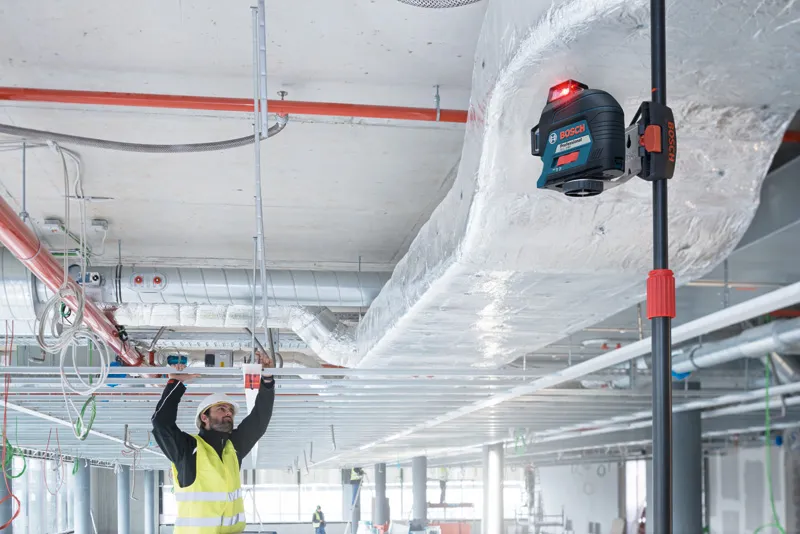

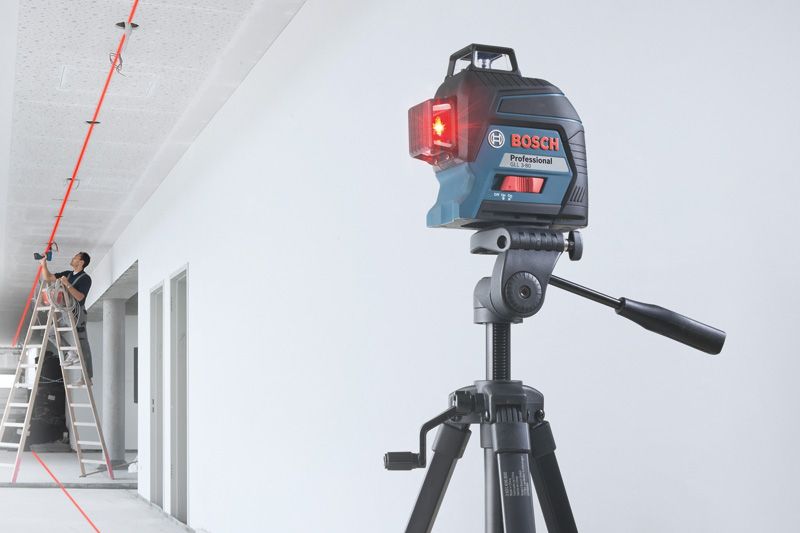

This line laser was developed for suspending drop ceilings, building floors, installing windows, mounting shelves, laying drainage pipes, building framework for drywall, and laying tiles.
Additional Information
The GLL 3-80 Professional is perfect for fast self-levelling and it is capable of self-levelling on non-level surfaces up to +/- 4° in less than 4 seconds with excellent precision of ± 0.3 mm/m*/**. It has a working range of up to 120 m when using the optional LR 6 or LR 7 Professional receiver. This line laser is compact, easy to handle, and extremely robust (IP54).
