For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 4 options
Number of teeth 3 options
Width of cut (b1) mm 3 options
Choose a pack size 1 Pcs

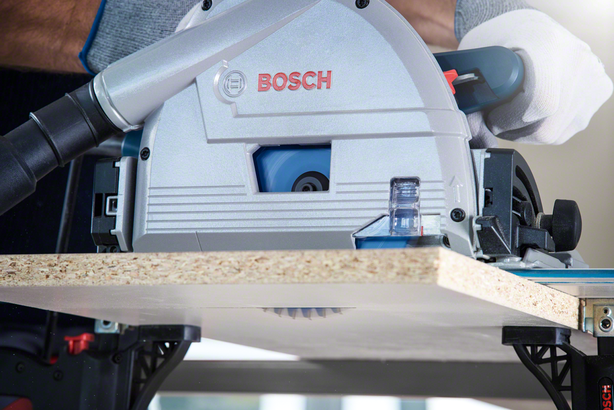

Expert for High Pressure Laminate Circular Saw Blade performs perfectly when cutting high-pressure laminate
Available product options: 5
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 644 131 | 140 | 20 | 1.8/1.3 | 42 | 1 Pcs | Buy now | ||
| 2 608 644 132 | 160 | 20 | 2.2/1.6 | 48 | 1 Pcs | Buy now | ||
| 2 608 644 133 | 165 | 20 | 2.6/1.6 | 48 | 1 Pcs | Buy now | ||
| 2 608 644 134 | 190 | 20 | 2.6/1.6 | 56 | 1 Pcs | Buy now | ||
| 2 608 644 135 | 190 | 30 | 2.6/1.6 | 56 | 1 Pcs | Buy now |
out of products
| Part number 2608644131 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 140 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
| Number of teeth | 42 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 13600 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 0 |
| Relief angle ° β | 17 |
| Part number 2608644132 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 48 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 0 |
| Relief angle ° β | 17 |
| Part number 2608644133 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 0 |
| Relief angle ° β | 17 |
| Part number 2608644134 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 56 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 0 |
| Relief angle ° β | 17 |
| Part number 2608644135 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 56 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 0 |
| Relief angle ° β | 17 |
