For table saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 300
Number of teeth 96
Width of cut (b1) mm 3.2
Choose a pack size 1 Pcs

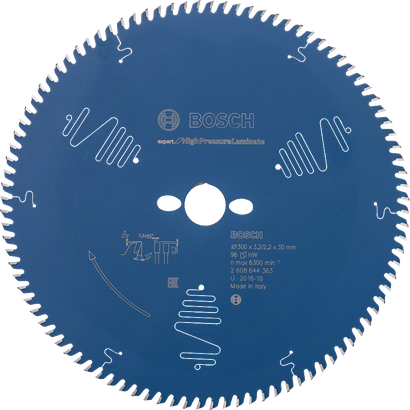

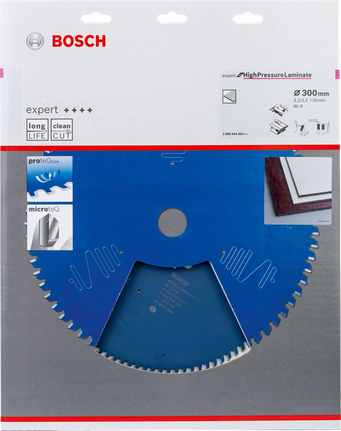

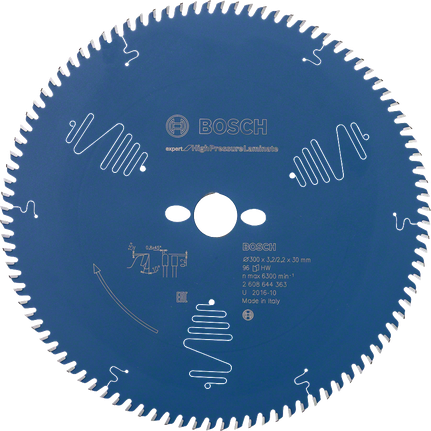

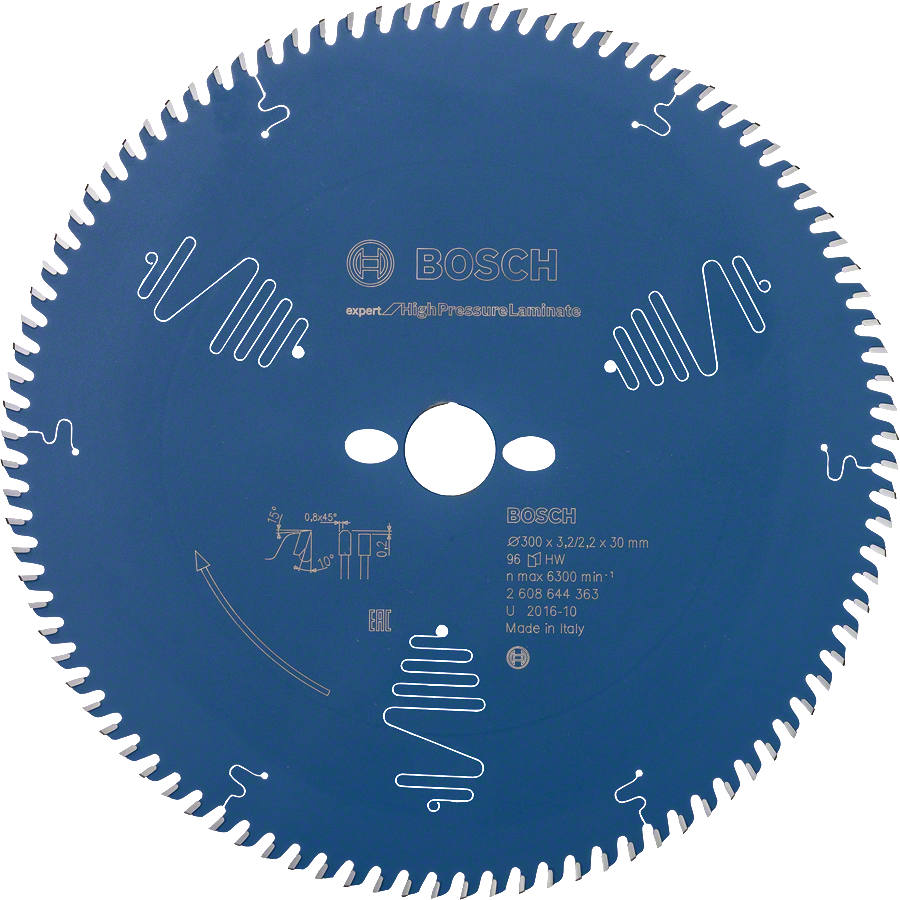

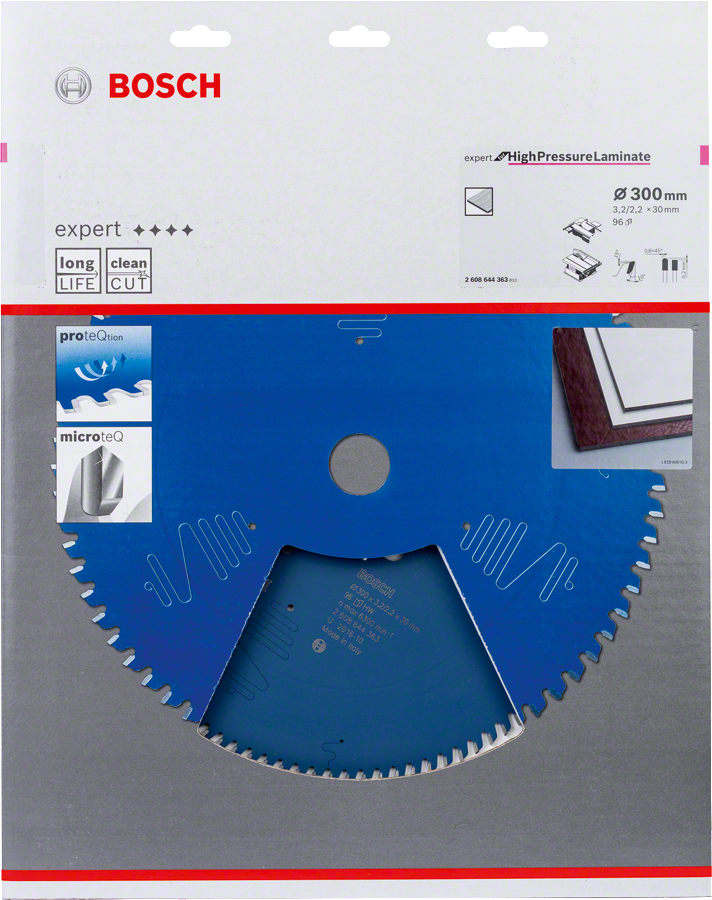

Expert for High Pressure Laminate Circular Saw Blade performs perfectly when cutting high-pressure laminate
Available product options: 1
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Bore with reduction ring mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 644 363 | 300 | 30 | 0 | 3.2/2.2 | 1 Pcs | 268 TND | Find a local dealer |
out of products
| Part number 2608644363 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 300 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 0 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.2 |
| Number of teeth | 96 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 6300 |
| Cutting result | Very coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9.5/46.5 / 2/9/46 / 2/10/60 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
