Masonry & Concrete Drill Bits
Object #200325426: <!-- language missing -->
Object #200325577: <!-- language missing -->
Object #200507686: <!-- language missing -->
Object #200325426: <!-- language missing -->
Object #200325577: <!-- language missing -->
Object #200507686: <!-- language missing -->

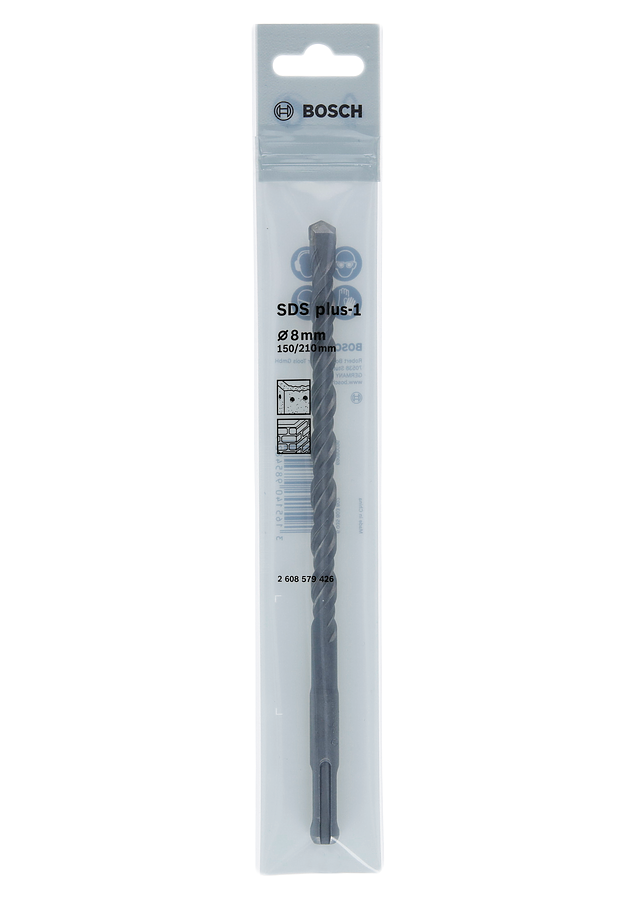

SDS plus-1 Drill Bit

For rotary hammer drills

SDS plus-1 Drill Bit is optimised for drilling in concrete

  • 2-cutter Tungsten Carbide plate makes the bit extra tough
  • 2-flute U-shape flute design provides effective dust removal and standard lifetime
  • Fits all SDS plus rotary hammer drills

Materials

Concrete
Lime and sand bricks
Solid brick
Concrete building block
Hard stone

Select options

Diameter (D) mm

Working length mm

Total length mm

Choose a pack size

Select options

Diameter (D) mm 14 options

Working length mm 6 options

Total length mm 6 options

Choose a pack size 1 Pcs

Available product options (37)
SDS plus-1 Drill Bit
from
For rotary hammer drills

Fits tools of most brands

imageAlt
imageAlt
imageAlt

Fits all SDS plus rotary hammer drills

for Drilling Concrete

SDS plus-1 Drill Bit is optimised for drilling in concrete

  • 2-flute U-shape flute design provides effective dust removal and standard lifetime

Product Options

Available product options: 37

Part number Diameter (D) mm Working length mm Total length mm Pack quantity
2 608 680 257 4.00 50 110 1 Pcs Find a local dealer

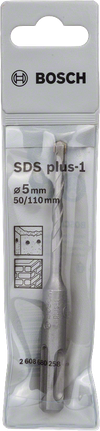

2 608 680 258 5.00 50 110 1 Pcs Find a local dealer
2 608 680 259 5.00 100 160 1 Pcs Find a local dealer

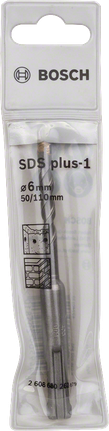

2 608 680 262 6.00 50 110 1 Pcs Find a local dealer
2 608 680 263 6.00 100 160 1 Pcs Find a local dealer
2 608 680 264 6.00 150 210 1 Pcs Find a local dealer
2 608 680 265 6.50 50 110 1 Pcs Find a local dealer
2 608 680 266 6.50 100 160 1 Pcs Find a local dealer
2 608 680 267 7.00 50 110 1 Pcs Find a local dealer
2 608 680 268 7.00 100 160 1 Pcs Find a local dealer
2 608 680 269 8.00 50 110 1 Pcs Find a local dealer
2 608 680 270 8.00 100 160 1 Pcs Find a local dealer
2 608 680 271 8.00 150 210 1 Pcs Find a local dealer
2 608 680 272 8.00 200 260 1 Pcs Find a local dealer
2 608 680 273 10.00 100 160 1 Pcs Find a local dealer
2 608 680 274 10.00 150 210 1 Pcs Find a local dealer
2 608 680 275 10.00 200 260 1 Pcs Find a local dealer
2 608 680 276 10.00 400 460 1 Pcs Find a local dealer
2 608 680 277 12.00 100 160 1 Pcs Find a local dealer
2 608 680 278 12.00 150 210 1 Pcs Find a local dealer
2 608 680 279 12.00 200 260 1 Pcs Find a local dealer
2 608 680 280 12.00 400 460 1 Pcs Find a local dealer
2 608 680 281 14.00 100 160 1 Pcs Find a local dealer
2 608 680 282 14.00 150 210 1 Pcs Find a local dealer
2 608 680 283 14.00 200 260 1 Pcs Find a local dealer
2 608 680 284 14.00 400 460 1 Pcs Find a local dealer
2 608 680 285 16.00 150 210 1 Pcs Find a local dealer
2 608 680 286 16.00 250 310 1 Pcs Find a local dealer
2 608 680 287 16.00 400 460 1 Pcs Find a local dealer
2 608 680 288 18.00 200 260 1 Pcs Find a local dealer
2 608 680 289 18.00 400 460 1 Pcs Find a local dealer
2 608 680 290 20.00 200 260 1 Pcs Find a local dealer
2 608 680 291 20.00 400 460 1 Pcs Find a local dealer
2 608 680 292 22.00 200 260 1 Pcs Find a local dealer
2 608 680 293 22.00 400 460 1 Pcs Find a local dealer
2 608 680 294 25.00 200 260 1 Pcs Find a local dealer
2 608 680 295 25.00 400 460 1 Pcs Find a local dealer

out of products
