Diamond drilling systems

GSB 162-2 RE Professional

Impact Drill

Powerful in every application – even when diamond dry drilling

Very high torque for power-demanding applications
Bosch high-performance motor (1500 W) with high overload capacity for the toughest applications
Optimised speed for fast work progress when non-impact drilling with diamond core cutters up to 162 mm

Functions & key features

Your Selection

in carrying case with auxiliary handle, Accessory

Show variant

Check availability on location

Find a local dealer

Your Selected Variant

in carrying case with auxiliary handle, Accessory 0 601 18B 070

Find a local dealer

GSB 162-2 RE Professional

Your Selection

in carrying case with auxiliary handle, Accessory

Order number: 0 601 18B 070

Find a local dealer

Included in this variant

Voltage 240 V
Keyed chuck 16 mm

Order number: 1 608 571 057

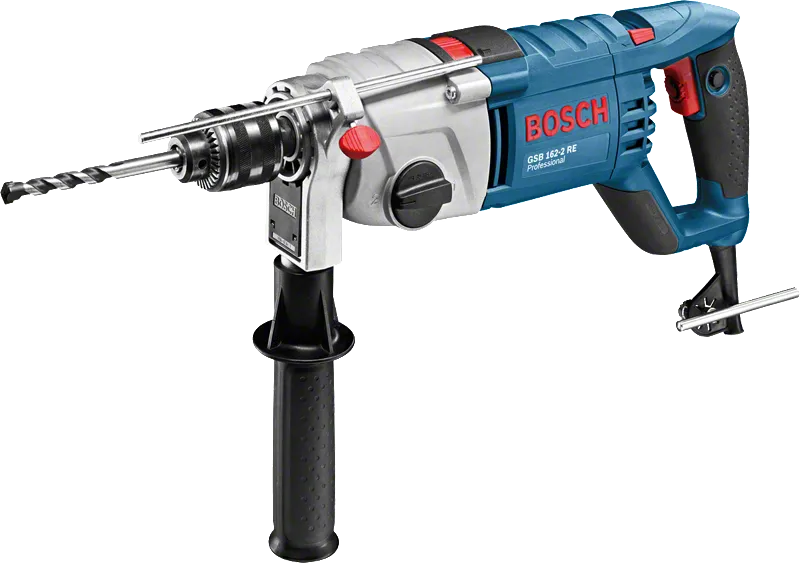

Auxiliary handle

Order number: 2 608 025 205

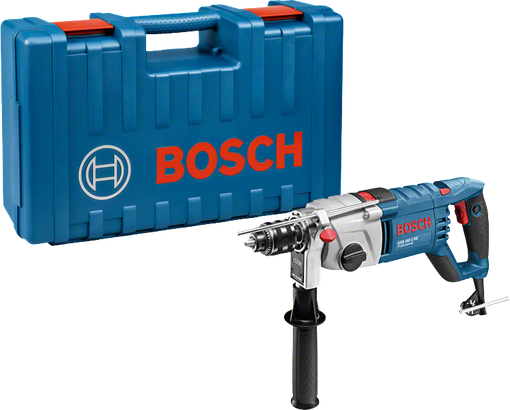

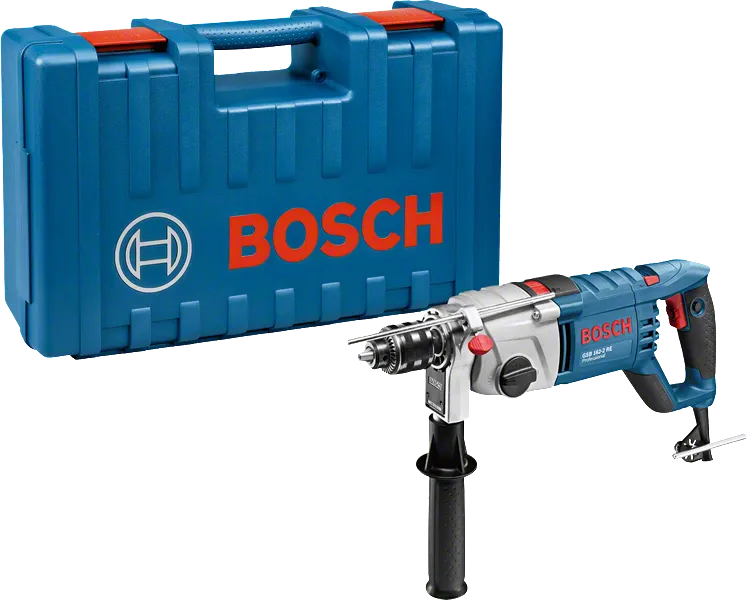

Carrying case
Depth stop (spare part number 2 600 460 045)

Your selection

Technical data

Additional data
Rated input power	1500 W
Voltage, electrical	240 V
Bit holder	5/8"-16 UNF
No-load speed, 1st gear	0 – 750 rpm
No-load speed, 2nd gear	1,800 rpm
Power output	840 W
Weight	4.8 kg
Impact rate at no-load speed	0 – 12,750 / 30,600 bpm
Rated speed	555 / 1,300 rpm
Rated torque	17.0 / 5.0 Nm
Drill spindle connecting thread	5/8"-16 UNF
Chuck capacity, min./max.	3 – 16 mm

Drilling range
Drilling diameter in wood	50 / 32 mm
Drilling diameter in steel	20 / 14 mm
Drilling diameter in masonry	162 / 82 mm

Total vibration values (Drilling in metal)
Vibration emission value ah	6 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Impact drilling in concrete)
Vibration emission value ah	23 m/s²
Uncertainty K	3 m/s²

Total vibration values (Screwdriving)
Vibration emission value ah	1.5 m/s²
Uncertainty K	0 m/s²

Total vibration values (Thread-cutting)
Vibration emission value ah	1.5 m/s²
Uncertainty K	0 m/s²

Drilling in metal
Vibration emission value ah	6 m/s²
Uncertainty K	1.5 m/s²

Impact drilling in concrete
Vibration emission value ah	23 m/s²
Uncertainty K	3 m/s²

Screwdriving
Vibration emission value ah	1.5 m/s²
Uncertainty K	0 m/s²

Thread-cutting
Vibration emission value ah	1.5 m/s²
Uncertainty K	0 m/s²

* You can find more information about the deviations in the following link: Technical features of products

GSB 162-2 RE Professional: Further information

Product Highlights

The GSB 162-2 RE Professional is a high-powered 2-gear corded impact drill designed for the toughest applications including diamond dry-drilling. Its extremely strong 1,500 W motor with a high overload capacity and high torque is ideal for intense and heavy-duty applications. Its speed is specifically optimised to enable a fast drilling progress up to 162 mm in diameter even when using diamond core cutters in the non-impact function. The impact drill’s rotation control clutch ensures an increased level of user protection even when working in the toughest materials.

Equipment & Application

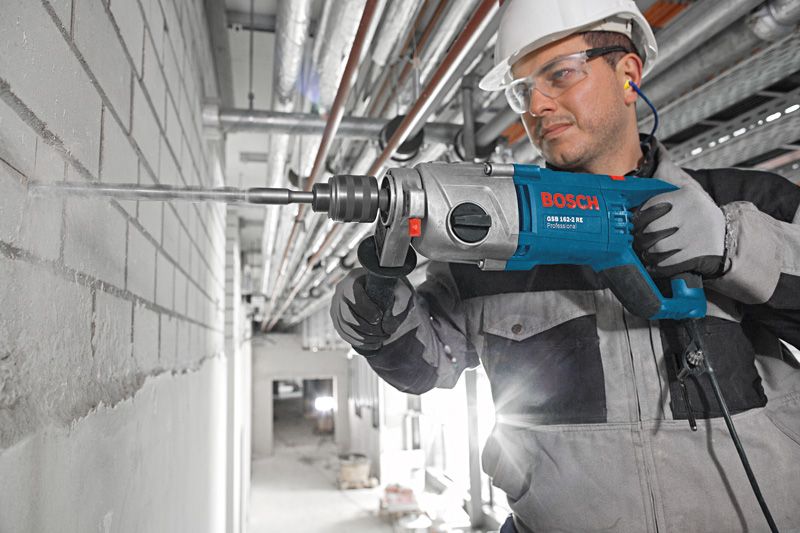

This tool is intended for drilling and diamond dry-drilling in concrete, stone, and masonry.
