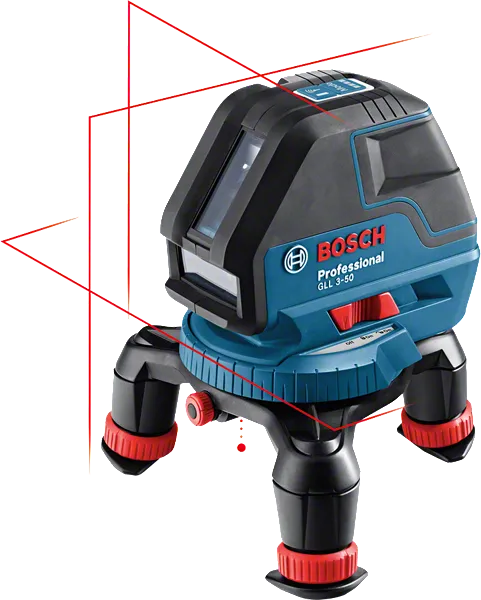

GLL 3-50 Professional
Line Laser
The convenient solution for all standard levelling and transfer applications
- Two vertical laser lines, one horizontal laser line, one plumb dot: ideal for a wide range of jobs such as squaring
- Compact design makes handling simple
- Rotating mini-tripod with height-adjustable feet and fine adjustment of the vertical line offer great flexibility
Functions & key features
Select a variant
Your Selection
Order number: 0 601 063 800

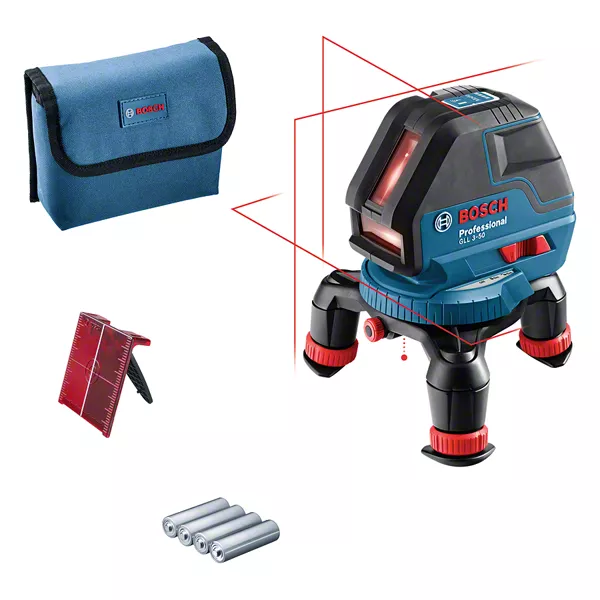

Find a local dealerIncluded in all variants
-
L-BOXX inlay for tool
-
4 x 1.5 V LR6 battery (AA)
-
Laser target plate
Additional in this variant
-
Protective Bag
Your Selection
Order number: 0 601 063 802
Find a local dealerIncluded in all variants
-
L-BOXX inlay for tool
-
4 x 1.5 V LR6 battery (AA)
-
Laser target plate
Additional in this variant
-
L-BOXX 136Order number: 1 600 A01 2G0
-
Universal Holder BM 1 ProfessionalOrder number: 0 601 015 A00

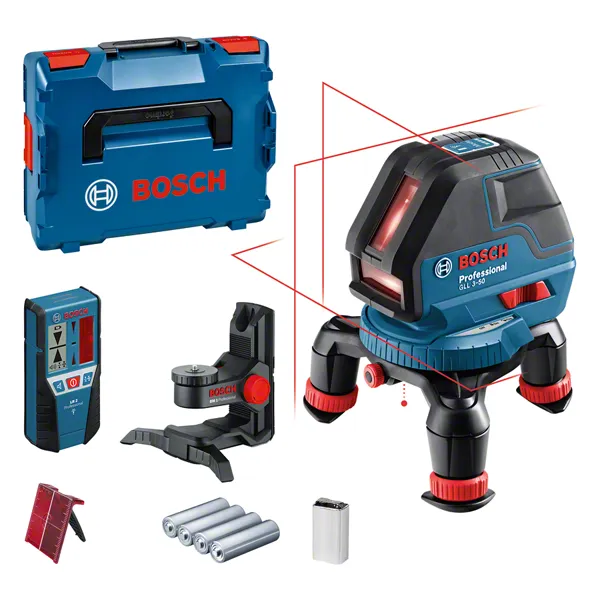

Your Selection
Order number: 0 601 063 803
Find a local dealerIncluded in all variants
-
L-BOXX inlay for tool
-
4 x 1.5 V LR6 battery (AA)
-
Laser target plate
Additional in this variant
-
L-BOXX 136Order number: 1 600 A01 2G0
-
Universal Holder BM 1 ProfessionalOrder number: 0 601 015 A00
-
Laser receiver LR 2 ProfessionalOrder number: 0 601 069 100
-
1 x 9 V block battery (6LR61)
Technical data
Additional data |
|
|---|---|
| Colour of laser line | red |
| Laser diode | 630 – 650 nm, < 1mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range | up to 10 m |
| Working range with receiver | up to 50 m |
| Accuracy | ± 0.3 mm/m* (*plus use-dependent deviation) |
| Working range of laser points, max. | 5 m (bottom) |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 54 |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 6 h |
| Tripod thread | 1/4", 5/8" |
| Weight, approx. | 0.94 kg |
| Color of plumb points | red |
| Projection | 3 lines + 1 plumb point |
| Plumb point accuracy | ± 0.6 mm/m* (*plus use-dependent deviation) |
| Working range, value | 10 m |
| Working range with receiver, value | 50 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
*** Plus use-dependent deviation. You can find more information about the deviations in the following link:
GLL 3-50 Professional: Further information
Product Highlights
Complex levelling made simple – the easy-to-use cross line laser GLL 3-50 Professional is designed for versatility across all standard levelling and transfer applications. The two vertical laser lines, a single horizontal laser line, and the plumb dot make it easy to tackle an impressive range of jobs. Compactly designed, the GLL 3-50 Professional offers comfortable handling and control. For convenient laser line positioning, it comes with a rotating mini-tripod with height-adjustable feet and fine adjustment of the vertical line.
Equipment & Application
It is suitable for various interior applications such as mounting shelves or windows, as well as installing drainage pipes or wall tiles. A second vertical laser line also makes it ideal for quick squaring.
Additional Information
The GLL 3-50 Professional offers laser lines with up to 10 m working range that can be extended up to 50 m by using the optional LR 2 Professional laser receiver. The plumb dot range is up to 5 m. This cross line laser self-levels in less than 4 seconds. It is robust with IP54 dust and splash water protection.
