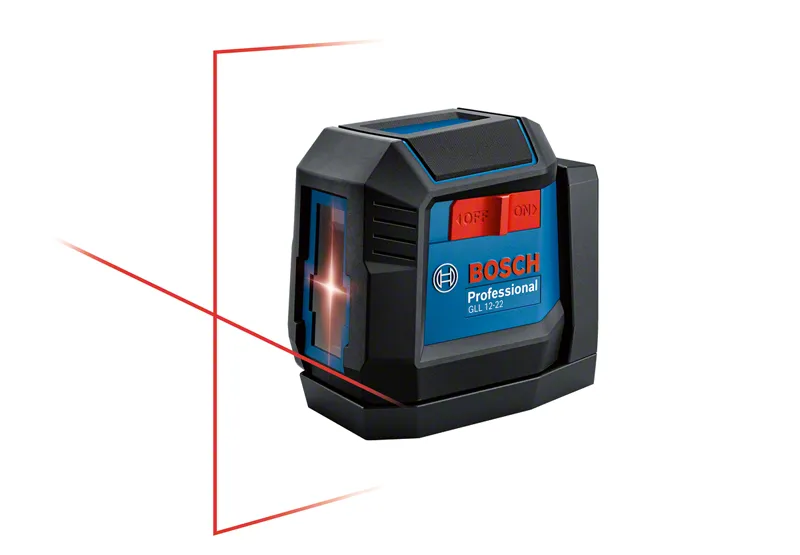

GLL 12-22 Professional
Line Laser
Durable, easy-to-use line laser for reliable levelling
- Rubber-enforced housing with IP55 dust and waterjets protection for withstanding rough conditions
- Integrated rotation mount for fast and stable mounting and for protection during storage and transportation

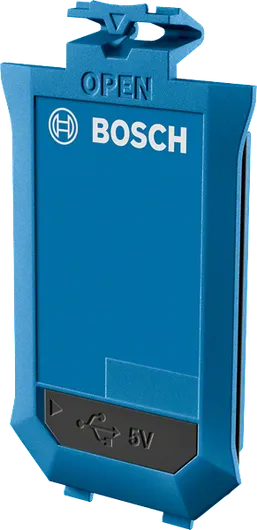

- Flexibility thanks to Dual Power Source technology: 2x AA alkaline batteries or separately available BA 3.7V 1.0Ah A Professional
Functions & key features
GLL 12-22 Professional
Your Selection
Order number: 0 601 065 220

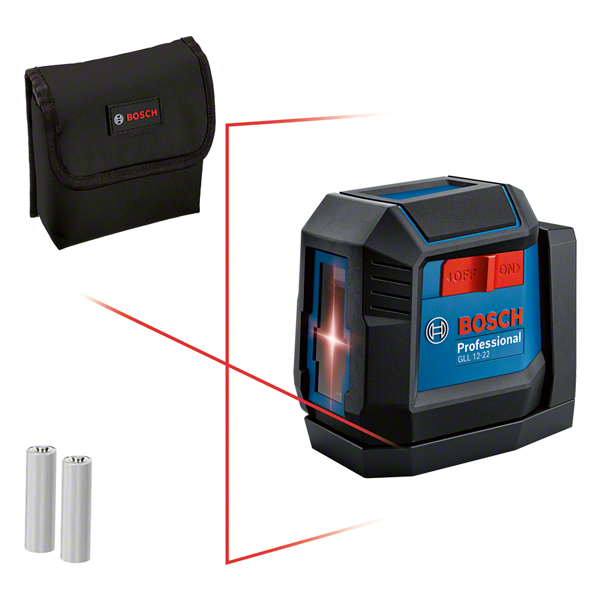

Find a local dealerIncluded in this variant
-
Pouch
-
2 x 1.5 V LR6 battery (AA)
Technical data
Additional data |
|
|---|---|
| Tripod thread | 1/4" |
| Colour of laser line | red |
| Projection | 2 lines |
| Working range | up to 12 m |
| Accuracy | ± 0.8 mm/m* (*plus use-dependent deviation) |
| Dust and splash protection | IP 55 |
| Laser diode | 630 – 650 nm, < 5mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Self-levelling range | ± 3.5° |
| Levelling time | 6 s |
| Power supply | 2 x 1.5 V LR6 (AA), 3.7 V Li-Ion battery (1000 mAh) |
| Operating time (max.) | 10 h |
| Weight, approx. | 0.35 kg |
| Working range, value | 12 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
GLL 12-22 Professional: Further information
Product Highlights

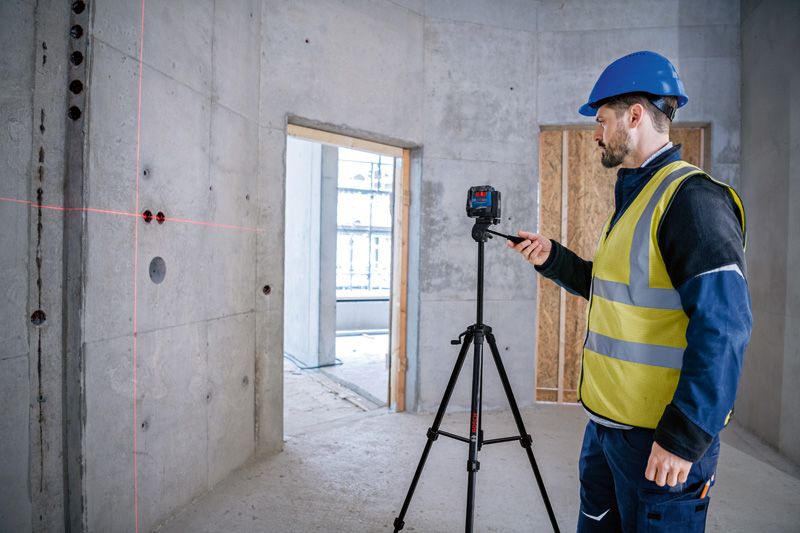

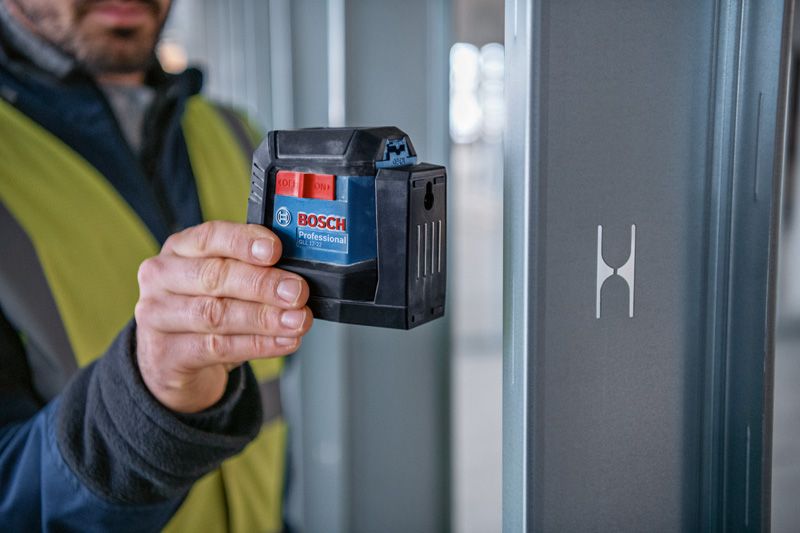

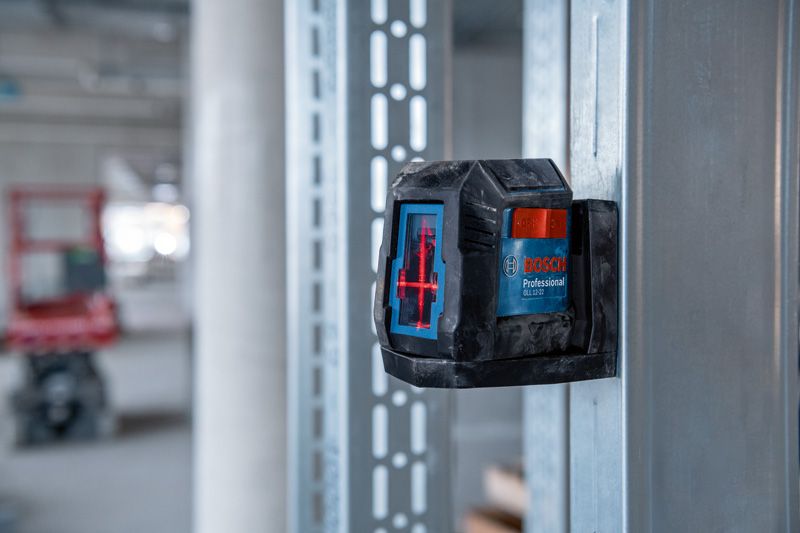

The GLL 12-22 is the tough line laser for quick and accurate alignment on construction sites. This compact tool is built to endure rough conditions. It has rubber-enforced housing with IP55 dust and waterjets protection. An integrated rotation mount with strong magnets ensures stable attachment and also protects the laser glass during storage or transportation. With simple on-off switch operation, the laser enables a working range of up to 12 metres and self-levelling range of +/- 3.5°. This line laser has a Dual Power Source technology and works with 2x AA alkaline batteries or with the additionally available Li-Ion battery pack BA 3.7V 1.0Ah A Professional. This means uninterrupted levelling and enhanced sustainability.
Equipment & Application

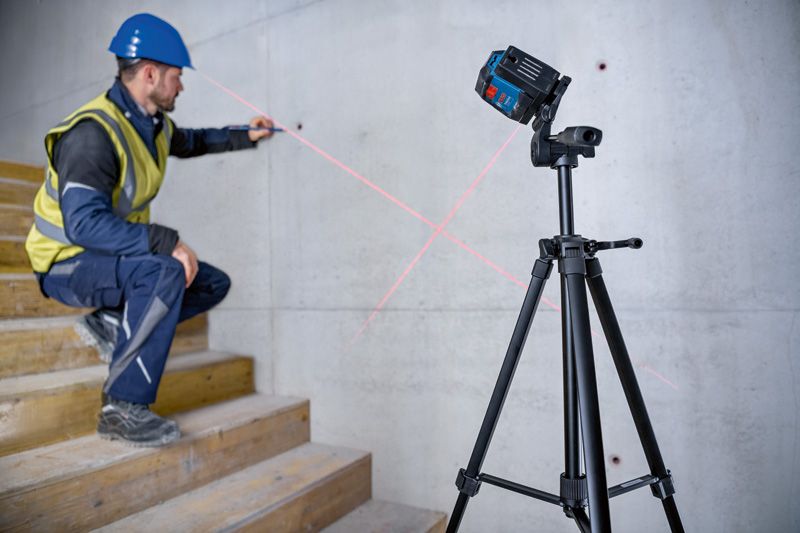

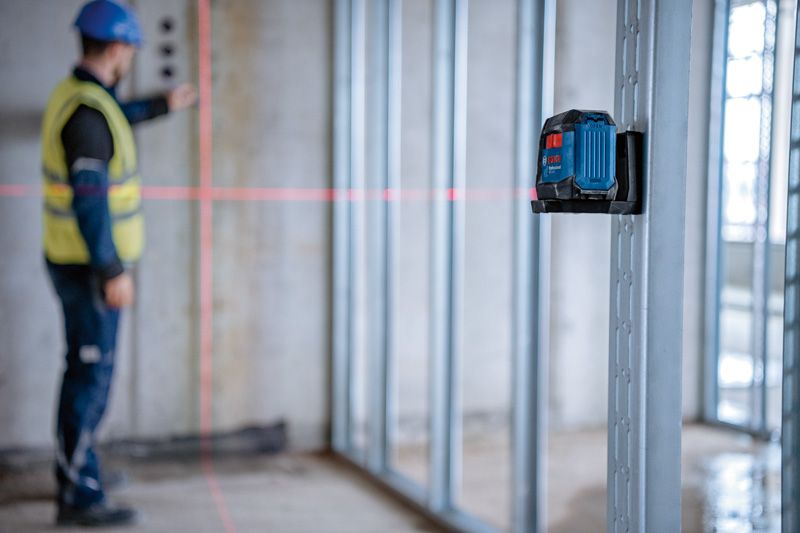

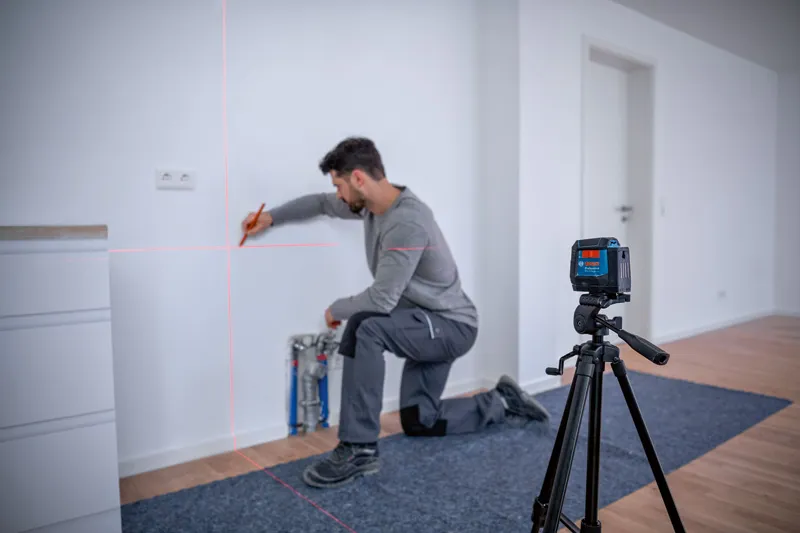

This handy line laser makes accurate levelling easy. It’s ideal for general levelling applications such as precise alignment of electrical switches and for lining up metal and wood studs.
