Thermo cameras & detectors
![GIS 1000 C]( "GIS 1000 C")
![GIS 1000 C]( "GIS 1000 C")
![GIS 1000 C]( "GIS 1000 C")
![GIS 1000 C]( "GIS 1000 C")
![GIS 1000 C]( "GIS 1000 C")
![GIS 1000 C]( "GIS 1000 C")

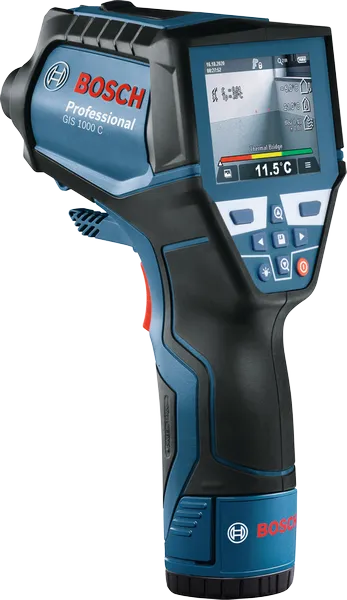

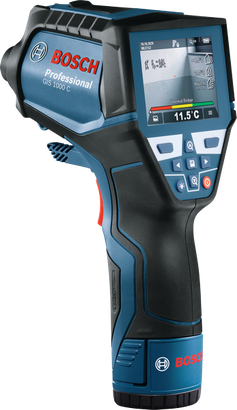

GIS 1000 C Professional
Thermo Detector
The all-round thermo detector for precise and versatile measurements
- Integrated camera instantly shows and documents measured values in photos
- Practical data transfer and storage via Bosch ThermalOn app or USB
- Precise results due to five different modes covering all applications
Functions & key features
Your Selection

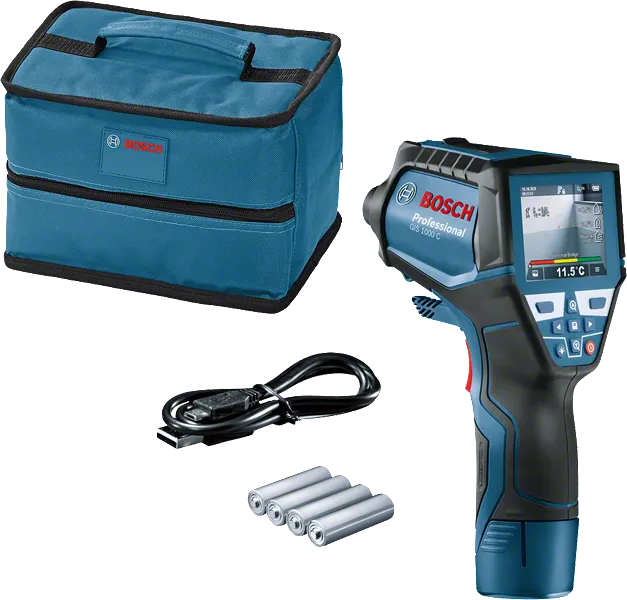

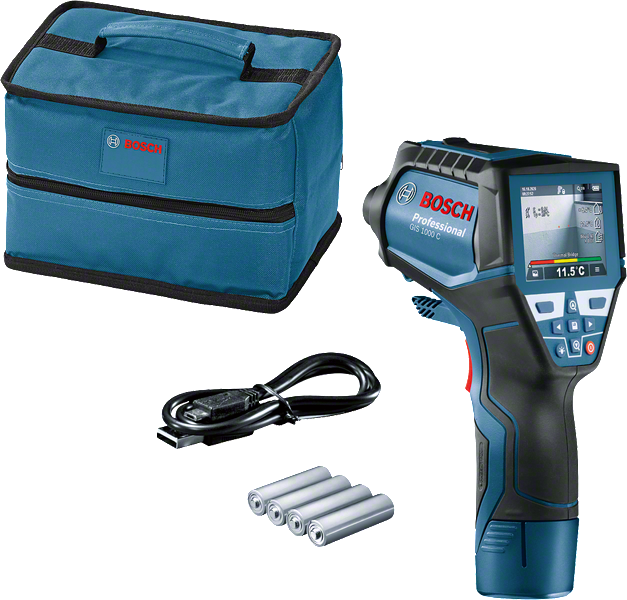

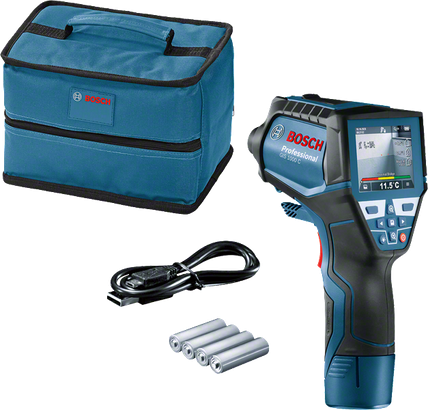

- in carrying bag with 4 x battery (AA), Quick-start card
in carrying bag with 4 x battery (AA), Quick-start card
0 601 083 370
Select a variant
Your Selection
in carrying bag with 4 x battery (AA), Quick-start card
Order number: 0 601 083 370
Find a local dealerIncluded in all variants
-
Micro USB cableOrder number: 2 609 120 670
-
Quick-start card
Additional in this variant
-
4 x 1.5 V LR6 battery (AA)
-
Cardboard box
-
Carrying bag
Your Selection

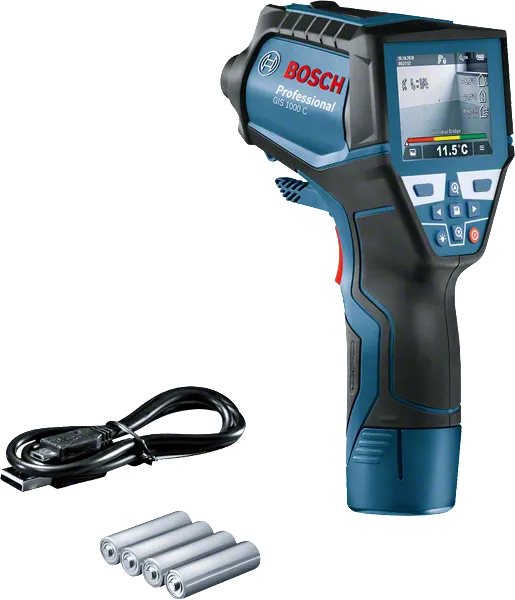

with 4 x battery (AA), adapter
Order number: 0 601 083 300
Find a local dealerIncluded in all variants
-
Micro USB cableOrder number: 2 609 120 670
-
Quick-start card
Additional in this variant
-
4 x 1.5 V LR6 battery (AA)
-
L-BOXX inlay for tool
-
AA1 alkaline battery adapterOrder number: 1 608 M00 C1B
Your Selection

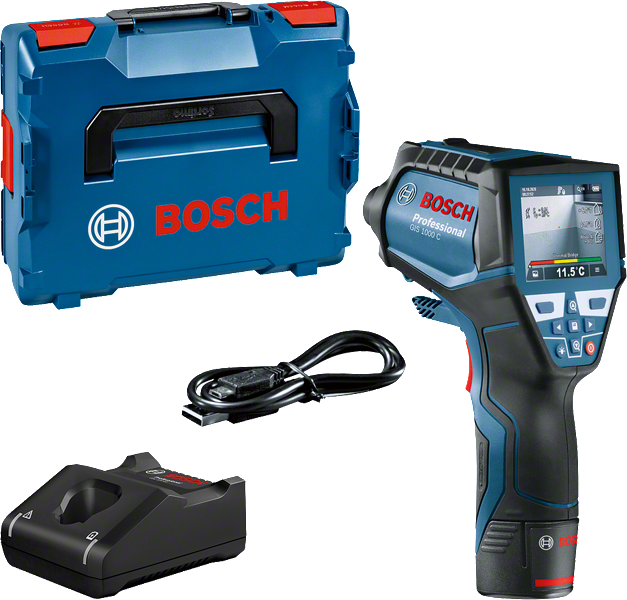

in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Quick-start card
Order number: 0 601 083 301
Find a local dealerIncluded in all variants
-
Micro USB cableOrder number: 2 609 120 670
-
Quick-start card
Additional in this variant
-
L-BOXX inlay for tool
-
L-BOXX 136Order number: 1 600 A01 2G0
-
Quick charger GAL 12V-40 ProfessionalOrder number: 1 600 A01 9R3
-
1 x battery GBA 12V 2.0AhOrder number: 1 600 Z00 02X
Technical data
Additional data |
|
|---|---|
| Data transfer | MicroUSB, Bluetooth™ Smart |
| Measurement range | -40 °C … +1000 °C |
| Measuring accuracy of IR | ± 1.0 °Cᵇ |
| Optics (Ratio of meas. distance : meas. spot) | 50:1 |
| Battery voltage | 12.0 V |
| Resolution | 0.1 °C |
| Measuring accuracy of relative humidity | ± 2%ᶜ |
| Laser diode | Laser class 2, 635 nm |
| Frame buffer (number of images) | >200 |
| Memory type | Internal memory |
| File format of image | .jpg |
| Shock protection | 1 m |
| Weight | 0.56 kg |
| Display type | TFT LCD |
| Size of display | 2,8" |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Working range | 0.1 – 5 m |
| Measuring application | Spot temperature measurement, Thermal bridge, Dew point |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᵇ At >10°C, <100°C, for other surface temperatures, see
ᶜ At >0°C, <100°C, for other surface temperatures, see
GIS 1000 C Professional: Further information
Product Highlights

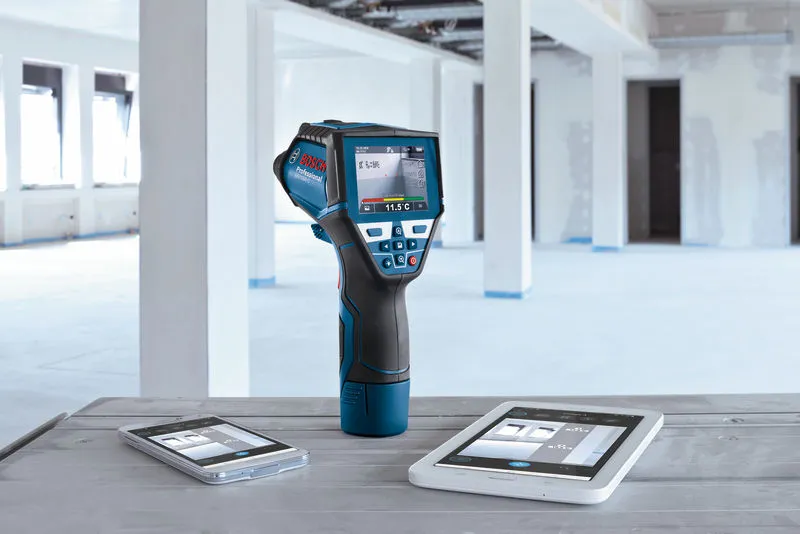

The thermo detector GIS 1000 C Professional is the swift solution for precise reading and documentation of temperatures and relative humidity. While recording measurements, the device’s integrated camera conveniently captures images for instant display with the relevant values. Detailed data is quickly documented and can be shared to remote devices thanks to the Bosch ThermalOn app via Bluetooth® connection. The thermo detector delivers a temperature recording, offering professionals five different modes for complex surface and contact temperatures (with integrated K-type functionality), dew point and thermal bridge calculations, and a user mode for custom values.
Equipment & Application

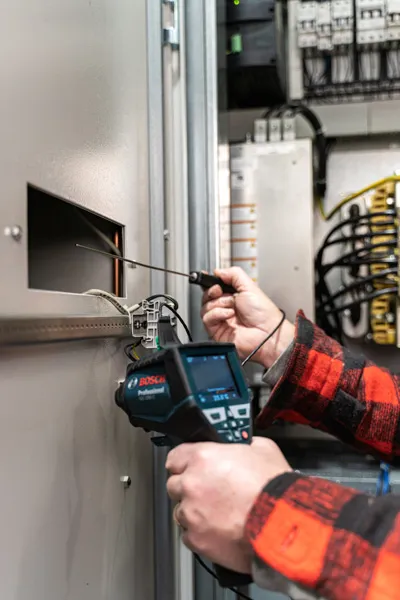

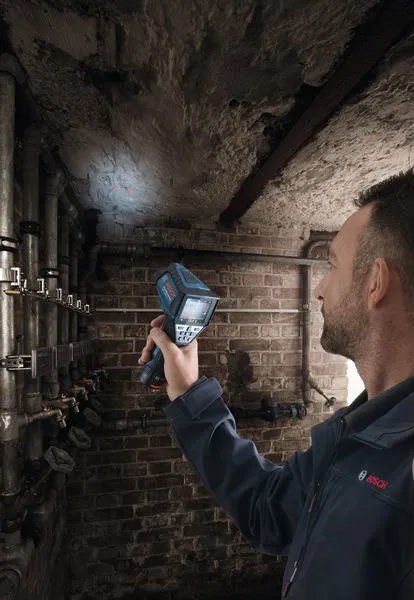

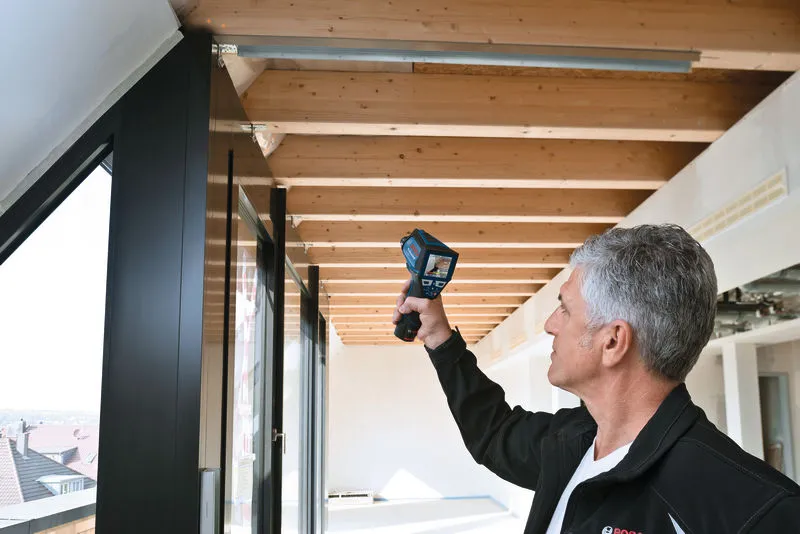

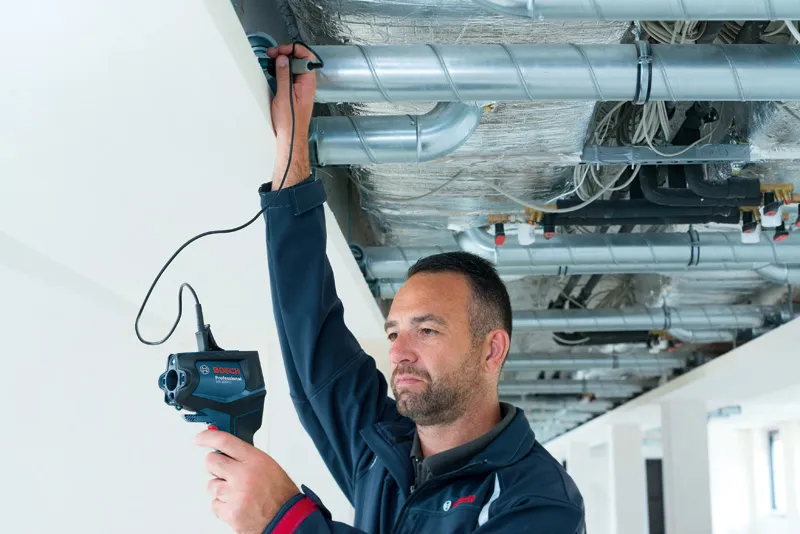

Professionals can use the thermo detector in a range of applications, from determining mould risk to checking thermal bridges, as well as for accurate contact measurement of reflective surfaces, liquids, and direct air temperature.
Additional Information
Along with measuring surface and contact temperatures, the GIS 1000 C Professional´s ambient sensor also quickly monitors surrounding conditions for precise measurement of room temperature and relative humidity, enabling an even wider range of applications. A straightforward user interface allows intuitive operation and delivers high-accuracy results on a wide measurement range. The GIS 1000 C Professional is not suitable for medical purposes.
