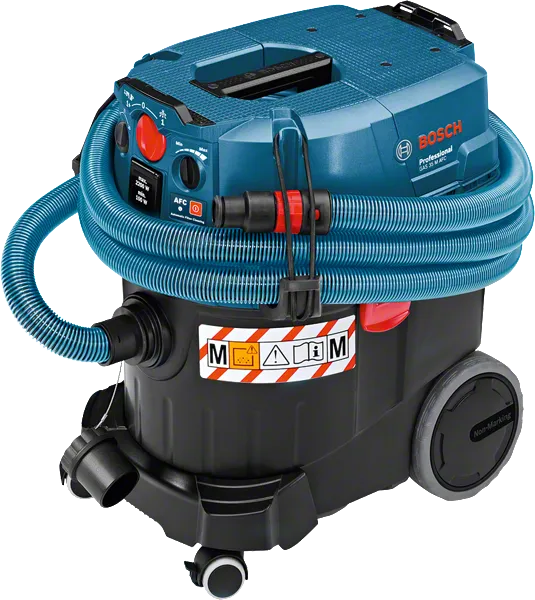

GAS 35 M AFC Professional

Corded Dust Extractor

The versatile wet/dry dust extractor with automatic filter cleaning

  • L-BOXX can be clicked onto it to provide a practical transport and storage solution for mobile use
  • Sustained suction power for continuous work progress due to automatic filter cleaning (AFC)
  • Certified safety dust extractor that meets dust class M in accordance with the EU standard, covering the majority of types of dust to provide a high level of user protection

Functions & key features

Dust class M
Most comfortable and easy filter cleaning thanks to automatic filter cleaning (every 15 sec) while having constant suction power for continuous work progress
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster Harmful dust is extracted immediately: Protects your health Less dust: Longer lifetime of tool and accessories

Your Selection

  • with nozzle
Show variant
Check availability on location
Find a local dealer
with nozzle 0 601 9C3 100
Find a local dealer

GAS 35 M AFC Professional

Your Selection

GAS 35 M AFC
with nozzle

Order number: 0 601 9C3 100

Find a local dealer

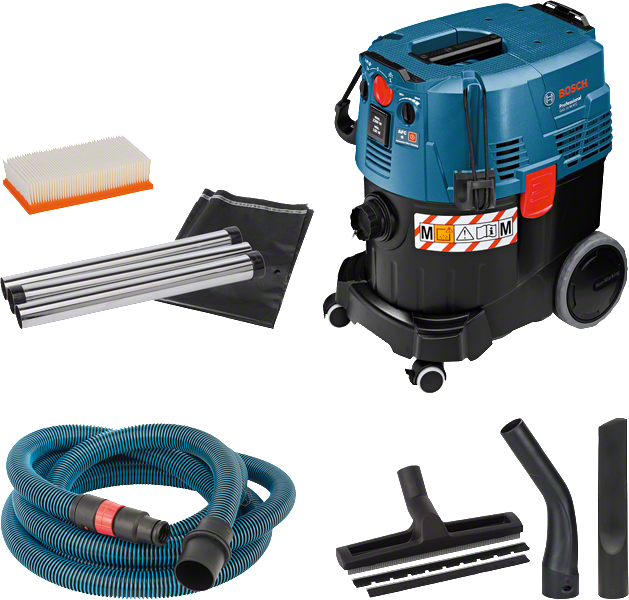

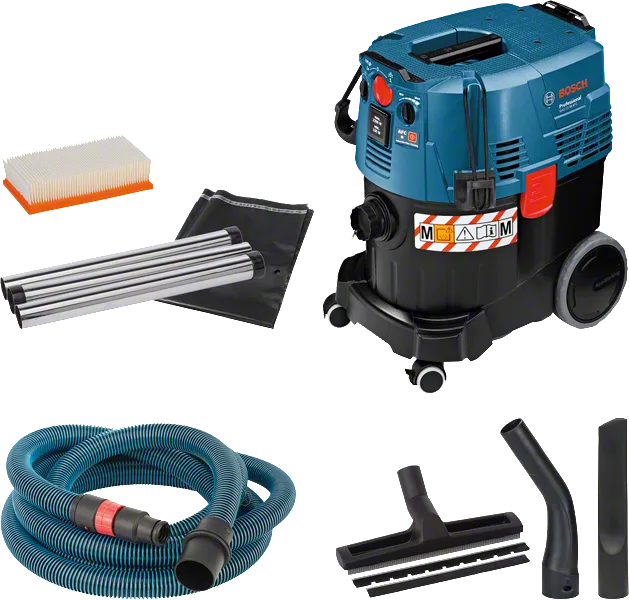

Included in this variant

  • 5 m hose, 35 mm diameter, antistatic, with power tool adapter
    Order number: 2 608 000 566
  • 3 x 0.35 m chrome-plated suction tube, 35 mm diameter
    Order number: 2 608 000 575
  • Floor nozzle set, 35 mm diameter
    Order number: 1 609 390 478
  • Disposal bag
    Order number: 2 607 432 043
  • 1 x PES flat-pleated filter
    Order number: 2 607 432 034
  • Crevice nozzle, 35 mm diameter
    Order number: 2 607 000 165
  • Elbow
    Order number: 2 608 000 573
Your selection

Technical data

Additional data

Rated input power
1,200 W
Weight
12.4 kg
Container volume, net
23 l
Voltage, electrical
230 V
Container volume, gross
35 l
Dust class of wet/dry extractor
M
Dust class
M
Filter surface area
6,150 cm²
Airflow rate (turbine)
74 l/s
Vacuum pressure (turbine)
254 mbar
Plug Type
Type F
Filter cleaning system
AFC
Anti-static hose
Yes
Line input power turbine, max
1,380 W
Container volume, net, water
19.2 l
GAS 35 M AFC

* You can find more information about the deviations in the following link: Technical features of products

Downloads

User Manual

Insert | Herstellergarantie (EU) | Manufacturer's guarantee (EU) (PDF 0.3 MB) Instruction manual | GAS 35 M AFC (PDF 7.7 MB) Instruction manual | GAS 35 M AFC (Online version)
Product data sheet Product data sheet | GAS 35 M AFC (PDF 1.5 MB)
