Masonry & Concrete Drill Bits
EXPERT
Object #200344207: <!-- language missing -->
Object #200344206: <!-- language missing -->
Object #200360541: <!-- language missing -->
Object #200360542: <!-- language missing -->
Object #200360543: <!-- language missing -->
Object #200360544: <!-- language missing -->
Object #200514960: <!-- language missing -->
Object #200344207: <!-- language missing -->
Object #200344206: <!-- language missing -->
EXPERT SDS plus-7X
Object #200360541: <!-- language missing -->
Object #200360542: <!-- language missing -->
Object #200360543: <!-- language missing -->
Object #200360544: <!-- language missing -->
Object #200514960: <!-- language missing -->

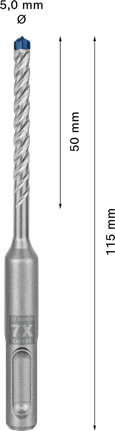

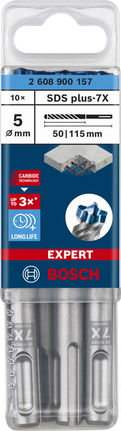

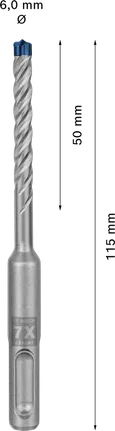

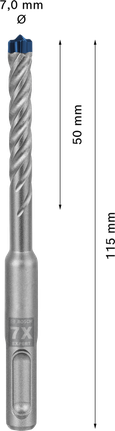

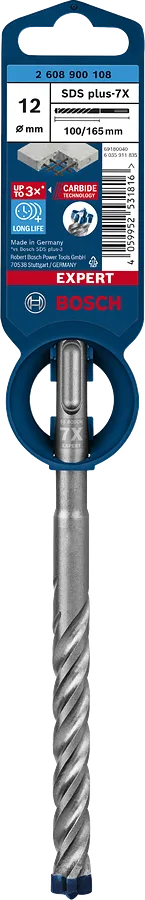

EXPERT SDS plus-7X Hammer Drill Bit

For rotary hammer drills

EXPERT SDS plus-7X

Lasts up to 3x longer than Bosch SDS plus-3 Drill Bit

Test results
  • Long Life drilling reinforced concrete
  • Exceptionally durable drill bit tip with Bosch Carbide Technology
  • Punch through reinforced concrete with a 4-cutter full carbide head
  • Fits all SDS plus rotary hammer drills

Materials

Soft stone
Hard stone
Concrete
Reinforced concrete
Concrete building block

Select options

Diameter (D) mm

Working length mm

Total length mm

Choose a pack size

Select options

Diameter (D) mm 24 options

Working length mm 9 options

Total length mm 11 options

Choose a pack size 4 options

Available product options (140)
EXPERT SDS plus-7X Hammer Drill Bit
from

Long Life drilling reinforced concrete

Long Life drilling reinforced concrete
  • 1

    Exceptionally durable drill bit tip with Bosch Carbide Technology

  • 2

    Punch through reinforced concrete with a 4-cutter full carbide head

  • 3

    Highly resistant drill tip connection thanks to Bosch’s special welding process

Carbide Technology
For rotary hammer drills

Fits tools of most brands

imageAlt
imageAlt
imageAlt

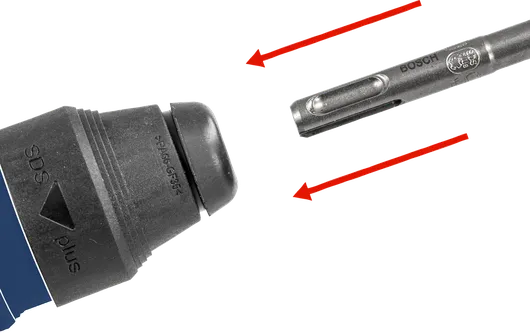

Fits all SDS plus rotary hammer drills

EXPERT
Advantage

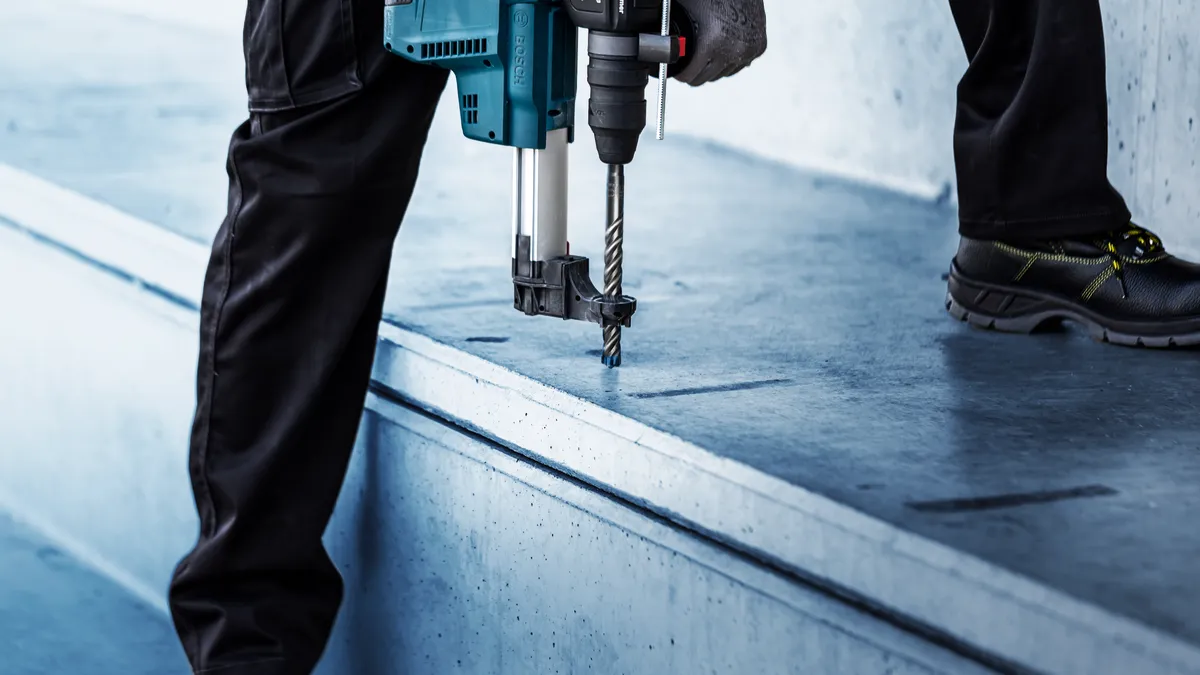

Drill Concrete Like an Expert

EXPERT SDS plus-7X for Long Life Drilling Reinforced Concrete

Drilling through reinforced concrete is a tough job, and it has traditionally taken its toll on drill bits. Regular two-cutter bits get stuck in rebar and they eventually break. The Full Carbide Head on the EXPERT SDS plus-7X is an advanced 4-cutter design made from a single piece of the toughest metal: It doesn’t jam and presents no weakness on impact.

View more
imageAlt

Product Options

Available product options: 140

Part number Diameter (D) mm Working length mm Total length mm Pack quantity
2 608 900 055 3.50 50 115 1 Pcs Find a local dealer
2 608 900 056 3.50 100 165 1 Pcs Find a local dealer

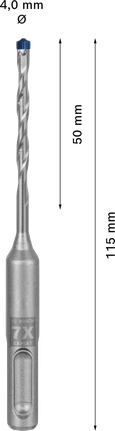

2 608 900 057 4.00 50 115 1 Pcs Find a local dealer
2 608 900 058 4.00 100 165 1 Pcs Find a local dealer
2 608 900 059 5.00 50 115 1 Pcs Find a local dealer
2 608 900 060 5.00 100 165 1 Pcs Find a local dealer
2 608 900 061 5.00 150 215 1 Pcs Find a local dealer
2 608 900 062 5.00 200 265 1 Pcs Find a local dealer
2 608 900 063 5.00 250 315 1 Pcs Find a local dealer
2 608 900 064 5.00 400 465 1 Pcs Find a local dealer

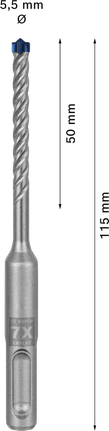

2 608 900 065 5.50 50 115 1 Pcs Find a local dealer
2 608 900 066 5.50 100 165 1 Pcs Find a local dealer
2 608 900 067 5.50 150 215 1 Pcs Find a local dealer
2 608 900 068 5.50 200 265 1 Pcs Find a local dealer
2 608 900 069 5.50 250 315 1 Pcs Find a local dealer
2 608 900 070 5.50 400 465 1 Pcs Find a local dealer
2 608 900 071 6.00 50 115 1 Pcs Find a local dealer
2 608 900 072 6.00 100 165 1 Pcs Find a local dealer
2 608 900 073 6.00 150 215 1 Pcs Find a local dealer
2 608 900 074 6.00 200 265 1 Pcs Find a local dealer
2 608 900 075 6.00 250 315 1 Pcs Find a local dealer
2 608 900 076 6.00 400 465 1 Pcs Find a local dealer

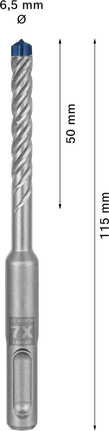

2 608 900 077 6.50 50 115 1 Pcs Find a local dealer
2 608 900 078 6.50 100 165 1 Pcs Find a local dealer
2 608 900 079 6.50 150 215 1 Pcs Find a local dealer
2 608 900 080 6.50 200 265 1 Pcs Find a local dealer
2 608 900 081 6.50 250 315 1 Pcs Find a local dealer
2 608 900 082 6.50 400 465 1 Pcs Find a local dealer
2 608 900 083 7.00 50 115 1 Pcs Find a local dealer
2 608 900 084 7.00 100 165 1 Pcs Find a local dealer
2 608 900 085 7.00 150 215 1 Pcs Find a local dealer
2 608 900 086 7.00 200 265 1 Pcs Find a local dealer
2 608 900 087 8.00 50 115 1 Pcs Find a local dealer
2 608 900 088 8.00 100 165 1 Pcs Find a local dealer
2 608 900 089 8.00 150 215 1 Pcs Find a local dealer
2 608 900 090 8.00 200 265 1 Pcs Find a local dealer
2 608 900 091 8.00 250 315 1 Pcs Find a local dealer
2 608 900 092 8.00 300 365 1 Pcs Find a local dealer
2 608 900 093 8.00 400 465 1 Pcs Find a local dealer
2 608 900 094 9.00 100 165 1 Pcs Find a local dealer
2 608 900 095 9.00 150 215 1 Pcs Find a local dealer
2 608 900 096 10.00 50 115 1 Pcs Find a local dealer
2 608 900 097 10.00 100 165 1 Pcs Find a local dealer
2 608 900 098 10.00 150 215 1 Pcs Find a local dealer
2 608 900 099 10.00 200 265 1 Pcs Find a local dealer
2 608 900 100 10.00 250 315 1 Pcs Find a local dealer
2 608 900 101 10.00 300 365 1 Pcs Find a local dealer
2 608 900 102 10.00 400 465 1 Pcs Find a local dealer
2 608 900 103 10.00 550 600 1 Pcs Find a local dealer
2 608 900 104 10.00 950 1000 1 Pcs Find a local dealer
2 608 900 105 11.00 100 165 1 Pcs Find a local dealer
2 608 900 106 11.00 150 215 1 Pcs Find a local dealer
2 608 900 107 11.00 200 265 1 Pcs Find a local dealer
2 608 900 108 12.00 100 165 1 Pcs Find a local dealer
2 608 900 109 12.00 150 215 1 Pcs Find a local dealer
2 608 900 110 12.00 200 265 1 Pcs Find a local dealer
2 608 900 111 12.00 250 315 1 Pcs Find a local dealer
2 608 900 112 12.00 300 365 1 Pcs Find a local dealer
2 608 900 113 12.00 400 465 1 Pcs Find a local dealer
2 608 900 114 12.00 550 600 1 Pcs Find a local dealer
2 608 900 115 12.00 950 1000 1 Pcs Find a local dealer
2 608 900 116 13.00 100 165 1 Pcs Find a local dealer
2 608 900 117 13.00 150 215 1 Pcs Find a local dealer
2 608 900 118 13.00 200 265 1 Pcs Find a local dealer
2 608 900 119 14.00 100 165 1 Pcs Find a local dealer
2 608 900 120 14.00 150 215 1 Pcs Find a local dealer
2 608 900 121 14.00 200 265 1 Pcs Find a local dealer
2 608 900 122 14.00 250 315 1 Pcs Find a local dealer
2 608 900 123 14.00 300 365 1 Pcs Find a local dealer
2 608 900 124 14.00 400 465 1 Pcs Find a local dealer
2 608 900 125 14.00 550 600 1 Pcs Find a local dealer
2 608 900 126 14.00 950 1000 1 Pcs Find a local dealer
2 608 900 127 15.00 100 165 1 Pcs Find a local dealer
2 608 900 128 15.00 200 265 1 Pcs Find a local dealer
2 608 900 129 15.00 400 465 1 Pcs Find a local dealer
2 608 900 130 16.00 150 215 1 Pcs Find a local dealer
2 608 900 131 16.00 200 265 1 Pcs Find a local dealer
2 608 900 132 16.00 250 315 1 Pcs Find a local dealer
2 608 900 133 16.00 400 465 1 Pcs Find a local dealer
2 608 900 134 16.00 550 600 1 Pcs Find a local dealer
2 608 900 135 16.00 950 1000 1 Pcs Find a local dealer
2 608 900 136 17.00 150 215 1 Pcs Find a local dealer
2 608 900 137 17.00 250 315 1 Pcs Find a local dealer
2 608 900 138 18.00 200 250 1 Pcs Find a local dealer
2 608 900 139 18.00 400 450 1 Pcs Find a local dealer
2 608 900 140 18.00 550 600 1 Pcs Find a local dealer
2 608 900 141 18.00 950 1000 1 Pcs Find a local dealer
2 608 900 142 20.00 200 250 1 Pcs Find a local dealer
2 608 900 143 20.00 400 450 1 Pcs Find a local dealer
2 608 900 144 20.00 550 600 1 Pcs Find a local dealer
2 608 900 145 20.00 950 1000 1 Pcs Find a local dealer
2 608 900 146 22.00 200 250 1 Pcs Find a local dealer
2 608 900 147 22.00 400 450 1 Pcs Find a local dealer
2 608 900 148 22.00 550 600 1 Pcs Find a local dealer
2 608 900 149 22.00 950 1000 1 Pcs Find a local dealer
2 608 900 150 24.00 400 450 1 Pcs Find a local dealer
2 608 900 151 25.00 400 450 1 Pcs Find a local dealer
2 608 900 152 25.00 550 600 1 Pcs Find a local dealer
2 608 900 153 25.00 950 1000 1 Pcs Find a local dealer
2 608 900 154 28.00 400 450 1 Pcs Find a local dealer
2 608 900 155 30.00 400 450 1 Pcs Find a local dealer
2 608 900 156 4.00 50 115 10 Pcs Find a local dealer
2 608 900 157 5.00 50 115 10 Pcs Find a local dealer
2 608 900 158 5.00 100 165 10 Pcs Find a local dealer

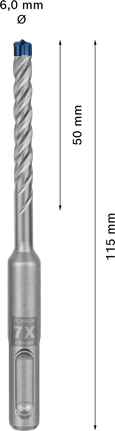

2 608 900 159 6.00 50 115 10 Pcs Find a local dealer
2 608 900 160 6.00 100 165 10 Pcs Find a local dealer
2 608 900 161 6.00 150 215 10 Pcs Find a local dealer
2 608 900 162 6.00 200 265 10 Pcs Find a local dealer
2 608 900 163 6.50 100 165 10 Pcs Find a local dealer
2 608 900 164 6.50 150 215 10 Pcs Find a local dealer
2 608 900 165 6.50 200 265 10 Pcs Find a local dealer
2 608 900 166 7.00 100 165 10 Pcs Find a local dealer
2 608 900 167 8.00 100 165 10 Pcs Find a local dealer
2 608 900 168 8.00 150 215 10 Pcs Find a local dealer
2 608 900 169 8.00 200 265 10 Pcs Find a local dealer
2 608 900 170 10.00 100 165 10 Pcs Find a local dealer
2 608 900 171 10.00 150 215 10 Pcs Find a local dealer
2 608 900 172 10.00 200 265 10 Pcs Find a local dealer
2 608 900 173 12.00 100 165 10 Pcs Find a local dealer
2 608 900 174 12.00 150 215 10 Pcs Find a local dealer
2 608 900 175 12.00 200 265 10 Pcs Find a local dealer
2 608 900 176 14.00 200 265 10 Pcs Find a local dealer
2 608 900 177 16.00 200 265 10 Pcs Find a local dealer

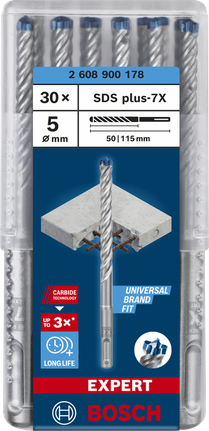

2 608 900 178 5.00 50 115 30 Pcs Find a local dealer
2 608 900 179 5.00 100 165 30 Pcs Find a local dealer
2 608 900 180 6.00 50 115 30 Pcs Find a local dealer
2 608 900 181 6.00 100 165 30 Pcs Find a local dealer
2 608 900 182 6.00 150 215 30 Pcs Find a local dealer
2 608 900 183 8.00 100 165 30 Pcs Find a local dealer

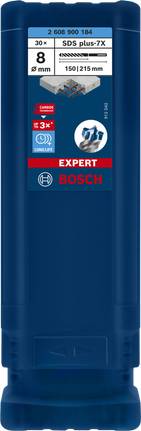

2 608 900 184 8.00 150 215 30 Pcs Find a local dealer
2 608 900 185 8.00 200 265 30 Pcs Find a local dealer
2 608 900 186 10.00 100 165 30 Pcs Find a local dealer
2 608 900 187 10.00 150 215 30 Pcs Find a local dealer
2 608 900 188 10.00 200 265 30 Pcs Find a local dealer
2 608 900 189 12.00 150 215 30 Pcs Find a local dealer
2 608 900 190 12.00 200 265 30 Pcs Find a local dealer

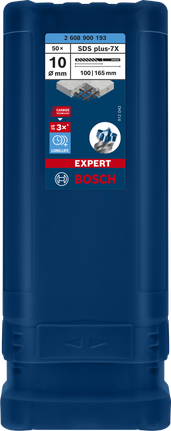

2 608 900 191 6.00 100 165 50 Pcs Find a local dealer
2 608 900 192 8.00 100 165 50 Pcs Find a local dealer
2 608 900 193 10.00 100 165 50 Pcs Find a local dealer
2 608 900 194 10.00 150 215 50 Pcs Find a local dealer
