GTL 3 Professional
Tile Laser
Fast tile laying due to additional line at 45°

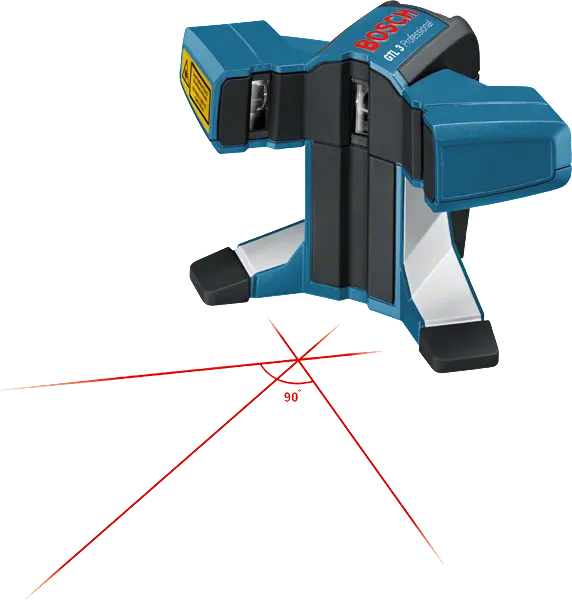

- In addition to the two laser lines at a 90° angle, it projects a third line at 45° for precise and fast alignment and laying of wall and floor tiles
- High accuracy of 0.2 mm/m
- Compact and lightweight design for optimum ease of use
Functions & key features
Your Selection
- with 4 x battery (AA), accessory set
849.00 QAR
Recommended retail price excluding VAT
with 4 x battery (AA), accessory set
0 601 015 200
GTL 3 Professional
Your Selection
with 4 x battery (AA), accessory set
Order number: 0 601 015 200
849.00 QAR
Recommended retail price excluding VAT

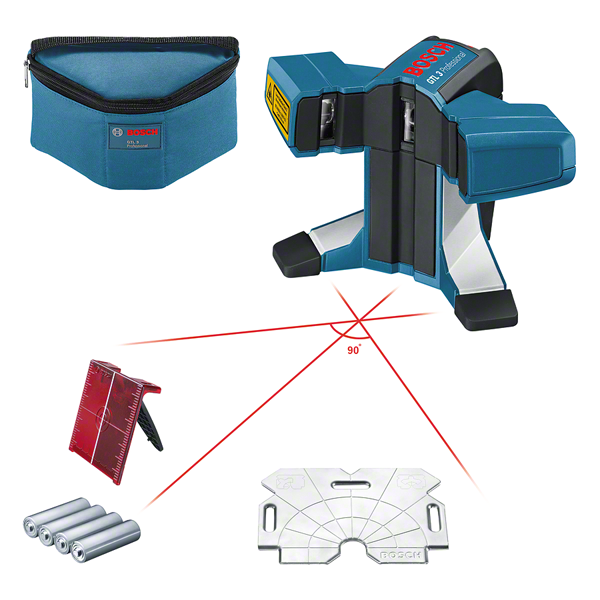

Included in this variant
-
Alignment disc
-
Protective Bag
-
4 x 1.5 V LR6 battery (AA)
-
Laser target plate
Technical data
Additional data |
|
|---|---|
| Projection | 3 lines |
| Working range | 20 m |
| Dust and splash protection | IP 54 |
| Laser diode | 630 – 650 nm |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range with target plate | 20 m |
| Angular accuracy (between 0 – 90° angle) | ±0.2 mm/m* (*plus use-dependent deviation) |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 18 h in 2-line mode, 12 h in 3-line mode |
| Weight, approx. | 0.44 kg |
| Working range, value | 20 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
