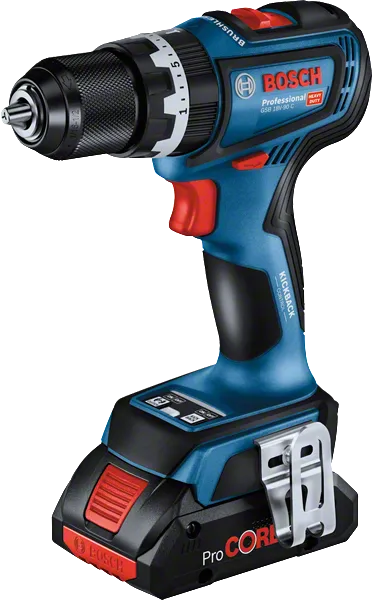

GSB 18V-90 C Professional
Cordless Combi
Powerful cordless impact drill with compact head length and perfect tool control
- Powerful brushless motor delivers high power with 64 Nm and 2,100 rpm maximising your efficiency on the job site
- 13-mm metal chuck ensures increased robustness and great torque transfer for every job
- Switchable Kickback Control and switchable Precision Clutch ensure perfect control and high protection for user and tool
Functions & key features
Your Selection

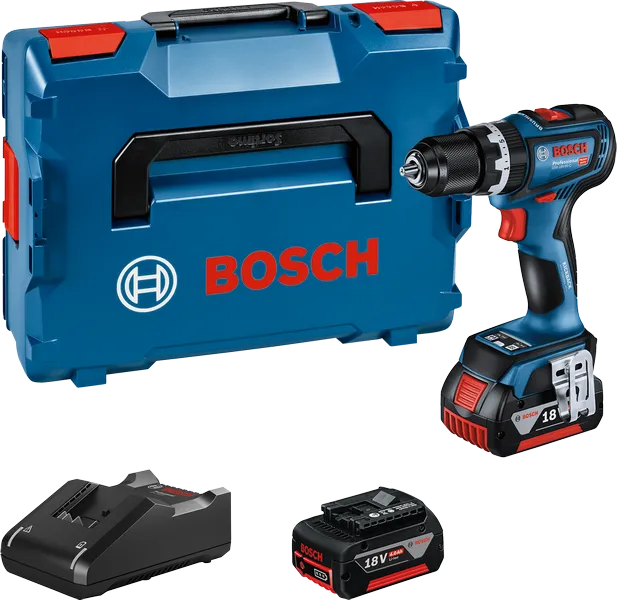

- in L-BOXX 136 with 2 x 4.0 Ah Li-ion battery, quick charger
Select a variant
Your Selection
Order number: 0 601 9K6 103
Find a local dealerIncluded in this variant
-
L-BOXX 136Order number: 1 600 A01 2G0
-
1/1 L-BOXX inlay for toolOrder number: 1 600 A02 K83
-
2 x battery GBA 18V 4.0AhOrder number: 1 600 Z00 038
-
Quick charger GAL 18V-40 ProfessionalOrder number: 1 600 A01 9RJ
Your Selection
Your Selection
Order number: 0 601 9K6 171
Find a local dealerIncluded in this variant
-
L-BOXX 136Order number: 1 600 A01 2G0
-
1/1 L-BOXX inlay for toolOrder number: 1 600 A02 K83
-
2 x battery GBA 18V 4.0AhOrder number: 1 600 Z00 038
-
Quick charger GAL 18V-40 ProfessionalOrder number: 1 600 A01 9RK
Technical data
Additional data |
|
|---|---|
| Torque (soft/hard/max.) | 36/64/- Nm |
| No-load speed (1st gear / 2nd gear) | 0 – 630 / 0 – 2,100 rpm |
| Battery voltage | 18.0 V |
| Max. impact rate | 29,500 bpm |
| Chuck capacity, min./max. | 1.5 / 13 mm |
| Weight excl. battery | 1.2 kg |
| Torque settings | 21 |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 99 dB(A); Sound power level 88 dB(A). Uncertainty K= 5 dB.
* You can find more information about the deviations in the following link:
GSB 18V-90 C Professional: Further information
Product Highlights

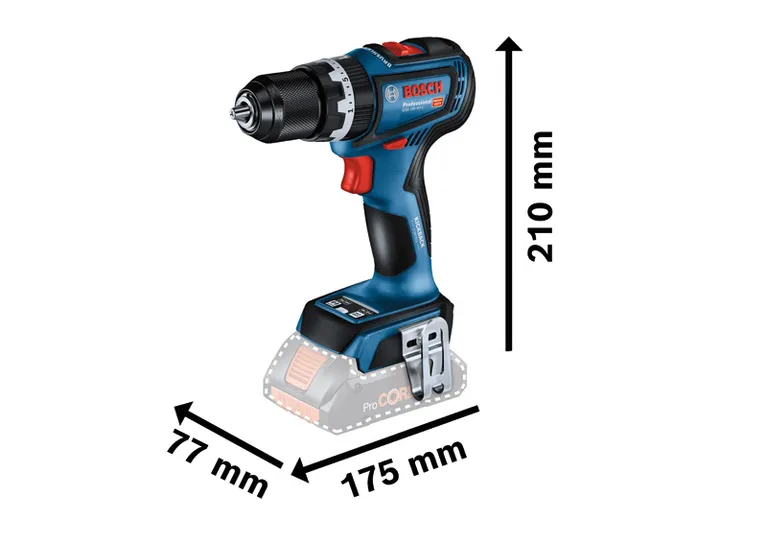

The GSB 18V-90 C Professional is a powerful cordless impact drill with a brushless motor that delivers top performance with 64 Nm and 2,100 rpm. Its compact head length of 175 mm provides perfect tool handiness. The robust 13-mm metal chuck ensures great torque transfer for every job. The impact drill holds a very high level of tool control for both, increased user health and tool protection: The HMI offers switchable Kickback Control to reduce the risk of sudden rotational torque reaction in a bind-up scenario. A switchable Precision Clutch stops the overriding once a preset torque level is reached and, thus, reduces the wear and tear of the clutch and the resulting noise.
Equipment & Application
The tool is intended for drilling in wood with a maximum diameter of 68 mm and in steel and masonry with up to 13 mm each. The GSB 18V-90 C Professional is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System).
