Nibblers
GNA 75-16
GNA 75-16
GNA 75-16
GNA 75-16
GNA 75-16
GNA 75-16
1/7

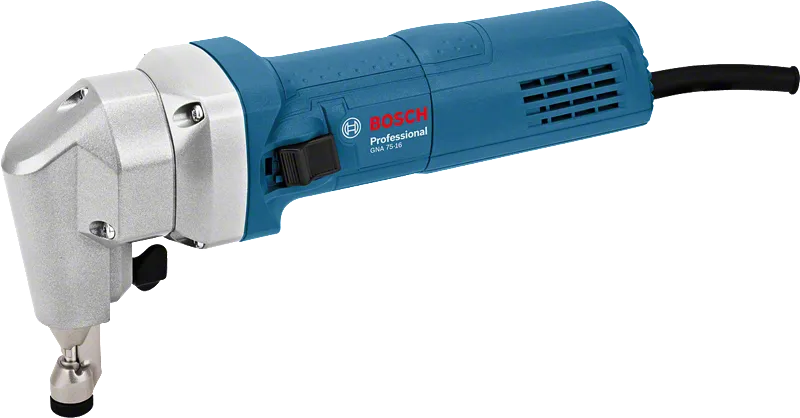

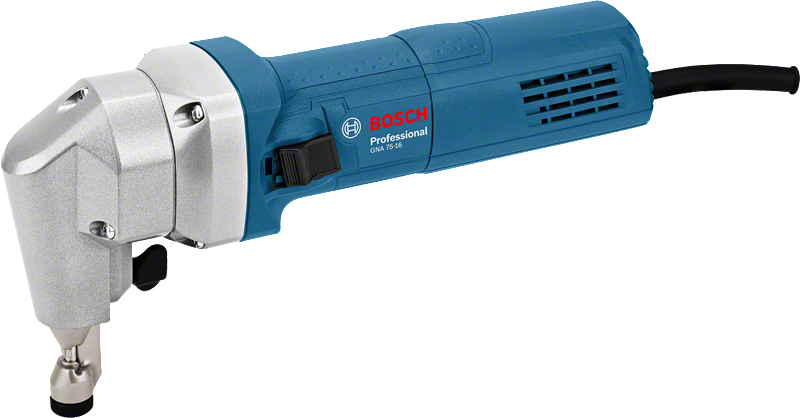

GNA 75-16 Professional

Nibbler

The powerful and handy tool for cutouts of all kinds

  • Slim, narrow design for optimum handling
  • The powerful and handy tool for cutouts of all kinds
  • Working to scribe mark and template easily possible

Functions & key features

Metalworking The professional power tools for metalworking from Bosch.

Your Selection

  • with accessory set
Show variant
Check availability on location
Find a local dealer
with accessory set 0 601 529 400
Find a local dealer

GNA 75-16 Professional

Your Selection

GNA 75-16
with accessory set

Order number: 0 601 529 400

Find a local dealer

Included in this variant

  • Punch
    Order number: 2 608 639 027
  • Die plate
    Order number: 2 608 639 028
Your selection

Technical data

Additional data

Cutting capacity in steel (400 N/mm²), max.
1.6 mm
No-load stroke rate
2,600 spm
Voltage
230 V
Material that can be processed
Steel up to 400 N/mm² at 1.6 mm
Cutting track width
5 mm
Pre-drilling for interior cut-outs
21 mm
Smallest radius
40 mm
Stroke rate under load
2,100 spm
Weight
1.8 kg
Cutting capacity in steel (600 N/mm²), max.
1 mm
Cutting capacity in steel (800 N/mm²), max.
0.7 mm
Cutting capacity in aluminium (200 N/mm²), max.
2 mm
Show more
GNA 75-16

* You can find more information about the deviations in the following link: Technical features of products

Downloads

User Manual

Insert | Entsorgungstext Deutschland (PDF 0.1 MB)
Product data sheet Product data sheet | GNA 75-16 (PDF 1.5 MB)
