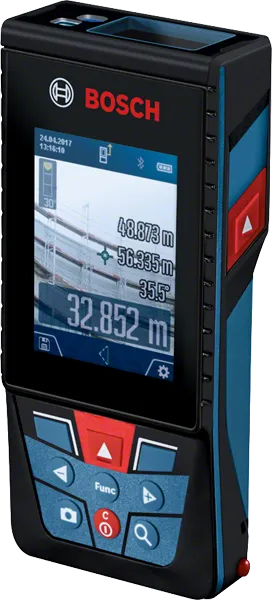

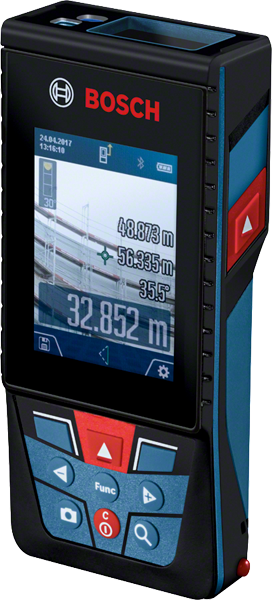

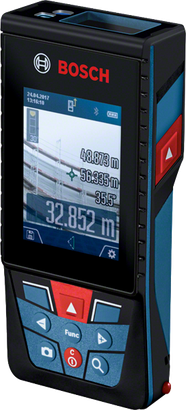

GLM 120 C Professional

Laser Measure

GLM 120 C

The smart solution for measuring and documenting surroundings, even outdoors

  • Digital viewfinder with zoom function allows for precision over large distances, outdoors and in complex surroundings
  • High-contrast IPS colour display provides optimal readability
  • Remote controlling for rapid measurements and MeasureOn App for simple results documentation

Functions & key features

Iso-Norm-16331 1-Icon-positive
Real time view
IP54 dust and splash water protection
MeasureOn App

Your Selection

  • with carrying accessory
Show variant
Check availability on location
Find a local dealer
with carrying accessory 0 601 072 F70
Find a local dealer

GLM 120 C Professional

Your Selection

GLM 120 C
with carrying accessory

Order number: 0 601 072 F70

Find a local dealer

Included in this variant

  • Manufacturer’s certificate
  • Protective Bag
  • Micro USB charger
  • Micro USB cable
  • Carrying Strap
Your selection

Technical data

Additional data

Tripod thread
1/4"
Measurement time, typical
< 0.5 s
Laser diode
650 nm, < 1 mW
Measurement range
0.08 – 120.00 m
Laser class
2
Measurement accuracy, typical
± 1.5 mmᵈ
Measurement range of incline measurement
0 – 360° (4 x 90°)
Measuring accuracy (typical)
± 0.2°ᶜ
Measurement time, max.
4 s
Power supply
1 x 3.6 V Li-Ion battery (3120 mAh)
Automatic deactivation
5 min
Weight, approx.
0.21 kg
Units of measurement
m/cm/mm/ft/inch/ft-inch
Memory capacity (values)
50
Dust and splash protection
IP 54
Digital viewfinder
integrated
Data transfer
Bluetooth™ 4.2 Low Energy
Laser colour
Red
Measuring range, up to
120 m
GLM 120 C

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

ᶜ At >0°C, <100°C, for other surface temperatures, see User Manual

ᵈ Plus deviations depending on application and distance, see User Manual

GLM 120 C Professional: Further information

Product Highlights

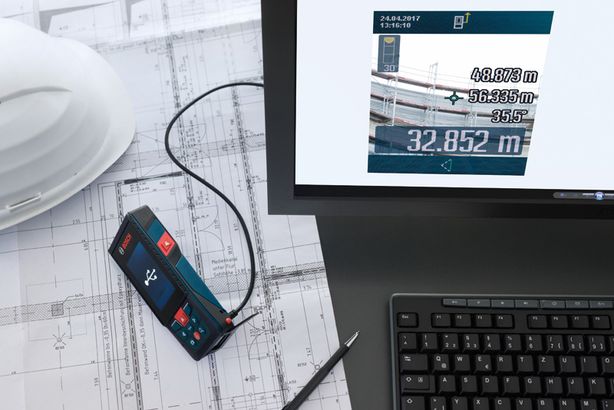

The laser measure GLM 120 C Professional is ideal for documenting surroundings and precisely measuring, even when working outdoors. The digital viewfinder allows for visual targeting in outdoor applications for distances up to 120 meters. Optimal clarity and durability are provided by the 2.8” colour display with a protective screen. Fast collection and documentation of values are made possible by the micro USB cable connection and the MeasureOn App.

Equipment & Application

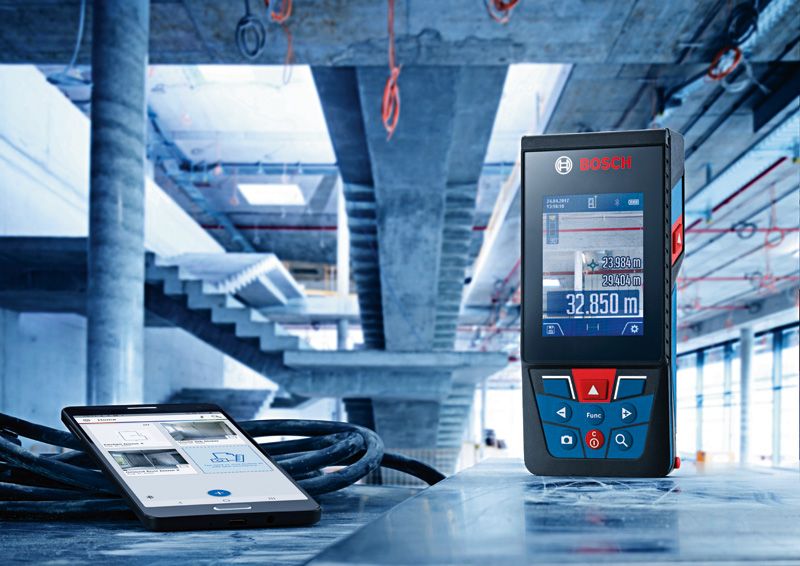

This laser measure is the ultimate choice for measuring long distances, in complex surroundings and in situations of poor visibility.

Additional Information

The GLM 120 C Professional also has a user-friendly HMI interface with a click wheel for easy access to all the features and a useful help option with detailed images so that all of the functions are easily understandable.

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Downloads

User Manual

Instruction manual | GLM 120 C (PDF 6.6 MB)
Product data sheet Product data sheet | GLM 120 C (PDF 1.5 MB)
