Cordless impact drivers/wrenches

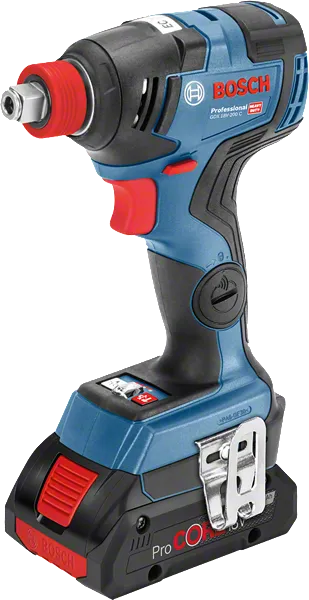

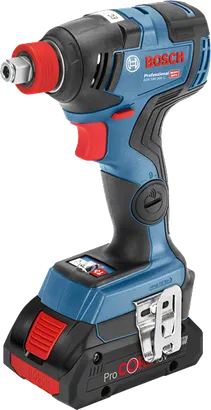

GDX 18V-200 C Professional

Name: GDX 18V-200 C
Brand: Bosch power tools

Cordless Impact Driver/Wrench

High power in compact size

Ready for all applications, thanks to 2 in 1 bit holder: ¼’’ internal hex and ½’’ square drive
Powerful use even in hard to reach areas thanks to best head length to torque ratio
Bluetooth Connectivity module for tool feedback, soft start and service information via mobile device

Functions & key features

Your Selection

in L-BOXX 136 with 2 x battery GBA 18V 4.0Ah, quick charger

Change variant

Check availability on location

Find a local dealer

Your Selected Variant

in L-BOXX 136 with 2 x battery GBA 18V 4.0Ah, quick charger 0 601 9G4 2L0

Find a local dealer

Select a variant

Your Selection

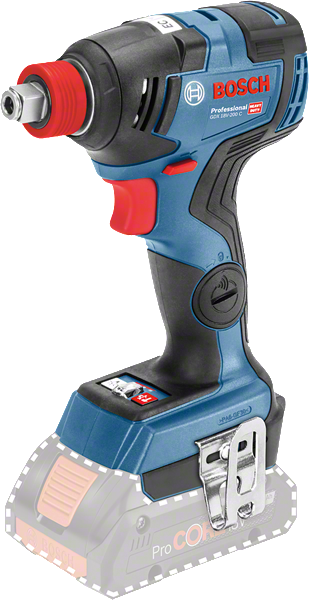

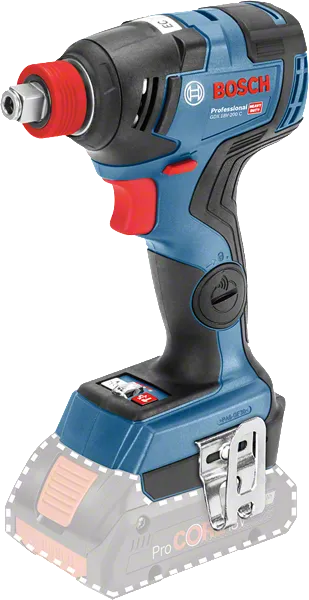

in cardboard box

Order number: 0 601 9G4 204

Find a local dealer

Included in this variant

1/2 L-BOXX inlay for tool and charger

Order number: 1 600 A01 CU5
Cardboard box

Select Variant

Your Selection

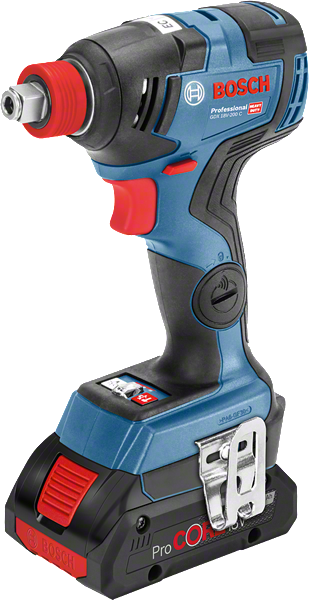

in L-BOXX 136 with 2 x battery GBA 18V 4.0Ah, quick charger

Order number: 0 601 9G4 2L0

Find a local dealer

Included in this variant

L-BOXX 136

Order number: 1 600 A01 2G0
Quick charger GAL 18V-40 Professional

Order number: 1 600 A01 9RJ
2 x battery GBA 18V 4.0Ah

Order number: 1 600 A00 163

Your selection

Technical data

Additional data
Battery voltage	18.0 V
Torque, max.	200 Nm
No-load speed	0-3,400 rpm
Tool holder	1/2'' Square, 1/4'' Hex Uni
No-load speed (1st level)	0-1,100 rpm
No-load speed (2nd level)	0-2,300 rpm
No-load speed (3rd level)	0-3,400 rpm
Torque settings	3
Weight excl. battery	1.2 kg
Impact rate	0-4,000 bpm
Impact rate (1st level)	0-2,300 bpm
Impact rate (2nd level)	0-3,400 bpm
Impact rate (3rd level)	0-4,000 bpm

Total vibration values (Tightening screws and nuts of maximum permitted size)
Vibration emission value ah	9.8 m/s²
Uncertainty K	1.5 m/s²

Tightening screws and nuts of maximum permitted size
Vibration emission value ah	9.8 m/s²
Uncertainty K	1.5 m/s²

* You can find more information about the deviations in the following link: Technical features of products
