18 Volt system

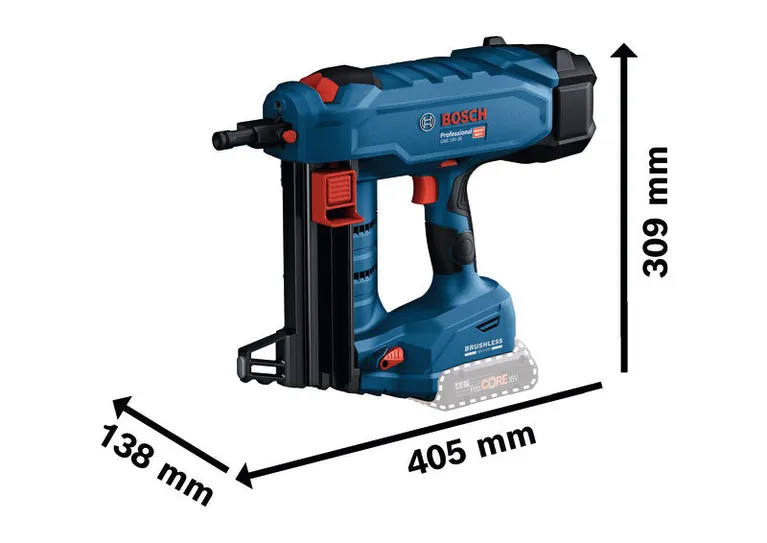

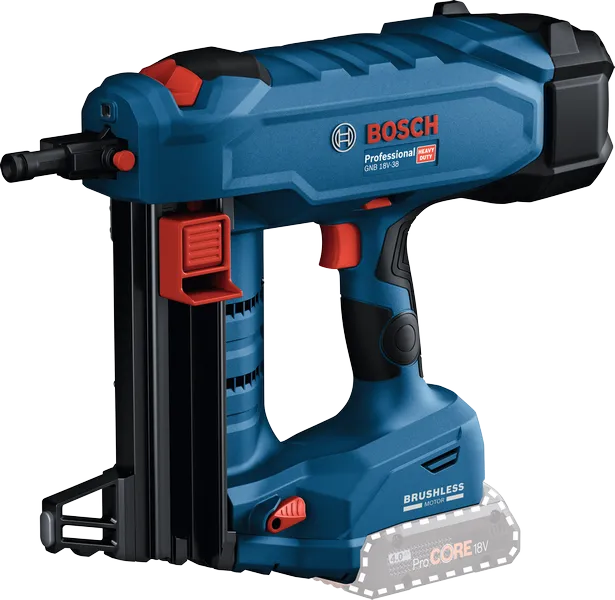

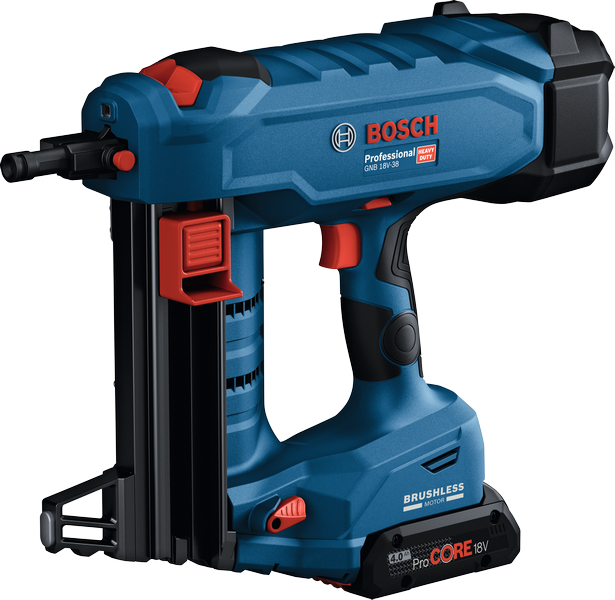

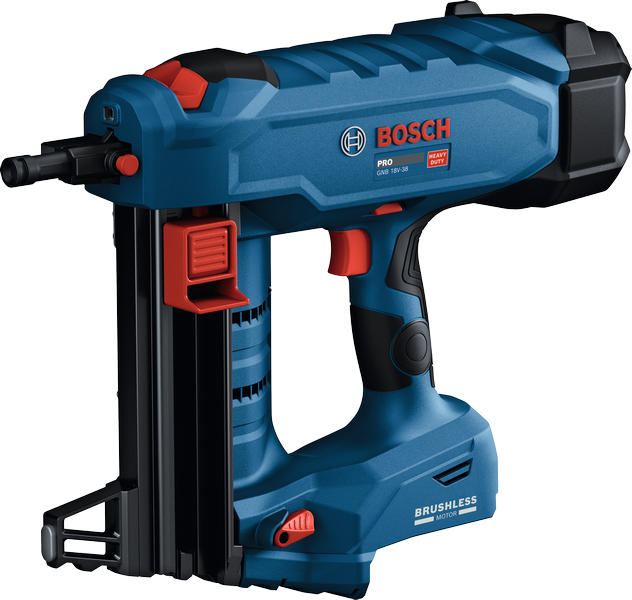

GNB 18V-38 Professional

Cordless Concrete Nailer

GNB 18V-38
GNB 18V-38
GNB 18V-38

Easy and efficient fastening in concrete with powerful BITURBO Brushless technology

  • Efficient direct fastening applications – all you need is one ProCORE18V battery

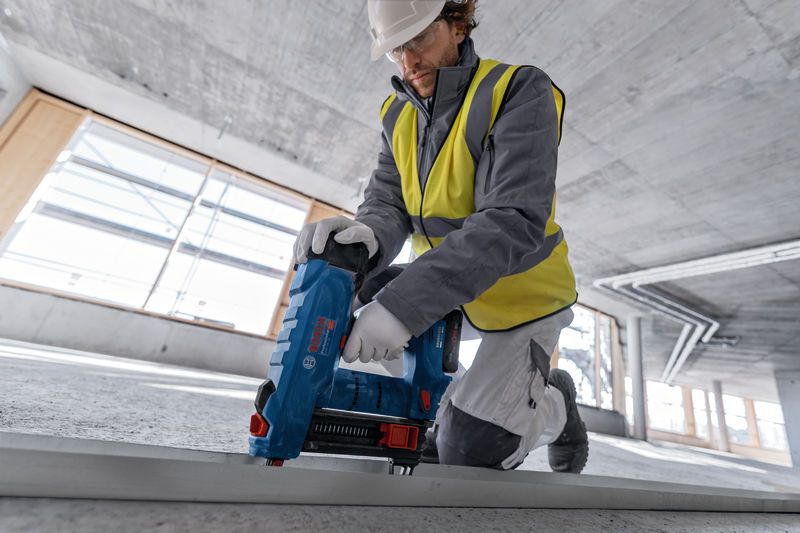

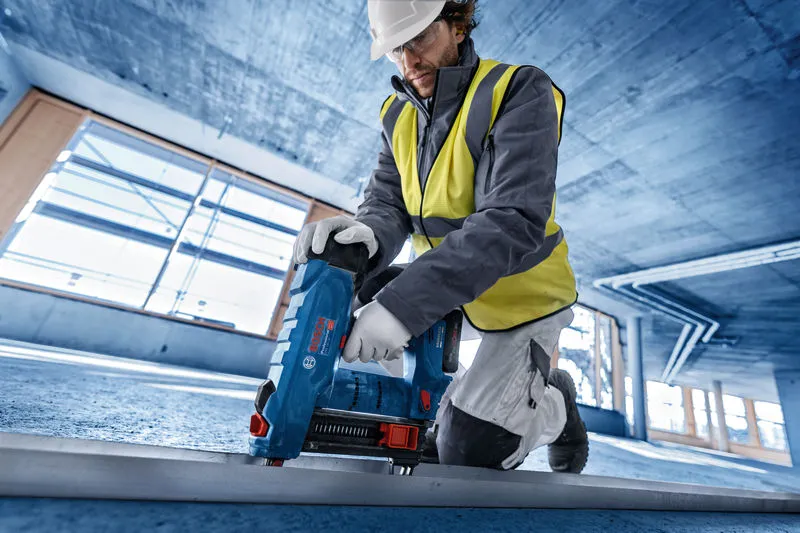

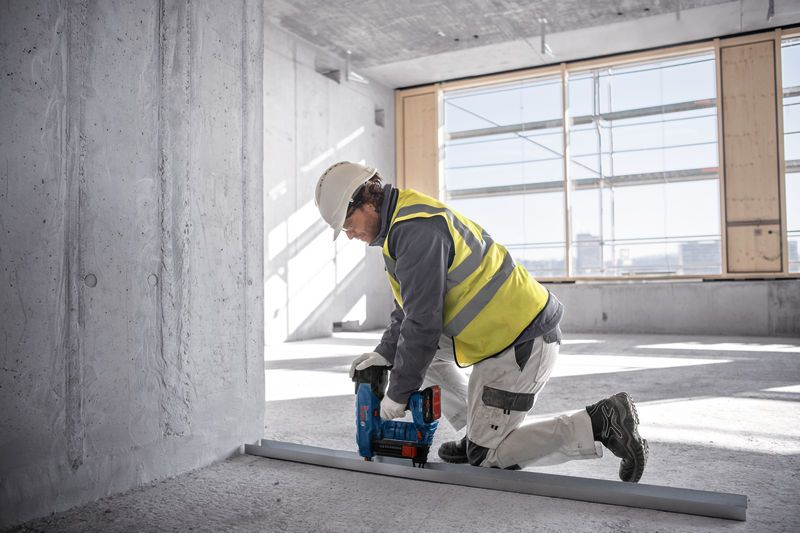

  • BITURBO Brushless technology for fast, direct fixation of steel tracks on tough material like concrete and steel
  • Reliable and optimised system with tool and certified nails for peace of mind at your jobsite

Functions & key features

Longer motor life - more runtime - more power thanks to brushless motor
 13-38mm nail length and 2.7-3.0mm diameter

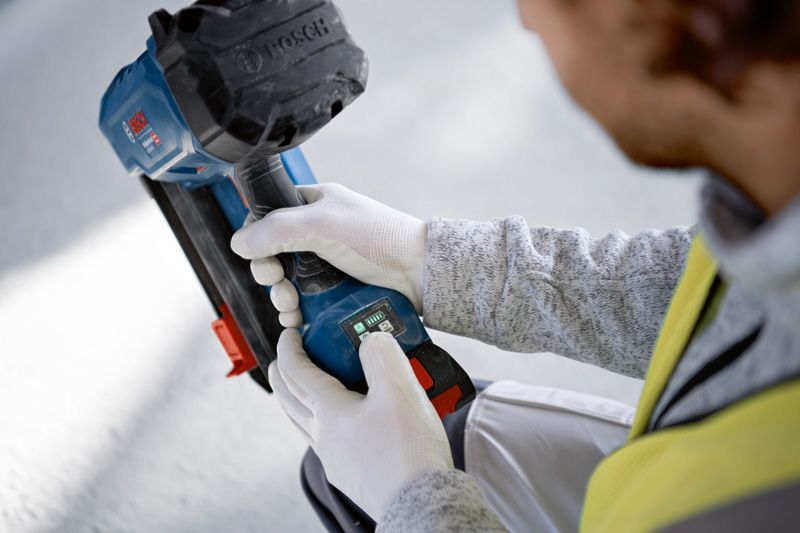

Direct tool feedback and setting adjustments thanks to the integrated user interface and connectivity features.

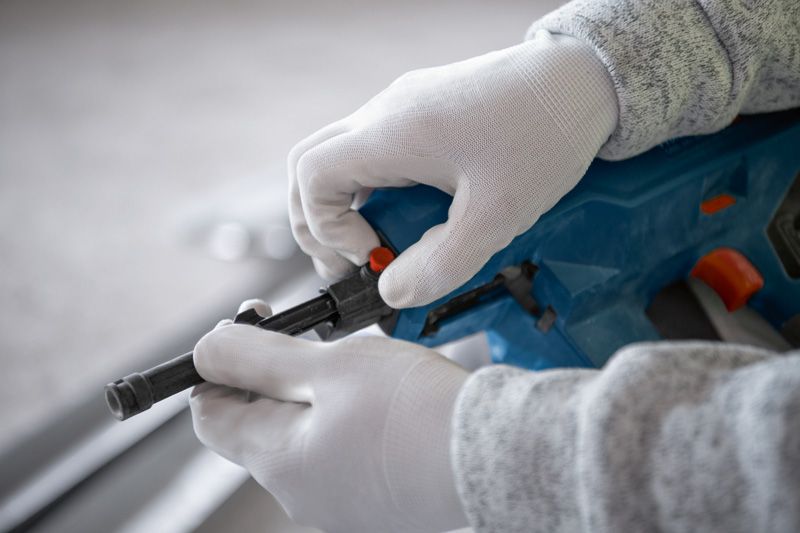

 Precision depth control that enables the user to set up individual nail lengths.

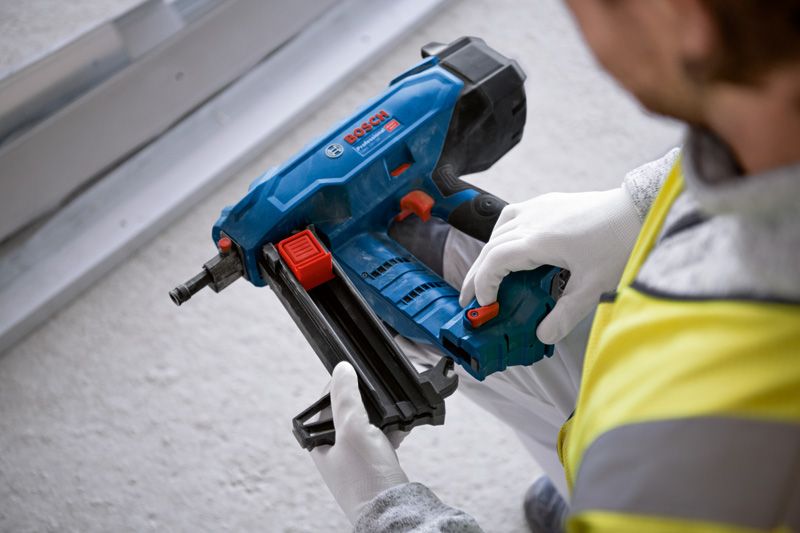

 Shows the user that the nailgun prevents blank firing when the nail magazine is empty, thus avoiding damage to tool & workpiece.
Change variant Find a local dealer

GNB 18V-38 Professional 0 601 9L7 000

Select a variant

Your Selection

GNB 18V-38

Order number: 0 601 9L7 000

Find a local dealer

Included in all variants

  • 1 x push out pin
    Order number: 1 600 A03 42F
  • 1 x utility hook
    Order number: 1 600 A02 K07

Additional in this variant

  • Carton box w/carton insert

Your Selection

GNB 18V-38

Order number: 0 601 9L7 001

Find a local dealer

Included in all variants

  • 1 x push out pin
    Order number: 1 600 A03 42F
  • 1 x utility hook
    Order number: 1 600 A02 K07

Additional in this variant

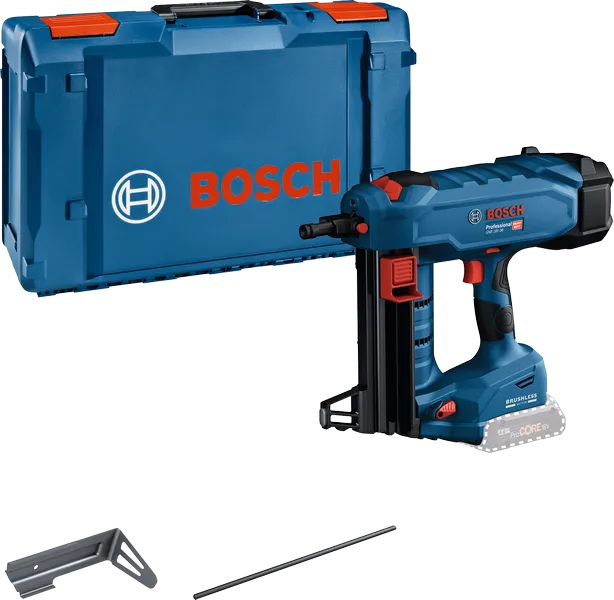

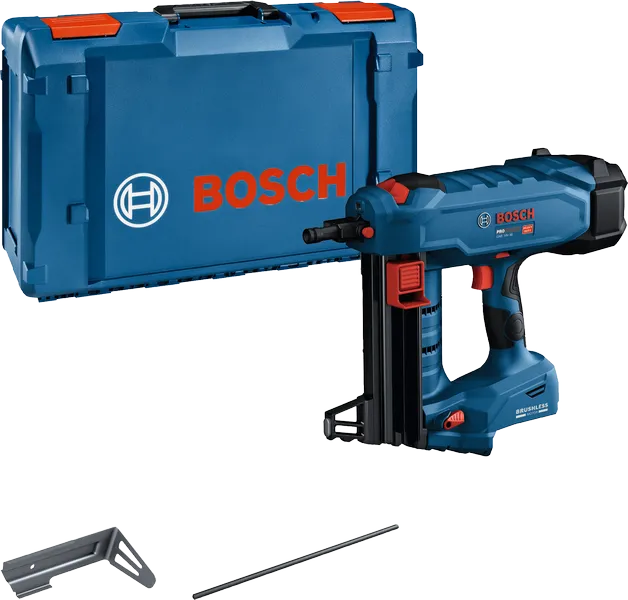

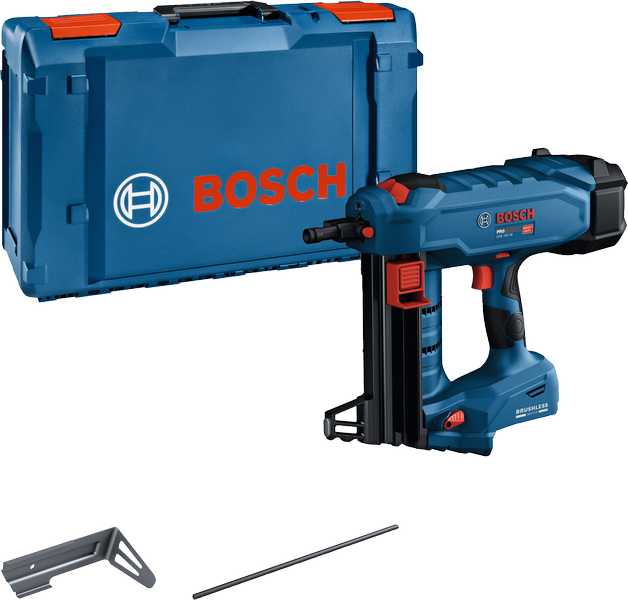

  • 1 x XL-BOXX inlay for GNB 18V-38/40
    Order number: 1 600 A02 R2X

Your Selection

GNB 18V-38

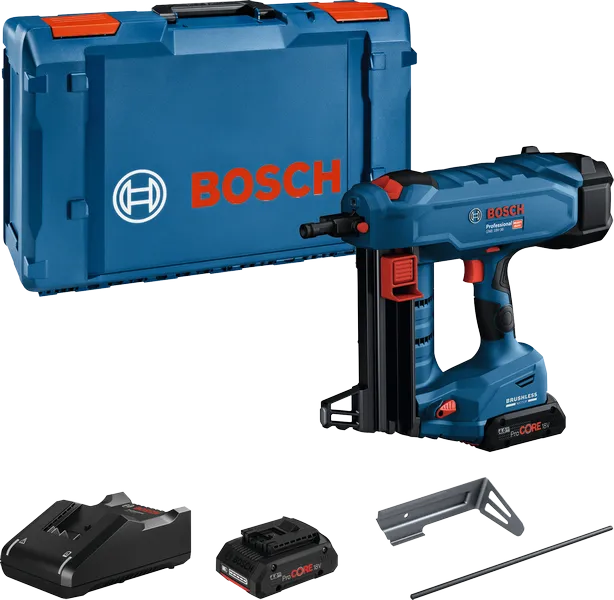

with 2 x 4.0 Ah ProCORE18V Li-ion battery, quick charger

Order number: 0 601 9L7 071

Find a local dealer

Included in all variants

  • 1 x push out pin
    Order number: 1 600 A03 42F
  • 1 x utility hook
    Order number: 1 600 A02 K07

Additional in this variant

  • 1 x XL-BOXX inlay for GNB 18V-38/40
    Order number: 1 600 A02 R2X
  • Quick charger GAL 18V-40 Professional
    Order number: 1 600 A01 9RK
  • 2 x battery ProCORE18V 4.0Ah
    Order number: 1 600 A01 6GB

Technical data

Additional data

Nail diameter 2.7 – 3 mm
Nail length 13 – 38 mm
Nail/Staple type Pin
Battery voltage 18.0 V
Collation angle 0 °
Weight excl. battery 4.1 kg

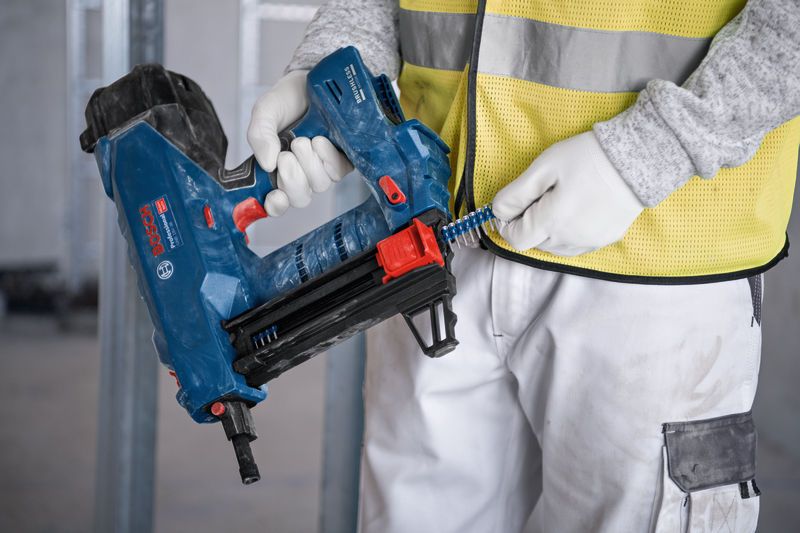

Magazine capacity 22 Pcs
BITURBO Yes
Show more
GNB 18V-38

* You can find more information about the deviations in the following link: Technical features of products

GNB 18V-38 Professional: Further information

Product Highlights

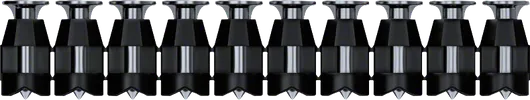

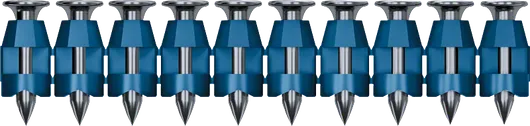

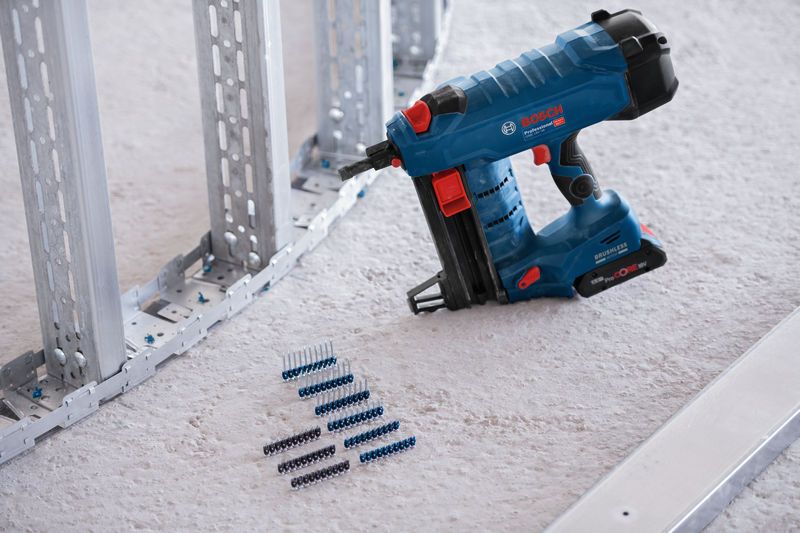

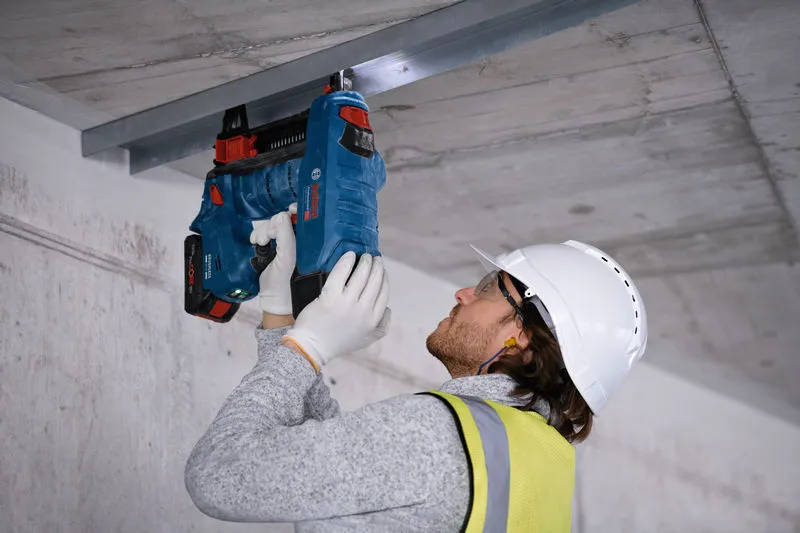

Fastening your steel tracks on tough materials like concrete and steel has to be easy, efficient, and intuitive. The GNB 18V-38 Professional helps you to get this job done. It is driven by our powerful BITURBO Brushless technology and is part of the Bosch Professional 18V System. All you need is one ProCORE18V battery and you are good to go – no additional gas cartridges necessary. We developed a reliable fastening system that includes both tool and nails. This allows you to fully focus on your job. The certified galvanised carbon steel nails ensure lasting durability in concrete and steel. We offer an array of nails ranging from 16 mm to 38 mm for concrete, and 13 mm to 19 mm for steel applications. Tool and nails have been tested and certified according to ETA or ICC.

Equipment & Application

Compatible with the Bosch Professional 18V System and with the multi-brand battery alliance AMPShare.
