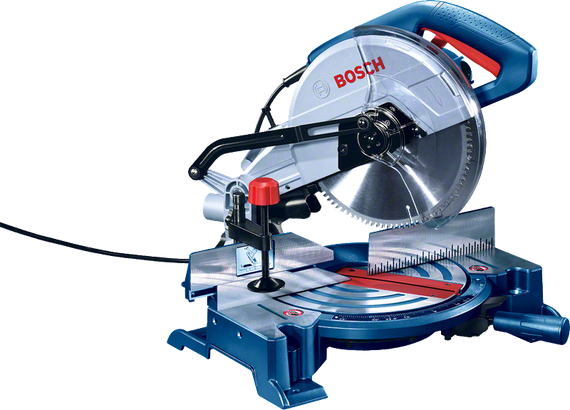

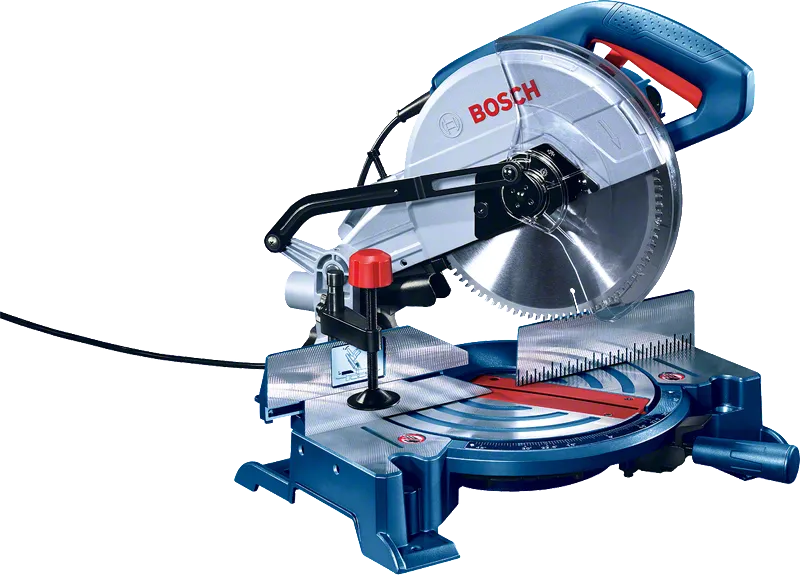

GCM 10 MX Professional

Mitre Saw

Engineered for precise Aluminium Cutting

  • High cutting efficiency and cutting precision
  • High performance of frequent aluminium cutting

Your Selection

  • with clamp
Show variant
Check availability on location
Find a local dealer
with clamp 0 601 B29 021
Find a local dealer

GCM 10 MX Professional

Your Selection

GCM 10 MX
with clamp

Order number: 0 601 B29 021

Find a local dealer

Included in this variant

  • Clamp
  • Dust bag
  • Multi-material cutting Saw blade 254 x 30 mm, 96T
  • Plate support
Your selection

Technical data

Additional data

Rated input power
1,700 W
Saw blade diameter
254 mm
Mitre setting
47 ° L / 52 ° R
Bevel setting
45 ° L
Saw blade bore diameter
30 mm
Cutting capacity, 0°
89 x 89 mm
Cutting capacity, 45° mitre
62 x 130 mm
Cutting capacity, 45° bevel
86 x 67 mm
Tool dimensions (width x length x height)
535 x475 x330 mm
No-load speed
4,800 rpm
Weight
16.08 kg
GCM 10 MX

* You can find more information about the deviations in the following link: Technical features of products

Fits to GCM 10 MX Professional

GTA 2500 W

GTA 2500 W

Saw Stand

Variants:1
GTA 2600

GTA 2600

Work Bench

Variants:1

Downloads

User Manual

Insert | Herstellergarantie (EU),Manufacturer's guarantee (EU) (PDF 0.3 MB) Instruction manual | GCM 10 MX | GCM 10 MX (PDF 9.0 MB)
Product data sheet Product data sheet | GCM 10 MX (PDF 1.5 MB)
