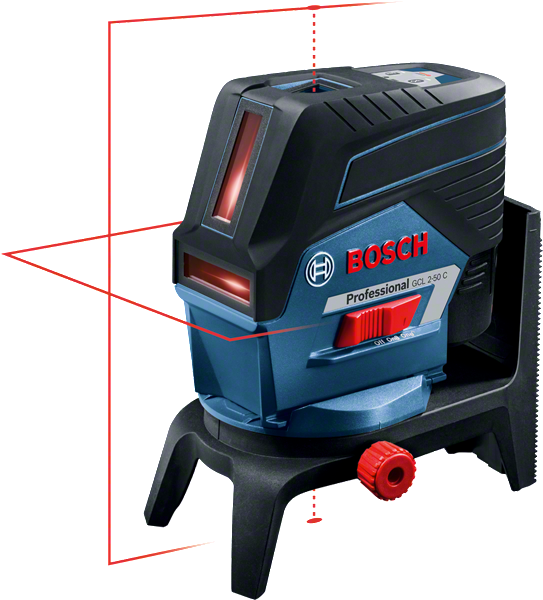

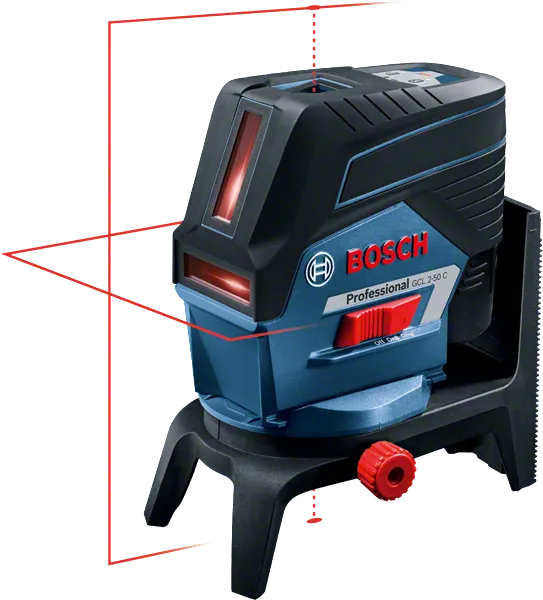

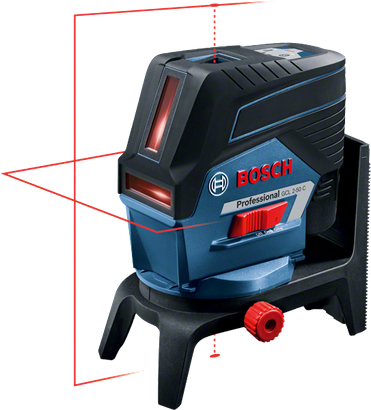

GCL 2-50 C Professional
Combi Laser
Smart functions for maximum productivity
- Bluetooth®-connection paired with Levelling Remote App offers remote-control adjustment of the tool via a smartphone
- Dual Power Source allows for a 12 V-Li-ion battery or standard alkaline batteries for increased flexibility
- Precise alignment of laser lines around centred plumb points with the manual RM 2 or motorised RM 3
Functions & key features
Your Selection
- with 4 x battery (AA), adapter
Select a variant

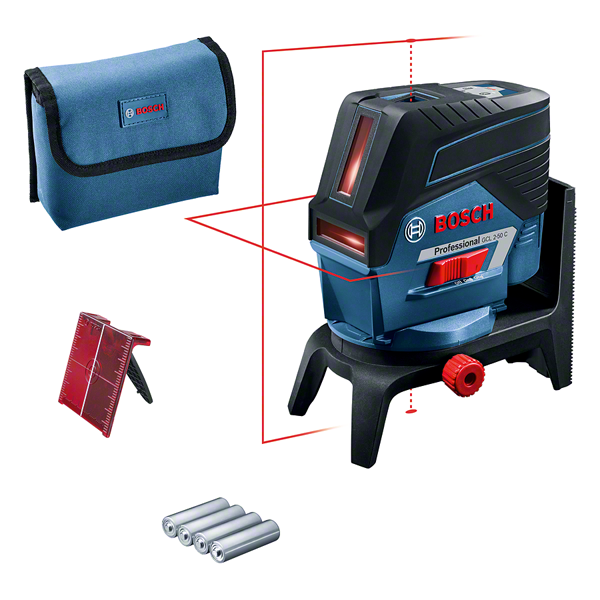

Your Selection
Order number: 0 601 066 G00
Included in all variants
-
Protective Bag
-
Rotating mount RM 2 ProfessionalOrder number: 0 601 092 700
-
Laser target plate
Additional in this variant
-
AA1 alkaline battery adapterOrder number: 1 608 M00 C1B
-
4 x 1.5 V LR6 battery (AA)

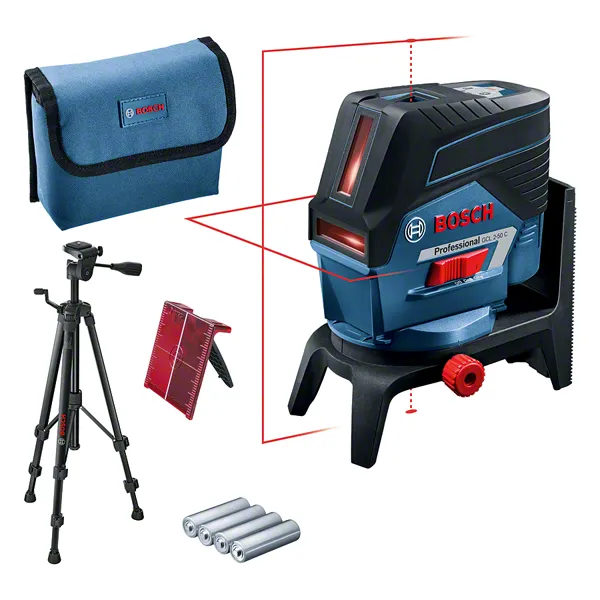

Your Selection
Order number: 0 601 066 G02
Included in all variants
-
Protective Bag
-
Rotating mount RM 2 ProfessionalOrder number: 0 601 092 700
-
Laser target plate
Additional in this variant
-
AA1 alkaline battery adapterOrder number: 1 608 M00 C1B
-
4 x 1.5 V LR6 battery (AA)
-

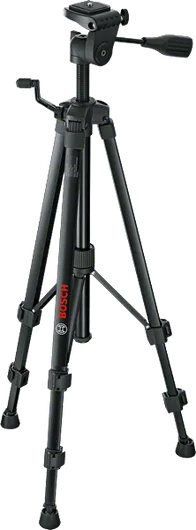

Building tripod BT 150 ProfessionalOrder number: 0 601 096 B00

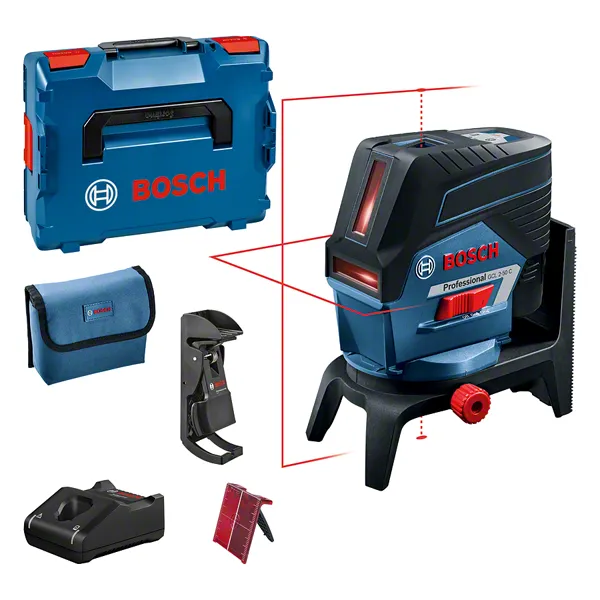

Your Selection
Order number: 0 601 066 G03
Included in all variants
-
Protective Bag
-
Rotating mount RM 2 ProfessionalOrder number: 0 601 092 700
-
Laser target plate
Additional in this variant
-
L-BOXX 136Order number: 1 600 A01 2G0
-
Quick charger GAL 12V-40 ProfessionalOrder number: 1 600 A01 9R3
-
Ceiling clamp
-
1 x battery GBA 12V 2.0AhOrder number: 1 600 Z00 02X
Technical data
Additional data |
|
|---|---|
| Colour of laser line | red |
| Battery voltage | 12.0 V |
| Laser diode | 635 – 650 nm |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range | 20 m |
| Working range with receiver | 50 m |
| Accuracy | ± 0.3 mm/m* (*plus use-dependent deviation) |
| Working range of laser points, max. | 10 m (top), 10 m (bottom) |
| Self-levelling range | ± 4° |
| Dust and splash protection | IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter) |
| Power supply | 12 V Li-ion or 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 18 h (Li-Ion) and 10 h (4 x AA) in cross-line and point operation, 25 h (Li-Ion) and 16 h (4 x AA) in cross-line operation, 35 h (Li-Ion) and 28 h (4 x AA) in line operation, 60 h (Li-Ion) and 32 h (4 x AA) in point operation |
| Tripod thread | 1/4" |
| Weight, approx. | 0.6 kg |
| Color of plumb points | red |
| Projection | 2 lines / 2 points |
| Plumb point accuracy | ± 0.7 mm/m* (*plus use-dependent deviation) |
| Compatible laser receivers | LR 6 + 7 |
| Working range, value | 20 m |
| Working range with receiver, value | 50 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
*** Plus use-dependent deviation. You can find more information about the deviations in the following link:
GCL 2-50 C Professional: Further information
Product Highlights
The combi laser GCL 2-50 C Professional offers many smart functions for maximum efficiency. A Bluetooth®-connection provides remote-control adjustments via a smartphone app, while Dual Power Source allows 12 V Li-ion or standard alkaline batteries for added flexibility. For precise positioning around the centred plumb points, the optional RM 3 Professional offers motorised control, and RM 2 Professional allows for manual adjustments.
Equipment & Application

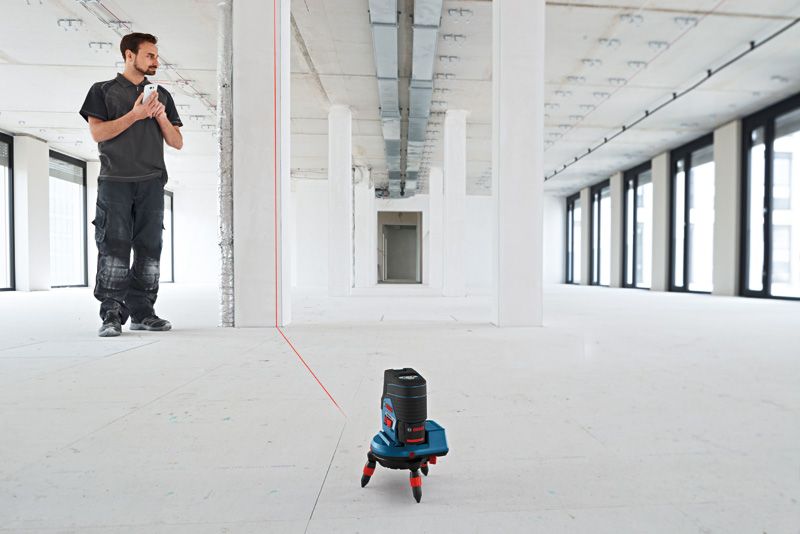

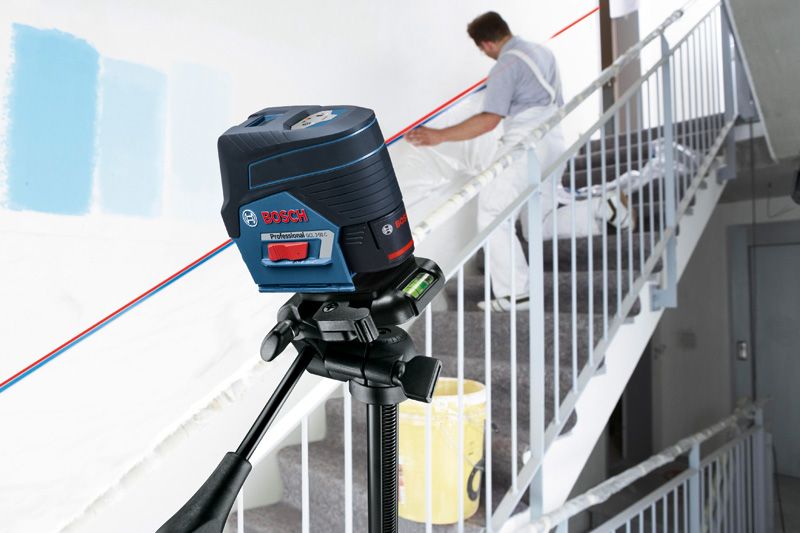

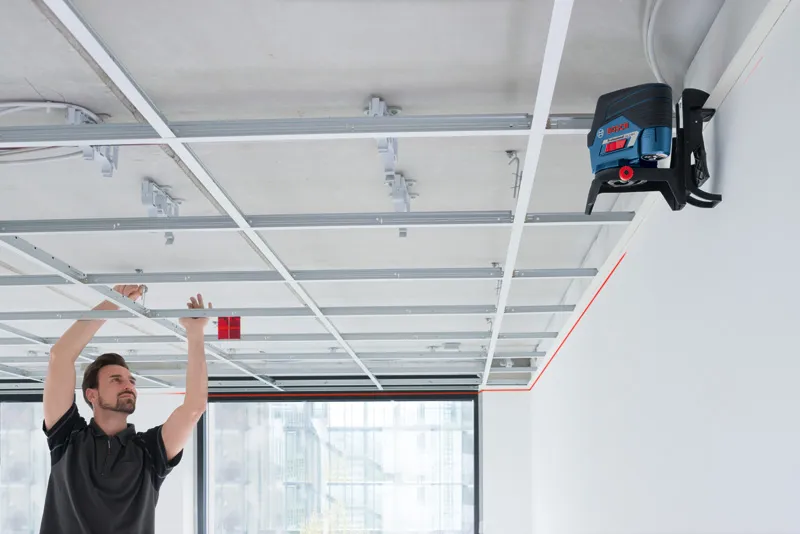

It is designed for horizontal and vertical alignments with a long overshoot of nearly 360 ° and is suitable for projects such as dry wall installation and interior finishing.
Additional Information
The GCL 2-50 C Professional's horizontal and vertical laser lines and two centred plumb points offer optimal visibility of up to 20 m without a receiver and 50 m with a receiver.
