Drills
GBM 16-2 RE
GBM 16-2 RE
GBM 16-2 RE
1/2

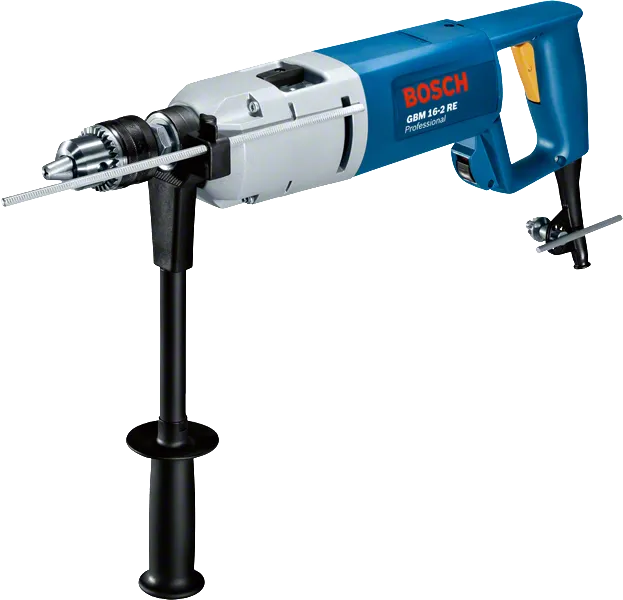

GBM 16-2 RE Professional

Drill

The perfect tool for formwork drilling

  • With spade handle for a firm grip
  • Control Electronic for exact pilot drilling
  • Forward/reverse rotation especially for loosening jammed formwork drill bits

Functions & key features

Best work results with speed pre-selection for applications requiring material-specific speed
Forward / reverse rotation for inserting and removing screws
Optimized torque for screwdriving and speed for drilling Optimized torque and speed settings with two gear stages
Easy and precise control of the RPM thanks to variable speed

Your Selection

  • with auxiliary handle
Show variant
Check availability on location
Find a local dealer
with auxiliary handle 0 601 120 503
Find a local dealer

GBM 16-2 RE Professional

Your Selection

GBM 16-2 RE
with auxiliary handle

Order number: 0 601 120 503

Find a local dealer

Included in this variant

  • Depth stop 310 mm
    Order number: 1 613 001 003
  • Auxiliary handle (spare part number 3 602 025 021)
  • Keyed chuck 16 mm
    Order number: 2 608 571 020
Your selection

Technical data

Additional data

Rated input power
1050 W
Bit holder
Taper B16
Drill chuck, version
Keyed chuck
Voltage, electrical
230 V
No-load speed, 1st gear
600 rpm
No-load speed, 2nd gear
1,450 rpm
Power output
570 W
Weight
5 kg
Rated speed
400 / 950 rpm
Rated torque
115.0 Nm
Drill spindle connecting thread
Taper B16
Max. torque
50.0 / 22.0 Nm
Show more

* You can find more information about the deviations in the following link: Technical features of products

Fits to GBM 16-2 RE Professional

PRO
PRO Wood HSS Installation Drill Bit

PRO Wood HSS Installation Drill Bit

For rotary drills/drivers

Long Life drilling in wood

Material

Hardwood
Metal sandwich
Variants:22
PRO
PRO Wood Brad Point Drill Bit

PRO Wood Brad Point Drill Bit

For rotary drills/drivers

Precision drilling in wood

Material

Softwood
Hardwood
Variants:14
PRO
PRO Metal HSS-G Twist Drill Bit Standard Length

PRO Metal HSS-G Twist Drill Bit Standard Length

For rotary drills/drivers

Long Life drilling in metal

Material

Non-ferrous metals
Steel
Variants:68
PRO
PRO Metal clean End Brush

PRO Metal clean End Brush

For rotary drills/drivers

Long Life cleaning Steel

Variants:2

Downloads

User Manual

Instruction manual | GBM 16-2 RE (PDF 3.8 MB) Insert | Entsorgungstext Deutschland (PDF 0.1 MB) Instruction manual | GBM 16-2 RE (Online version)
Product data sheet Product data sheet | GBM 16-2 RE (PDF 1.5 MB)
