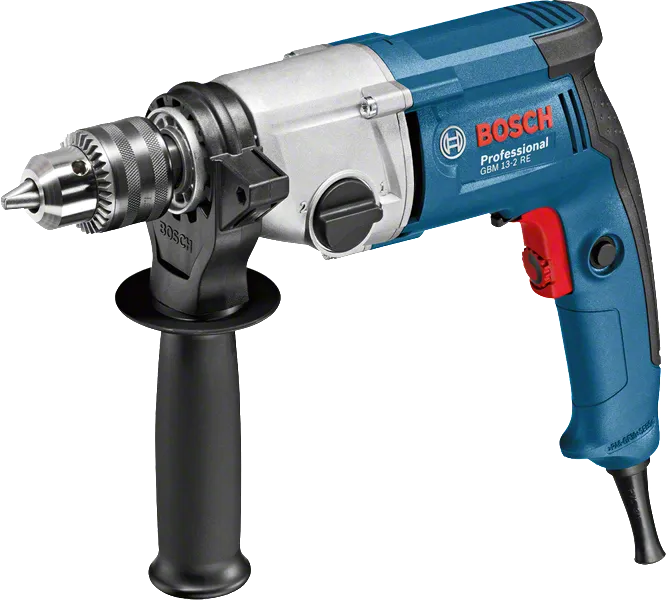

GBM 13-2 RE Professional

Drill

The powerful and precise tool with 2 gears

  • A fast work rate for drilling holes of up to 13 mm in steel thanks to powerful 750 watt motor and high torque
  • Precise work results due to compact, ergonomic design and metal keyless chuck
  • Versatile applications thanks to 2-speed gearbox and speed preselection with setting wheel

Functions & key features

Best work results with speed pre-selection for applications requiring material-specific speed
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Forward / reverse rotation for inserting and removing screws
Optimized torque for screwdriving and speed for drilling Optimized torque and speed settings with two gear stages
Easy and precise control of the RPM thanks to variable speed

Your Selection

  • in cardboard box with chuck
Show variant
Check availability on location
Find a local dealer
in cardboard box with chuck 0 601 1B2 001
Find a local dealer

GBM 13-2 RE Professional

Your Selection

GBM 13-2 RE
in cardboard box with chuck

Order number: 0 601 1B2 001

Find a local dealer

Included in this variant

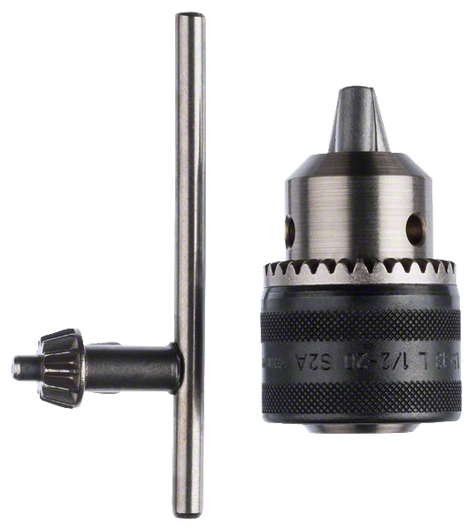

  • Keyed chuck 1.5 - 13 mm
    Order number: 1 608 571 062
  • Cardboard box
  • Auxiliary handle
    Order number: 2 602 025 190
  • Depth stop 210 mm
    Order number: 1 613 001 010
Your selection

Technical data

Additional data

Rated input power
750 W
Bit holder
1/2"-20 UNF
Drill chuck, version
Keyed chuck
Voltage, electrical
230 V
Spindle collar diameter
43 mm
No-load speed, 1st gear
0 – 1,000 rpm
No-load speed, 2nd gear
3,200 rpm
Power output
353 W
Weight
2.4 kg
Rated speed
500 / 1,750 rpm
Rated torque
6.8 / 2.5 Nm
Drill spindle connecting thread
1/2"-20 UNF
Max. torque
39.5 / 12.5 Nm
Show more
GBM 13-2 RE

* You can find more information about the deviations in the following link: Technical features of products

GBM 13-2 RE Professional: Further information

Product Highlights

The GBM 13-2 RE Professional is a corded 2-geared rotary drill designed for precision drilling. Its powerful 750 W motor and high torque deliver fast work progress, enabling the drilling of holes in steel of up to 13 mm in diameter. It features a compact and ergonomic design providing good tool handling for precise work. This rotary drill also features a 2-speed gearbox and a speed preselection setting wheel for accurate performance in versatile applications.

Equipment & Application

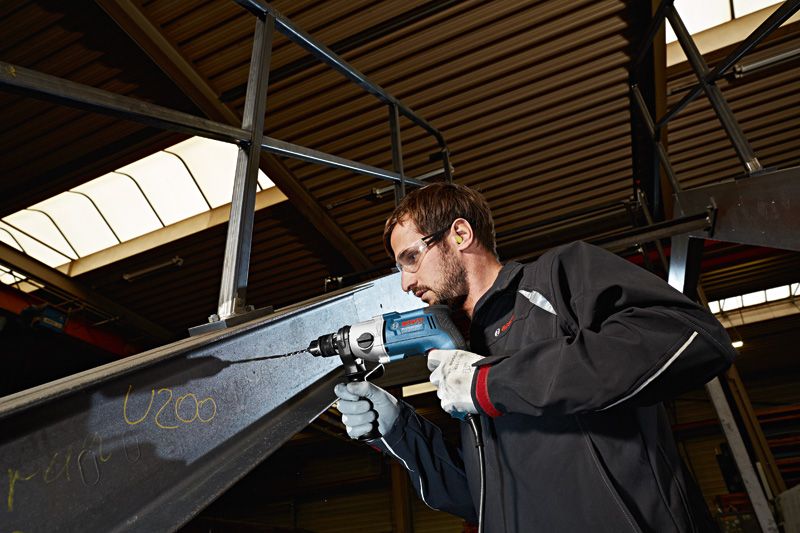

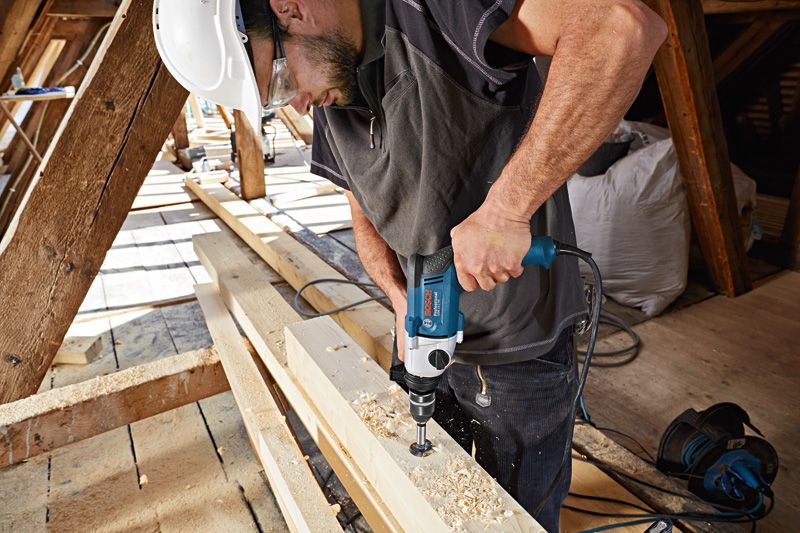

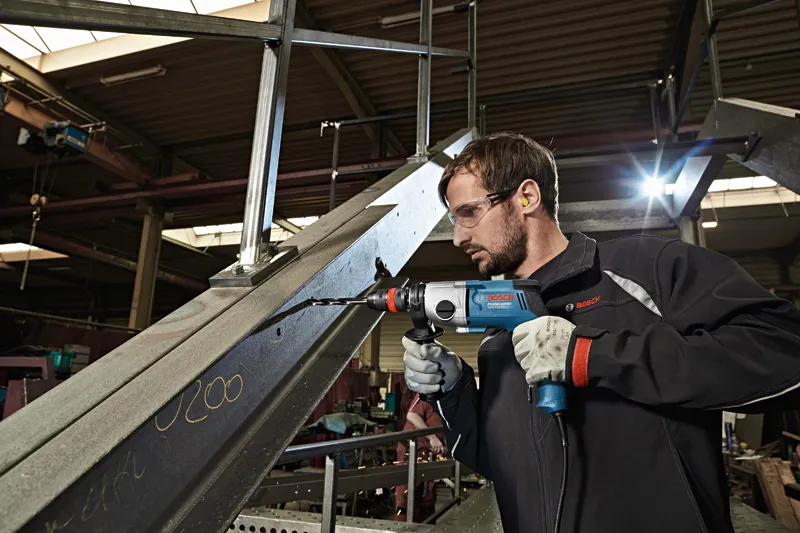

This tool is intended for drilling in metal and wood.

Fits to GBM 13-2 RE Professional

Keyed Drill Chuck

Keyed Drill Chuck

For rotary drills/drivers

Keyed Drill Chuck is a simple and reliable solution for fixing drill bits for any type of job
