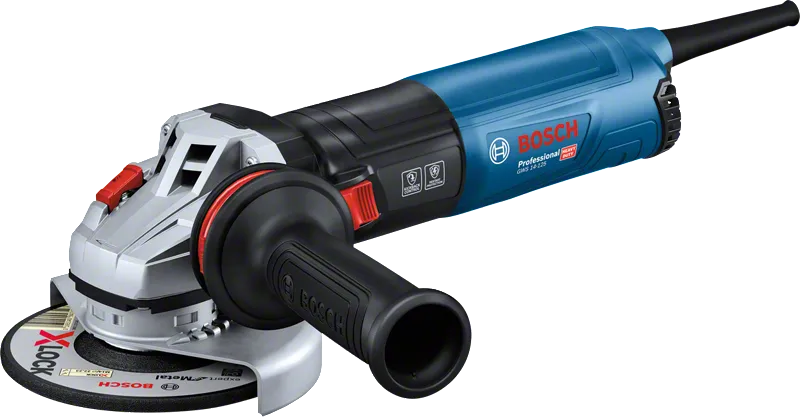

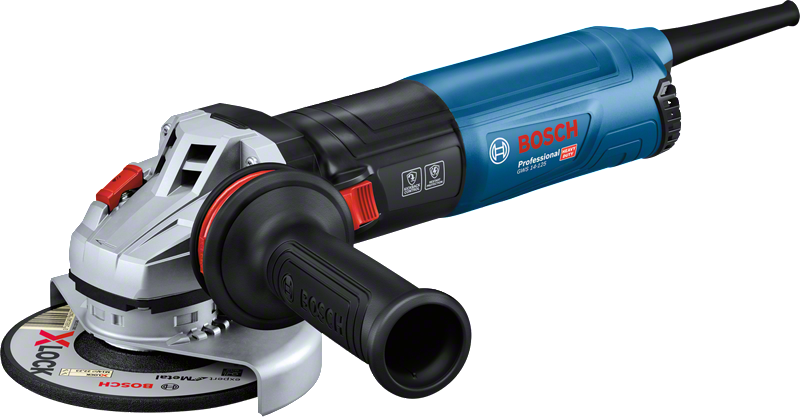

GWS 14-125 Professional

Angle Grinder

Above previous level of Power-to-grip-Size Ratio

  • Maximum productivity thanks to the robust 1,400 W motor New motor cooling concept with improved direct cooling Superior ergonomics with the smallest grip size in the 1400W–1700W CD class for much better convenience while working and low fatigue.

Functions & key features

Disc diameter 125 mm
Outstanding small grip size for best-in-class ergonomics
Comfortable working Vibration Control reduces vibration for less tiring work
Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Soft start as the load and torque of the motor are temporarily reduced during start-up.

Your Selection

  • in cardboard box with auxiliary handle
Show variant
Check availability on location
Find a local dealer
in cardboard box with auxiliary handle 0 601 7D0 000
Find a local dealer

GWS 14-125 Professional

Your Selection

GWS 14-125
in cardboard box with auxiliary handle

Order number: 0 601 7D0 000

Find a local dealer

Included in this variant

  • Protective clip-on cutting guard plastic
    Order number: 2 608 000 757
  • Vibration Control auxiliary handle
    Order number: 2 608 900 000
  • Backing flange
    Order number: 1 605 703 099
  • Cardboard box
  • Protective guard
    Order number: 1 605 510 365
  • Locking nut
    Order number: 1 603 340 040
  • Two-hole spanner
    Order number: 1 607 950 043
Your selection

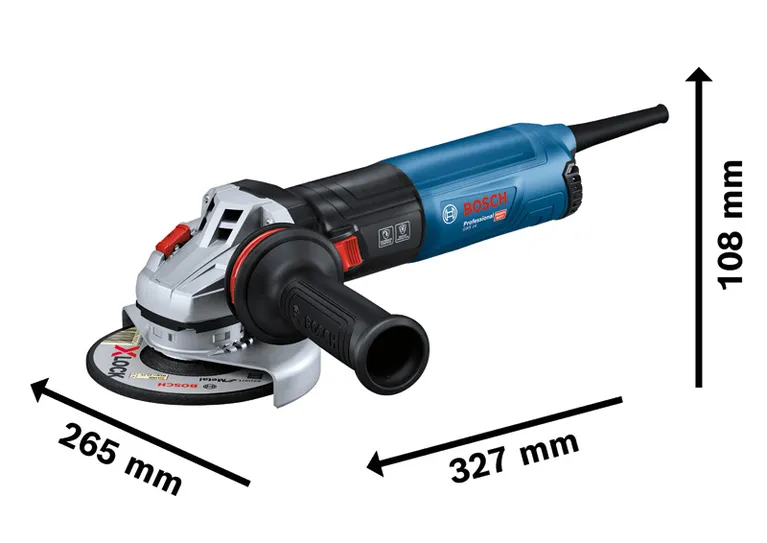

Technical data

Additional data

Rated input power
1400 W
No-load speed
11,500 rpm
Disc diameter
125 mm
Voltage, electrical
230 V
Grinding spindle thread
M14
Main handle
Barrel
Bore size, diameter
22.23 mm
Weight
2.2 kg
Switch
Lockable Switch
Show more
GWS 14-125

* You can find more information about the deviations in the following link: Technical features of products

GWS 14-125 Professional: Further information

Product Highlights

Maximum productivity through more power and better robustness, an improved dust protection, and its Speed Selection make the GWS 14-125 Professional so extremely efficient. Its significantly small grip size provides much better convenience while working. KickBack Control, Restart Protection, and a Vibration Control side handle ensure a higher user protection.

Fits to GWS 14-125 Professional

GDE 115/125 FC-T

GDE 115/125 FC-T

System Accessories

Variants:1

Downloads

User Manual

Instruction manual | GWS 17-125 PSB | GWS 17-125 PS | GWS 17-150 PS | GWS 17-125 SB | GWS 17-150 S | GWS 17-125 INOX | GWS 17-125 TS | GWS 17-125 S | GWS 17-125 | GWS 14-125 S | GWS 14-125 (PDF 19.2 MB) Insert | Herstellergarantie | Manufacturer's guarantee (EU) (PDF 0.2 MB) Instruction manual | GWS 17-125 PSB | GWS 17-125 PS | GWS 17-150 PS | GWS 17-125 SB | GWS 17-150 S | GWS 17-125 INOX | GWS 17-125 TS | GWS 17-125 S | GWS 17-125 | GWS 14-125 S | GWS 14-125 (Online version)
Product data sheet Product data sheet | GWS 14-125 (PDF 1.5 MB)
