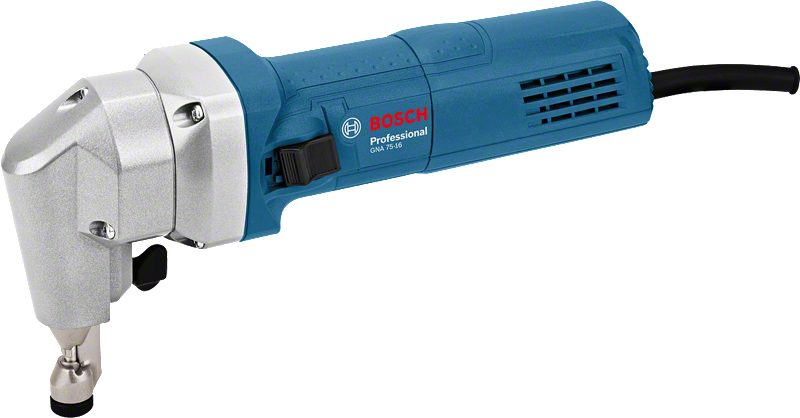

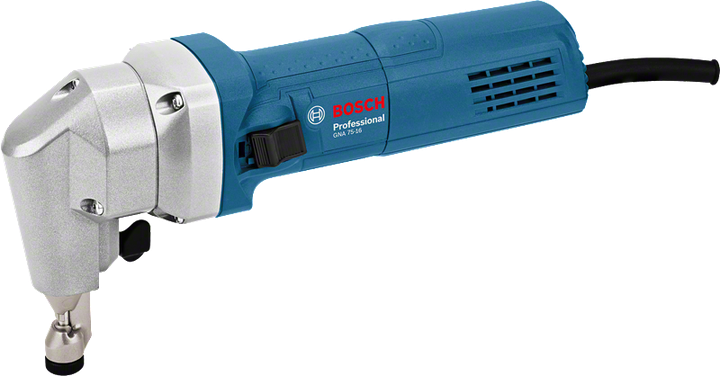

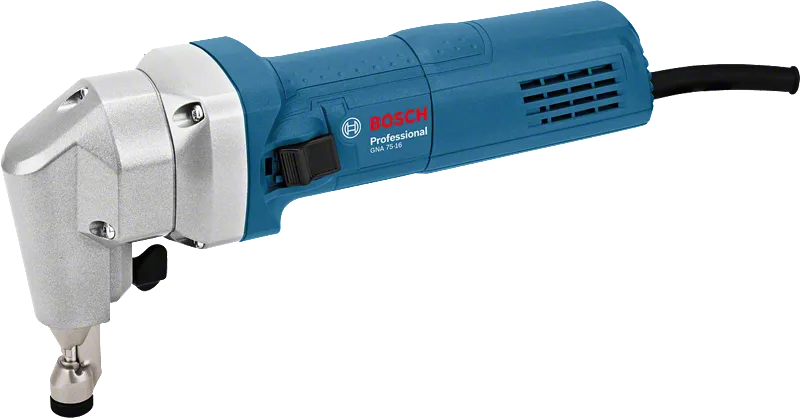

GNA 75-16 Professional
Nibbler
The powerful and handy tool for cutouts of all kinds
- Slim, narrow design for optimum handling
- The powerful and handy tool for cutouts of all kinds
- Working to scribe mark and template easily possible
Functions & key features
Your Selection
- with accessory set
301.00 OMR
Recommended retail price excluding VAT
with accessory set
0 601 529 400
GNA 75-16 Professional
Your Selection
with accessory set
Order number: 0 601 529 400
301.00 OMR
Recommended retail price excluding VAT
Included in this variant
-
PunchOrder number: 2 608 639 027
-
Die plateOrder number: 2 608 639 028
Technical data
Additional data |
|
|---|---|
| Cutting capacity in steel (400 N/mm²), max. | 1.6 mm |
| No-load stroke rate | 2,600 spm |
| Voltage | 230 V |
| Material that can be processed | Steel up to 400 N/mm² at 1.6 mm |
| Cutting track width | 5 mm |
| Pre-drilling for interior cut-outs | 21 mm |
| Smallest radius | 40 mm |
| Stroke rate under load | 2,100 spm |
| Weight | 1.8 kg |
| Cutting capacity in steel (600 N/mm²), max. | 1 mm |
| Cutting capacity in steel (800 N/mm²), max. | 0.7 mm |
| Cutting capacity in aluminium (200 N/mm²), max. | 2 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 90 dB(A); Sound power level 101 dB(A). Uncertainty K= 3 dB.
