For hand-held dry cutters
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 136
Number of teeth 30
Width of cut (b1) mm 1.6
Choose a pack size 1 Pcs

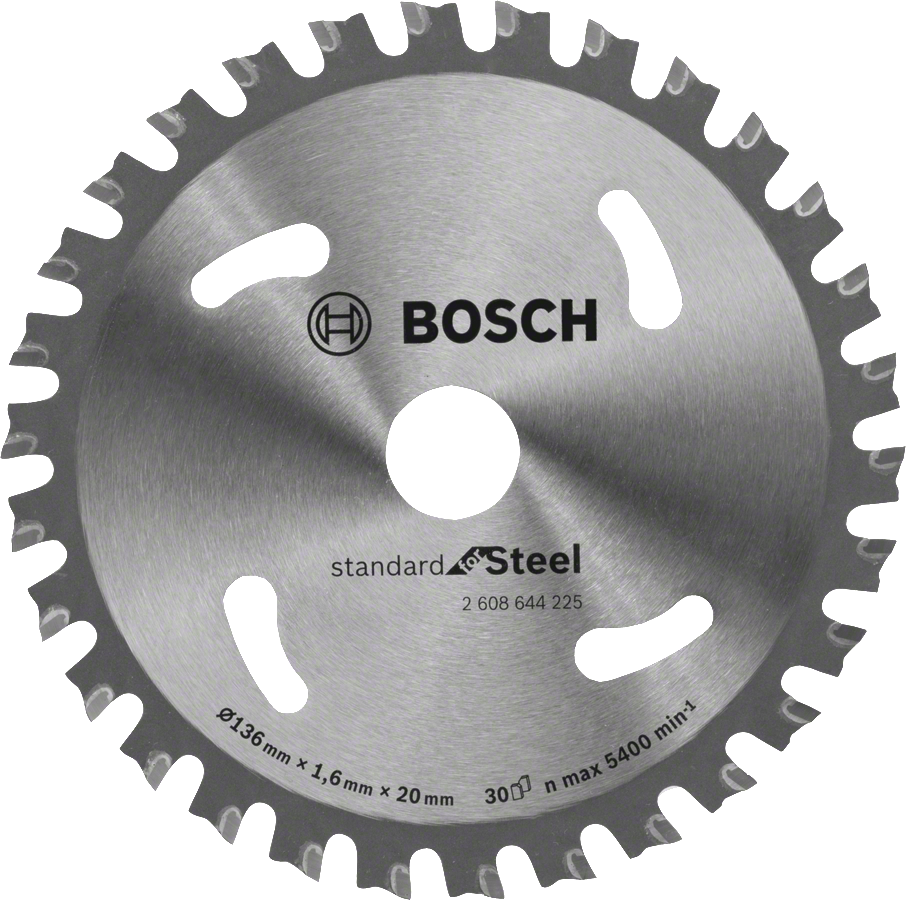

Standard for Steel Circular Saw Blade for cordless handheld dry-cutters maximises battery runtime
Available product options: 1
|
Part number
|
Outer diameter inch
|
Outer diameter mm
|
Bore size mm
|
Bore Inch
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 644 225 | 5 3/8 | 136 | 20 | 25/32 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608644225 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 5 3/8 |
| Outer diameter mm | 136 |
| Bore size mm | 20 |
| Bore Inch | 25/32 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.6/1.2 |
| Number of teeth | 30 |
| Tooth shape | HB |
| Max. rotation speed (RPM) | 5400 |
| Cutting result | Fine Cut |
| Hook angle ° α | 6 |
| Relief angle ° β | 10 |
