For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 160
Number of teeth 48
Width of cut (b1) mm 2.6
Choose a pack size 1 Pcs
Ground and sharpened fine carbide teeth for strength, durability, and precision
Expansion slots reduce heat for a longer lifetime

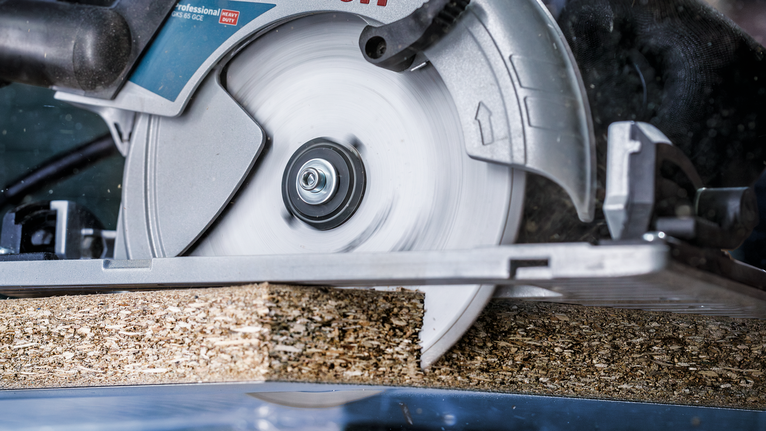

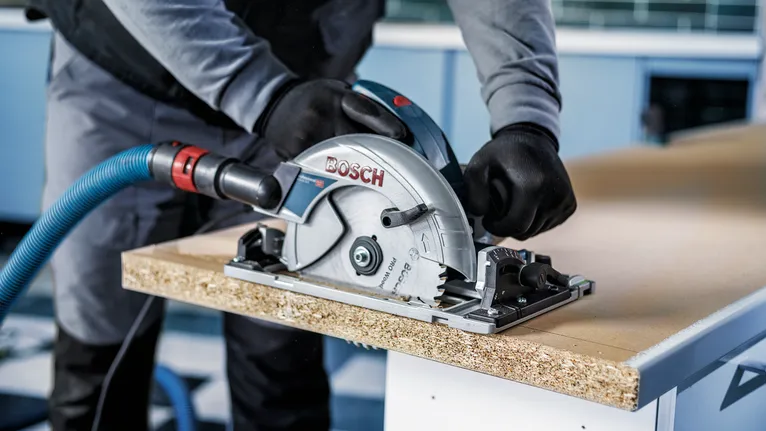

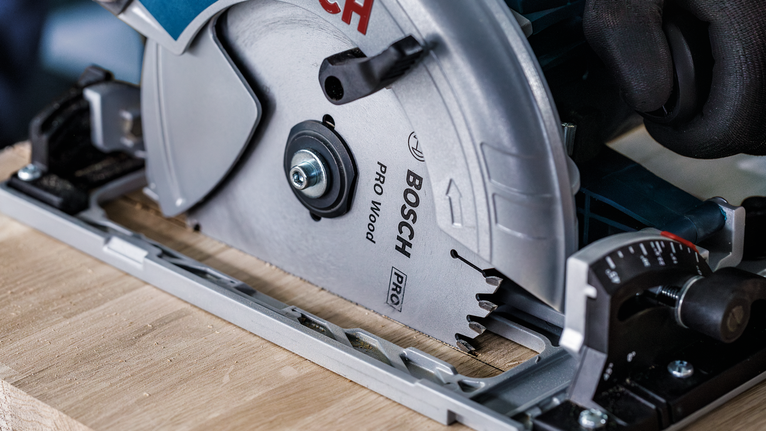

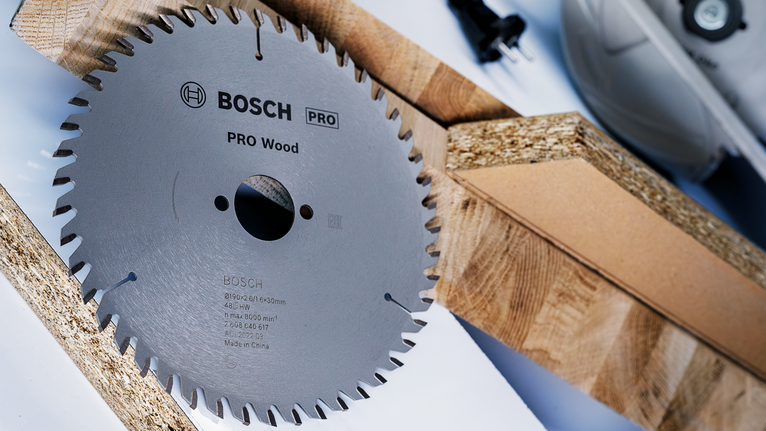

The PRO Wood Circular Saw Blade is designed to solve your challenges cutting all types of solid wood and wood-based panel materials. We made it strong and well-balanced to ensure you get clean and accurate cuts – for a long time.
Available product options: 5
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Bore with reduction ring mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 640 628 | 230 | 30 | - | 2.8/1.8 | 1 Pcs | Find a local dealer | ||
| 2 608 640 732 | 160 | 20 | 16 | 2.6/1.6 | 1 Pcs | Find a local dealer | ||
| 2 608 640 894 | 235 | 35 | 30 / 25.4 / 25 | 2.5/1.8 | 1 Pcs | Find a local dealer | ||
| 2 608 640 895 | 235 | 35 | 30 / 25.4 / 25 | 2.5/1.8 | 1 Pcs | Find a local dealer | ||
| 2 608 641 175 | 165 | 30 | - | 2.6/1.6 | 1 Pcs | Find a local dealer |
out of products

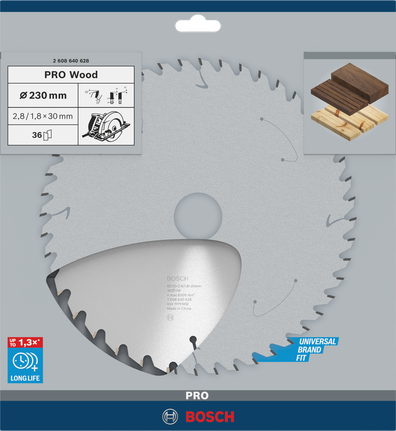

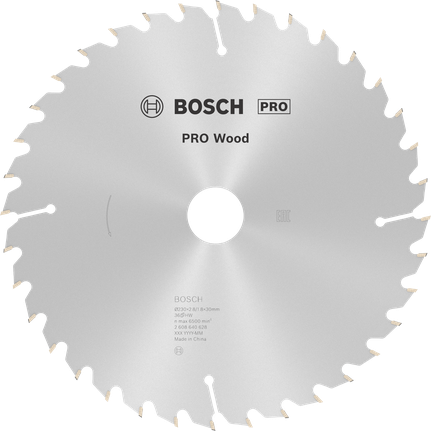

| Part number 2608640628 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 230 |
| Bore size mm | 30 |
| Bore with reduction ring mm | - |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6500 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 7/42 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |

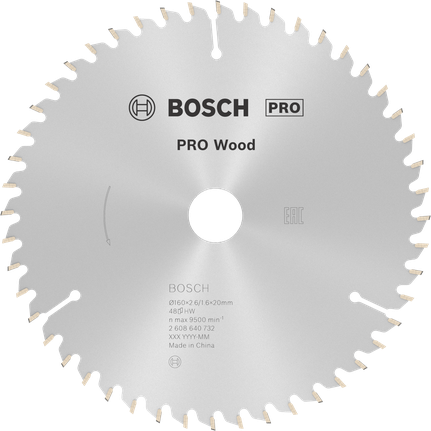

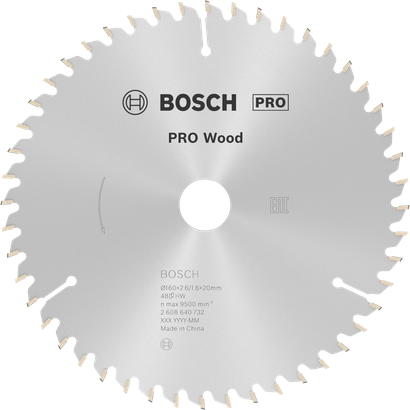

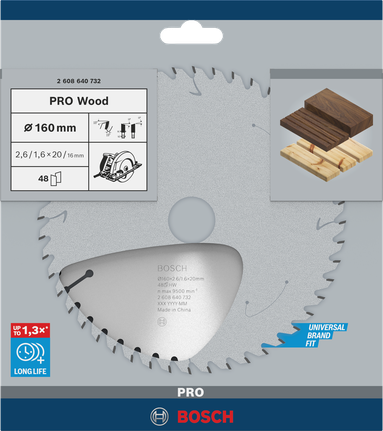

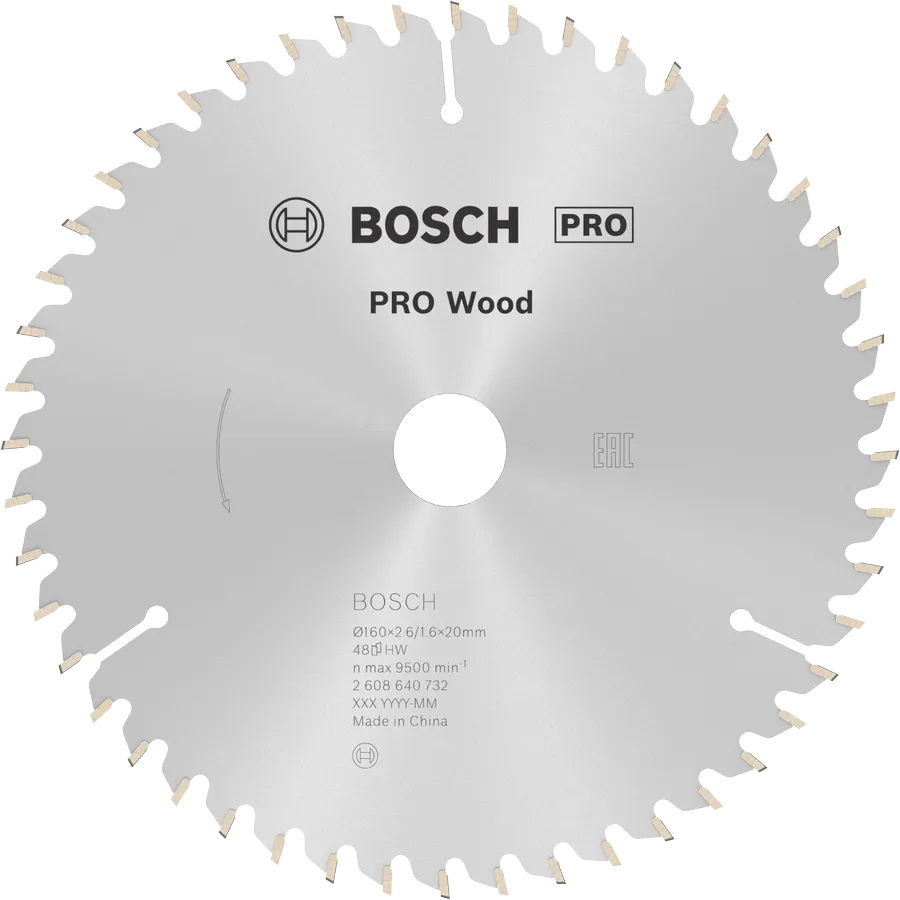

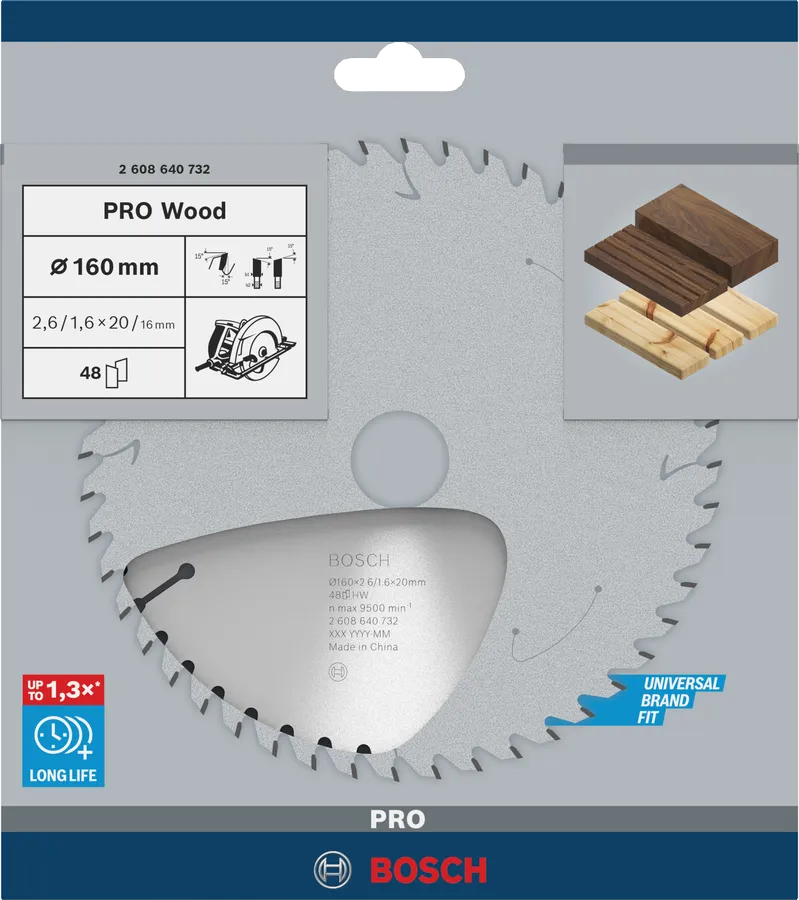

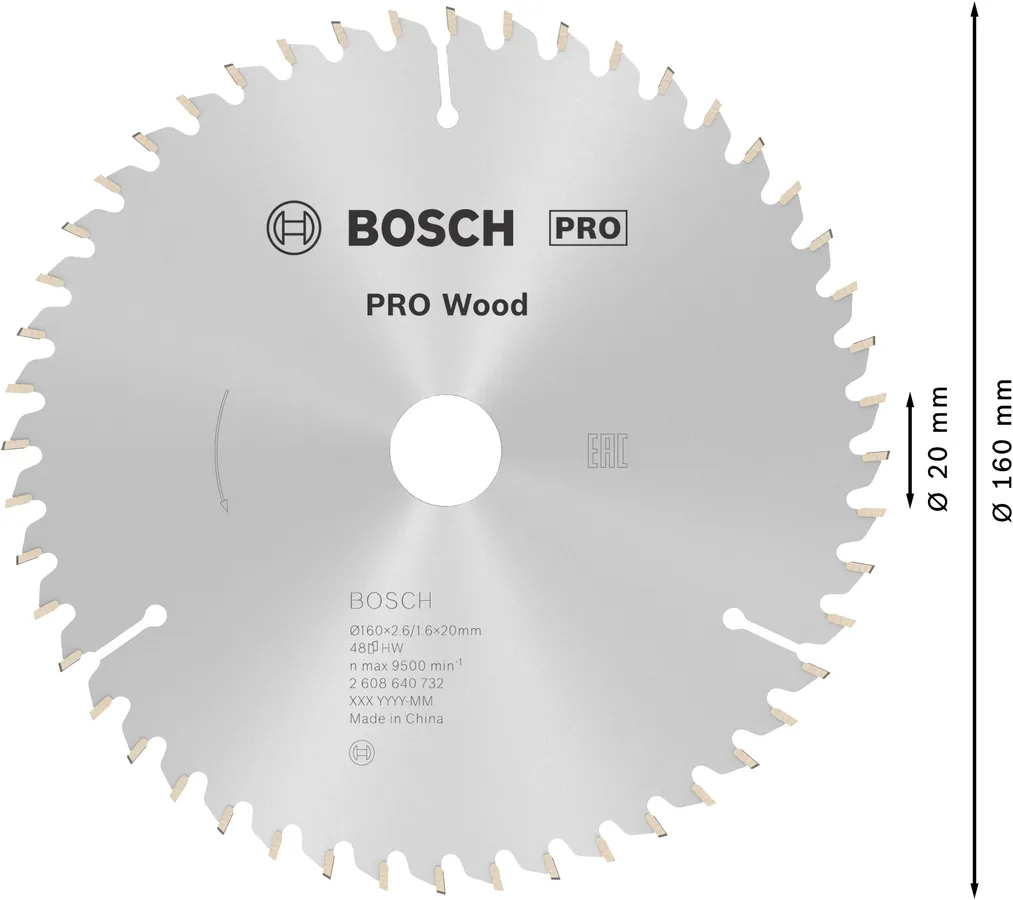

| Part number 2608640732 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9500 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 6/32 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |

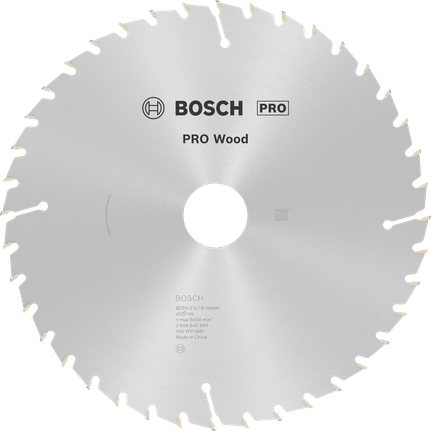

| Part number 2608640894 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 35 |
| Bore with reduction ring mm | 30 / 25.4 / 25 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.5/1.8 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Outer diameter inch | 9 1/4 |

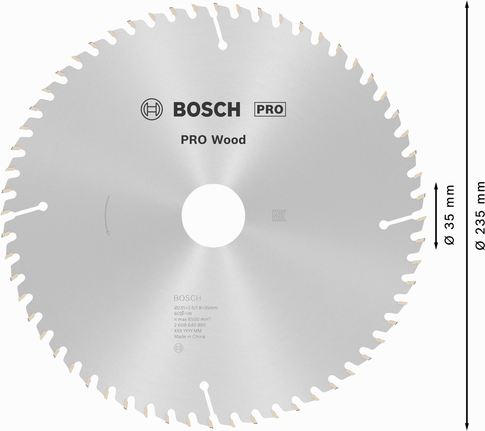

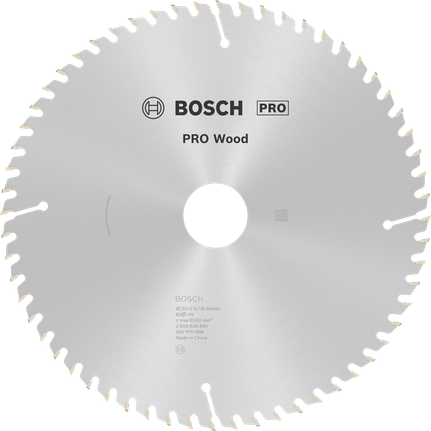

| Part number 2608640895 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 35 |
| Bore with reduction ring mm | 30 / 25.4 / 25 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.5/1.8 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Outer diameter inch | 9 1/4 |

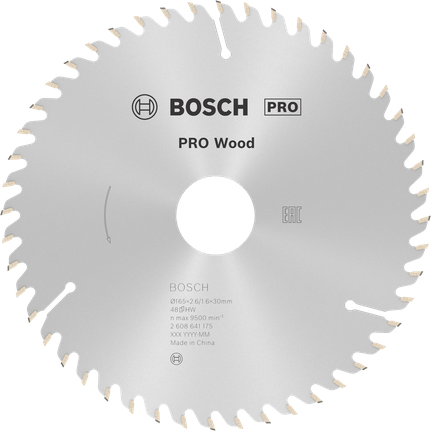

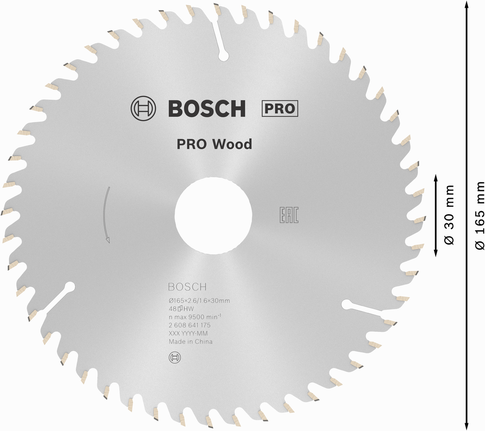

| Part number 2608641175 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 30 |
| Bore with reduction ring mm | - |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
