Optical levels
GOL 26 D Professional
Optical Level
Extremely robust – ideal for outdoor use
- Designed for outdoor use due to sturdy metal housing with dust and splash protection (IP54)
- Robust design with built-in target collimator and integrated circular vial
- Compensator lock for safe transport
Functions & key features

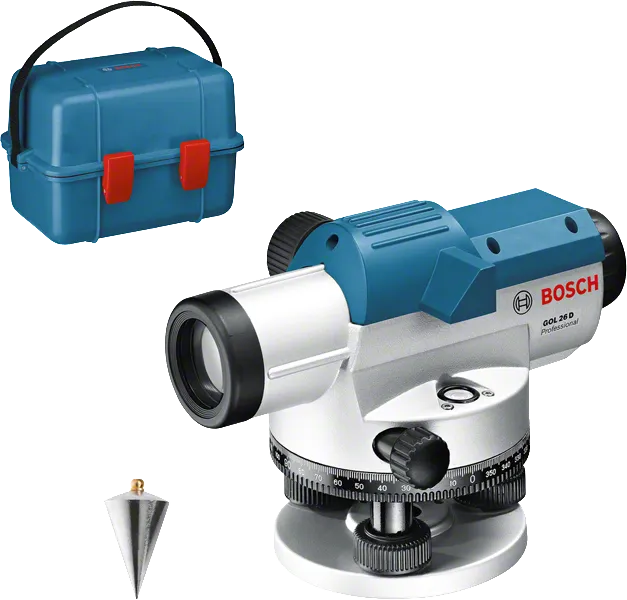

in carrying case with accessory set
0 601 068 000
GOL 26 D Professional
Your Selection
in carrying case with accessory set
Order number: 0 601 068 000
Find a local dealerIncluded in this variant
-
Plumb bob
-
Carrying caseOrder number: 1 600 A00 0LF
-
Lens cover
-
Adjusting pin
Technical data
Additional data
Dust and splash protection
IP 54
Unit of measure
360 degrees
Magnification
26 x
Accuracy
± 1.6 mm at 30 m
Tripod thread
5/8"
Working range
100 m
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 70 °C
Weight, approx.
1.5 kg
Working range, value
100 m
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
