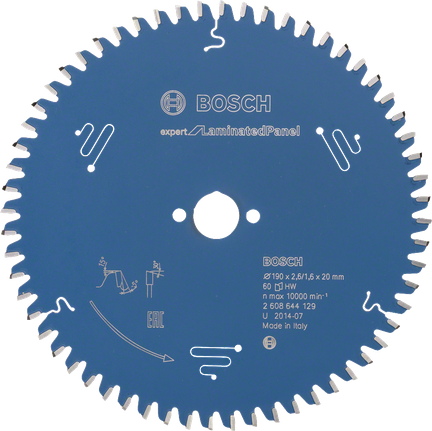

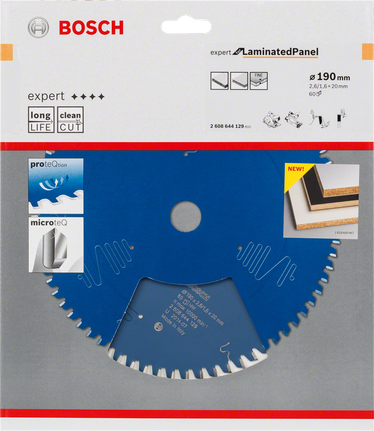

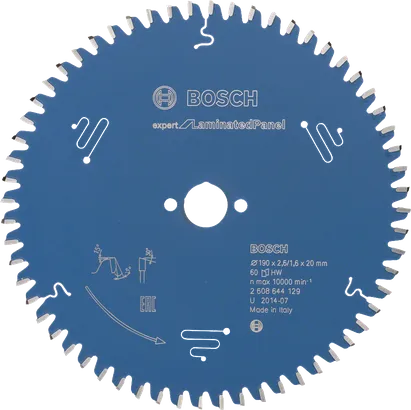

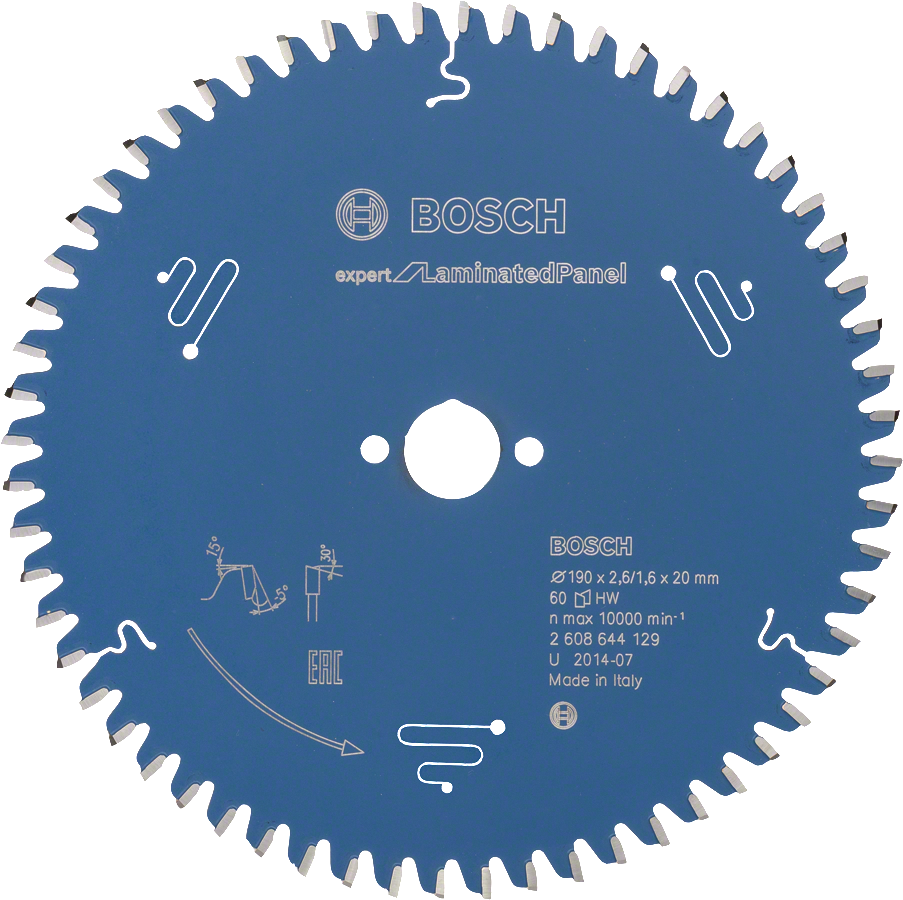

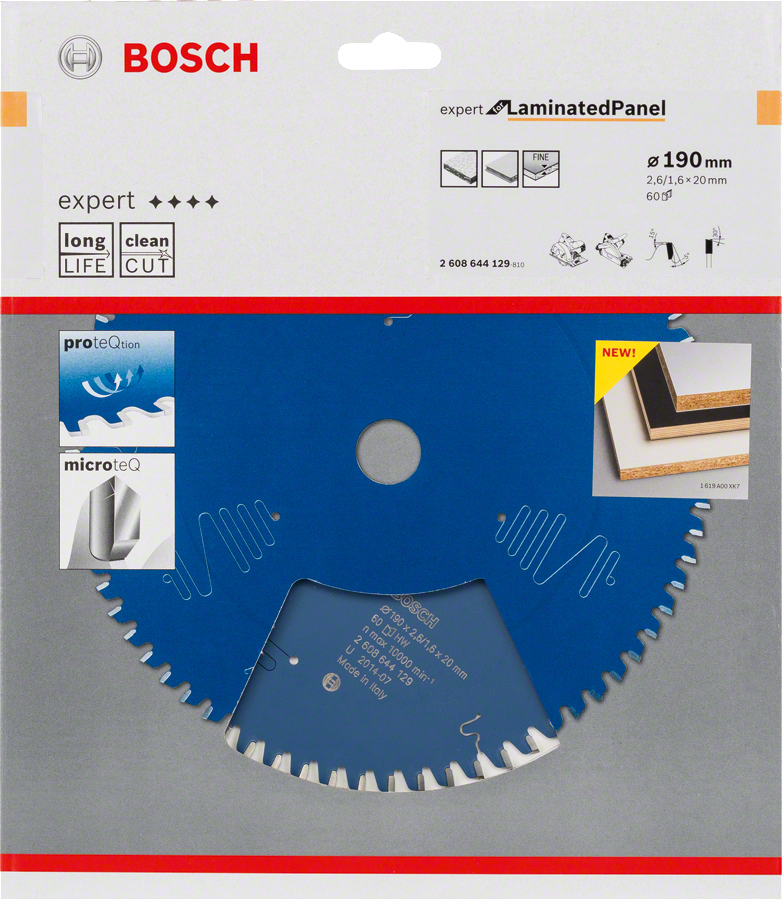

Circular Saw Blades
1/4
Expert for Laminated Panel Hand Circular Saw Blade
For cordless handheld circular saws
Expert for Laminated Panel Hand Circular Saw Blade delivers smooth surface cuts in laminate panels
- Combination of hard carbide/ATB tooth shape for smooth surfaces requiring little to no sanding and for long lifetime.
- Lifetime strengthened by Proteqtion coating that prevents corrosion and reduces friction
- Bore works with or without reduction rings to fit different sizes
Materials
Select options
Outer diameter mm
Select one option from the listed items below
Number of teeth
Select one option from the listed items below
Width of cut (b1) mm
Select one option from the listed items below
Choose a pack size
Select one option from the listed items below
Select options
Outer diameter mm 4 options
Number of teeth 3 options
Width of cut (b1) mm 3 options
Choose a pack size 1 Pcs
Expert for Laminated Panel Hand Circular Saw Blade
Smooth Surfaces in Laminate Panels
Expert for Laminated Panel Hand Circular Saw Blade delivers smooth surface cuts in laminate panels
- Lifetime strengthened by Proteqtion coating that prevents corrosion and reduces friction
- Anti-vibration slots for particularly smooth cutting, considerably less noise and significantly reduced vibration
- ATB (Alternate Top Bevel) tooth configuration for clean cuts in all kinds of wooden materials and laminated panels
View more
Product Options
Available product options: 5
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 644 126 | 140 | 20 | 1.8/1.3 | 42 | 1 Pcs | Find a local dealer | |
| 2 608 644 127 | 160 | 20 | 2.2/1.6 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 644 128 | 165 | 20 | 2.6/1.6 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 644 129 | 190 | 20 | 2.6/1.6 | 60 | 1 Pcs | Find a local dealer | |
| 2 608 644 130 | 190 | 30 | 2.6/1.6 | 60 | 1 Pcs | Find a local dealer |
out of products
Expert for Laminated Panel circular saw blade
Part number 2608644126
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
140
Bore size mm
20
Width of cut (b1) mm / Base bl. thickness (b2) mm
1.8/1.3
Number of teeth
42
Tooth shape
ATB
Max. rotation speed (RPM)
13600
Cutting result
Fine Cut
Pin hole/Pitch circle diameter
2/6/32.5
Hook angle ° α
-5
Relief angle ° β
15
Circular saw blade Expert for Laminated Panel
Part number 2608644127
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
160
Bore size mm
20
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.2/1.6
Number of teeth
48
Tooth shape
ATB
Max. rotation speed (RPM)
11900
Cutting result
Fine Cut
Pin hole/Pitch circle diameter
2/6/32.5
Hook angle ° α
-5
Relief angle ° β
15
Circular saw blade Expert for Laminated Panel
Part number 2608644128
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
165
Bore size mm
20
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.6/1.6
Number of teeth
48
Tooth shape
ATB
Max. rotation speed (RPM)
11500
Cutting result
Fine Cut
Pin hole/Pitch circle diameter
2/6/32.5
Hook angle ° α
-5
Relief angle ° β
15
Circular saw blade Expert for Laminated Panel
Part number 2608644129
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
190
Bore size mm
20
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.6/1.6
Number of teeth
60
Tooth shape
ATB
Max. rotation speed (RPM)
10000
Cutting result
Fine Cut
Pin hole/Pitch circle diameter
2/6/32.5
Hook angle ° α
-5
Relief angle ° β
15
Expert for Laminated Panel circular saw blade
Part number 2608644130
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
190
Bore size mm
30
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.6/1.6
Number of teeth
60
Tooth shape
ATB
Max. rotation speed (RPM)
10000
Cutting result
Fine Cut
Pin hole/Pitch circle diameter
2/7/42
Hook angle ° α
-5
Relief angle ° β
15
