For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 6 options
Number of teeth 2 options
Width of cut (b1) mm 2
Choose a pack size 1 Pcs

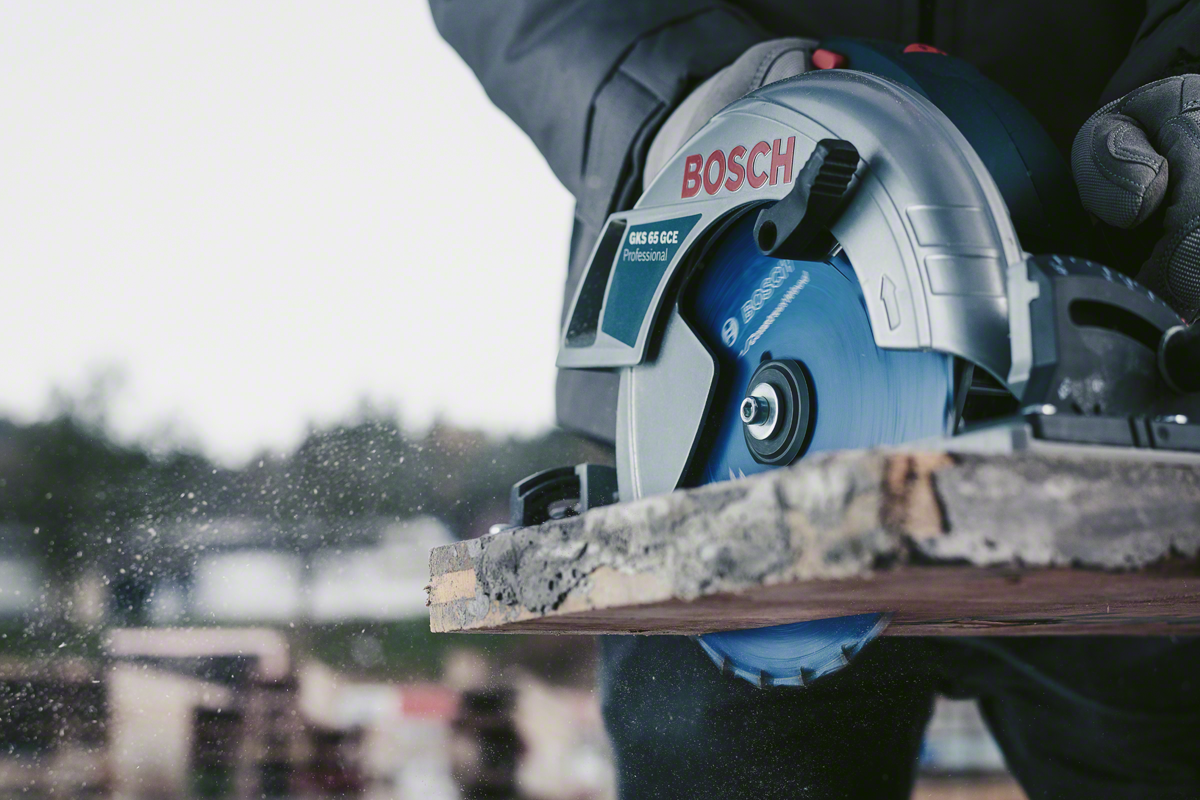

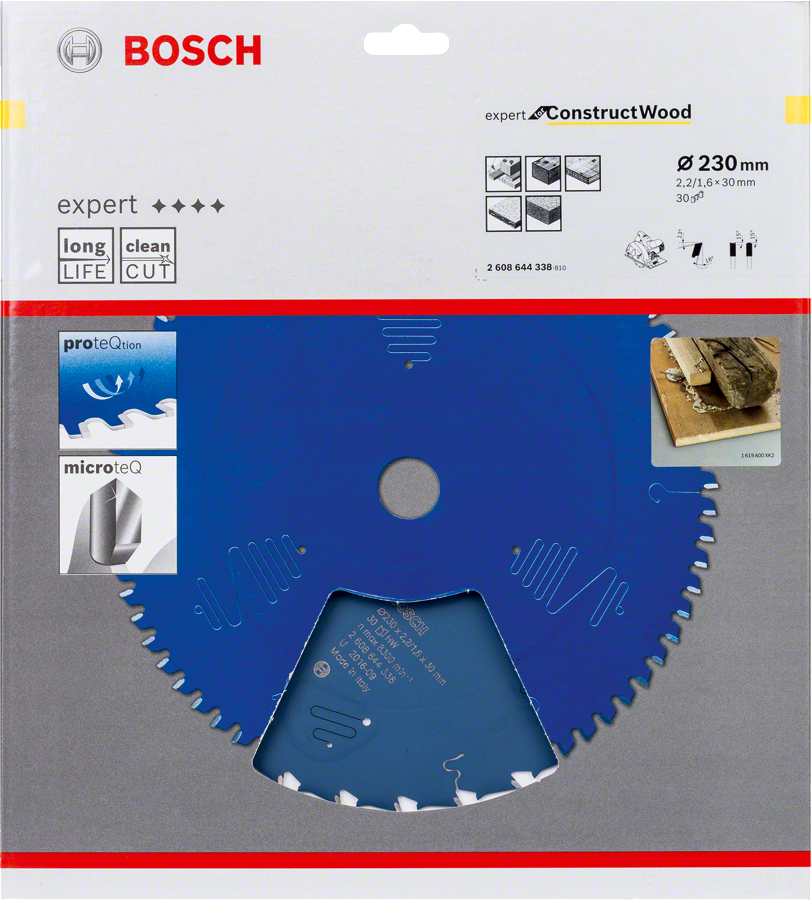

Expert for Construct Wood Circular Saw Blade is strongly resistant when cutting in construction wood
Available product options: 6
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 644 136 | 160 | 20 | 2/1.3 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 644 137 | 165 | 20 | 2/1.3 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 644 138 | 184 | 16 | 2/1.3 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 644 139 | 190 | 30 | 2/1.3 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 644 140 | 200 | 30 | 2/1.3 | 30 | 1 Pcs | Find a local dealer | |
| 2 608 644 141 | 210 | 30 | 2/1.3 | 30 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608644136 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.3 |
| Number of teeth | 24 |
| Tooth shape | ATB+Pyramid |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 18 |
| Relief angle ° β | 13 |
| Part number 2608644137 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.3 |
| Number of teeth | 24 |
| Tooth shape | ATB+Pyramid |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 18 |
| Relief angle ° β | 13 |

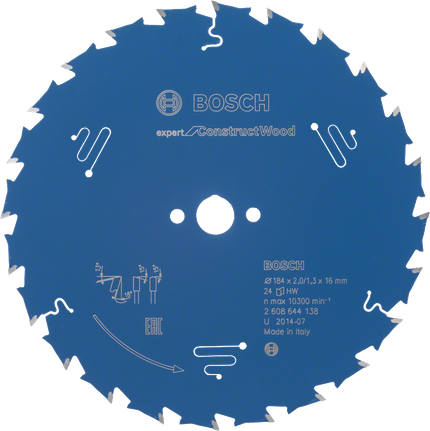

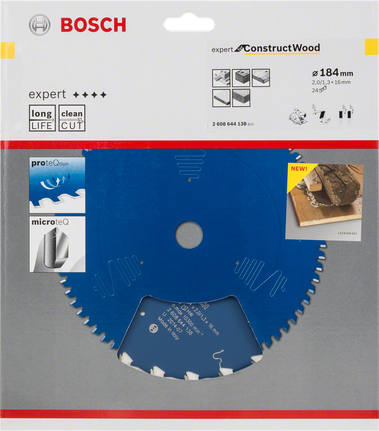

| Part number 2608644138 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.3 |
| Number of teeth | 24 |
| Tooth shape | ATB+Pyramid |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 18 |
| Relief angle ° β | 13 |

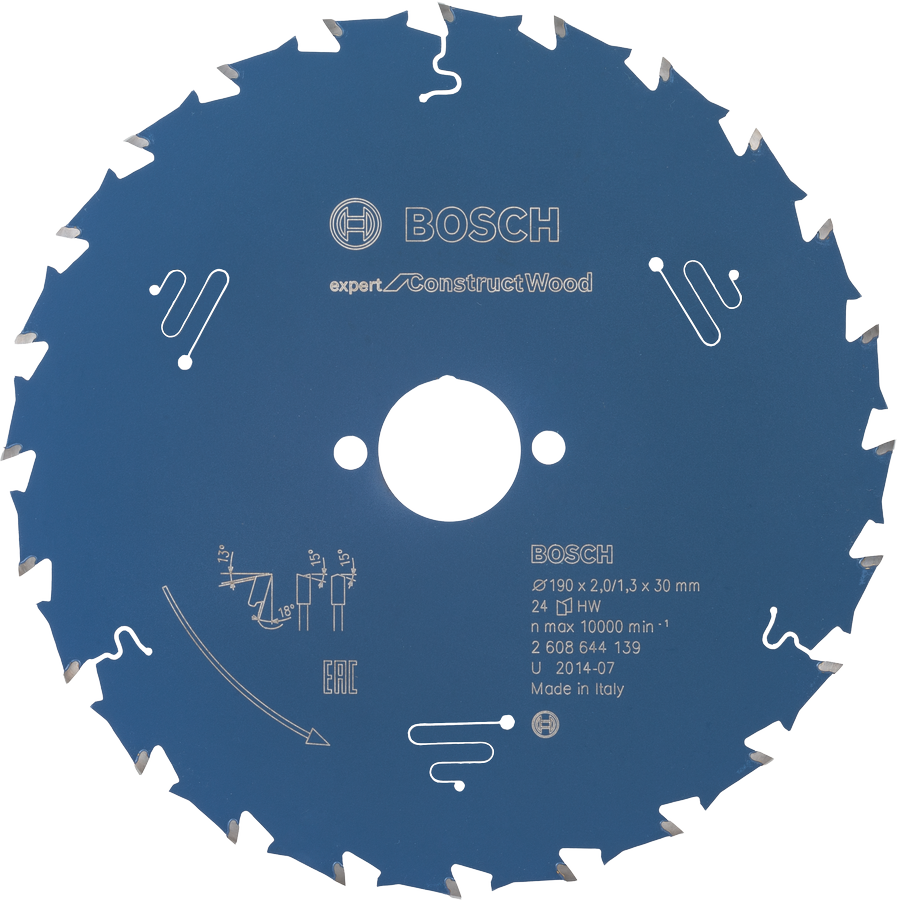

| Part number 2608644139 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.3 |
| Number of teeth | 24 |
| Tooth shape | ATB+Pyramid |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 18 |
| Relief angle ° β | 13 |

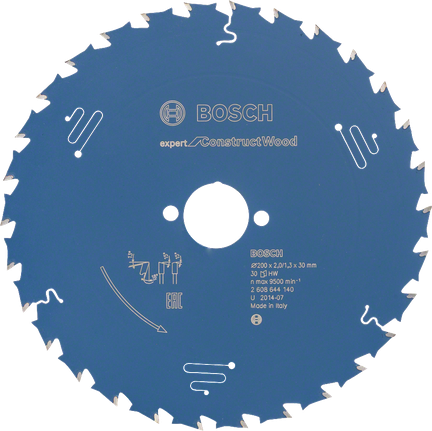

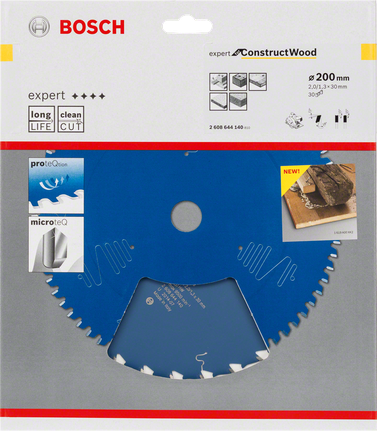

| Part number 2608644140 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 200 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.3 |
| Number of teeth | 30 |
| Tooth shape | ATB+Pyramid |
| Max. rotation speed (RPM) | 9500 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 18 |
| Relief angle ° β | 13 |
| Part number 2608644141 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.3 |
| Number of teeth | 30 |
| Tooth shape | ATB+Pyramid |
| Max. rotation speed (RPM) | 9000 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 18 |
| Relief angle ° β | 13 |
