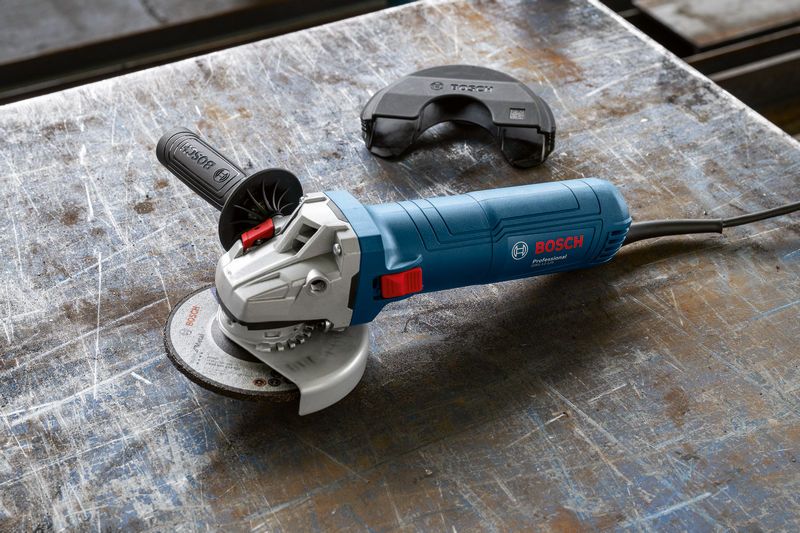

GWS 12-125 - standard auxiliary handle Professional
Angle Grinder
Functional, ergonomic, and economical angle grinder for convenient everyday use
- Ideal power-to-grip-size ratio for fatigue-free and fast-working process,Robust and powerful motor with good overload capability, Convenient working due to keyless protection guard
Functions & key features
Select a variant
Your Selection
Order number: 0 601 3A6 160
Find a local dealerIncluded in all variants
-
Protective clip-on cutting guard plasticOrder number: 2 608 000 757
-
Backing flangeOrder number: 1 605 703 099
-
Cardboard box
-
Protective guardOrder number: 1 605 510 365
-
Locking nutOrder number: 1 603 340 040
-
Auxiliary handleOrder number: 1 602 025 024
-
Two-hole spannerOrder number: 1 607 950 043
Your Selection
Order number: 0 601 3A6 101
Find a local dealerIncluded in all variants
-
Protective clip-on cutting guard plasticOrder number: 2 608 000 757
-
Backing flangeOrder number: 1 605 703 099
-
Cardboard box
-
Protective guardOrder number: 1 605 510 365
-
Locking nutOrder number: 1 603 340 040
-
Auxiliary handleOrder number: 1 602 025 024
-
Two-hole spannerOrder number: 1 607 950 043
Your Selection
Order number: 0 601 3A6 170
Find a local dealerIncluded in all variants
-
Protective clip-on cutting guard plasticOrder number: 2 608 000 757
-
Backing flangeOrder number: 1 605 703 099
-
Cardboard box
-
Protective guardOrder number: 1 605 510 365
-
Locking nutOrder number: 1 603 340 040
-
Auxiliary handleOrder number: 1 602 025 024
-
Two-hole spannerOrder number: 1 607 950 043
Technical data
Additional data |
|
|---|---|
| Rated input power | 1050 W |
| No-load speed | 11.000 rpm |
| Speed output no-load, nominal max. | 11,000 rpm |
| Disc diameter | 125 mm |
| Power output | 520 W |
| Main handle | Barrel |
| Wire cup brush, diameter | 75 mm |
| Bore size, diameter | 22.23 mm |
| Weight | 2.2 kg |
| Switch | Lockable Switch |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 94 dB(A); Sound power level 102 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GWS 12-125 - standard auxiliary handle Professional: Further information
Product Highlights
Finding an easy to use and comfortable angle grinder for everyday use can be a challenge. That is why we developed the GWS 12 product family. The GWS 12-125 Professional is compact, convenient, economical yet powerful. When using this tool, you will appreciate more comfort and less fatigue thanks to the ergonomic design due to the reduced grip size. The motor is robust and powerful and has a good overload capability for fast working progress in your daily metal applications. For easy handling, the tool is equipped with a keyless guard and comes with a lockable switch. It also has Restart protection and we included a plastic clip-on cutting guard for cutting applications in our scope of supply.
Equipment & Application
Use the GWS 12-125 Professional to grind and cut metal, tiles, and masonry. This tool is compatible with the dust extraction guard GDE 125 EA-T Professional and GDE 115/125 FC-T Professional.
