Table saws & work benches
![GTS 10 XC]( "GTS 10 XC")
![GTS 10 XC]( "GTS 10 XC")
![GTS 10 XC]( "GTS 10 XC")

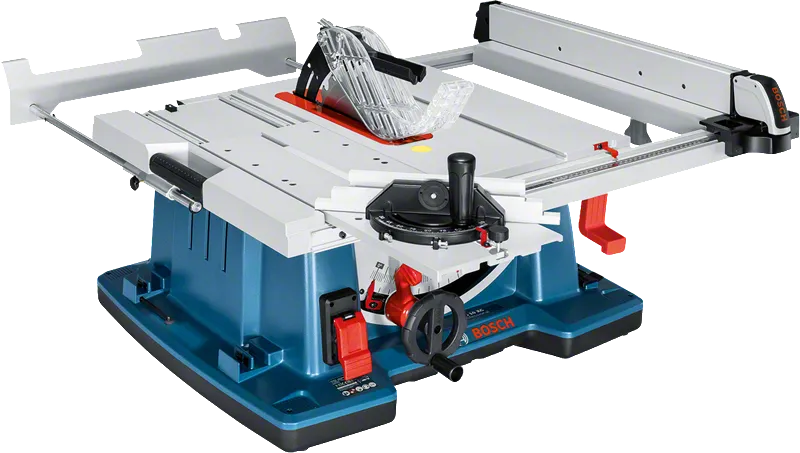

GTS 10 XC Professional
Table Saw
The versatile tool with a powerful motor
- Powerful motor with motor brake, starting current limitation, overload protection and Constant Electronic for the toughest applications

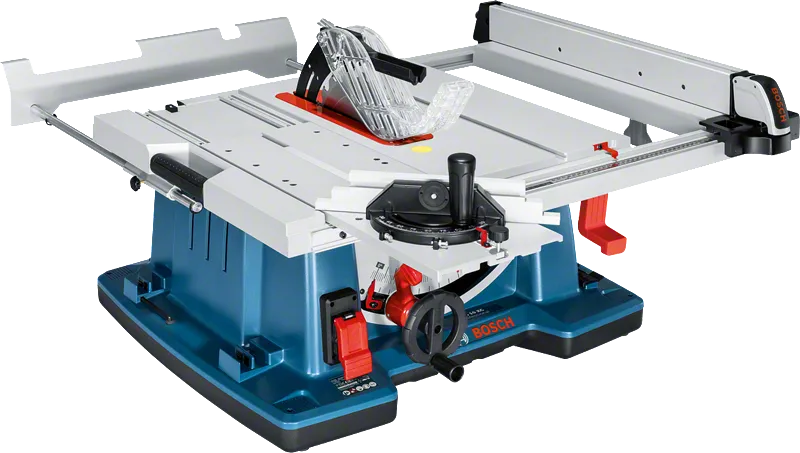

- Versatile due to integrated slide carriage as well as table-widener and table extension
- Tool-free lowering of the riving knife for concealed cuts
Functions & key features
with dust extraction accessory, Accessory
0 601 B30 470
Select a variant
Your Selection
with dust extraction accessory, Accessory
Order number: 0 601 B30 470
Find a local dealerIncluded in all variants
-
Parallel guideOrder number: 2 610 016 851
-
Angle guideOrder number: 2 610 015 508
-
Dust extraction adapterOrder number: 2 610 015 509
-
Push stickOrder number: 2 610 015 022
-
Storage for additional saw blade
-
1 x circular saw blade, Optiline Wood, 254 x 2.8/1.8 x 30 mm, 24Order number: 2 608 838 412
Additional in this variant
-
Voltage 240 V
Your Selection
with dust extraction accessory
Order number: 0 601 B30 400
Find a local dealerIncluded in all variants
-
Parallel guideOrder number: 2 610 016 851
-
Angle guideOrder number: 2 610 015 508
-
Dust extraction adapterOrder number: 2 610 015 509
-
Push stickOrder number: 2 610 015 022
-
Storage for additional saw blade
-
1 x circular saw blade, Optiline Wood, 254 x 2.8/1.8 x 30 mm, 24Order number: 2 608 838 412
Technical data
Additional data |
|
|---|---|
| Saw blade diameter | 254 mm |
| Incline setting | 47 ° L / 1 ° R |
| Table size | 640 x 705 mm |
| Voltage | 240 V |
| Rated input power | 2,000 W |
| No-load speed | 4,200 rpm |
| Saw blade bore diameter | 30 mm |
| Weight | 35 kg |

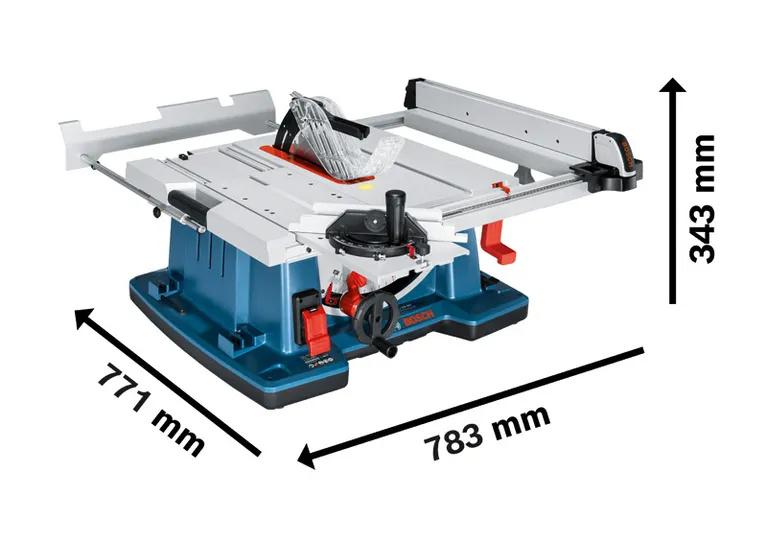

| Tool dimensions (width x length x height) | 771 x 783 x 343 mm |
| Cutting height 90° | 79 mm |
| Cutting height 45° | 56 mm |
| Max. cutting capacity on the right | 635 mm |
| Max. cutting capacity on the left | 250 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 92 dB(A); Sound power level 105 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
