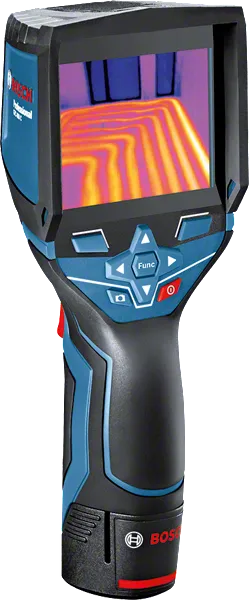

GTC 400 C Professional
Thermo Camera
Immediate visualisation of temperature differences with smart documentation

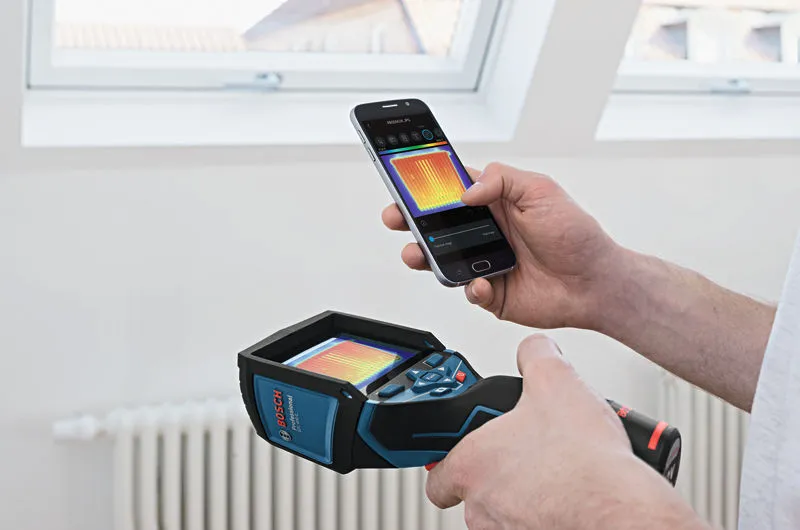

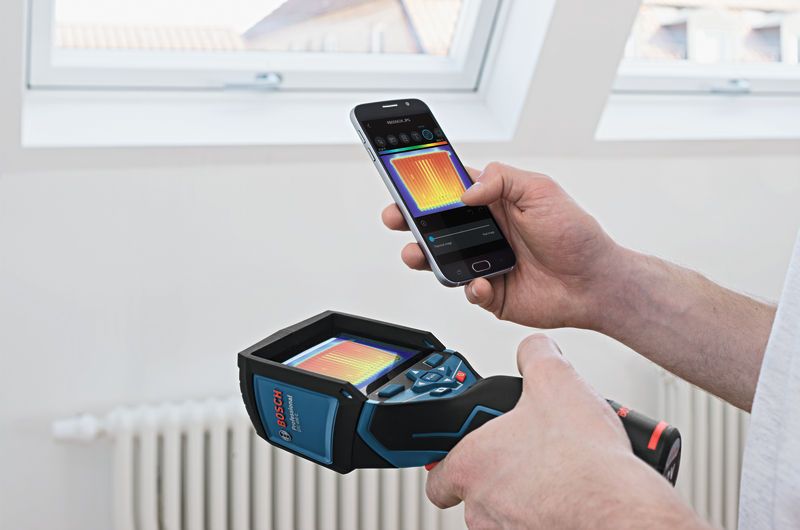

- Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app
- Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
- Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries
Functions & key features
Your Selection
- in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Hand strap
GTC 400 C Professional
Your Selection
Order number: 0 601 083 171

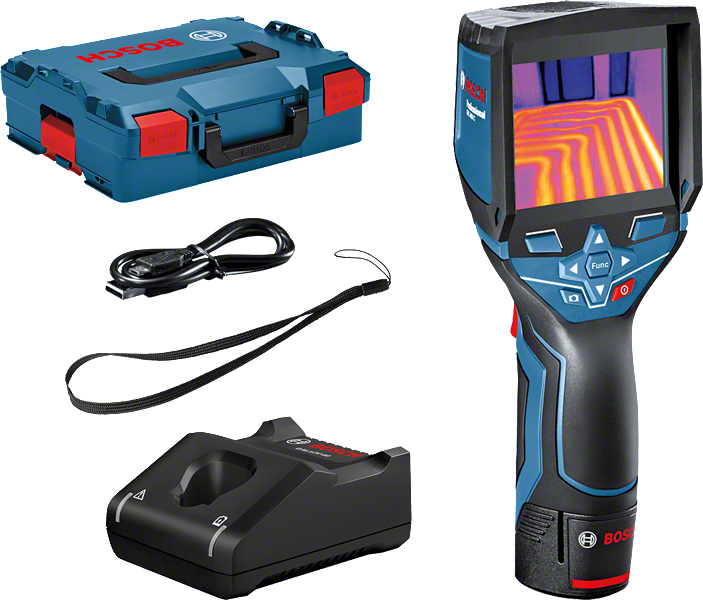

Find a local dealerIncluded in this variant
-
L-BOXX 136Order number: 1 600 A01 2G0
-
Micro USB cableOrder number: 2 609 120 670
-
Quick charger GAL 12V-40 ProfessionalOrder number: 1 600 A01 9R4
-
Hand strap
-
L-BOXX inlay for tool
-
1 x battery GBA 12V 2.0AhOrder number: 1 600 Z00 02X
Technical data
Additional data |
|
|---|---|
| Data transfer | MicroUSB, Wi-Fi |
| Measurement range | -10 °C to +400 °C |
| Measuring accuracy of IR | ± 3.0 °Cᵇ |
| Thermal sensitivity (NETD) | <50 mK |
| Battery voltage | 12.0 V |
| Resolution | 0.1 °C |
| Size of IR sensor | 160x120 px |
| Number of measuring points | 19,200 |
| Field of view (FOV) | 53x43 ° |
| Power supply and runtime | 4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V |
| Frame buffer (number of images) | 500 |
| Memory type | Internal memory |
| File format of image | .jpg |
| Dust and splash protection | IP 53 |
| Weight | 0.54 kg |
| Size of display | 3,5" |
| Operating temperature | -10 – 45 °C |
| Storage temperature | -20 – 70 °C |
| Focus distance, minimum | 0.3 m |
| Measuring application | Thermal image |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᵇ At >10°C, <100°C, for other surface temperatures, see
GTC 400 C Professional: Further information
Product Highlights
The thermal camera GTC 400 C Professional measures and visualises temperature differences in seconds and easily records the results. The Bosch ThermalOn app documents and forwards measured values fast. Intelligent picture-in-picture technology overlays detailed real and heat-sensing images (19,200 px), resulting in a high-quality image and clear localisation of temperature differences. With its dual power system, a 12 V LI-ION battery or standard alkaline batteries are suitable power supplies.
Equipment & Application

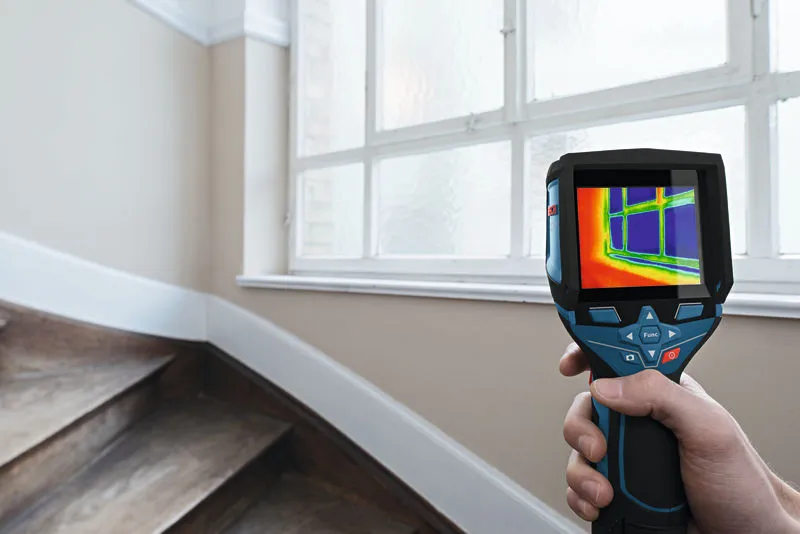

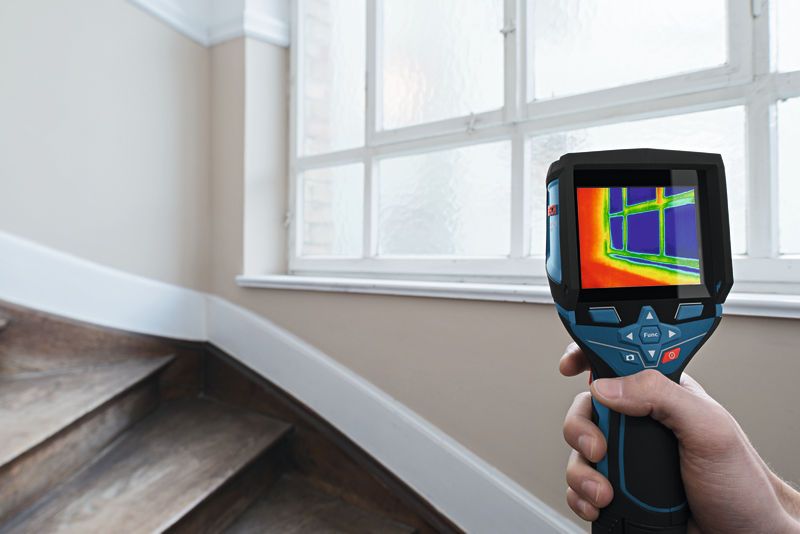

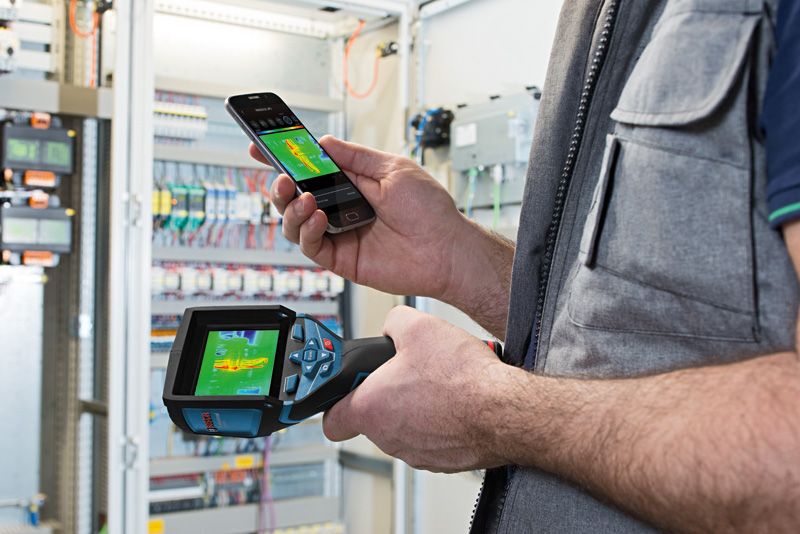

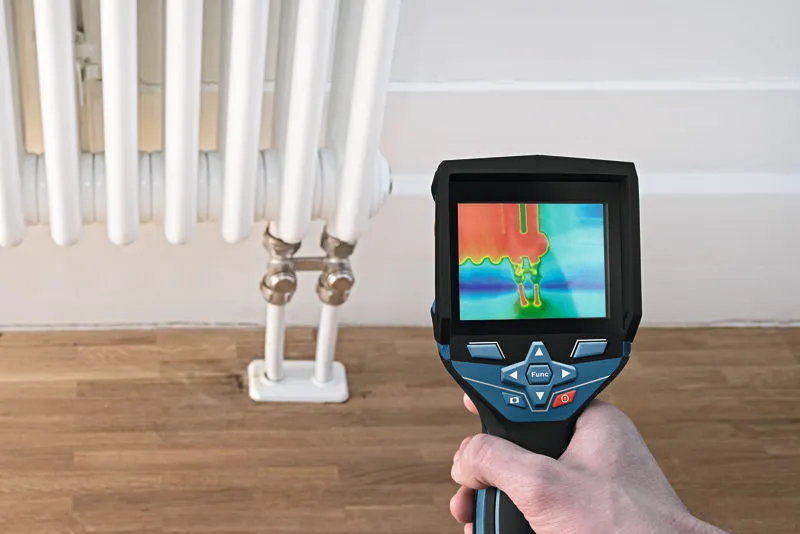

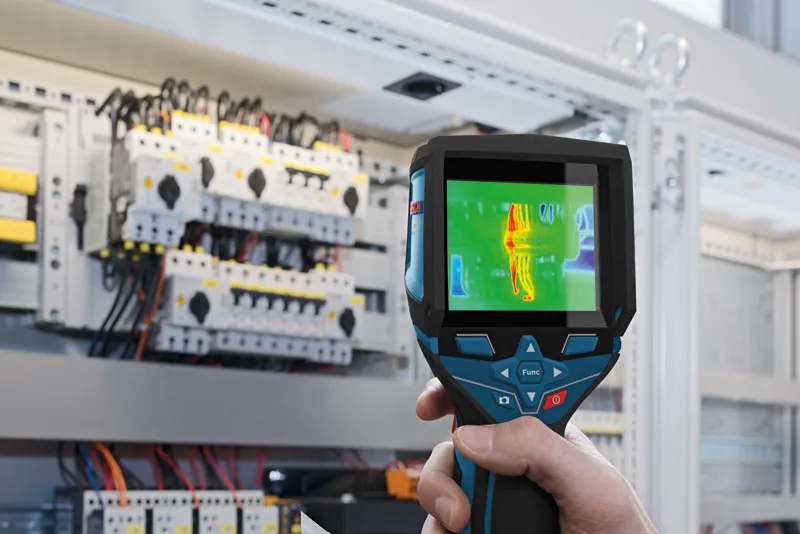

It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts.
Additional Information

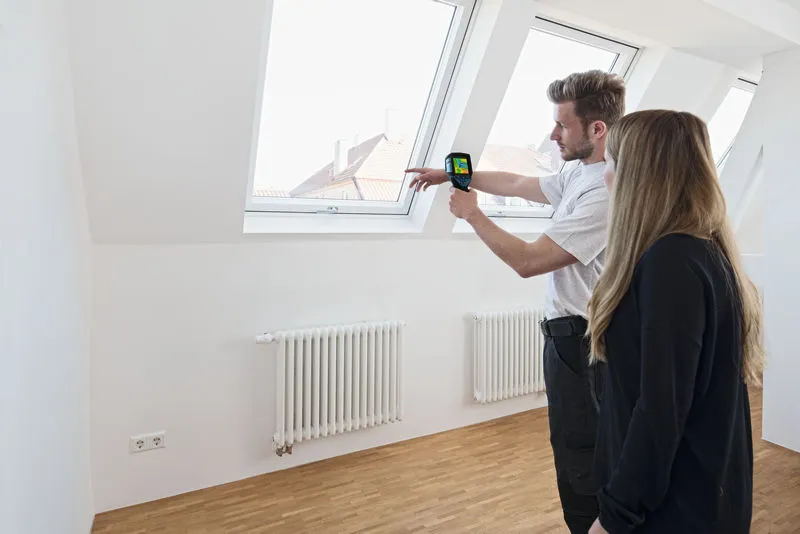

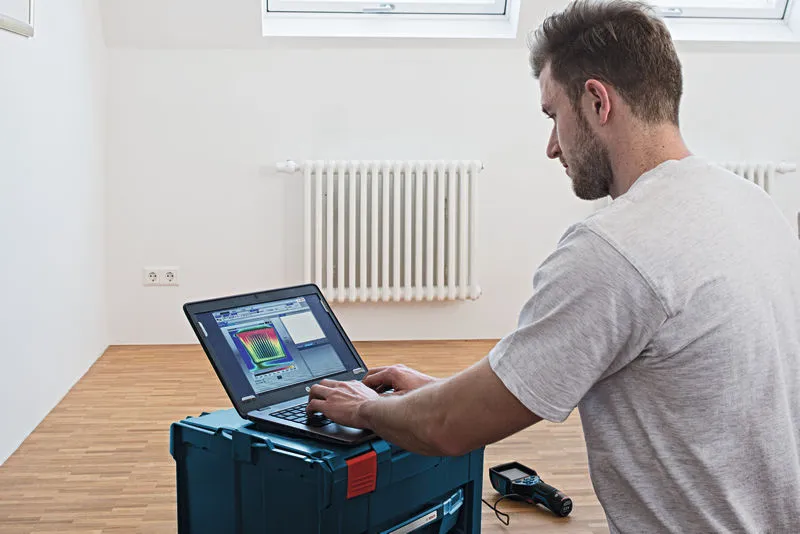

The smart GTC 400 C Professional is perfect for supporting a variety of specialists in every project phase: From customer consultations by exhibiting clear images of the situation to preparatory tasks such as inspecting where lines are installed, through project documentation and even follow-up work. The measuring tool must not be used for human medical purposes.
