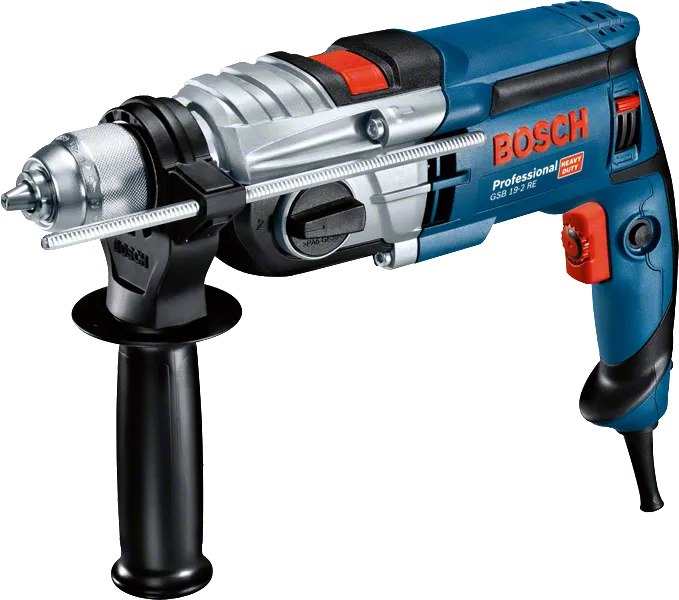

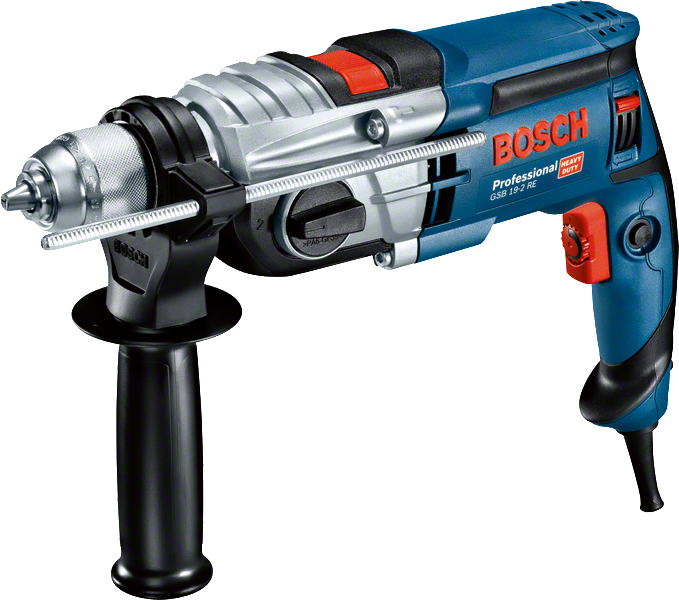

GSB 19-2 RE Professional
Impact Drill
The fastest and most versatile tool in its class
- Powerful 2-speed impact drill (850 W) for the fastest work progress
- Sturdy metal gear housing for a long lifetime
- Antirotation mechanical overload clutch for a high level of work safety
Functions & key features
Your Selection

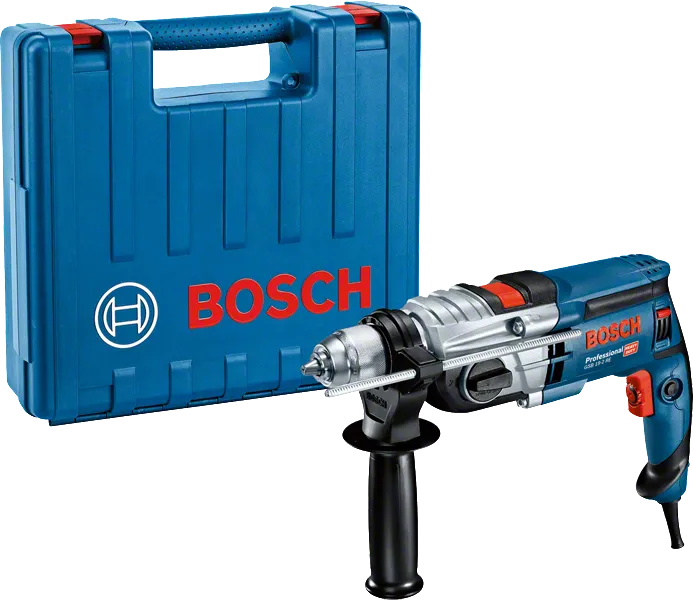

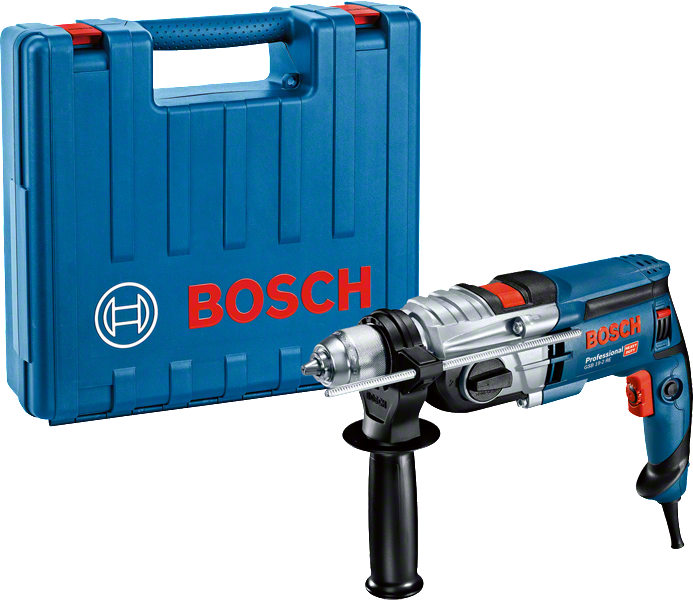

- in carrying case with auxiliary handle, Accessory
Select a variant
Your Selection
Order number: 0 601 17B 560
Included in all variants
-
Auxiliary handleOrder number: 2 605 025 190
-
Carrying caseOrder number: 2 605 438 524
-
Keyless chuck 13 mmOrder number: 2 608 572 149
-
Depth stop 210 mmOrder number: 1 613 001 010
Additional in this variant
-
Voltage 110 V
Your Selection
Order number: 0 601 17B 570
Included in all variants
-
Auxiliary handleOrder number: 2 605 025 190
-
Carrying caseOrder number: 2 605 438 524
-
Keyless chuck 13 mmOrder number: 2 608 572 149
-
Depth stop 210 mmOrder number: 1 613 001 010
Additional in this variant
-
Voltage 240 V
Technical data
Additional data |
|
|---|---|
| Rated input power | 850 W |
| Voltage, electrical | 110 V |
| Bit holder | 1/2"-20 UNF |
| No-load speed, 1st gear | 0 – 1.000 rpm |
| No-load speed, 2nd gear | 3.000 rpm |
| Power output | 430 W |
| Weight | 2.6 kg |
| Impact rate at no-load speed | 0 – 17.000 / 51.000 bpm |
| Rated speed | 800 / 2.060 rpm |
| Rated torque | 5=2 / 2=0 Nm |
| Drill spindle connecting thread | 1/2"-20 UNF |
| Chuck capacity, min./max. | 1=5 – 13 mm |
| Max. torque | 36=0 Nm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 99 dB(A); Sound power level 110 dB(A). Uncertainty K= 5 dB.
* You can find more information about the deviations in the following link:
GSB 19-2 RE Professional: Further information
Product Highlights
The GSB 19-2 RE Professional is a corded 2-geared all-round performing impact drill. It has a reliable 850 W motor enabling fast work progress. It also features a rotation control clutch providing a high level of user protection. The impact drill is designed with a sturdy metal gear housing ensuring a long tool lifetime.
Equipment & Application

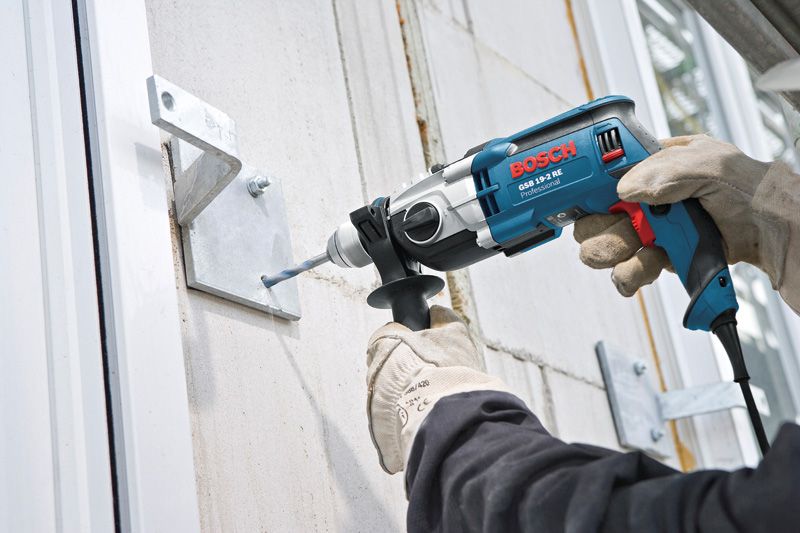

This tool is intended for drilling in concrete, stone, and masonry. It is compatible with the attachment GDE 16 Cyl Professional.
