Multi-cutters
![GMF 1600 CE]( "GMF 1600 CE")
![GMF 1600 CE]( "GMF 1600 CE")
![GMF 1600 CE]( "GMF 1600 CE")
![GMF 1600 CE]( "GMF 1600 CE")
GMF 1600 CE Professional
Multifunction Router
The powerful plunge and fixed-base router with Trigger Control
- Patented switch system in the handle (Trigger Control) for optimum control from the beginning
- Powerful 1600 watt motor with Constant Electronic and Softstart for material-specific working
- SDS quick-change system: for tight fitting of the separate motor block either in the plunge or fixed-base unit
Functions & key features

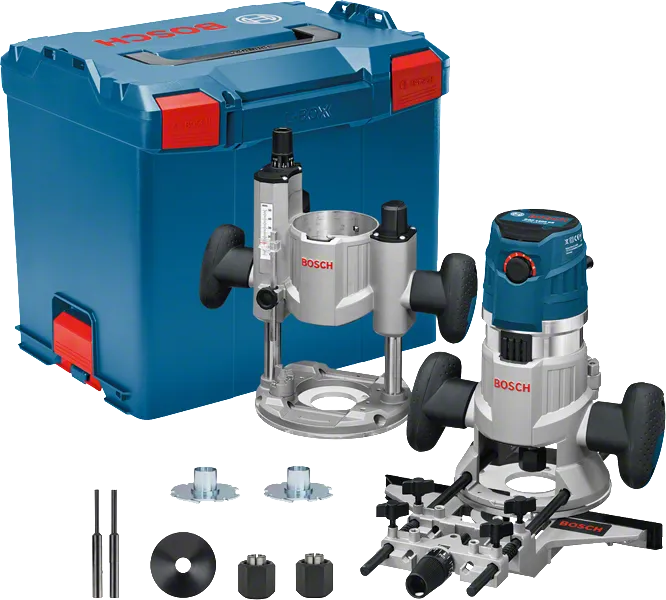

in L-BOXX with accessory set
0 601 624 002
GMF 1600 CE Professional
Your Selection
in L-BOXX with accessory set
Order number: 0 601 624 002
Find a local dealerIncluded in this variant
-
Chip protection for plunge-cutting router
-
Fixed-base unit
-
2 x template guide 17mm (2 609 200 139) + 30 mmOrder number: 2 609 200 142
-
Dust extraction adapter for fixed-base router
-
Open-ended spanner 24 mm (spare part number 2 610 992 417)
-
Parallel guide with fine adjustmentOrder number: 2 607 001 387
-
L-BOXX
-
Centring pin 8 mm/12 mm
-
Chip protection for fixed-base router
-
2 x collet with nut 8 mm (2 608 570 105) + 12 mmOrder number: 2 608 570 107
Technical data
Additional data |
|
|---|---|
| No-load speed | 10.000 – 25.000 rpm |
| Rated input power | 1600 W |
| Bit holder | 8 – 12=7 mm |
| Voltage, electrical | 240 V |
| Maximum router cage stroke | 76 mm |
| Weight | 5.8 kg |
| Weight of plunge-cut unit including motor | 5.8 kg |
| Weight of copy unit including motor | 4.3 kg |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 86 dB(A); Sound power level 97 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
