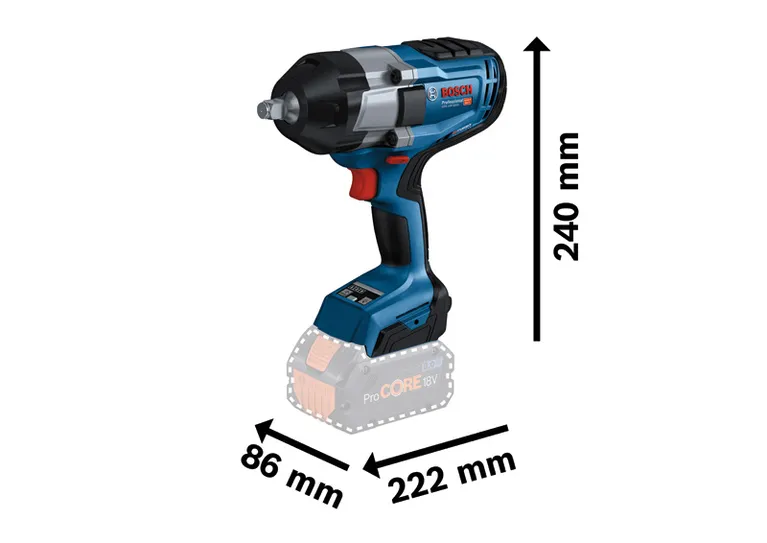

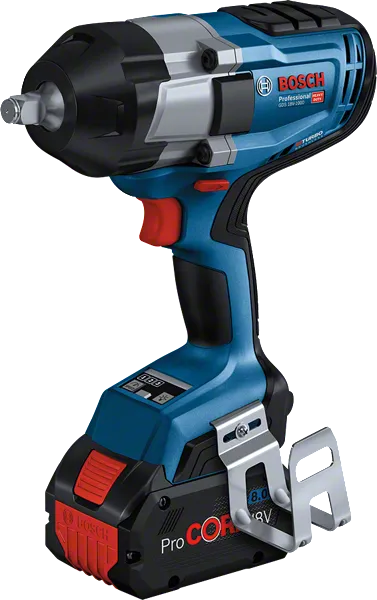

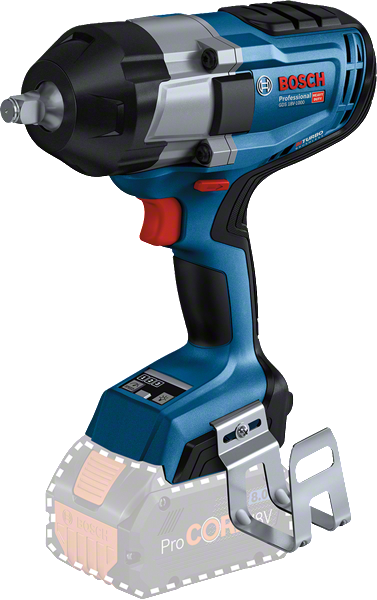

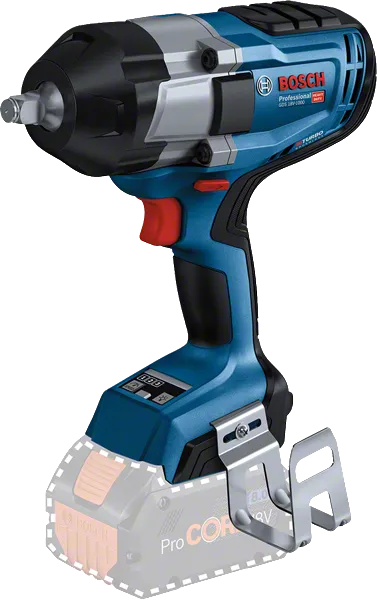

GDS 18V-1000 Professional
Cordless Impact Wrench
Full power, no cord: 1/2" high torque impact wrench with BITURBO Brushless technology
- High power with cordless freedom thanks to ProCORE18V batteries and brushless motor
- Best performance for heavy duties with a tightening torque of 1,000 Nm and a breakaway torque of up to 1,600 Nm
- High versatility and controlled power due to 3-speed/torque settings
Functions & key features
Your Selection
- in cardboard box
Select a variant
Your Selection
Order number: 0 601 9J8 300
Included in all variants
-
Ladder clip (1600 A02 3G7)
Additional in this variant
-
Cardboard box
Your Selection
Order number: 0 601 9J8 371
Included in all variants
-
Ladder clip (1600 A02 3G7)
Additional in this variant
-
Quick charger GAL 1880 CVOrder number: 1 600 A00 B8H
-
2 x battery ProCORE18V 5.5AhOrder number: 1 600 A02 149
-
1/1 L-BOXX inlay for tool and chargerOrder number: 1 600 A02 58Y
-
L-BOXX136NOrder number: 1 600 A01 2G0
Technical data
Additional data |
|
|---|---|
| Battery voltage | 18.0 V |
| Torque, max. | 1,000 Nm |
| No-load speed | 0-1.750 rpm |
| Tool holder | 1/2'' Square |
| Breakaway torque, max. | 1,600 Nm |
| Torque adjustment range, min./max., 1st level | 0/350 Nm |
| Torque adjustment range, min./max., 2nd level | 0/700 Nm |
| Torque adjustment range, min./max., 3rd level | 0/1000 Nm |
| No-load speed (1st level) | 0-800 rpm |
| No-load speed (2nd level) | 0-1.200 rpm |
| No-load speed (3rd level) | 0-1.750 rpm |
| Torque settings | 3 |
| Weight excl. battery | 2.9 kg |
| Impact rate | 0-2.600 bpm |
| Impact rate (1st level) | 0-1.600 bpm |
| Impact rate (2nd level) | 0-2.400 bpm |
| Impact rate (3rd level) | 0-2.600 bpm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 95 dB(A); Sound power level 106 dB(A). Uncertainty K= 5 dB.
* You can find more information about the deviations in the following link:
GDS 18V-1000 Professional: Further information
Product Highlights
The GDS 18V-1000 Professional is the powerful 1/2" impact wrench with BITURBO Brushless technology. Its cordless freedom with outstanding power is the outcome of the high-performing brushless motor fully maximised for ProCORE18V batteries. The new impact mechanism, which is designed to deliver a maximum tightening torque of 1,000 Nm and a maximum breakaway torque of up to 1,600 Nm, provides best performance for heavy duties. Three settings offer excellent control over speed/torque for high versatility.
Equipment & Application

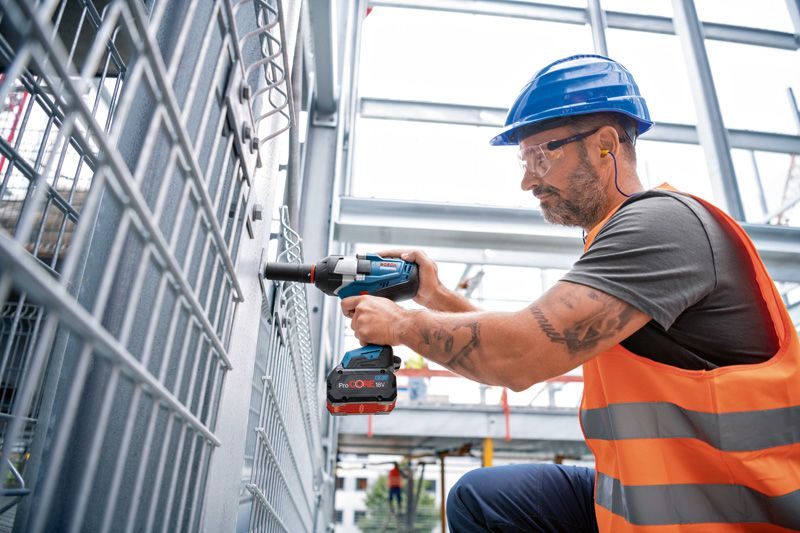

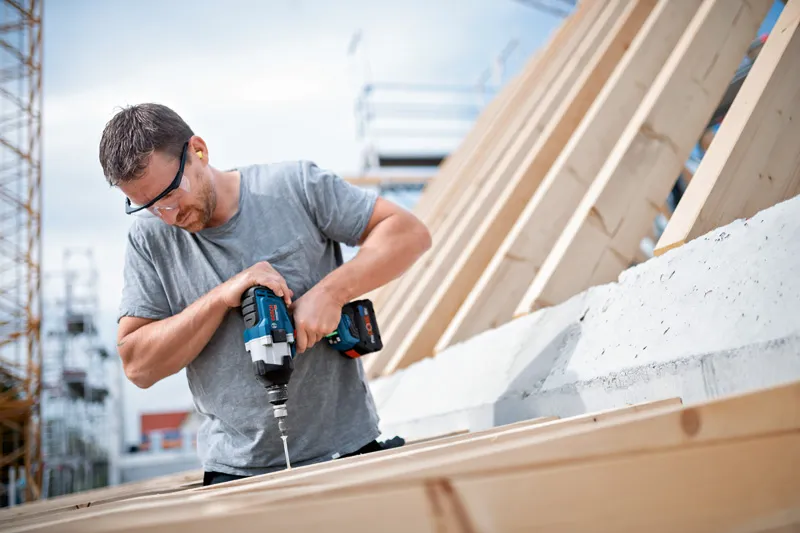

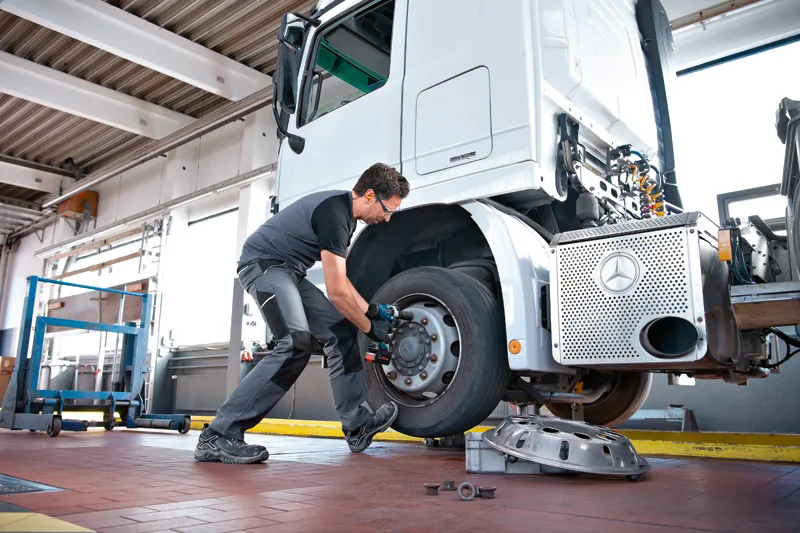

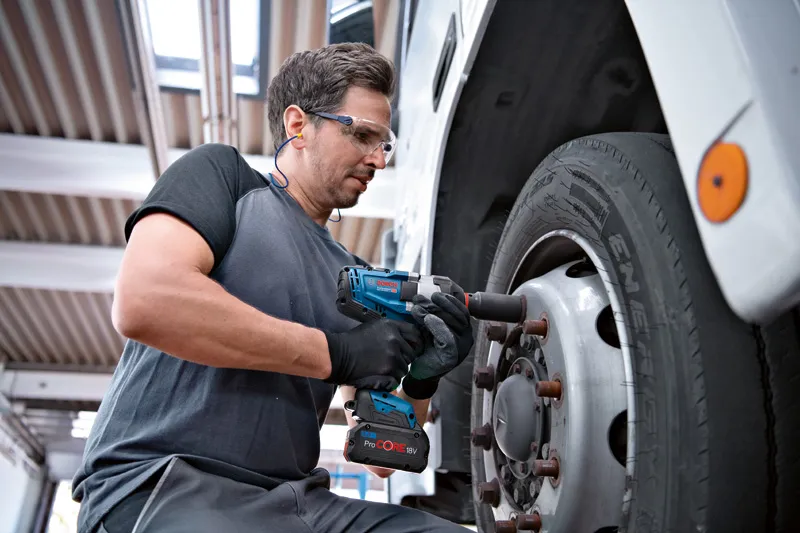

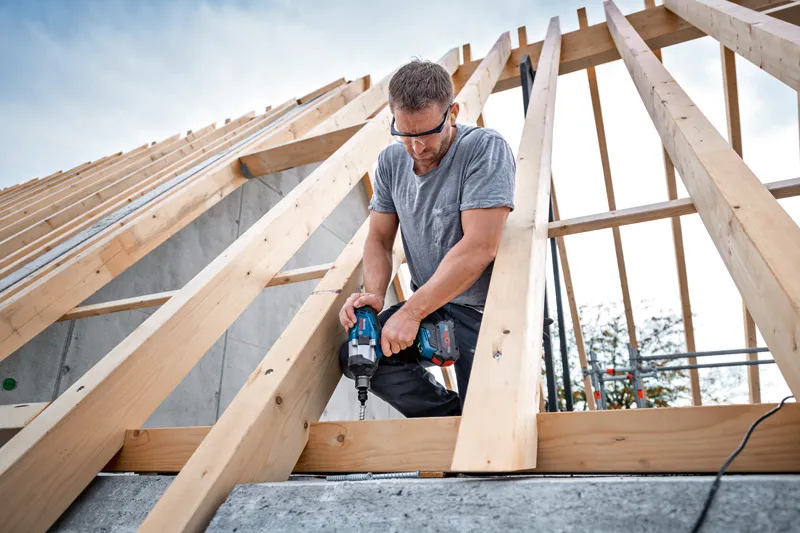

The impact wrench is perfect for metal applications with machine screws from M10 to M24 like structural steel construction, metal assembly, pipe fitting, and for truck maintenance as well as for wood construction. It is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V system).
