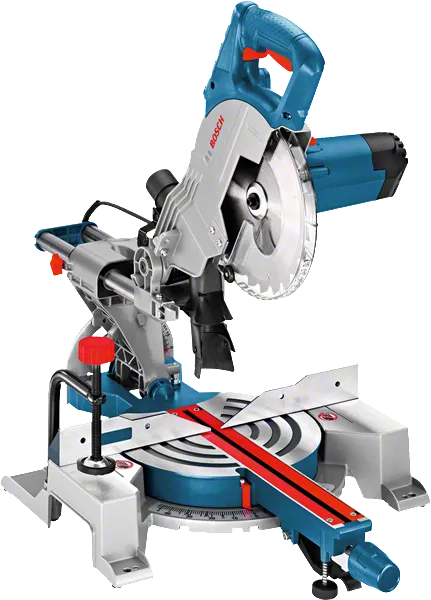

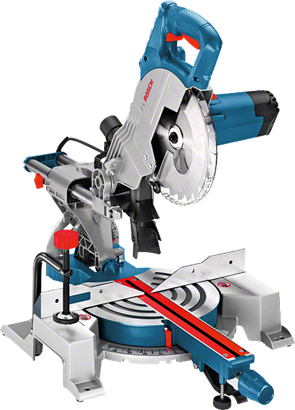

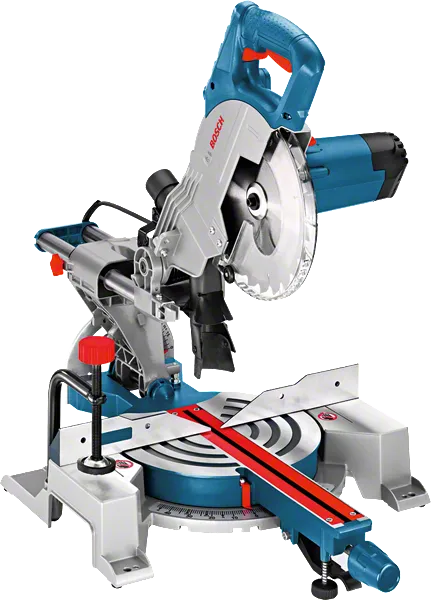

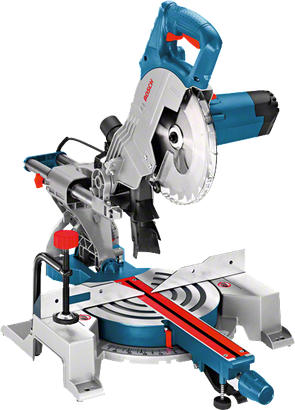

GCM 800 SJ Professional
Sliding Mitre Saw
Compact, lightweight tool for standard cuts
- Only 13.5 kg machine weight for optimum handling
- 270 mm horizontal cutting capacity for standard applications
Functions & key features
Your Selection
- with hex key, Accessory
400.00 EUR
Recommended retail price excluding VAT
with hex key, Accessory
0 601 B19 070
GCM 800 SJ Professional
Your Selection
with hex key, Accessory
Order number: 0 601 B19 070
400.00 EUR
Recommended retail price excluding VAT
Included in this variant
-

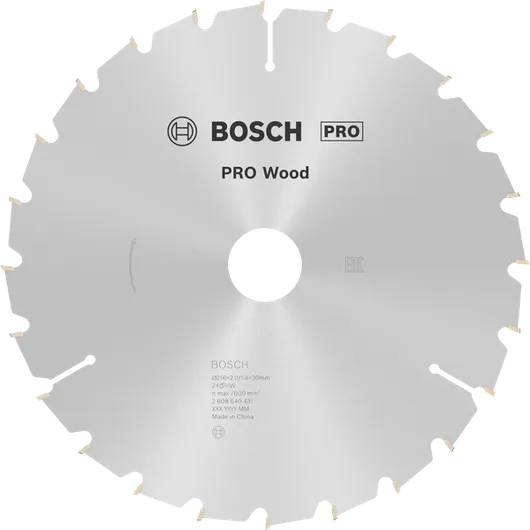

1 x circular saw blade, Optiline Wood, 216 x 30 x 2.8 mm, 24Order number: 2 608 640 431
-
Voltage 240 V
-
Hex key
Technical data
Additional data |
|
|---|---|
| Saw blade diameter | 216 mm |
| Mitre setting | 47 ° L / 47 ° R |
| Bevel setting | 45 ° L / 0 ° R |
| Saw blade bore diameter | 30 mm |
| Rated input power | 1,400 W |
| Cutting capacity, 0° | 70 x 270 mm |
| Cutting capacity, 45° mitre | 70 x 190 mm |
| Cutting capacity, 45° bevel | 48 x 270 mm |
| No-load speed | 5.500 rpm |
| Weight | 13.5 kg |

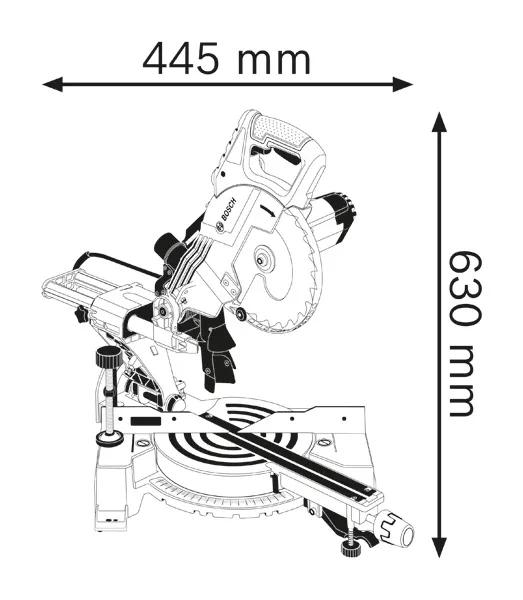

| Tool dimensions (width x length x height) | 460 x780 x630 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 93 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.
