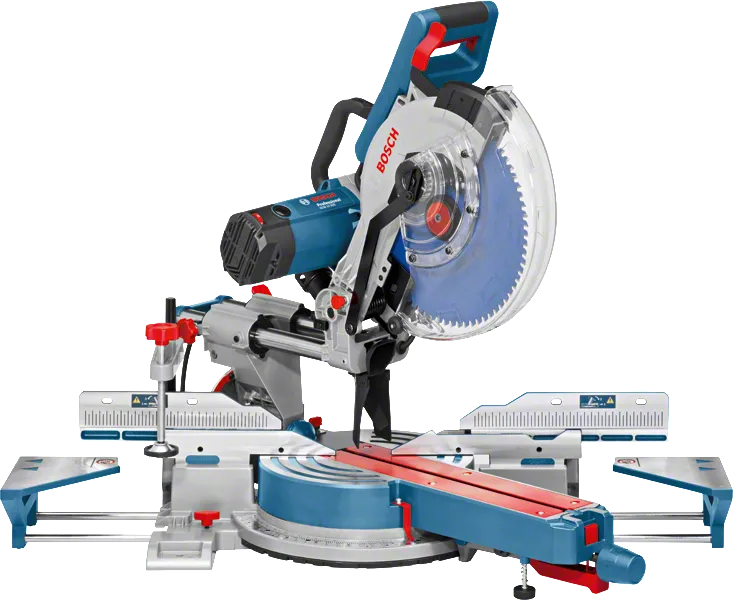

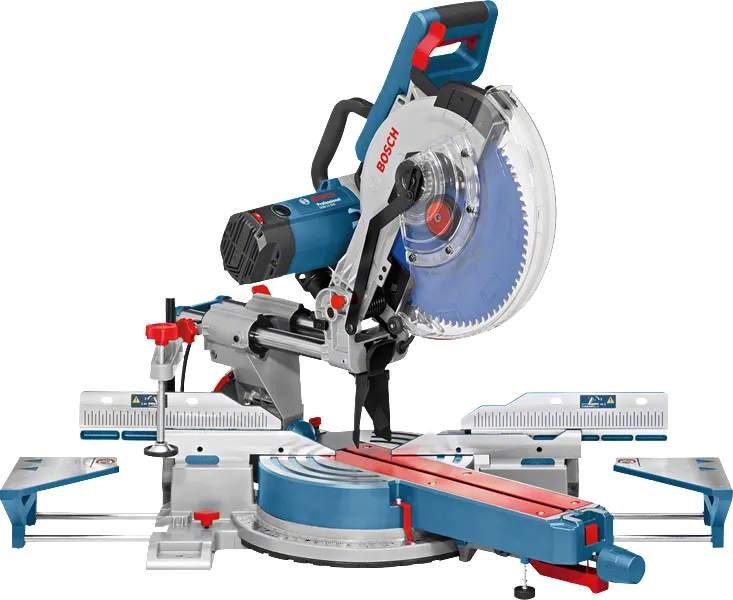

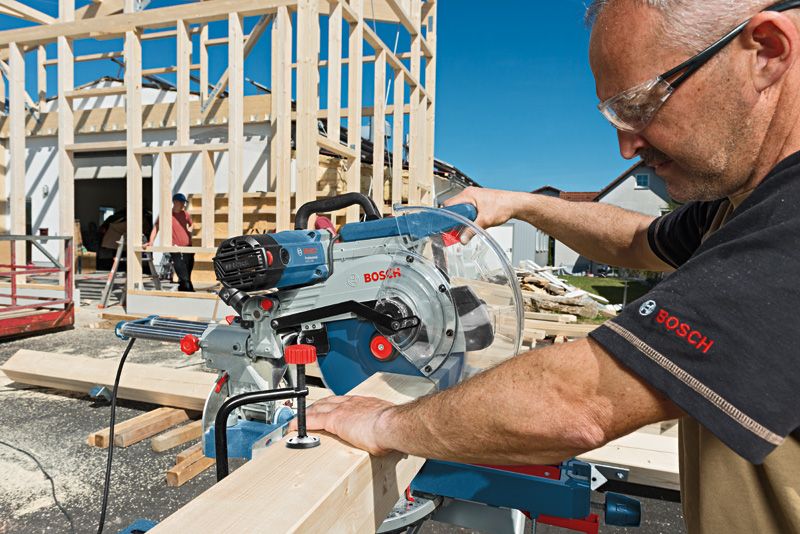

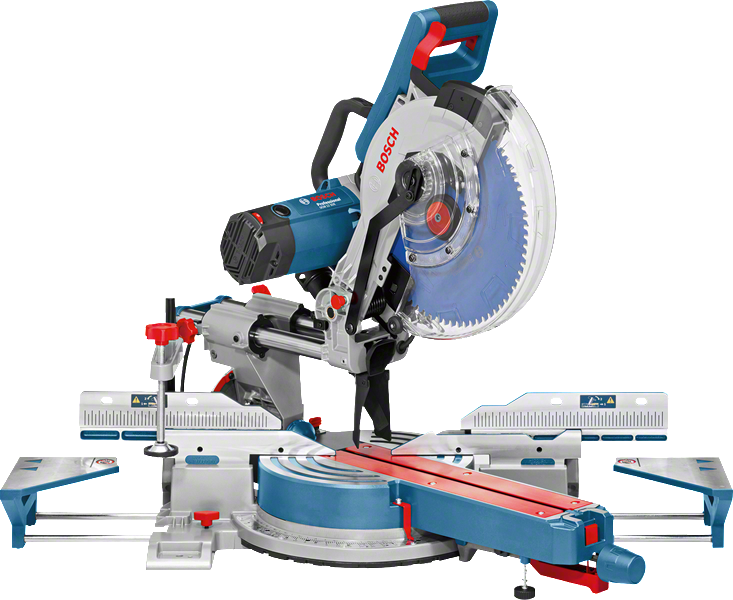

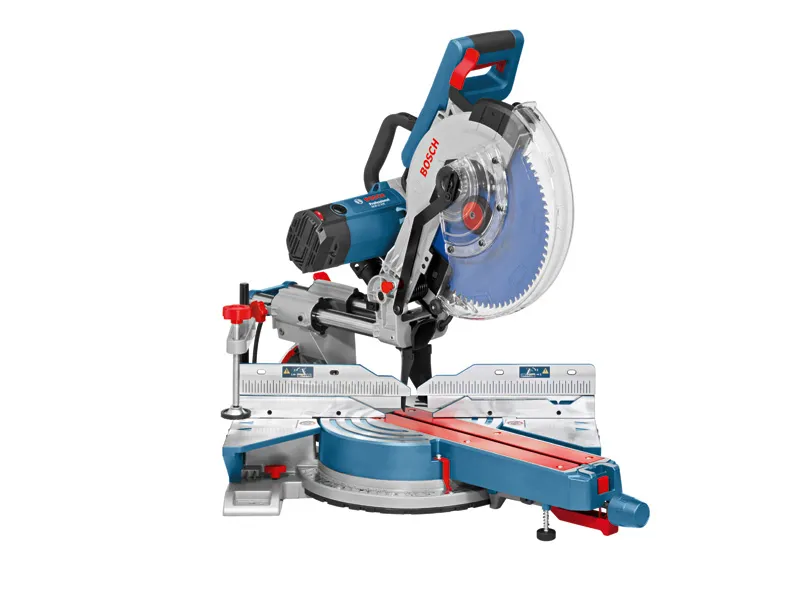

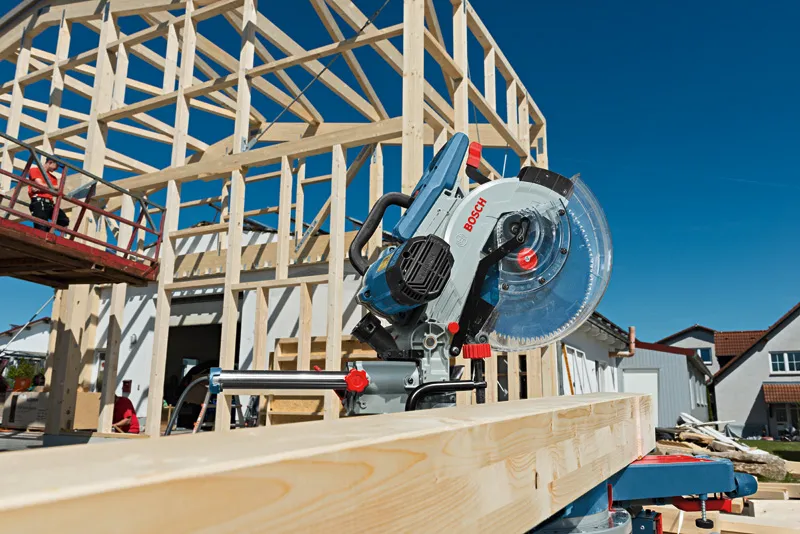

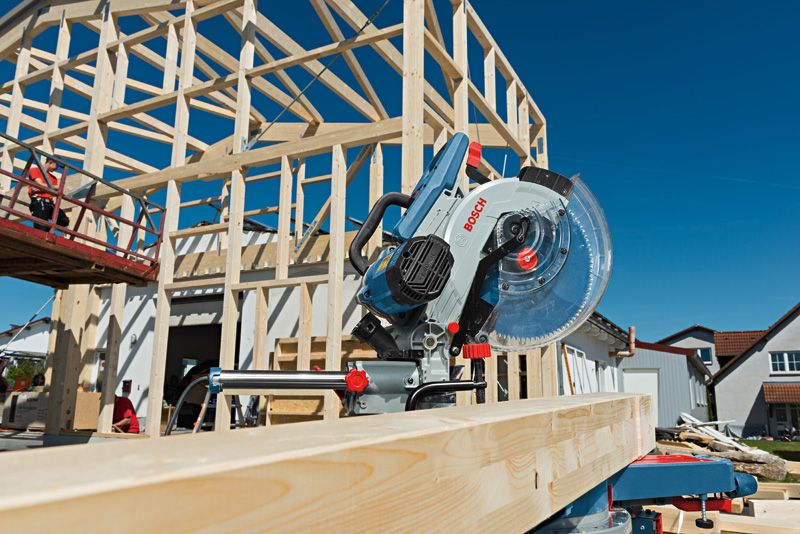

GCM 12 SDE Professional
Sliding Mitre Saw
High cutting capacity and variable speed for a wide variety of applications
- Vertical cutting capacity of 120 mm
- Variable speed for adapting the cutting speed to the material
- SDS saw blade changes
Functions & key features
GCM 12 SDE Professional
0 601 B23 100
Select a variant
Your Selection
with Accessory
Order number: 0 601 B23 170
Find a local dealerIncluded in all variants
-
1 x circular saw blade, Expert for Wood, 305 x 30 x 2.4 mm, 72Order number: 2 608 642 531
Additional in this variant
-
Voltage 240 V
Your Selection
Order number: 0 601 B23 100
Find a local dealerIncluded in all variants
-
1 x circular saw blade, Expert for Wood, 305 x 30 x 2.4 mm, 72Order number: 2 608 642 531
Additional in this variant
-
ClampOrder number: 1 609 B06 203
Technical data
Additional data |
|
|---|---|
| Saw blade diameter | 305 mm |
| Mitre setting | 52 ° L / 60 ° R |
| Bevel setting | 47 ° L / 47 ° R |
| Saw blade bore diameter | 30 mm |
| Rated input power | 1,800 W |
| Cutting capacity, 0° | 85 x 370 mm |
| Cutting capacity 0° with spacer (max. vertical) | 120 x 200 mm |
| Cutting capacity 0° with spacer (max. horizontal) | 70 x 400 mm |
| Cutting capacity, 45° mitre | 85 x 250 mm |
| Cutting capacity, 45° bevel | 60 x 360 mm |
| No-load speed | 3.100 – 4.000 rpm |
| Weight | 28.6 kg |

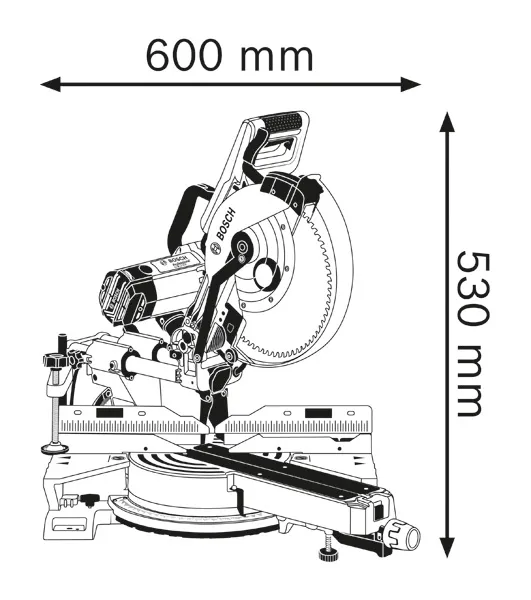

| Tool dimensions (width x length x height) | 600 x860 x530 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 92 dB(A); Sound power level 105 dB(A). Uncertainty K= 3 dB.
