Drills

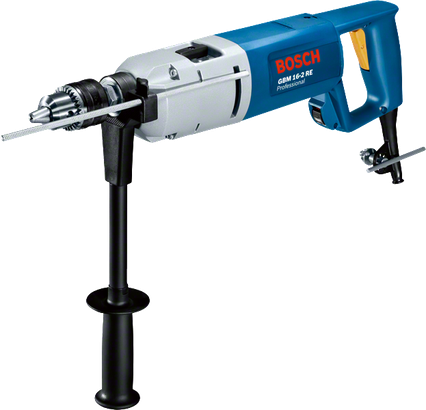

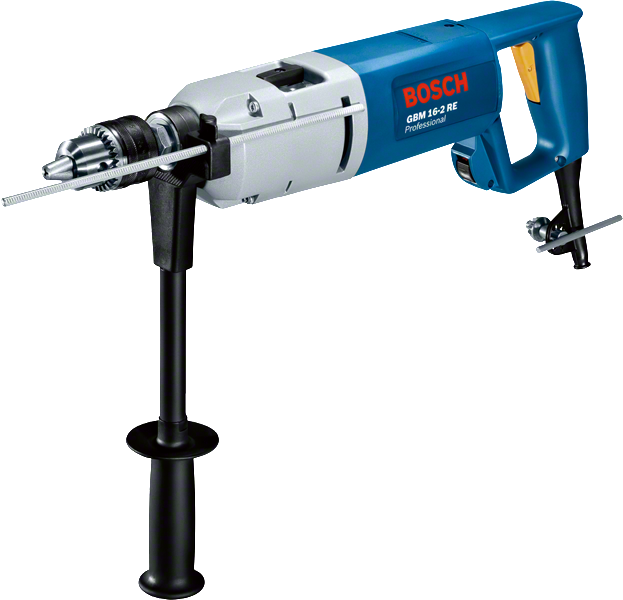

GBM 16-2 RE Professional
Drill
The perfect tool for formwork drilling
- With spade handle for a firm grip
- Control Electronic for exact pilot drilling
- Forward/reverse rotation especially for loosening jammed formwork drill bits
Functions & key features
with auxiliary handle
0 601 120 503
GBM 16-2 RE Professional
Your Selection
with auxiliary handle
Order number: 0 601 120 503
Find a local dealerIncluded in this variant
-
Depth stop 310 mmOrder number: 1 613 001 003
-
Auxiliary handle (spare part number 3 602 025 021)
-
Keyed chuck 16 mmOrder number: 2 608 571 020
Technical data
Additional data |
|
|---|---|
| Rated input power | 1050 W |
| Drill chuck, version | Keyed chuck |
| Voltage, electrical | 230 V |
| Bit holder | Taper B16 |
| No-load speed, 1st gear | 600 rpm |
| No-load speed, 2nd gear | 1.450 rpm |
| Power output | 570 W |
| Weight | 5 kg |
| Rated speed | 400 / 950 rpm |
| Rated torque | 115=0 Nm |
| Drill spindle connecting thread | Taper B16 |
| Max. torque | 50=0 / 22=0 Nm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 83 dB(A); Sound power level 94 dB(A). Uncertainty K= 5 dB.
* You can find more information about the deviations in the following link:
