Rotary hammers

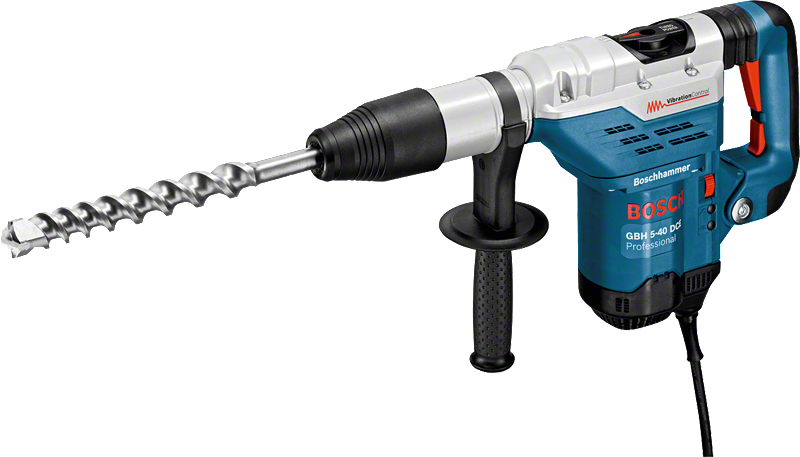

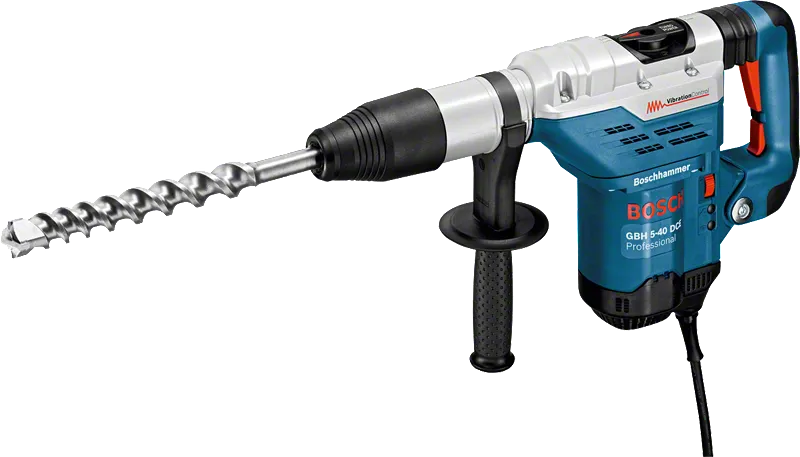

GBH 5-40 DCE Professional

Rotary Hammer with SDS max

The fast all-rounder with Vibration Control

Fastest drilling rate in its class due to 1150 W motor and powerful hammer mechanism
SDS max comfort for easy and fast tool changes with one hand
Vibration Control (10 m/s² for drilling, 8 m/s² for chiselling) ensures convenient working, even in time-intensive applications

Functions & key features

Your Selection

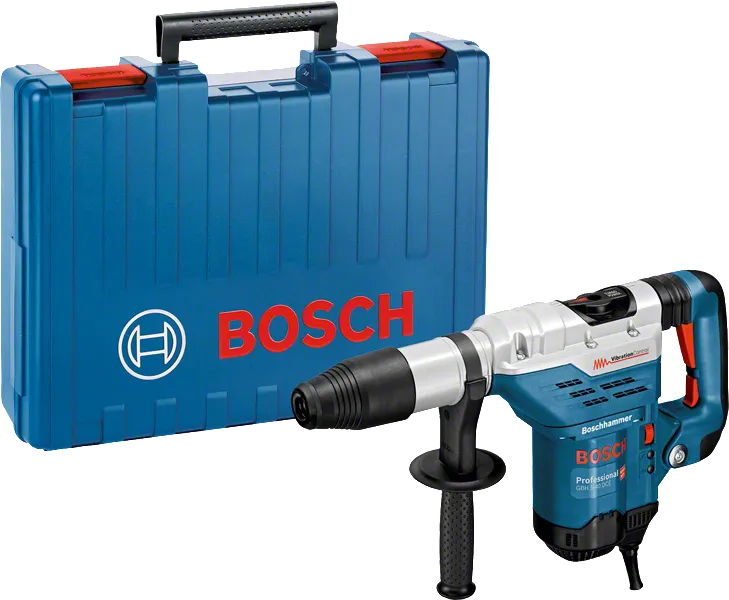

in carrying case with auxiliary handle

Change variant

Check availability on location

Find a local dealer

Your Selected Variant

in carrying case with auxiliary handle 0 611 264 070

Find a local dealer

Select a variant

Your Selection

in carrying case with auxiliary handle

Order number: 0 611 264 070

Find a local dealer

Included in all variants

Carrying case

Order number: 1 615 438 461
Auxiliary handle

Order number: 2 602 025 117
Grease tube (spare part number 1 615 430 010)
Machine cloth

Your selection

Your Selection

in carrying case with auxiliary handle

Order number: 0 611 264 000

Find a local dealer

Included in all variants

Carrying case

Order number: 1 615 438 461
Auxiliary handle

Order number: 2 602 025 117
Grease tube (spare part number 1 615 430 010)
Machine cloth

Select Variant

Your Selection

in carrying case with auxiliary handle

Order number: 0 611 264 060

Find a local dealer

Included in all variants

Carrying case

Order number: 1 615 438 461
Auxiliary handle

Order number: 2 602 025 117
Grease tube (spare part number 1 615 430 010)
Machine cloth

Select Variant

Technical data

Performance data
Impact rate at rated speed	1.500 – 2.980 bpm
Rated speed	165 – 330 rpm

Additional data
Rated input power	1150 W
Impact energy (according to EPTA 05/2016)	8.8 J
Voltage, electrical	240 V
Weight	6.8 kg
Tool holder	SDS max

Drilling range
Drilling dia. concrete, hammer drill bits	12 – 40 mm
Opt. appl. range concrete, hammer drill bits	18 – 32 mm
Drilling dia. concrete, breakthrough drill bits	45 – 55 mm
Drilling diameter in concrete with core cutters	40 – 90 mm

Total vibration values (Hammer drilling in concrete)
Vibration emission value ah	13.5 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Chiselling in concrete)
Vibration emission value ah	10.5 m/s²
Uncertainty K	1.5 m/s²

Hammer drilling in concrete
Vibration emission value ah	13.5 m/s²
Uncertainty K	1.5 m/s²

Chiselling in concrete
Vibration emission value ah	10.5 m/s²
Uncertainty K	1.5 m/s²

* You can find more information about the deviations in the following link: Technical features of products

GBH 5-40 DCE Professional: Further information

Product Highlights

The GBH 5-40 DCE Professional is uniquely designed within Bosch’s SDS max corded rotary hammer category for comfortable handling and reduced user fatigue in extensive applications. Its Vibration Control and lightweight design enable effortless and continuous work in time-intensive tasks. The rotary hammer is also built for durability, featuring robust metal components and an optimised lubrication system. Its strong motor enables the delivery of 8.8 J of impact energy for a fast drilling progress and high material removal rate.
