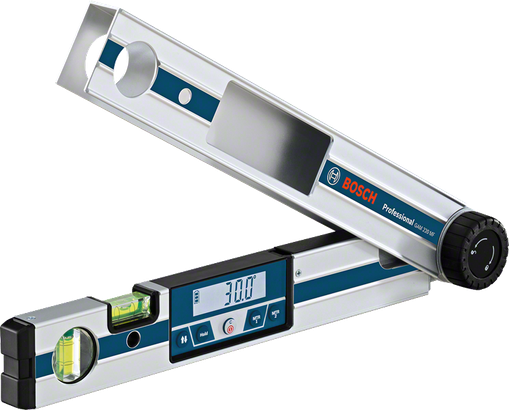

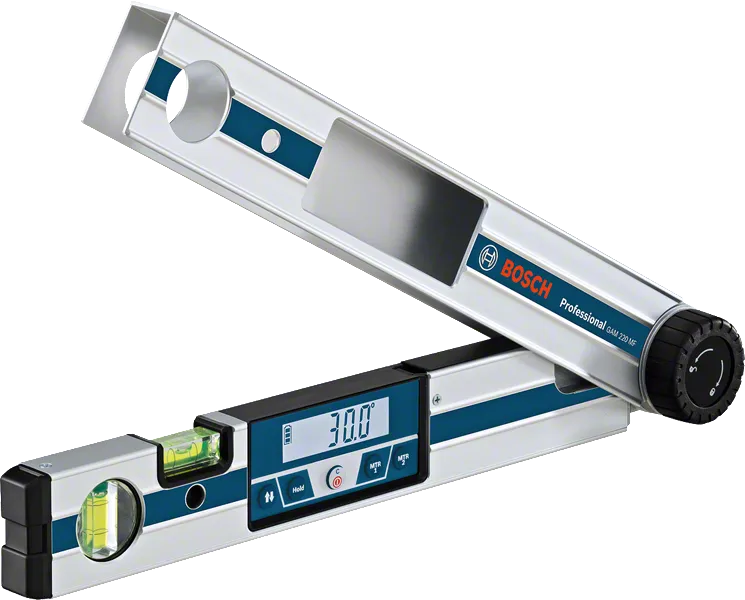

GAM 220 MF Professional
Angle Measurer
Fast calculation of mitre angles
- Rapid calculation and transfer of angles by means of memory function for frequently used angle dimensions
- Automatic calculation of single and double mitre angles without any other tools
Functions & key features
Your Selection
- with 4 x battery (AA), accessory set
241.00 EUR
Recommended retail price excluding VAT
with 4 x battery (AA), accessory set
0 601 076 600
GAM 220 MF Professional
Your Selection
with 4 x battery (AA), accessory set
Order number: 0 601 076 600
241.00 EUR
Recommended retail price excluding VAT
Included in this variant
-
Protective Bag
-
Leg extension
-
4 x 1.5 V LR6 battery (AA)
Technical data
Additional data |
|
|---|---|
| Measurement accuracy, angles | ± 0.1° |
| Measurement range | 0 – 220° |
| Arm length | 40 cm |
| Measurement accuracy, vials | ± 0.05° |
| Accuracy of angle calculation | ± 0.1° |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Battery power, approx. | 80 h |
| Automatic deactivation, approx. | 30 min |
| Weight, approx. | 1.2 kg |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
