GAL 18V-160 C Professional
Charger
The world’s fastest 18 V charger
- World’s fastest 18 V charger enables charging ProCORE18V 8.0Ah batteries from 0 to 80% in 32 mins
- Bluetooth Connectivity module enables control of charging modes via smartphone and provides battery health information
- Compatible with all Bosch Professional 18 V batteries (Professional 18V System)
Functions & key features
Select a variant
Your Selection
Order number: 1 600 A01 9S7
Find a local dealerIncluded in all variants
-
Cardboard box
-
Quick charger GAL 18V-160 C ProfessionalOrder number: 1 600 A01 9S7
Your Selection
Order number: 1 600 A01 9S8
Find a local dealerIncluded in all variants
-
Cardboard box
-
Quick charger GAL 18V-160 C ProfessionalOrder number: 1 600 A01 9S7
Additional in this variant
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalOrder number: 1 600 A01 6NH
Technical data
Additional data |
|
|---|---|
| Battery charging voltage | 14=4 – 18 V |
| Charge current | 16 A |
| Weight | 0.95 kg |
| Battery voltage | 18.0 V |
| Charg. time at bat. cap. 2.0 Ah (80%/100%) approx. | 15/25 min |
| Charg. time at bat. cap. 3.0 Ah (80%/100%) approx. | 24/46 min |
| Charg. time at bat. cap. 4.0 Ah (80%/100%) approx. | 15/25 min |
| Charg. time at bat. cap. 5.0 Ah (80%/100%) approx. | 20/35 min |
| Charg. time at bat. cap. 6.0 Ah (80%/100%) approx. | 24/46 min |
| Charg. time at bat. cap. 6.3 Ah (80%/100%) approx. | 24/37 min |
| Charg. time ProCORE18V 4.0 Ah (80%/100%) approx. | 32/51 min |
| Charg. time ProCORE18V 8.0 Ah (80%/100%) approx. | 32/51 min |
| Charg. time ProCORE18V 12.0 Ah (80%/100%) approx. | 36/55 min |
| Power Boost ProCORE18V 4.0Ah (50%/80%) approx. | 9/21 min |
| Power Boost ProCORE18V 8.0 Ah (50%/80%) approx. | 15/26 min |
* You can find more information about the deviations in the following link:
GAL 18V-160 C Professional: Further information

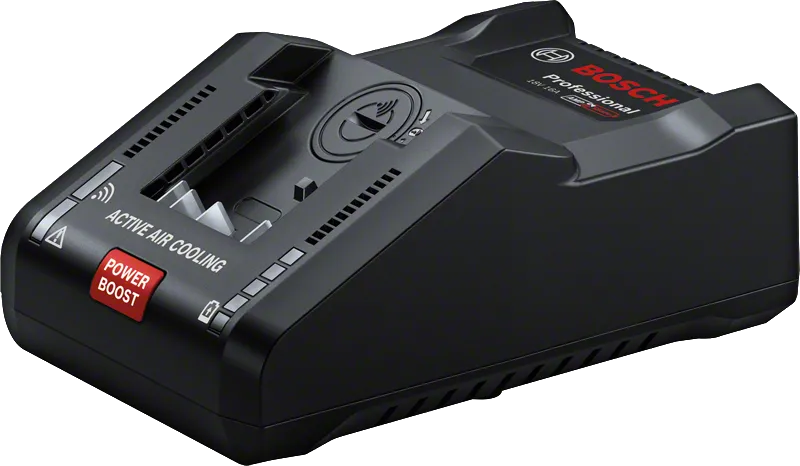

Product Highlights
The GAL 18V-160 C Professional is the world’s fastest 18 V charger. With a charging current of 16 amperes, it is incredibly fast, loading a ProCORE18V 8.0 Ah battery to 80% in only 32 minutes. It also is very smart with its Bluetooth Connectivity module. It provides detailed information about battery health and enables control over the charging modes using a smartphone. It is compatible with all Bosch Professional 18 V batteries (Professional 18V System).
Equipment & Application
The GAL 18V-160 C Professional also features 2-fan Active Air Cooling, 5-level charging indicator, Power Boost button, and a Wall Mounting option.
