PRO SDS plus-5X
1/8

PRO SDS plus-5X Hammer Drill Bit

For rotary hammers

PRO SDS plus-5X

Lasts up to 1.5x longer than a Bosch SDS plus-1 Drill Bit

Test results
  • Long Life drilling in reinforced concrete
  • High-quality, tough tungsten carbide ensures strength and durability
  • Fits all SDS plus rotary hammers

Materials

Reinforced concrete
Concrete
Lime and sand bricks
Solid brick
Hard stone

Select options

Diameter (D) mm
Working length mm
Total length mm
Choose a pack size
Select options

Diameter (D) mm 27 options

Working length mm 8 options

Total length mm 13 options

Choose a pack size 2 options

Available product options (119)
Recommended retail price excluding VAT
PRO SDS plus-5X Hammer Drill Bit
Recommended retail price excluding VAT

Long Life drilling in reinforced concrete

Long Life drilling in reinforced concrete
  • 1

    High-quality, tough tungsten carbide ensures strength and durability

  • 2

    4-cutter head doesn't jam or break when you hit rebar

  • 3

    4-flute design for efficient dust reduction

PRO
Advantage

PRO SDS plus-5X Hammer Drill Bit for Long Life Drilling in Reinforced Concrete

PRO SDS plus-5X Hammer Drill Bit for Long Life Drilling in Reinforced Concrete

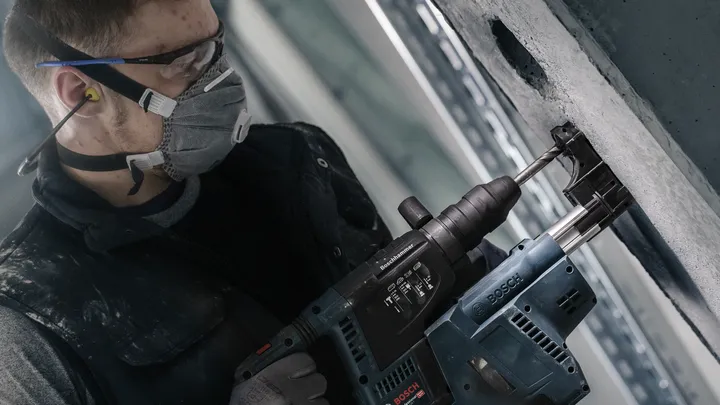

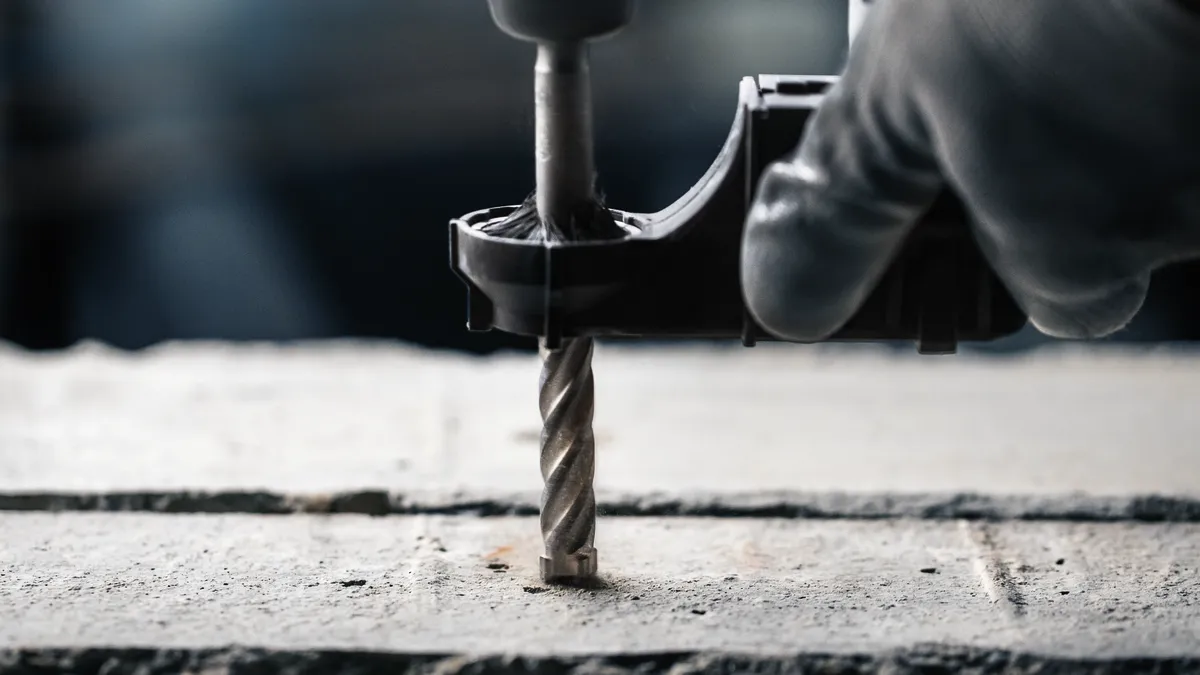

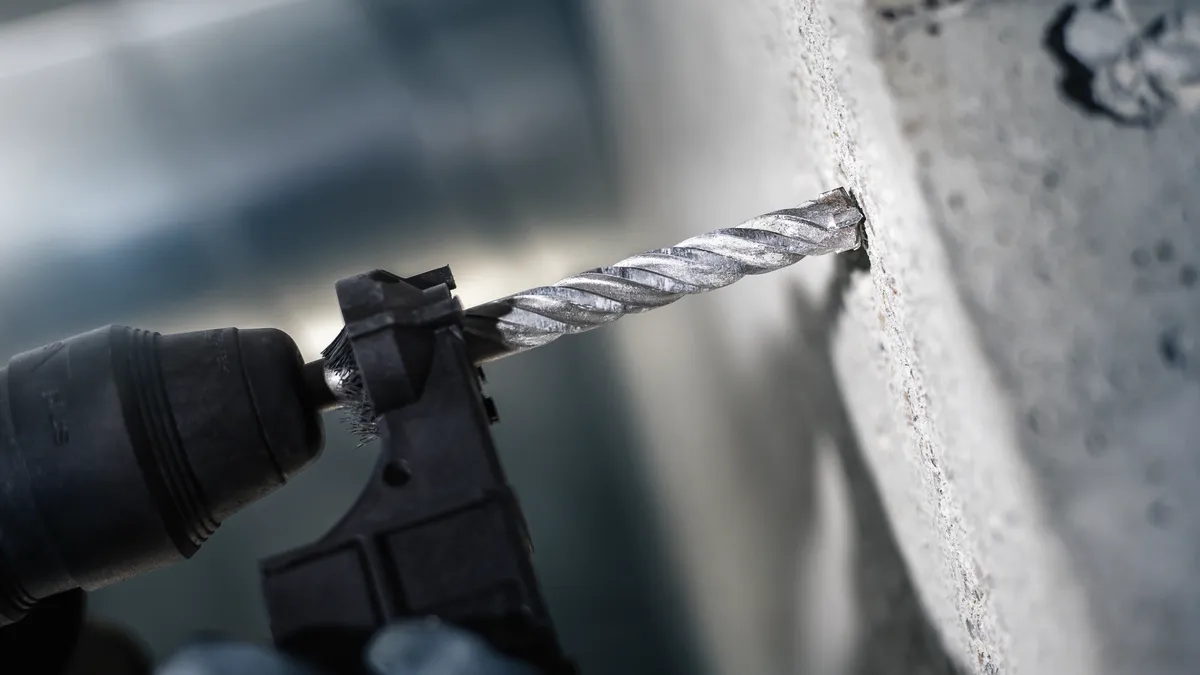

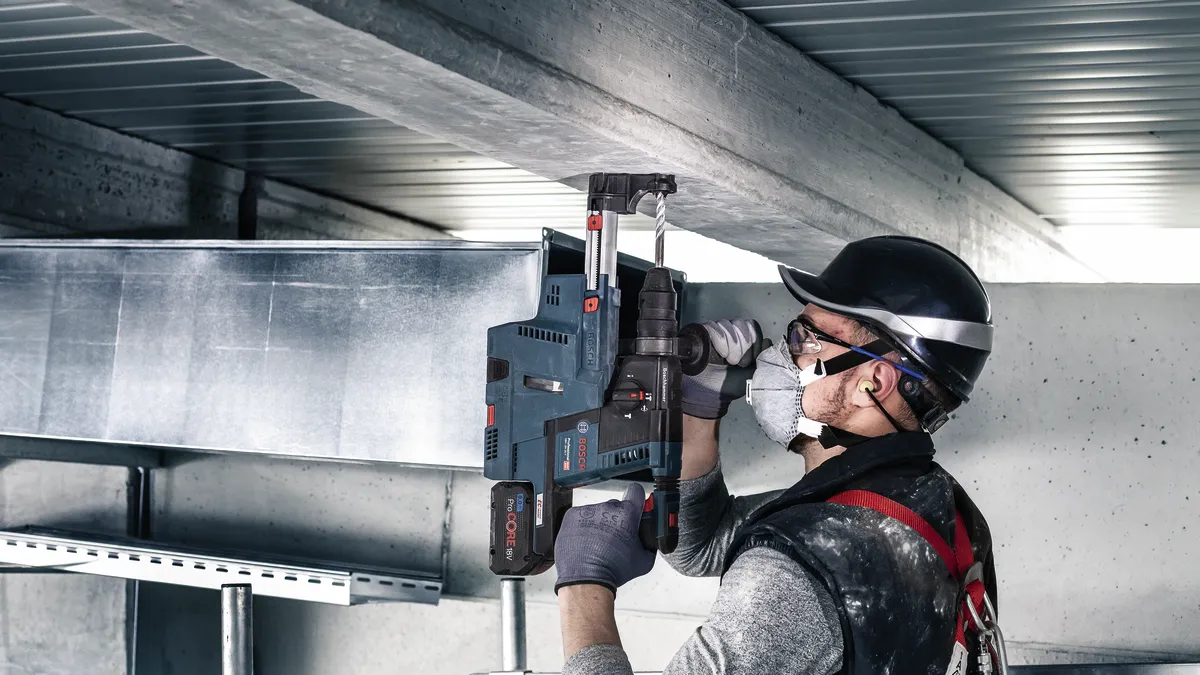

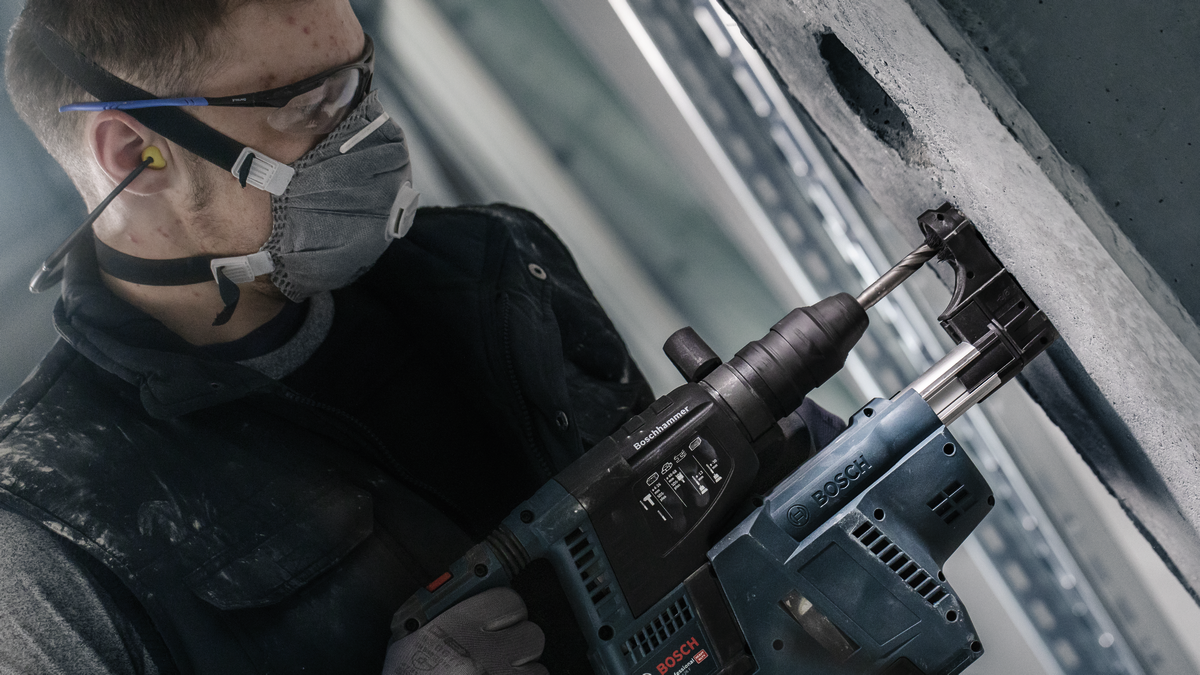

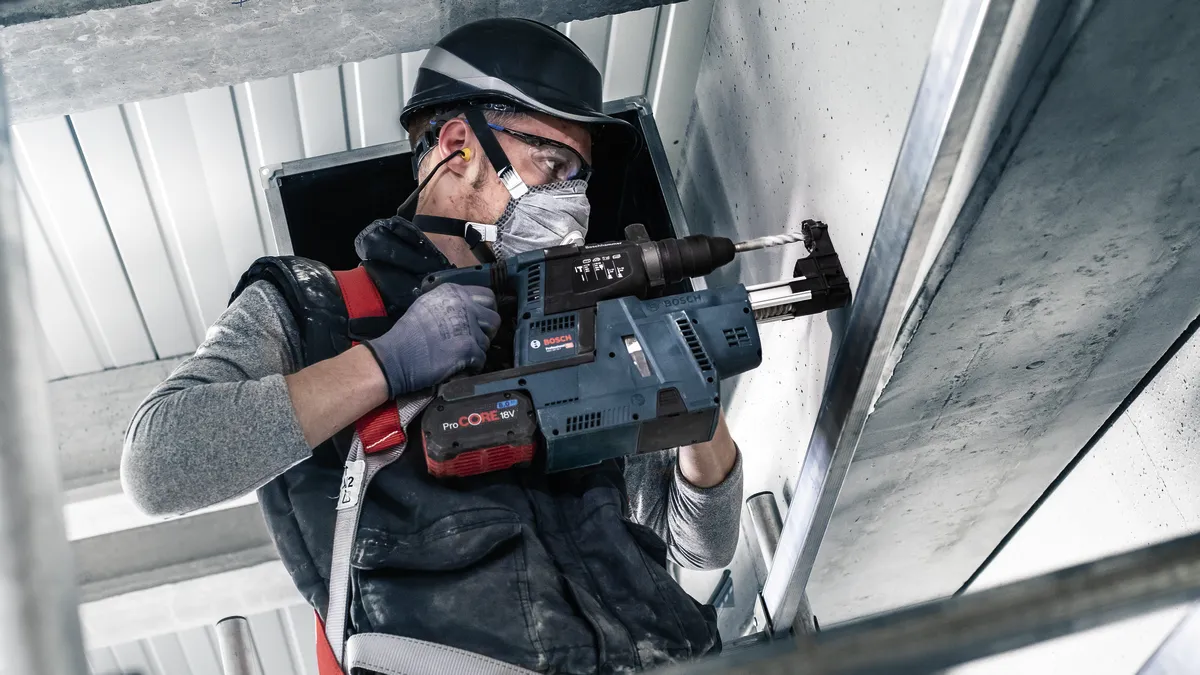

Reinforced concrete is a common material in infrastructure, commercial and domestic construction, and workers such as electricians, plumbers or HVAC installers often need to drill into it. PRO SDS plus-5X Hammer Drill Bits are designed for this tough task, with a hardy 4-cutter design that doesn't jam or break when you hit rebar.

View more

Product Options

Available product options: 119

Part number Diameter (D) mm Working length mm Total length mm Pack quantity
2 608 706 861 4=00 50 110 1 Pcs Find a local dealer
2 608 706 862 4=00 100 160 1 Pcs Find a local dealer
2 608 706 863 5=00 50 110 1 Pcs Find a local dealer
2 608 706 864 5=00 100 160 1 Pcs Find a local dealer
2 608 706 865 5=00 150 210 1 Pcs Find a local dealer
2 608 706 866 5=00 200 260 1 Pcs Find a local dealer
2 608 706 867 5=00 250 310 1 Pcs Find a local dealer
2 608 706 868 5=00 400 460 1 Pcs Find a local dealer
2 608 706 869 5=50 50 110 1 Pcs Find a local dealer
2 608 706 870 5=50 100 160 1 Pcs Find a local dealer
2 608 706 871 5=50 150 210 1 Pcs Find a local dealer
2 608 706 872 5=50 200 260 1 Pcs Find a local dealer
2 608 706 873 5=50 250 310 1 Pcs Find a local dealer
2 608 706 874 5=50 400 460 1 Pcs Find a local dealer
2 608 706 875 6=00 50 110 1 Pcs Find a local dealer
2 608 706 876 6=00 100 160 1 Pcs Find a local dealer
2 608 706 877 6=00 150 210 1 Pcs Find a local dealer
2 608 706 878 6=00 200 260 1 Pcs Find a local dealer
2 608 706 879 6=00 250 310 1 Pcs Find a local dealer
2 608 706 880 6=00 400 460 1 Pcs Find a local dealer
2 608 706 881 6=50 50 110 1 Pcs Find a local dealer
2 608 706 882 6=50 100 160 1 Pcs Find a local dealer
2 608 706 883 6=50 150 210 1 Pcs Find a local dealer
2 608 706 884 6=50 200 260 1 Pcs Find a local dealer
2 608 706 885 6=50 250 310 1 Pcs Find a local dealer
2 608 706 886 7=00 50 110 1 Pcs Find a local dealer
2 608 706 887 7=00 100 160 1 Pcs Find a local dealer
2 608 706 888 7=00 150 210 1 Pcs Find a local dealer
2 608 706 889 7=00 200 260 1 Pcs Find a local dealer
2 608 706 890 8=00 50 110 1 Pcs Find a local dealer
2 608 706 891 8=00 100 160 1 Pcs Find a local dealer
2 608 706 892 8=00 150 210 1 Pcs Find a local dealer
2 608 706 893 8=00 200 260 1 Pcs Find a local dealer
2 608 706 894 8=00 250 310 1 Pcs Find a local dealer
2 608 706 895 8=00 300 360 1 Pcs Find a local dealer
2 608 706 896 8=00 400 460 1 Pcs Find a local dealer
2 608 706 897 8=00 550 610 1 Pcs Find a local dealer
2 608 706 898 9=00 100 160 1 Pcs Find a local dealer
2 608 706 899 9=00 150 210 1 Pcs Find a local dealer
2 608 706 900 9=50 100 160 1 Pcs Find a local dealer
2 608 706 901 10=00 50 110 1 Pcs Find a local dealer
2 608 706 902 10=00 100 160 1 Pcs Find a local dealer
2 608 706 903 10=00 150 210 1 Pcs Find a local dealer
2 608 706 904 10=00 200 260 1 Pcs Find a local dealer
2 608 706 905 10=00 250 310 1 Pcs Find a local dealer
2 608 706 906 10=00 300 360 1 Pcs Find a local dealer
2 608 706 907 10=00 400 460 1 Pcs Find a local dealer
2 608 706 908 10=00 550 610 1 Pcs Find a local dealer
2 608 706 909 11=00 100 160 1 Pcs Find a local dealer
2 608 706 910 11=00 150 210 1 Pcs Find a local dealer
2 608 706 911 11=00 200 260 1 Pcs Find a local dealer
2 608 706 912 12=00 100 160 1 Pcs Find a local dealer
2 608 706 913 12=00 150 210 1 Pcs Find a local dealer
2 608 706 914 12=00 200 260 1 Pcs Find a local dealer
2 608 706 915 12=00 250 310 1 Pcs Find a local dealer
2 608 706 916 12=00 300 360 1 Pcs Find a local dealer
2 608 706 917 12=00 400 460 1 Pcs Find a local dealer
2 608 706 918 12=00 550 610 1 Pcs Find a local dealer
2 608 706 919 12=70 100 160 1 Pcs Find a local dealer
2 608 706 920 13=00 100 160 1 Pcs Find a local dealer
2 608 706 921 13=00 150 210 1 Pcs Find a local dealer
2 608 706 922 13=00 200 260 1 Pcs Find a local dealer
2 608 706 923 14=00 100 160 1 Pcs Find a local dealer
2 608 706 924 14=00 150 210 1 Pcs Find a local dealer
2 608 706 925 14=00 200 260 1 Pcs Find a local dealer
2 608 706 926 14=00 250 310 1 Pcs Find a local dealer
2 608 706 927 14=00 300 360 1 Pcs Find a local dealer
2 608 706 928 14=00 400 460 1 Pcs Find a local dealer
2 608 706 929 14=00 550 610 1 Pcs Find a local dealer
2 608 706 930 14=30 100 160 1 Pcs Find a local dealer
2 608 706 931 15=00 100 160 1 Pcs Find a local dealer
2 608 706 932 15=00 200 260 1 Pcs Find a local dealer
2 608 706 933 15=00 400 460 1 Pcs Find a local dealer
2 608 706 934 16=00 150 210 1 Pcs Find a local dealer
2 608 706 935 16=00 200 260 1 Pcs Find a local dealer
2 608 706 936 16=00 250 310 1 Pcs Find a local dealer
2 608 706 937 16=00 300 360 1 Pcs Find a local dealer
2 608 706 938 16=00 400 460 1 Pcs Find a local dealer
2 608 706 939 16=00 550 610 1 Pcs Find a local dealer
2 608 706 940 17=00 150 210 1 Pcs Find a local dealer
2 608 706 941 17=00 250 310 1 Pcs Find a local dealer
2 608 706 942 17=50 100 160 1 Pcs Find a local dealer
2 608 706 943 18=00 150 200 1 Pcs Find a local dealer
2 608 706 944 18=00 250 300 1 Pcs Find a local dealer
2 608 706 945 18=00 400 450 1 Pcs Find a local dealer
2 608 706 946 18=00 550 600 1 Pcs Find a local dealer
2 608 706 947 19=00 150 200 1 Pcs Find a local dealer
2 608 706 948 19=00 250 300 1 Pcs Find a local dealer
2 608 706 949 19=00 400 450 1 Pcs Find a local dealer
2 608 706 950 20=00 150 200 1 Pcs Find a local dealer
2 608 706 951 20=00 250 300 1 Pcs Find a local dealer
2 608 706 952 20=00 400 450 1 Pcs Find a local dealer
2 608 706 953 20=00 550 600 1 Pcs Find a local dealer
2 608 706 954 22=00 200 250 1 Pcs Find a local dealer
2 608 706 955 22=00 400 450 1 Pcs Find a local dealer
2 608 706 956 22=00 550 600 1 Pcs Find a local dealer
2 608 706 957 24=00 200 250 1 Pcs Find a local dealer
2 608 706 958 24=00 400 450 1 Pcs Find a local dealer
2 608 706 959 25=00 200 250 1 Pcs Find a local dealer
2 608 706 960 25=00 400 450 1 Pcs Find a local dealer
2 608 706 961 26=00 200 250 1 Pcs Find a local dealer
2 608 706 962 26=00 400 450 1 Pcs Find a local dealer

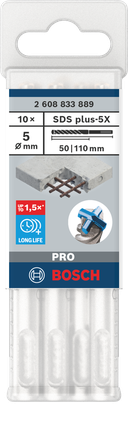

2 608 833 889 5=00 50 110 10 Pcs Find a local dealer

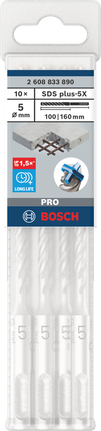

2 608 833 890 5=00 100 160 10 Pcs Find a local dealer

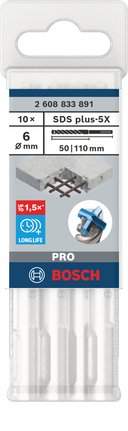

2 608 833 891 6=00 50 110 10 Pcs Find a local dealer

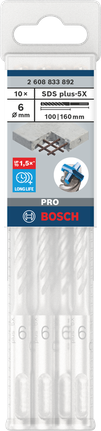

2 608 833 892 6=00 100 160 10 Pcs Find a local dealer
2 608 833 893 6=00 150 210 10 Pcs Find a local dealer
2 608 833 894 6=50 100 160 10 Pcs Find a local dealer
2 608 833 895 6=50 150 210 10 Pcs Find a local dealer

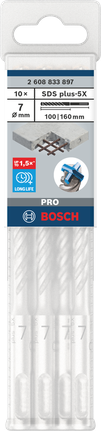

2 608 833 897 7=00 100 160 10 Pcs Find a local dealer

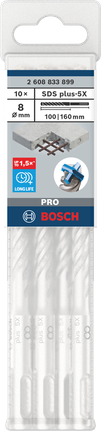

2 608 833 899 8=00 100 160 10 Pcs Find a local dealer
2 608 833 900 8=00 150 210 10 Pcs Find a local dealer
2 608 833 901 8=00 200 260 10 Pcs Find a local dealer

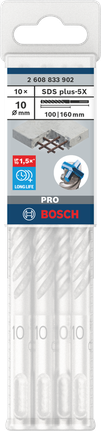

2 608 833 902 10=00 100 160 10 Pcs Find a local dealer
2 608 833 903 10=00 150 210 10 Pcs Find a local dealer
2 608 833 904 10=00 200 260 10 Pcs Find a local dealer

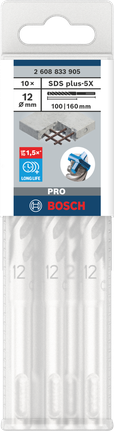

2 608 833 905 12=00 100 160 10 Pcs Find a local dealer
2 608 833 906 12=00 150 210 10 Pcs Find a local dealer
2 608 833 907 12=00 200 260 10 Pcs Find a local dealer

out of products
