For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 2 options
Number of teeth 2 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs

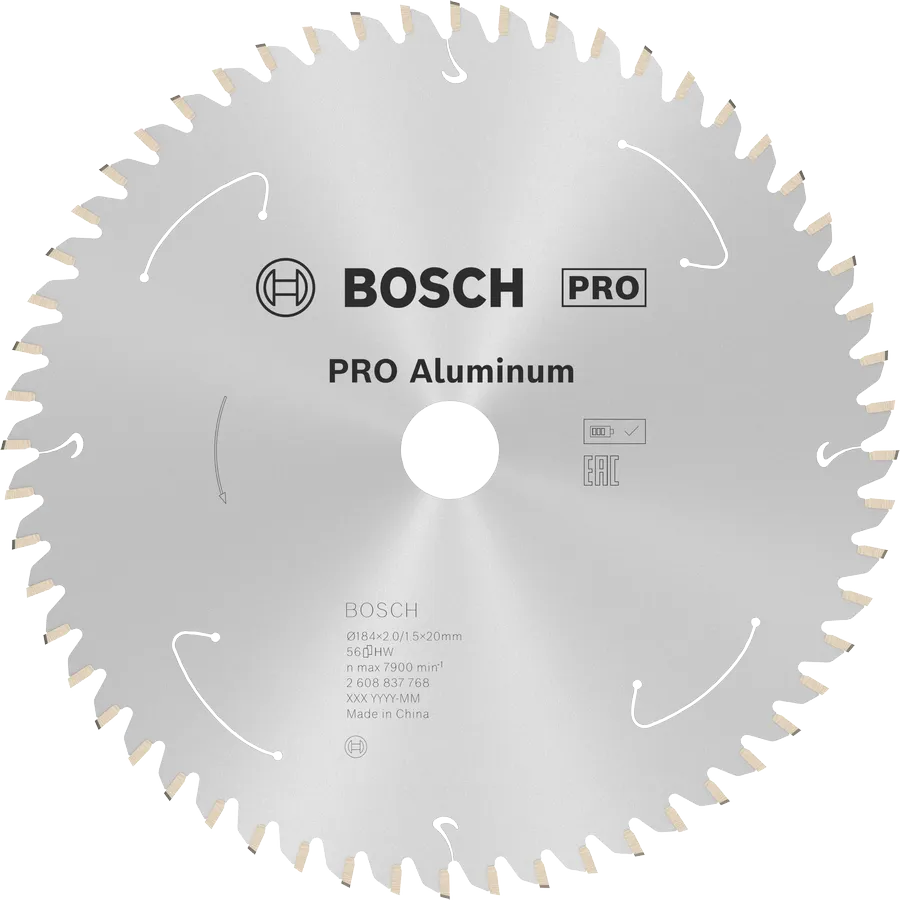

Ground and sharpened fine carbide teeth for strength, durability, and precision
Extra-thin kerf for a long battery lifetime
Expansion slots reduce heat for a longer lifetime

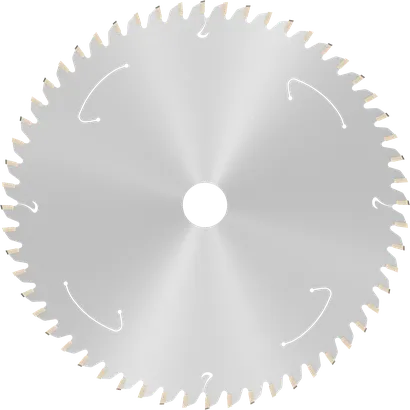

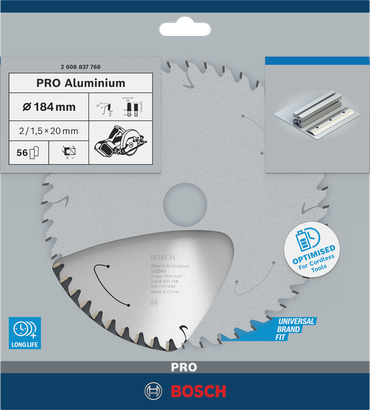

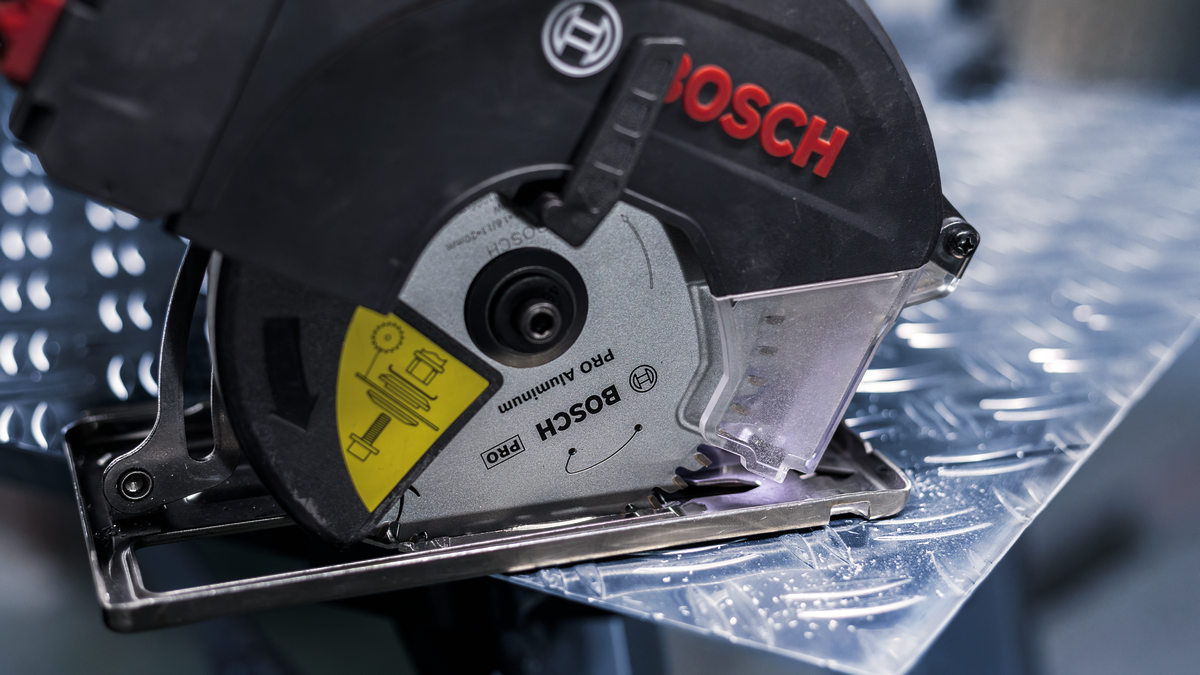

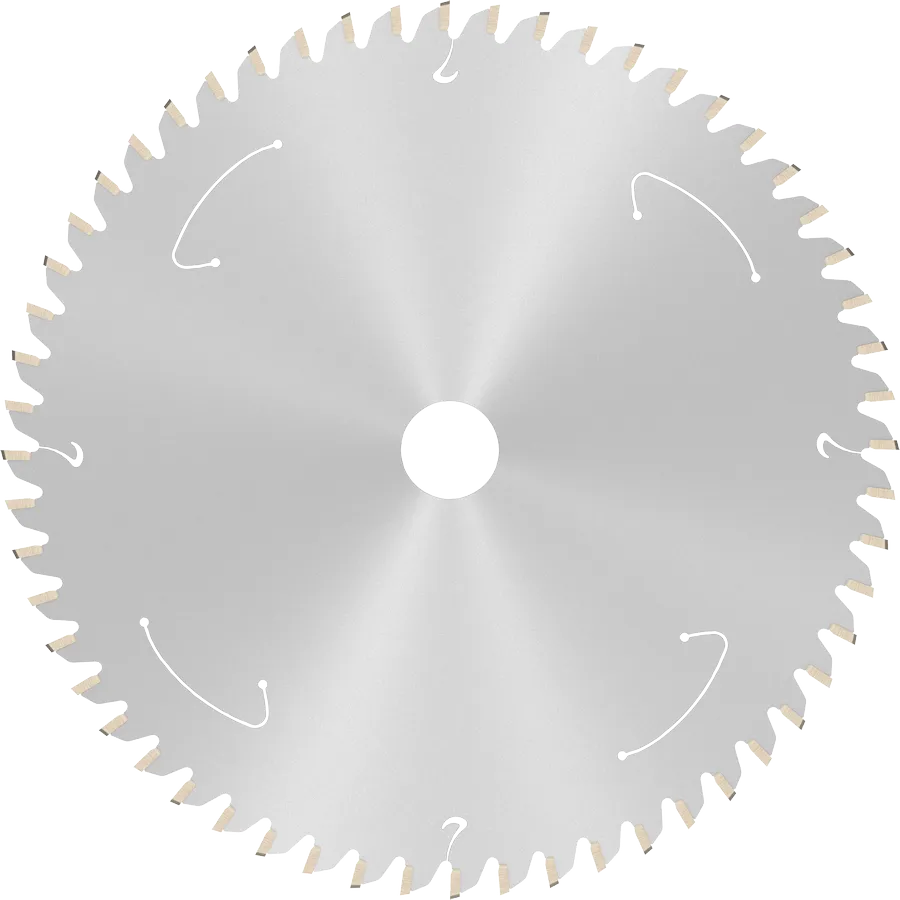

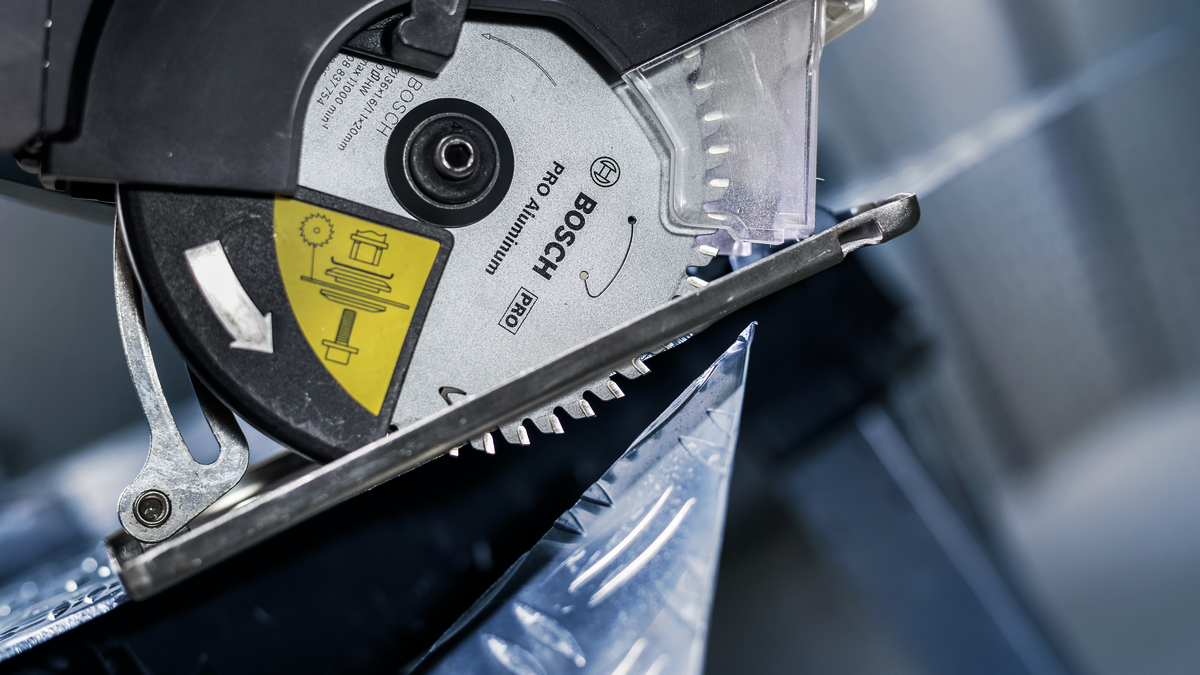

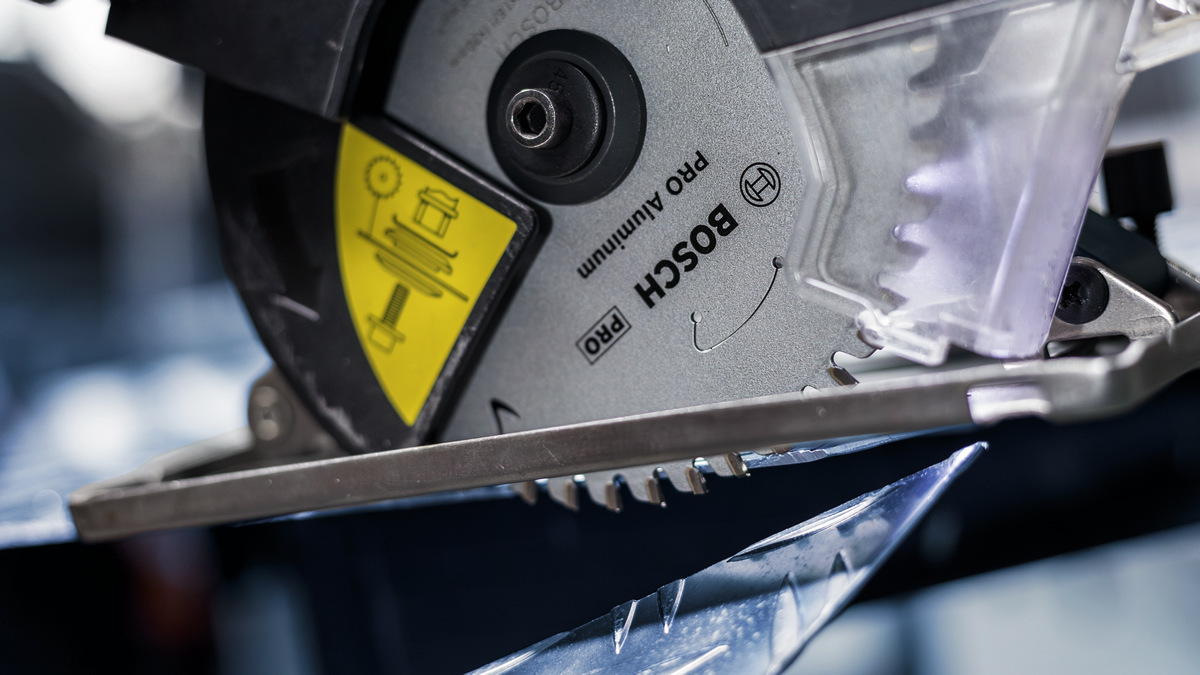

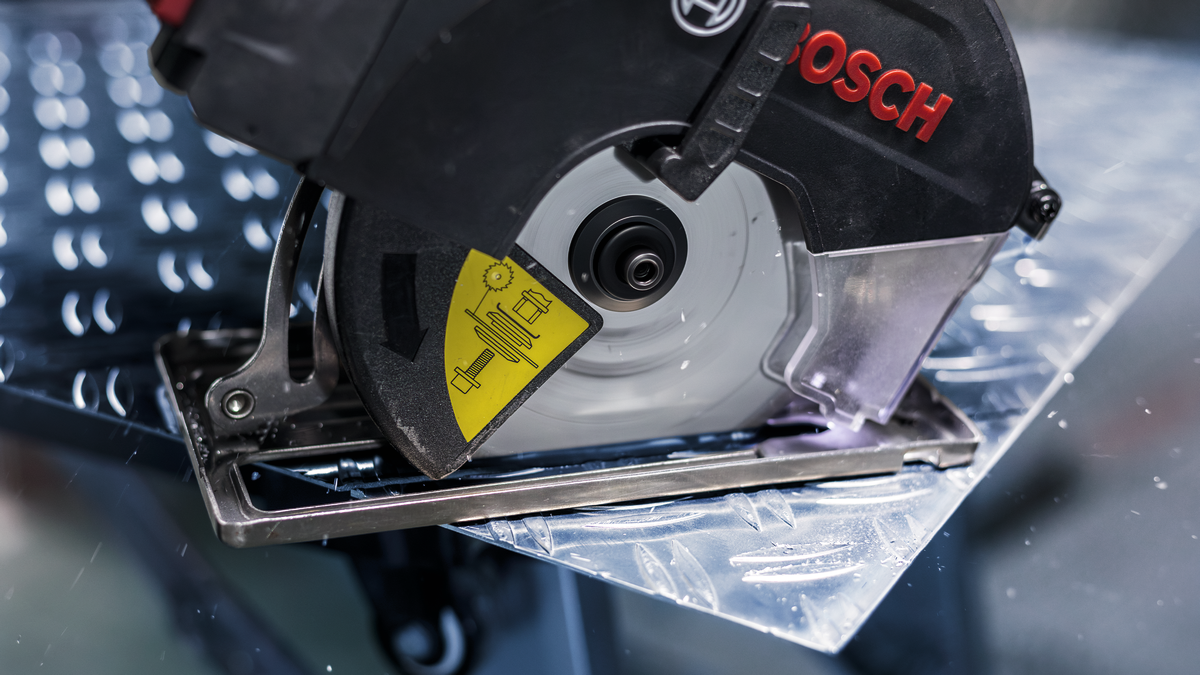

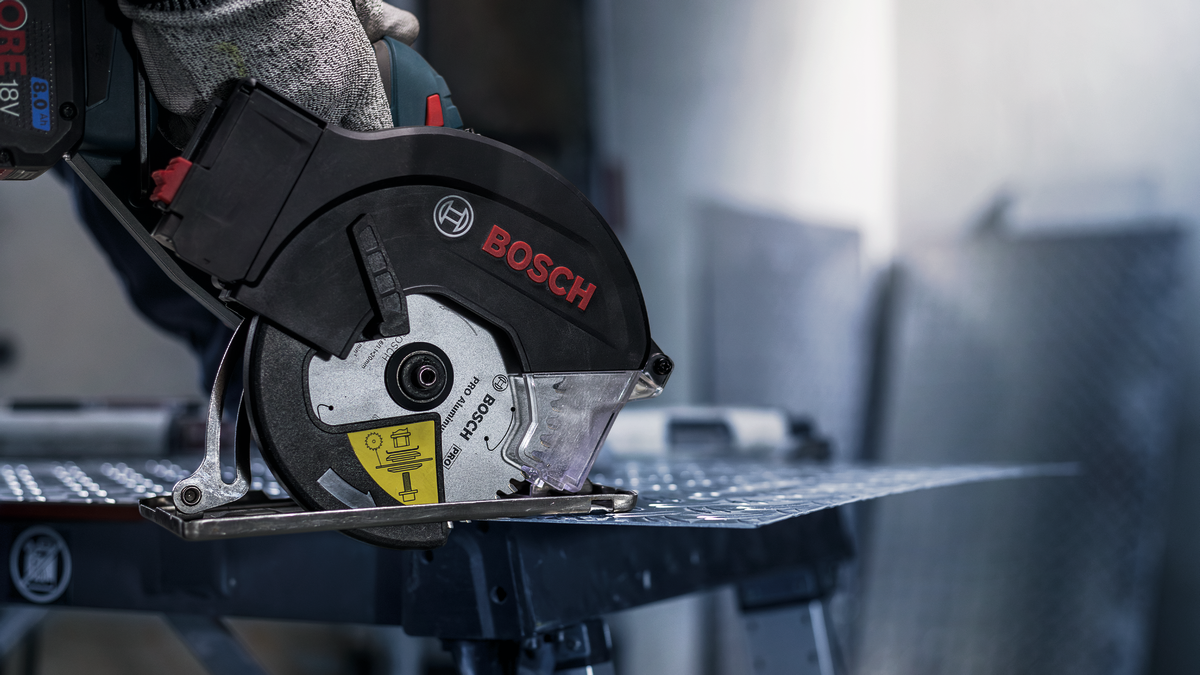

Looking for a circular saw blade that extends your cordless saw's battery runtime? Try the PRO Aluminium cordless. It has an extra-thin kerf to ensure it consumes less power. Use it to cut aluminium effectively – while your battery lasts.
Available product options: 2
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 837 763 | 165 | 20 | 1=8/1=3 | 54 | 1 Pcs | Find a local dealer | ||
| 2 608 837 771 | 190 | 30 | 2/1=5 | 56 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608837763 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1=8/1=3 |
| Number of teeth | 54 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 9500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 0 |
| Relief angle ° β | 15 |
| Part number 2608837771 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1=5 |
| Number of teeth | 56 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 7900 |
| Cutting result | Fine Cut |
| Hook angle ° α | 0 |
| Relief angle ° β | 15 |
