EXPERT HEX-9 Hard Ceramic Drill Bit Set

For impact drill/drivers, For rotary drills/drivers, For impact screwdrivers

EXPERT HEX-9 Hard Ceramic Set

Lasts up to 10x longer than a Bosch CYL-9 Soft Ceramic Drill Bit

  • Long Life drilling hard tiles
  • Exceptionally durable drill bit tip with Bosch Carbide Technology
  • Start holes accurately with a specially designed centring tip

Materials

Hard tiles
Soft tiles
Hard stone
Roof tiles
Glass
Choose your Variant

5 options

Available product options (5)
Recommended retail price excluding VAT

EXPERT HEX-9 Hard Ceramic Drill Bit Set
from
Recommended retail price excluding VAT

Long Life drilling hard tiles

Long Life drilling hard tiles
  • 1

    Exceptionally durable drill bit tip with Bosch Carbide Technology

  • 2

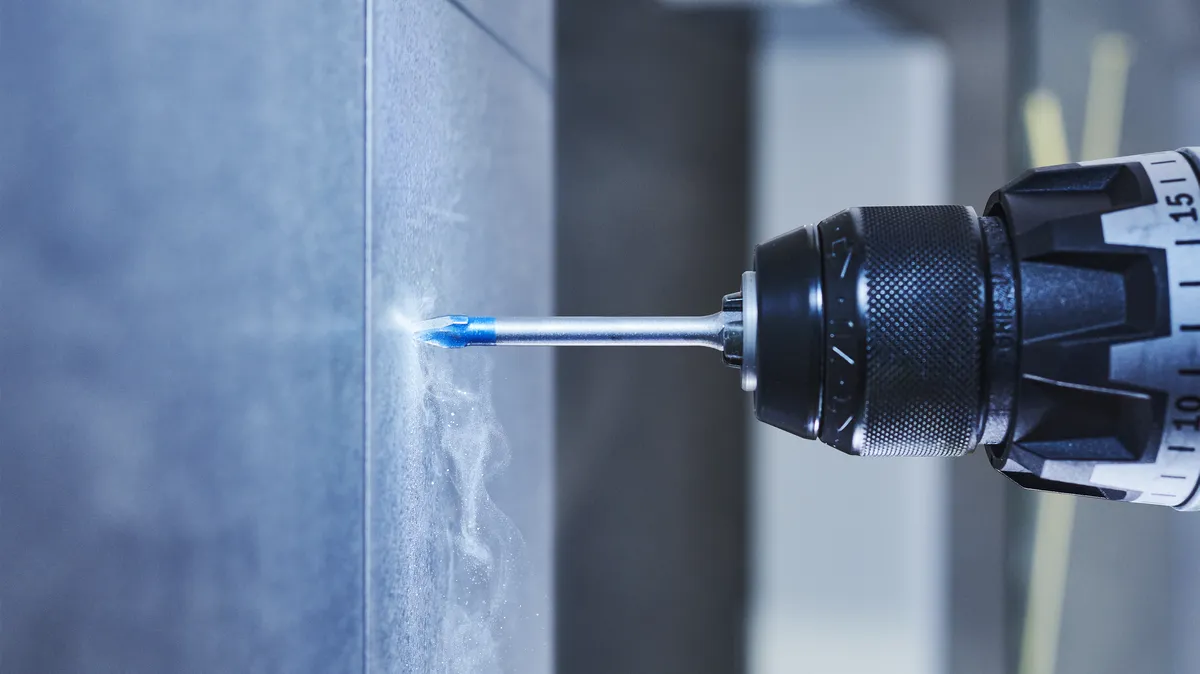

    Start holes accurately with a specially designed centring tip

  • 3

    High-performance carbide tip manufactured by fine grinding

  • 4

    Efficient drilling in hard materials with a multi-faceted design

Carbide Technology
EXPERT
Advantage

The New Way of Drilling Tiles

EXPERT HEX-9 Hard Ceramic Drill Bit for Long Life Drilling Hard Tiles

As wall tiles have become larger and harder, drilling holes in them has become very demanding on a tile drill bit. That’s why Bosch has developed the EXPERT Hard Ceramic Drill Bit, which is capable of dry-drilling hard ceramics and lasts far longer than our benchmark drill bit for tiles.

View more
imageAlt

Product Options

Available product options: 5

Part number Diameter mm Total length mm Working length mm Pack quantity Price
2 608 900 595 5=0 / 6=0 / 8=0 90 - 3 Pcs Find a local dealer
2 608 900 596 6=0 / 6=0 / 6=0 / 6=0 / 6=0 90 / 90 / 90 / 100 / 100 0 / 0 / 0 / 60 / 60 5 Pcs Find a local dealer
2 608 900 597 4=0 / 5=0 / 6=0 / 8=0 / 10=0 90 - 5 Pcs Find a local dealer
2 608 900 598 5=0 / 5=0 / 5=0 / 5=0 / 5=0 90 - 5 Pcs Find a local dealer
2 608 900 599 6=0 / 6=0 / 6=0 / 6=0 / 6=0 90 - 5 Pcs Find a local dealer

out of products

Frequently asked questions

The HEX shank has several benefits over the CYL shank. While both shank types fit into three-jaw chucks of a standard drill, the HEX shank offers a more secure connection: due to its geometry it won’t slip in the chuck. The HEX shank ensures maximum power transfer from your machine to the drill bit. The HEX shank also gives you more flexibility when choosing your tool: you can use it with standard drills with three-jaw chucks as well as impact drivers with ¼” internal hexagon tool holders. The 3-wing shank of our CYL-5 drill bits only fits three-jaw chucks, but otherwise it offers benefits similar to those of the HEX shank: it fits in the chuck securely, it doesn’t slip and ensures maximum power transfer from your machine to the drill bit.

CYL-9 SoftCeramic: Suitable for soft ceramic tiles and non-tempered glass. HEX-9 HardCeramic: Suitable for soft and hard ceramic tiles, stone tiles, roof tiles and non-tempered glass. This drill bit is designed for drilling into tiles up to 10 mm thick. It’s not suitable for drilling into blocks. If you don’t know the hardness of the ceramic tile you need to drill into, we recommend using HEX-9 HardCeramic drill bits, as they can tackle both soft and hard ceramic tiles.

The number of holes you can drill depends on several parameters, such as the drill bit’s diameter, the pressure applied during drilling, the drilling direction and the material’s thickness and hardness. When testing 6 mm-diameter drill bits we got the following results: drilling with CYL-9 SoftCeramic bits you can expect to get 50+ holes in soft tiles, while HEX-9 HardCeramic bits should allow you to make 100+ holes in soft tiles and 10+ holes in hard tiles. We carried out the tests drilling manually in horizontal direction, using GSB 18V-85 in 1st gear and rotary mode with force of 200 N applied into 8 mm thick ceramic tile with PEI 5.

A tile’s hardness is not always easy to determine. The Mohs scale or PEI rating is often used to indicate the grade of the material’s hardness. The price of the tile can also help you estimate its hardness: hard tiles normally cost more than the soft ones. The size of your tile can be an indicator as well. The tiles 30x30 cm or larger are normally hard (as, otherwise, considering their size, they would easily break).

You should set your power tool to gear 1 not to overheat the drill bit. If you’re using a corded tool, in addition to setting it to gear 1, you also need to control the speed by pushing the trigger halfway only in order not to go over 500 rpm (as, otherwise, it will go up to 1000 rpm). If you’re using a cordless tool, you don’t need to control the speed through the trigger once the tool is set to gear 1, due to cordless tools’ lower rpm limit. If your tool doesn’t have gears, keep the speed at low rpm (max. 500 rpm), using the trigger.

Always set your power tool to the rotary mode only. Never apply the impact mode, as using this mode will damage the drill bit and the tile.

Always set your power tool to the rotary mode only. Never apply the impact mode, as using this mode will damage the drill bit and the tile. You should set your power tool to gear 1 to prevent the drill bit from overheating. If you’re using a corded tool, in addition to setting it to gear 1, you also need to control the speed by pushing the trigger halfway only in order not to go over 500 rpm (as, otherwise, it will go up to 1000 rpm). If you’re using a cordless tool, you don’t need to control the speed through the trigger once the tool is set to gear 1, due to cordless tools’ lower rpm limit. If your tool doesn’t have gears, keep the speed at low rpm (max. 500 rpm), using the trigger. Make sure you apply sufficient, but not excessive pressure (15-20 kg is recommended). You should hear a scraping or screeching noise when the drill bit starts removing the material. This normally confirms you’ve applied the right amount of pressure, the drill bit is working correctly and you can carry on drilling. Cooling is not required. Adding a little bit of ‘wobbling’ motion when drilling in hard tiles can help you gain speed and extend the drill bit’s lifetime. Once you’ve drilled through the tile, switch to a concrete drill bit to tackle the material under the tile (concrete, brick). Make sure you’ve changed the power tool settings to the impact mode and gear 2 before starting to drill with a concrete drill bit. For this specific application, consider our set including HEX-9 HardCeramic and CYL-3 (2608900596) drill bits. When drilling into hard tiles with diameters of 10 mm or larger, we recommend pre-drilling with smaller diameters (6, 7 or 8 mm).

The HEX-9 HardCeramic drill bit has a centring tip to help you start drilling with precision and without damaging the tile. Diamond drill bits don’t have a centring point and you need to have some experience to start holes exactly where you need them. The carbide-tipped HEX-9 HardCeramic drill bit won’t get damaged easily in case you occasionally touch the material under the tile. You need to have some experience drilling with diamond-tipped drill bits to avoid damaging the drill bit and the tile. You need to apply more pressure when drilling with the carbide-tipped HEX-9 HardCeramic drill bits than you need when drilling with diamond-tipped drill bits. The HEX-9 HardCeramic drill bit offers fast drilling progress in hard tile when compared with other carbide-tipped drill bits, but, in general, diamond drill bits are even faster. The HEX-9 HardCeramic drill bits offer a great value in absolute cost and an attractive price per hole. Diamond drill bits offer a great price-performance ratio but using them efficiently requires some experience.

Cooling can help extend the lifetime of your drill bit if applied in the right way, but you don’t need to apply it. When drilling in hard stone, we recommend letting the drill bit cool down each time you drilled a hole.
