For vertical panel sizing saws, For table saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 2 options
Number of teeth 2 options
Width of cut (b1) mm 3=2
Choose a pack size 1 Pcs
Perfect Reliable Cuts in Laminate Panels
Available product options: 2
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|

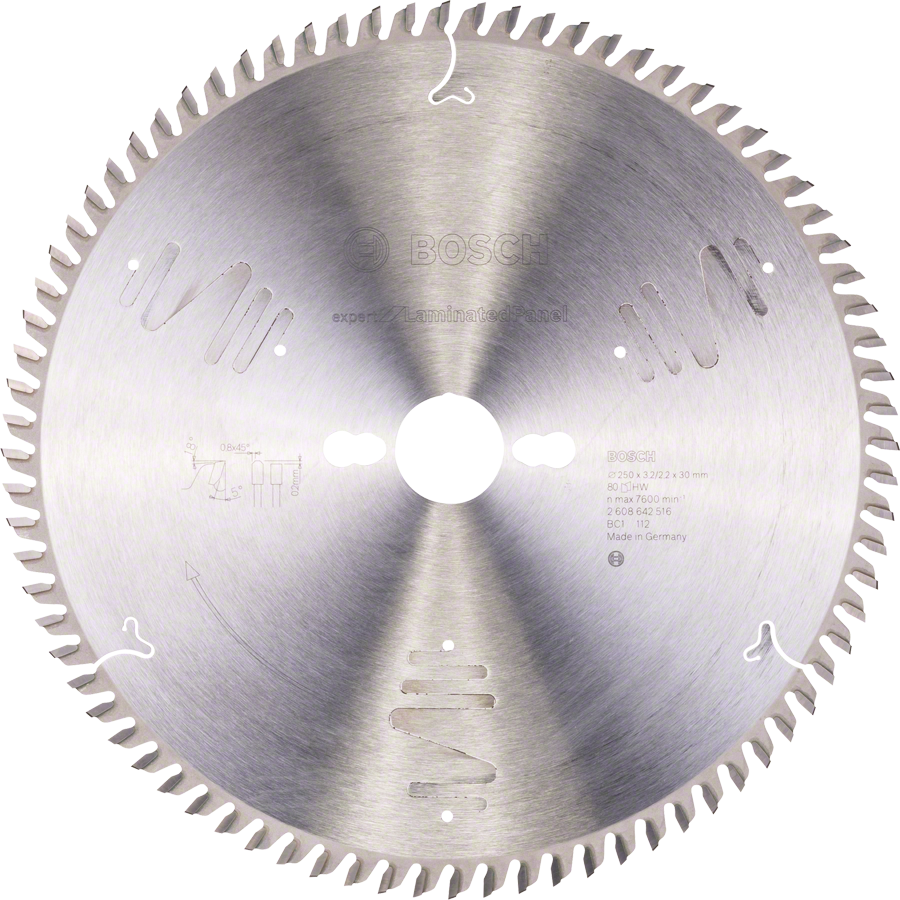

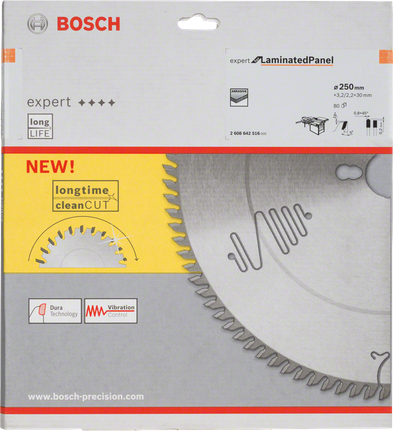

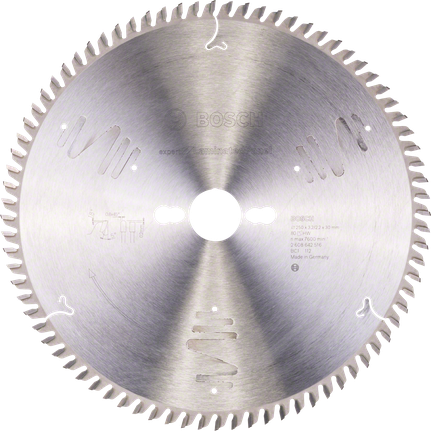

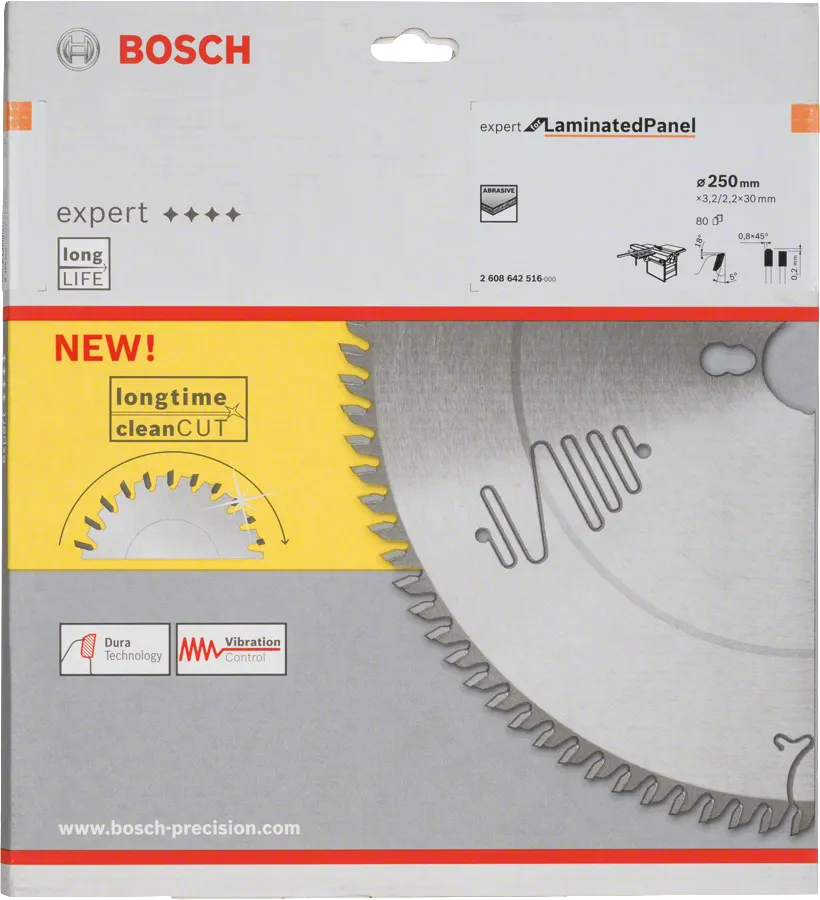

| 2 608 642 516 | 250 | 30 | 3=2/2=2 | 80 | 1 Pcs | 61.00 EUR | Find a local dealer | |

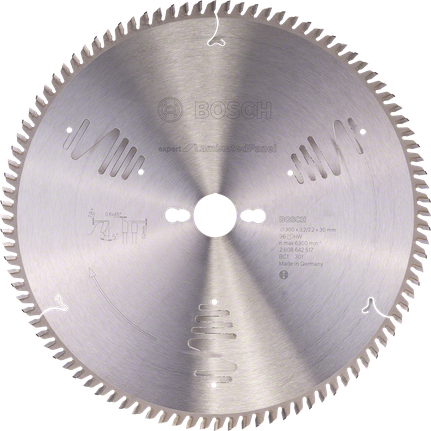

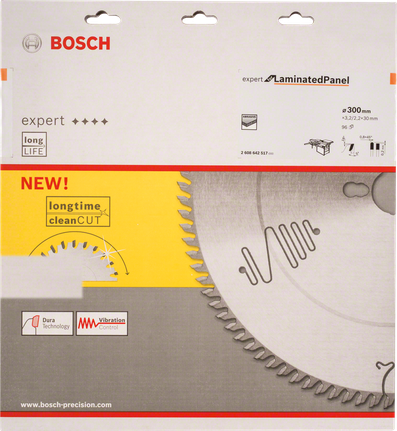

| 2 608 642 517 | 300 | 30 | 3=2/2=2 | 96 | 1 Pcs | 75.10 EUR | Find a local dealer |
out of products
| Part number 2608642516 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 250 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3=2/2=2 |
| Number of teeth | 80 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 7600 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9/46.4 / 2/10/60 |
| Hook angle ° α | 5 |
| Relief angle ° β | 18 |
| Part number 2608642517 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 300 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3=2/2=2 |
| Number of teeth | 96 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 6300 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9/46.4 / 2/10/60 |
| Hook angle ° α | 5 |
| Relief angle ° β | 18 |
