For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 3 options
Number of teeth 3 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs
Eco for Wood Circular Saw Blade is the preferred choice for reliable cuts in wood
Available product options: 8
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Bore with reduction ring mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 644 399 | 184 | 20 | 16 | 2=2/1=4 | 1 Pcs | Find a local dealer | |
| 2 608 644 400 | 184 | 20 | 16 | 2=2/1=4 | 1 Pcs | Find a local dealer | |
| 2 608 644 401 | 190 | 30 | - | 2=2/1=4 | 1 Pcs | Find a local dealer | |
| 2 608 644 402 | 190 | 20 | 16 | 2=2/1=4 | 1 Pcs | Find a local dealer | |
| 2 608 644 404 | 235 | 30 | 25 / 21 | 2=8/1=8 | 1 Pcs | Find a local dealer | |
| 2 608 644 405 | 235 | 30 | 25 / 22 | 2=8/1=8 | 1 Pcs | Find a local dealer | |
| 2 608 644 415 | 184 | 30 | - | 2=2/1=4 | 1 Pcs | Find a local dealer | |
| 2 608 644 416 | 184 | 30 | - | 2=2/1=4 | 1 Pcs | Find a local dealer |
out of products

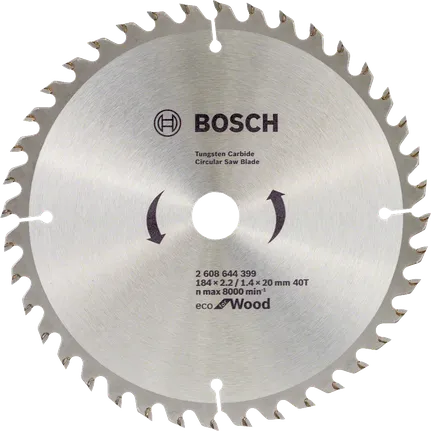

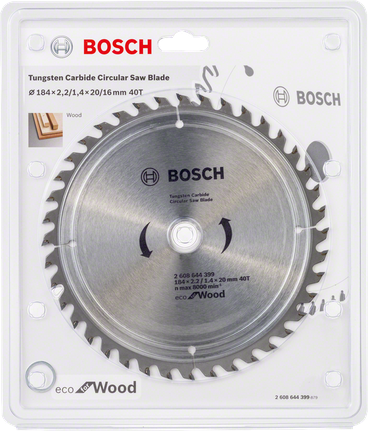

| Part number 2608644399 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2=2/1=4 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 16 |
| Relief angle ° β | 15 |

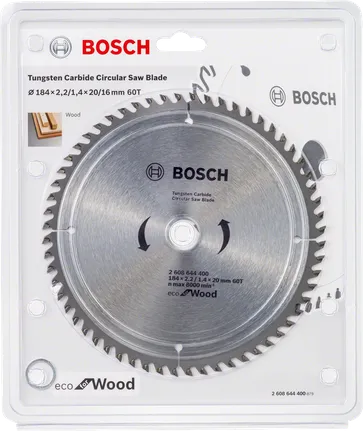

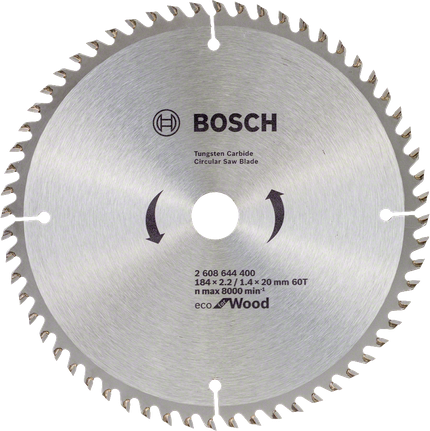

| Part number 2608644400 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2=2/1=4 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 16 |
| Relief angle ° β | 15 |

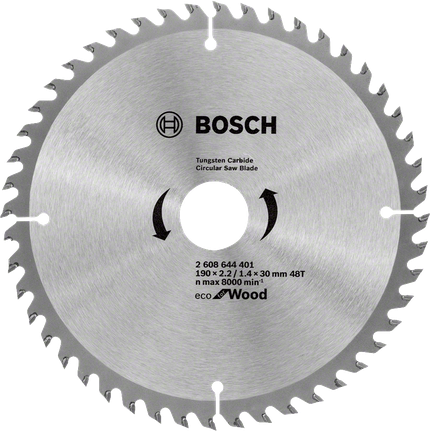

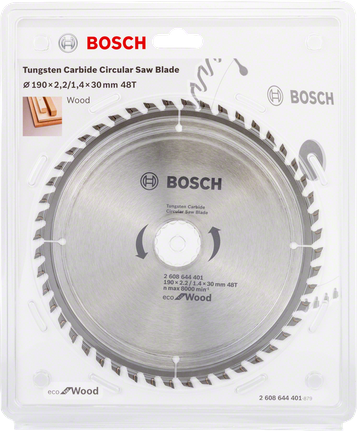

| Part number 2608644401 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Bore with reduction ring mm | - |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2=2/1=4 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 16 |
| Relief angle ° β | 15 |

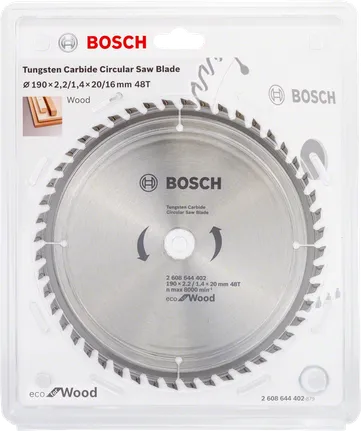

| Part number 2608644402 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2=2/1=4 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 16 |
| Relief angle ° β | 15 |

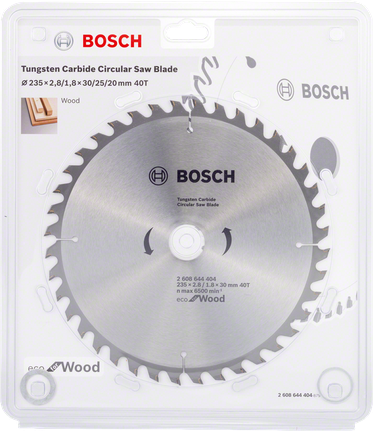

| Part number 2608644404 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 25 / 21 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2=8/1=8 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |

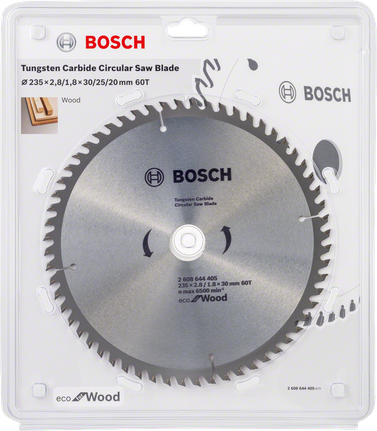

| Part number 2608644405 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 25 / 22 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2=8/1=8 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |

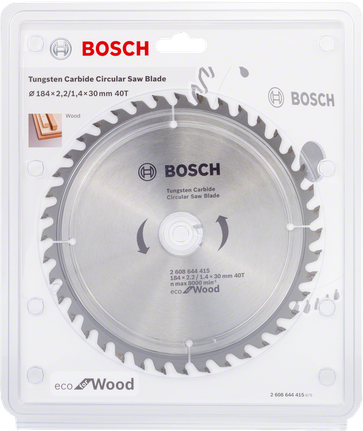

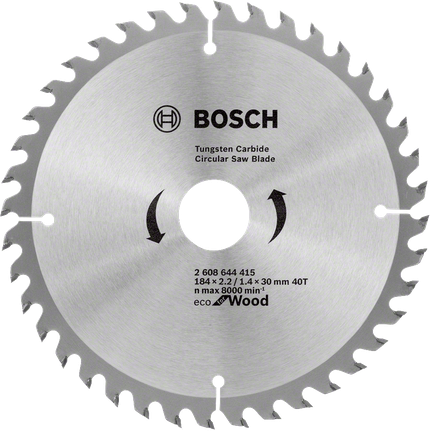

| Part number 2608644415 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 30 |
| Bore with reduction ring mm | - |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2=2/1=4 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 16 |
| Relief angle ° β | 15 |

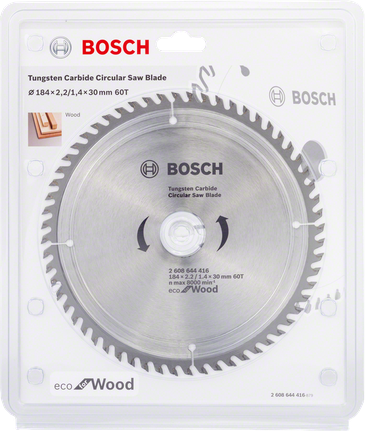

| Part number 2608644416 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 30 |
| Bore with reduction ring mm | - |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2=2/1=4 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 16 |
| Relief angle ° β | 15 |
