For rotary drills/drivers, For impact drill/drivers, For screwdrivers
Length (L) mm
Outer diameter (D1) mm
Socket type and size
Choose a pack size
Length (L) mm 75
Outer diameter (D1) mm 54
Socket type and size 1" external square
Choose a pack size 1 Pcs

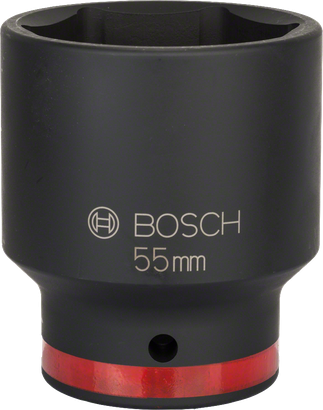

The Impact Control Socket is highly robust when screw-driving hex screws with impact drivers and wrenches
Available product options: 17
|
Part number
|
Outer diameter (D1) mm
|
Width across flat mm
|
Outer diameter (D2) mm
|
Socket type and size
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 1 608 555 053 | 30 | 24 | 35.40 | 1/2" external square | 1 Pcs | Find a local dealer | ||
| 1 608 555 059 | 30 | 27 | 39.30 | 1/2" external square | 1 Pcs | Find a local dealer | ||
| 1 608 555 065 | 30 | 30 | 43.00 | 1/2" external square | 1 Pcs | Find a local dealer | ||
| 1 608 556 005 | 44 | 19 | 32.50 | 3/4" external square | 1 Pcs | Find a local dealer | ||
| 1 608 556 011 | 44 | 22 | 36.50 | 3/4" external square | 1 Pcs | Find a local dealer | ||
| 1 608 556 021 | 44 | 27 | 42.50 | 3/4" external square | 1 Pcs | Find a local dealer | ||
| 1 608 556 027 | 44 | 30 | 46.50 | 3/4" external square | 1 Pcs | Find a local dealer | ||
| 1 608 556 033 | 44 | 36 | 53.80 | 3/4" external square | 1 Pcs | Find a local dealer | ||
| 1 608 557 043 | 54 | 24 | 41.50 | 1" external square | 1 Pcs | Find a local dealer | ||
| 1 608 557 046 | 54 | 27 | 45.50 | 1" external square | 1 Pcs | Find a local dealer | ||
| 1 608 557 049 | 54 | 30 | 49.00 | 1" external square | 1 Pcs | Find a local dealer | ||
| 1 608 557 050 | 54 | 32 | 51.50 | 1" external square | 1 Pcs | Find a local dealer | ||
| 1 608 557 054 | 54 | 36 | 56.50 | 1" external square | 1 Pcs | Find a local dealer | ||
| 1 608 557 058 | 54 | 41 | 62.80 | 1" external square | 1 Pcs | Find a local dealer | ||
| 1 608 557 060 | 54 | 46 | 69.00 | 1" external square | 1 Pcs | Find a local dealer | ||
| 1 608 557 063 | 54 | 50 | 74.00 | 1" external square | 1 Pcs | Find a local dealer | ||
| 1 608 557 067 | 54 | 55 | 80.50 | 1" external square | 1 Pcs | Find a local dealer |
out of products
| Part number 1608555053 | |
|---|---|
| Packaging type | Plastic packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter (D1) mm | 30 |
| Width across flat mm | 24 |
| Outer diameter (D2) mm | 35.40 |
| Socket type and size | 1/2" external square |
| For thread | M 16 |
| Length (L) mm | 45 |
| Part number 1608555059 | |
|---|---|
| Packaging type | Plastic packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter (D1) mm | 30 |
| Width across flat mm | 27 |
| Outer diameter (D2) mm | 39.30 |
| Socket type and size | 1/2" external square |
| For thread | M 18 |
| Length (L) mm | 50 |
| Part number 1608555065 | |
|---|---|
| Packaging type | Plastic packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter (D1) mm | 30 |
| Width across flat mm | 30 |
| Outer diameter (D2) mm | 43.00 |
| Socket type and size | 1/2" external square |
| For thread | M 20 |
| Length (L) mm | 50 |
| Part number 1608556005 | |
|---|---|
| Packaging type | Plastic packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter (D1) mm | 44 |
| Width across flat mm | 19 |
| Outer diameter (D2) mm | 32.50 |
| Socket type and size | 3/4" external square |
| For thread | M 12 |
| Length (L) mm | 50 |
| Part number 1608556011 | |
|---|---|
| Packaging type | Plastic packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter (D1) mm | 44 |
| Width across flat mm | 22 |
| Outer diameter (D2) mm | 36.50 |
| Socket type and size | 3/4" external square |
| For thread | M 14 |
| Length (L) mm | 50 |
| Part number 1608556021 | |
|---|---|
| Packaging type | Plastic packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter (D1) mm | 44 |
| Width across flat mm | 27 |
| Outer diameter (D2) mm | 42.50 |
| Socket type and size | 3/4" external square |
| For thread | M 18 |
| Length (L) mm | 50 |
| Part number 1608556027 | |
|---|---|
| Packaging type | Plastic packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter (D1) mm | 44 |
| Width across flat mm | 30 |
| Outer diameter (D2) mm | 46.50 |
| Socket type and size | 3/4" external square |
| For thread | M 20 |
| Length (L) mm | 53 |
| Part number 1608556033 | |
|---|---|
| Packaging type | Plastic packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter (D1) mm | 44 |
| Width across flat mm | 36 |
| Outer diameter (D2) mm | 53.80 |
| Socket type and size | 3/4" external square |
| For thread | M 24 |
| Length (L) mm | 55 |
| Part number 1608557043 | |
|---|---|
| Packaging type | Plastic packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter (D1) mm | 54 |
| Width across flat mm | 24 |
| Outer diameter (D2) mm | 41.50 |
| Socket type and size | 1" external square |
| For thread | M 16 |
| Length (L) mm | 57 |
| Part number 1608557046 | |
|---|---|
| Packaging type | Plastic packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter (D1) mm | 54 |
| Width across flat mm | 27 |
| Outer diameter (D2) mm | 45.50 |
| Socket type and size | 1" external square |
| For thread | M 18 |
| Length (L) mm | 57 |
| Part number 1608557049 | |
|---|---|
| Packaging type | Plastic packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter (D1) mm | 54 |
| Width across flat mm | 30 |
| Outer diameter (D2) mm | 49.00 |
| Socket type and size | 1" external square |
| For thread | M 20 |
| Length (L) mm | 62 |
| Part number 1608557050 | |
|---|---|
| Packaging type | Plastic packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter (D1) mm | 54 |
| Width across flat mm | 32 |
| Outer diameter (D2) mm | 51.50 |
| Socket type and size | 1" external square |
| For thread | M 22 |
| Length (L) mm | 62 |
| Part number 1608557054 | |
|---|---|
| Packaging type | Plastic packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter (D1) mm | 54 |
| Width across flat mm | 36 |
| Outer diameter (D2) mm | 56.50 |
| Socket type and size | 1" external square |
| For thread | M 24 |
| Length (L) mm | 62 |
| Part number 1608557058 | |
|---|---|
| Packaging type | Plastic packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter (D1) mm | 54 |
| Width across flat mm | 41 |
| Outer diameter (D2) mm | 62.80 |
| Socket type and size | 1" external square |
| For thread | M 27 |
| Length (L) mm | 66 |
| Part number 1608557060 | |
|---|---|
| Packaging type | Plastic packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter (D1) mm | 54 |
| Width across flat mm | 46 |
| Outer diameter (D2) mm | 69.00 |
| Socket type and size | 1" external square |
| For thread | M 30 |
| Length (L) mm | 70 |
| Part number 1608557063 | |
|---|---|
| Packaging type | Plastic packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter (D1) mm | 54 |
| Width across flat mm | 50 |
| Outer diameter (D2) mm | 74.00 |
| Socket type and size | 1" external square |
| For thread | M 33 |
| Length (L) mm | 70 |

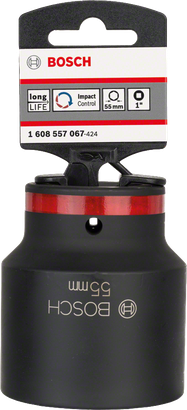

| Part number 1608557067 | |
|---|---|
| Packaging type | Plastic packaging, hanger, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter (D1) mm | 54 |
| Width across flat mm | 55 |
| Outer diameter (D2) mm | 80.50 |
| Socket type and size | 1" external square |
| For thread | M 36 |
| Length (L) mm | 75 |
