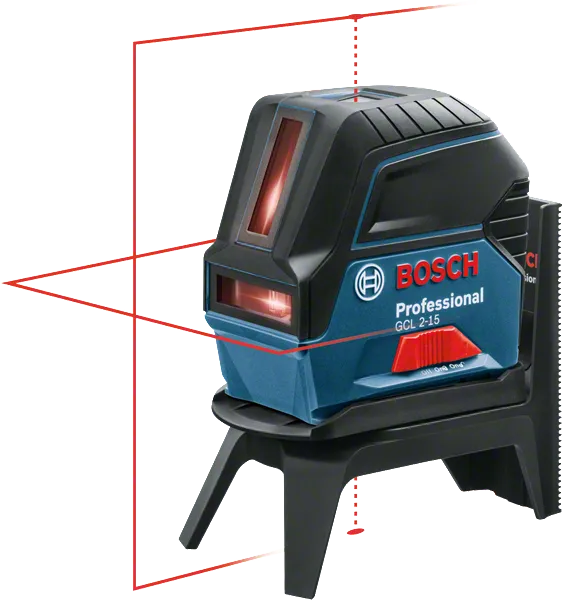

GCL 2-15 Professional
Combi Laser
Compact and versatile for short-distance levelling applications
- Both horizontal and vertical lines are perfect for short-distance levelling applications
- Enjoy precise transfer applications thanks to two centred plumb points
- Rotating mount RM 1 Professional allows laser lines to be easily positioned around the plumb points
Functions & key features
Your Selection

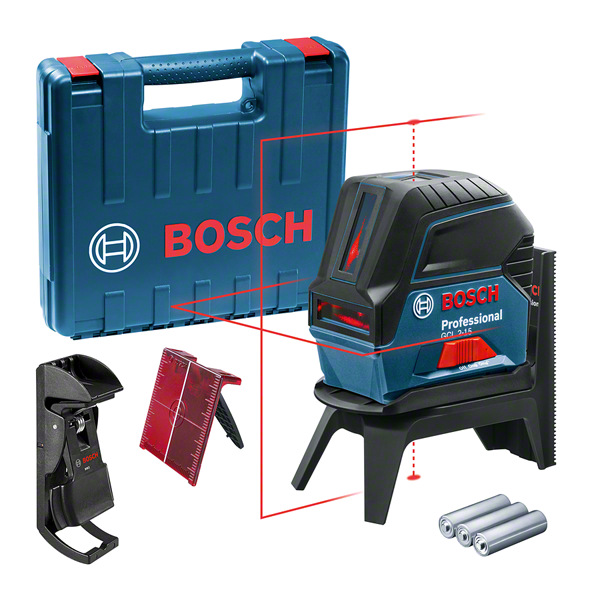

- in carrying case with 3 x battery (AA), rotating mount
Select a variant
Your Selection
Order number: 0 601 066 E00
Find a local dealerIncluded in all variants
-

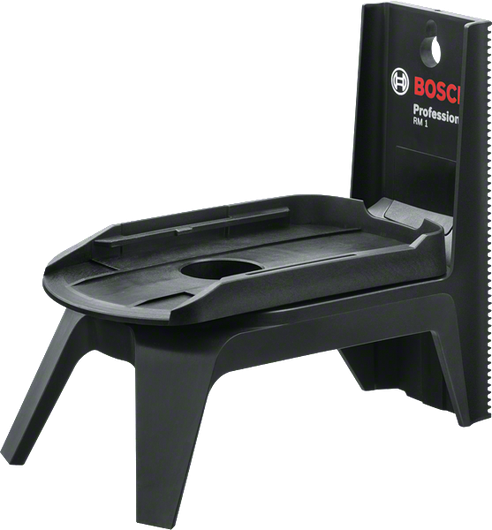

Rotating mount RM 1 ProfessionalOrder number: 0 601 092 600
-
3 x 1.5 V LR6 battery (AA)
-
Laser target plate
Additional in this variant
-
Protective Bag
Your Selection
Order number: 0 601 066 E02
Find a local dealerIncluded in all variants
-
Rotating mount RM 1 ProfessionalOrder number: 0 601 092 600
-
3 x 1.5 V LR6 battery (AA)
-
Laser target plate
Additional in this variant
-
Ceiling clamp
-
Carrying case
Technical data
Additional data |
|
|---|---|
| Tripod thread | 1/4", 5/8" |
| Colour of laser line | red |
| Projection | 2 lines / 2 points |
| Working range | up to 15 m |
| Accuracy | ± 0.3 mm/m* (*plus use-dependent deviation) |
| Dust and splash protection | IP 54 |
| Laser diode | 630 – 650 nm, < 1mW |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range of laser points, max. | 10 m (top), 10 m (bottom) |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Power supply | 3 x 1.5 V LR6 (AA) |
| Operating time (max.) | 6 h in cross line and point mode, 8 h in cross line mode, 12 h in line and point mode, 16 h in line mode, 22 h in point mode |
| Weight, approx. | 0.49 kg |
| Plumb point accuracy | ± 0.7 mm/m* (*plus use-dependent deviation) |
| Working range, value | 15 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
*** Plus use-dependent deviation. You can find more information about the deviations in the following link:
GCL 2-15 Professional: Further information
Product Highlights

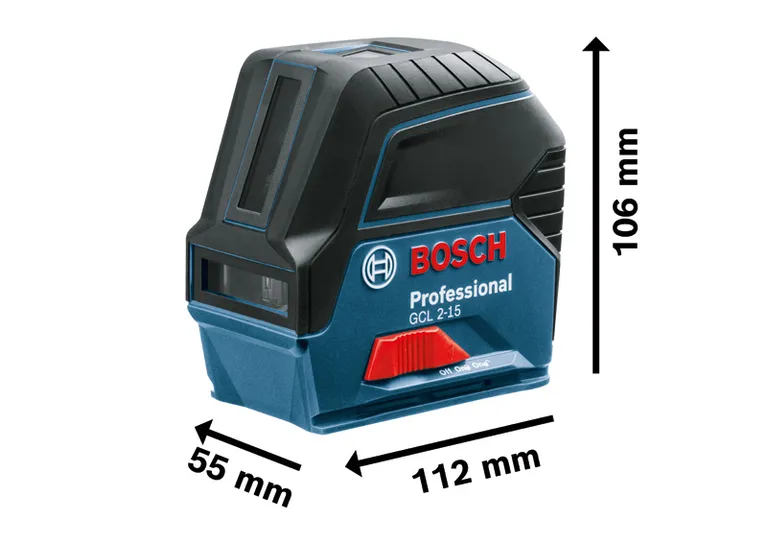

The combi laser GCL 2-15 Professional convinces through its compact design and is especially suitable for short-distance levelling applications. By projecting both horizontal and vertical laser lines and two centred plumb points, this combi laser supports completing levelling tasks quickly. Its plumb points make precise transfer applications easy and convenient. Aligning the laser lines around the plumb points is simple thanks to its rotating mount RM 1 Professional.
Equipment & Application

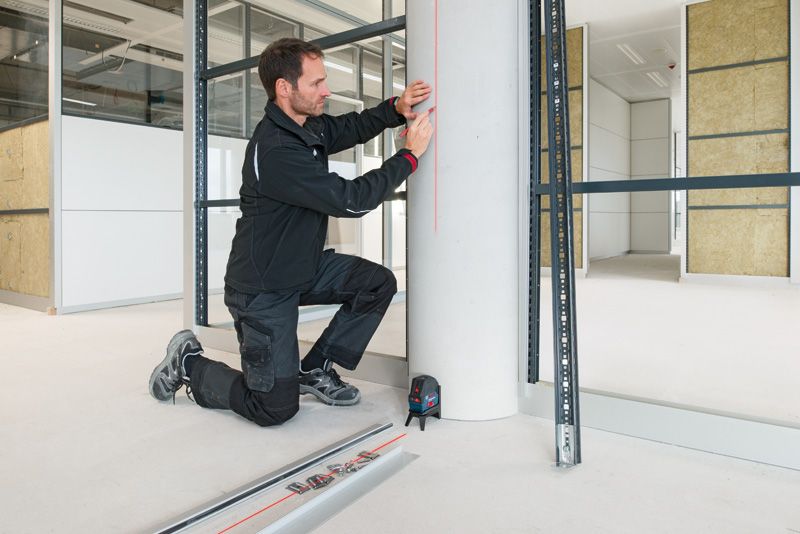

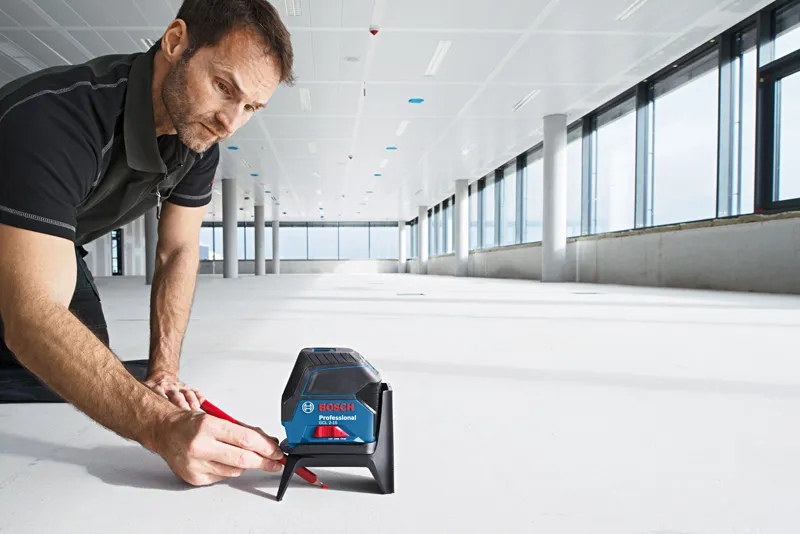

The GCL 2-15 Professional is suitable for various applications such as mounting shelves and windows, installing drainage pipes, and laying floors. It also offers point transfers for light mountings.
Additional Information
The GCL 2-15 Professional provides a line laser working range of up to 15 m and self-levels in less than 4 seconds. This combi laser is ideal for use with the RM 1 Professional, which can be swiftly attached via a simple slide mechanism. It is robust thanks to IP54 dust and splash water protection. When switching off the tool, the pendulum’s lock-mechanism allows for safe transportation.
