Rotary hammers

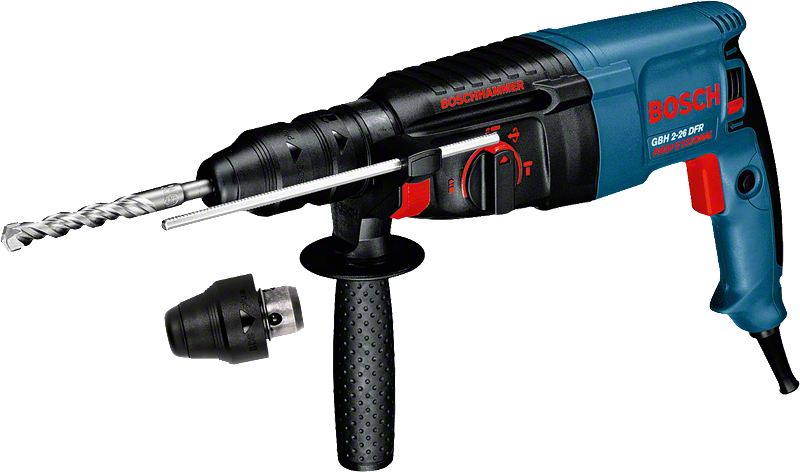

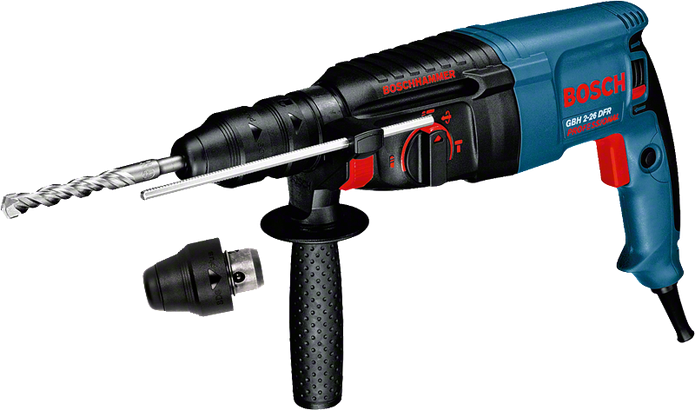

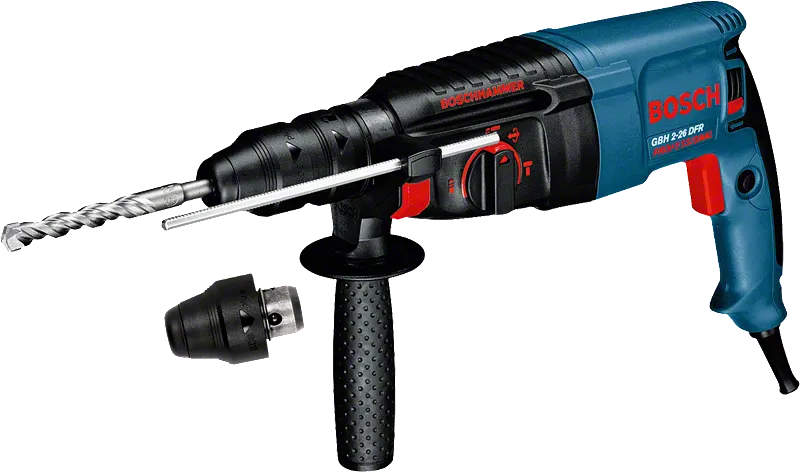

GBH 2-26 DFR Professional

Rotary Hammer with SDS plus

Faster than a speeding bullet – The powerful all-rounder with quick-change chuck for daily use

Superior drilling rate in the 2 kg hammer class
Exceptionally fast, tool-free changing between SDS plus and quick-change chuck
Rotation stop for chiselling

Functions & key features

Your Selection

in carrying case with chuck

Show variant

286.00 USD

Recommended retail price excluding VAT

Check availability on location

Find a local dealer

Your Selected Variant

in carrying case with chuck 0 611 254 7P0

286.00 USD

Recommended retail price excluding VAT

Find a local dealer

GBH 2-26 DFR Professional

Your Selection

in carrying case with chuck

Order number: 0 611 254 7P0

286.00 USD

Recommended retail price excluding VAT

Find a local dealer

Included in this variant

Carrying case

Order number: 2 605 438 098
Auxiliary handle

Order number: 2 602 025 141
Quick change chuck 13 mm

Order number: 2 608 572 212
SDS plus quick-change chuck

Order number: 2 608 572 213
Depth stop 210 mm

Order number: 1 613 001 010

Your selection

Technical data

Performance data
Impact rate at rated speed	0 – 4,000 bpm
Rated speed	0 – 900 rpm

Additional data
Rated input power	800 W
Impact energy (according to EPTA 05/2016)	2.7 J
Voltage, electrical	230 V
Weight	3 kg
Tool holder	SDS plus

Drilling range
Drilling dia. concrete, hammer drill bits	4 – 26 mm
Opt. appl. range concrete, hammer drill bits	8 – 16 mm
Drilling diameter in concrete with core cutters	16 mm

Total vibration values (Hammer drilling in concrete)
Vibration emission value ah	16.5 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Chiselling in concrete)
Vibration emission value ah	10.5 m/s²
Uncertainty K	1.5 m/s²

Hammer drilling in concrete
Vibration emission value ah	16.5 m/s²
Uncertainty K	1.5 m/s²

Chiselling in concrete
Vibration emission value ah	10.5 m/s²
Uncertainty K	1.5 m/s²

* You can find more information about the deviations in the following link: Technical features of products

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
