For mitre saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 6 options
Number of teeth 5 options
Width of cut (b1) mm 4 options
Choose a pack size 1 Pcs
Ground and sharpened fine carbide teeth for strength, durability, and precision
Expansion slots reduce heat for a longer lifetime

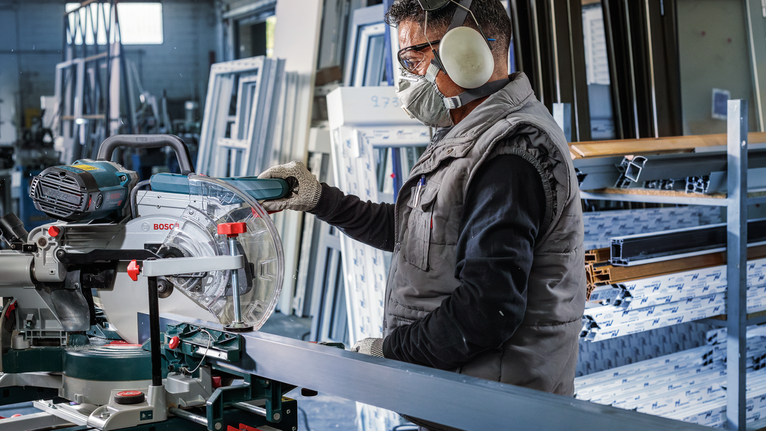

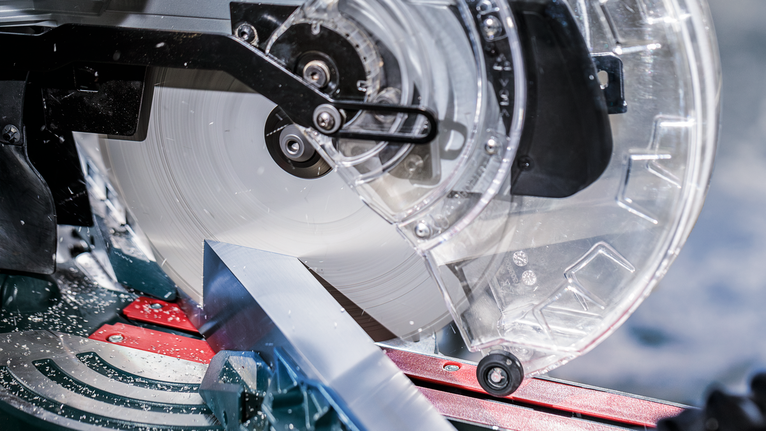

Installing window frames often means you need to cut various materials. You want a circular saw blade that cuts aluminium and other metals as well as plastics, wooden chipboards, and MDF. Try the PRO Multi Material Circular Saw Blade for mitre saws: it will help you get the job done.
We designed the PRO Multi Material Circular Saw Blade for window installers who need to cut various materials. It features high-quality carbide teeth with an advanced geometry to ensure strength and exceptional cutting performance. We made the base of the mitre circular saw blade from well-balanced hardened steel, which means it's accurate and precise. The expansion slots reduce heat build-ups, extending its lifetime.
Available product options: 23
Part number | Outer diameter mm | Bore size mm | Width of cut (b1) mm / Base bl. thickness (b2) mm | Number of teeth | Pack quantity | Price | ||
---|---|---|---|---|---|---|---|---|
2 608 640 445 | 210 | 30 | 2.5/1.8 | 80 | 1 Pcs | Find a local dealer | ||
2 608 640 446 | 216 | 30 | 2.5/1.8 | 60 | 1 Pcs | Find a local dealer | ||
2 608 640 447 | 216 | 30 | 2.5/1.8 | 80 | 1 Pcs | Find a local dealer | ||
2 608 640 449 | 254 | 30 | 3.2/2.5 | 60 | 1 Pcs | Find a local dealer | ||
2 608 640 450 | 254 | 30 | 3.2/2.5 | 80 | 1 Pcs | Find a local dealer | ||
2 608 640 451 | 254 | 30 | 3.2/2.5 | 96 | 1 Pcs | Find a local dealer | ||
2 608 640 452 | 305 | 30 | 3.2/2.5 | 80 | 1 Pcs | Find a local dealer | ||
2 608 640 453 | 305 | 30 | 3.2/2.5 | 96 | 1 Pcs | Find a local dealer | ||
2 608 640 518 | 300 | 30 | 3.2/2.5 | 96 | 1 Pcs | Find a local dealer | ||
2 608 642 201 | 254 | 30 | 2.7/2 | 80 | 1 Pcs | Find a local dealer | ||
2 608 642 202 | 254 | 30 | 2.7/2 | 100 | 1 Pcs | Find a local dealer | ||
2 608 642 203 | 254 | 30 | 2.7/2 | 120 | 1 Pcs | Find a local dealer | ||
2 608 642 208 | 305 | 30 | 2.7/2 | 80 | 1 Pcs | Find a local dealer | ||
2 608 642 209 | 305 | 30 | 2.7/2 | 100 | 1 Pcs | Find a local dealer | ||
2 608 642 210 | 305 | 30 | 2.7/2 | 120 | 1 Pcs | Find a local dealer | ||
2 608 642 213 | 355 | 30 | 3/2.4 | 100 | 1 Pcs | Find a local dealer | ||
2 608 642 214 | 355 | 30 | 3/2.4 | 120 | 1 Pcs | Find a local dealer | ||
2 608 901 585 | 254 | 30 | 2.7/2 | 100 | 1 Pcs | Find a local dealer | ||
2 608 901 586 | 254 | 30 | 2.7/2 | 120 | 1 Pcs | Find a local dealer | ||
2 608 901 588 | 305 | 30 | 2.7/2 | 120 | 1 Pcs | Find a local dealer | ||

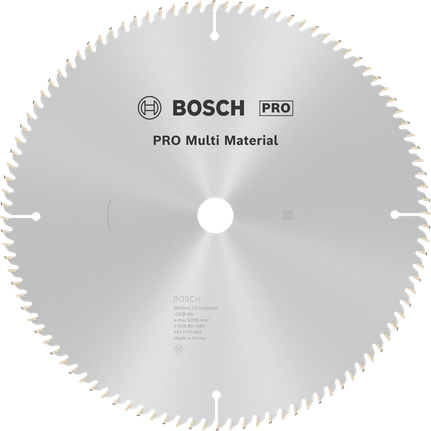

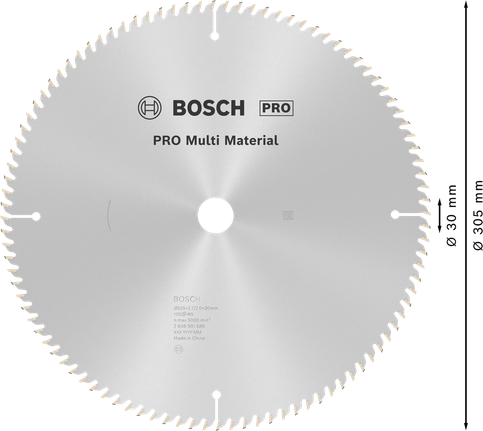

2 608 901 589 | 305 | 30 | 2.7/2 | 100 | 1 Pcs | Find a local dealer | ||

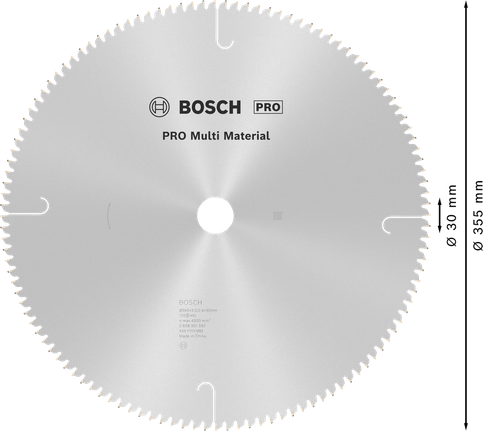

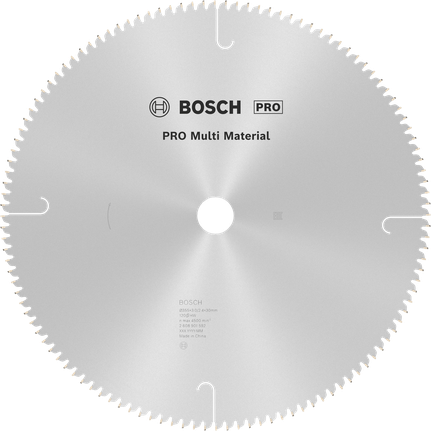

2 608 901 592 | 355 | 30 | 3/2.4 | 120 | 1 Pcs | Find a local dealer | ||

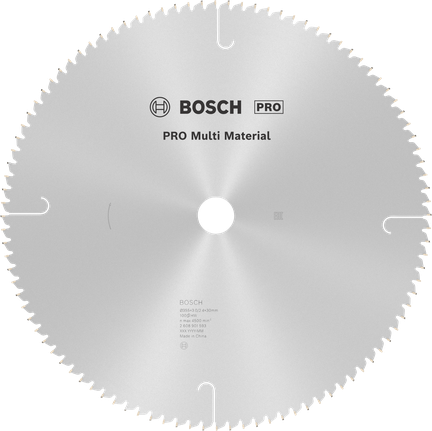

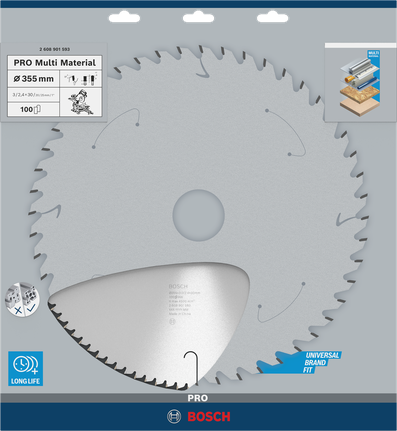

2 608 901 593 | 355 | 30 | 3/2.4 | 100 | 1 Pcs | Find a local dealer |
out of products

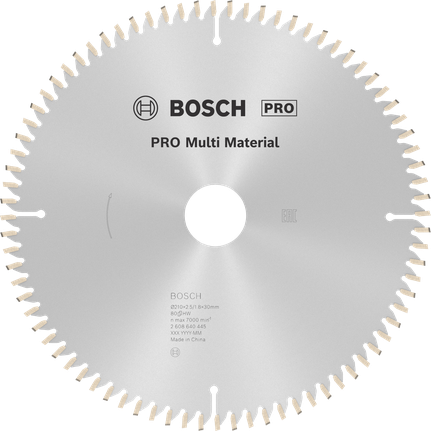

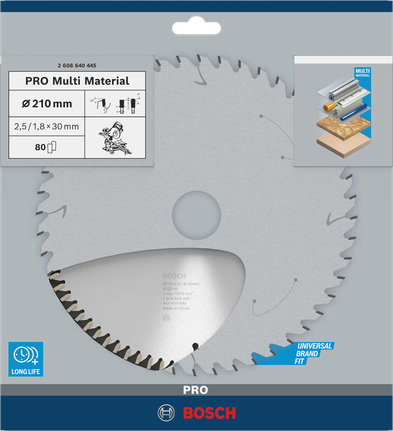

Part number 2608640445 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 210 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.5/1.8 |
Number of teeth | 80 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 7000 |
Cutting result | Fine Cut |
Hook angle ° α | -5 |
Relief angle ° β | 15 |

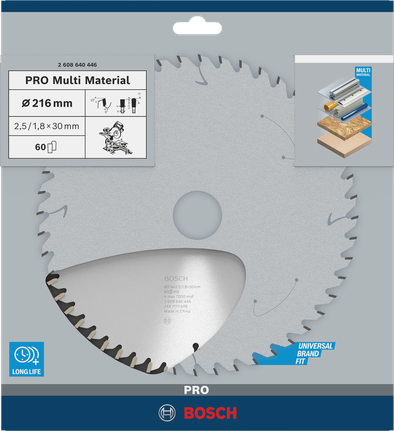

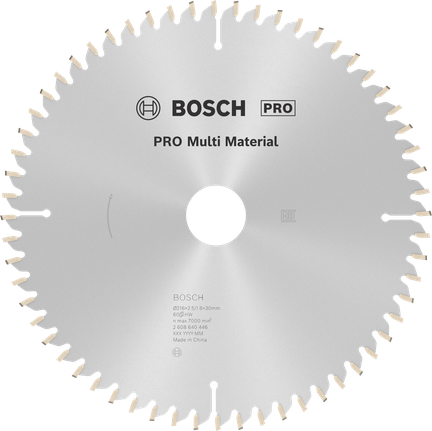

Part number 2608640446 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 216 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.5/1.8 |
Number of teeth | 60 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 7000 |
Cutting result | Coarse cut |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
Outer diameter inch | 8 1/2 |

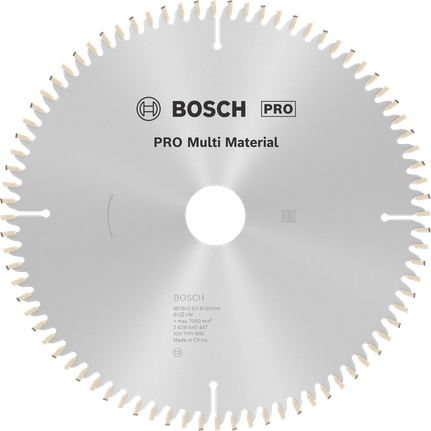

Part number 2608640447 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 216 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.5/1.8 |
Number of teeth | 80 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 7000 |
Cutting result | Fine Cut |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
Outer diameter inch | 8 1/2 |

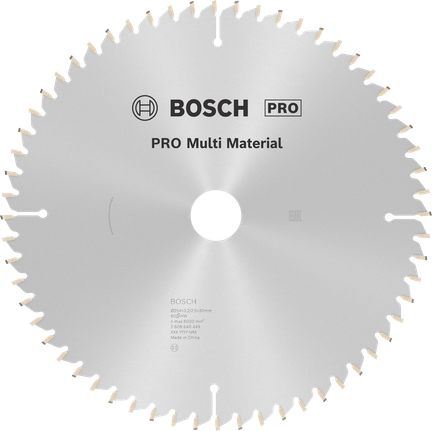

Part number 2608640449 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 254 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.5 |
Number of teeth | 60 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 6000 |
Cutting result | Coarse cut |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
Outer diameter inch | 10 |

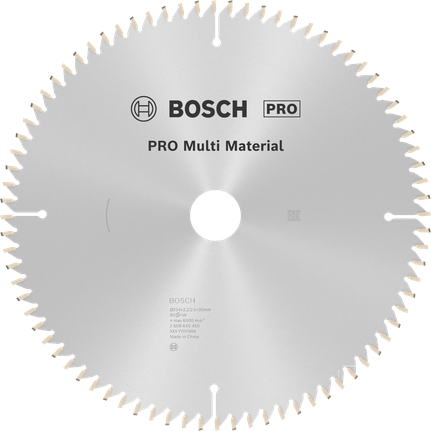

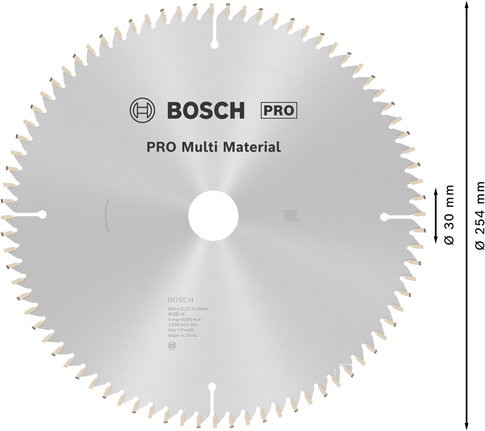

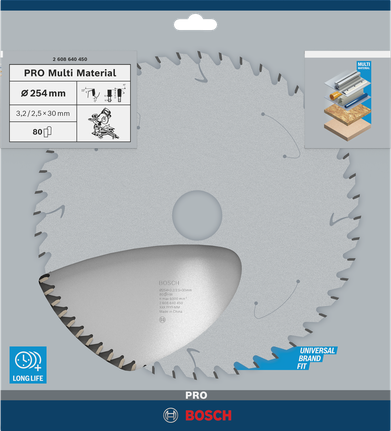

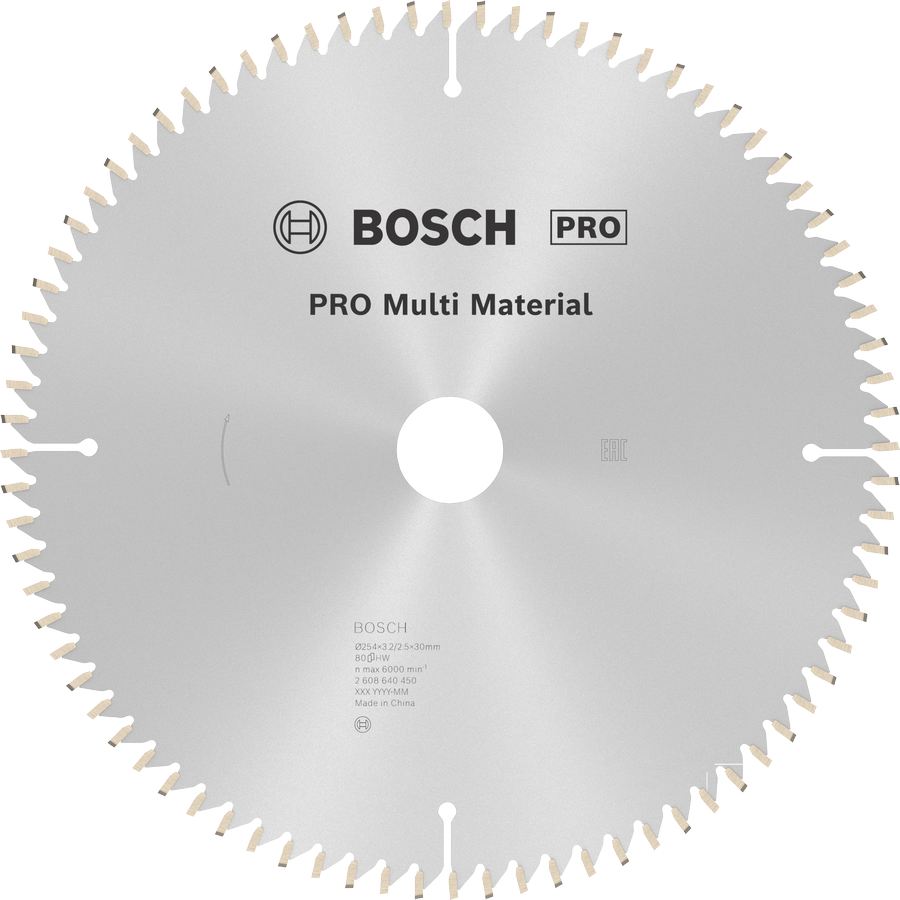

Part number 2608640450 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 254 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.5 |
Number of teeth | 80 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 6000 |
Cutting result | Fine Cut |
Hook angle ° α | -5 |
Relief angle ° β | 15 |

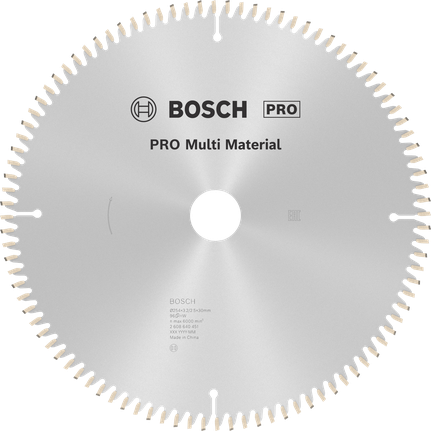

Part number 2608640451 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 254 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.5 |
Number of teeth | 96 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 6000 |
Cutting result | Fine Cut |
Hook angle ° α | -5 |
Relief angle ° β | 15 |

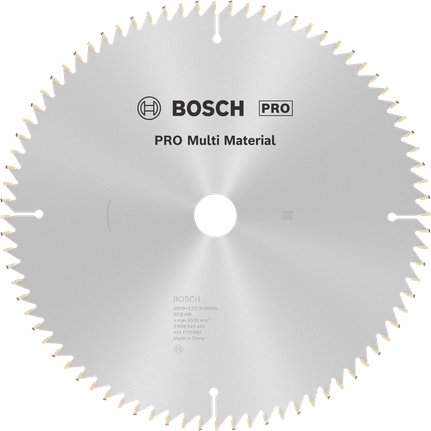

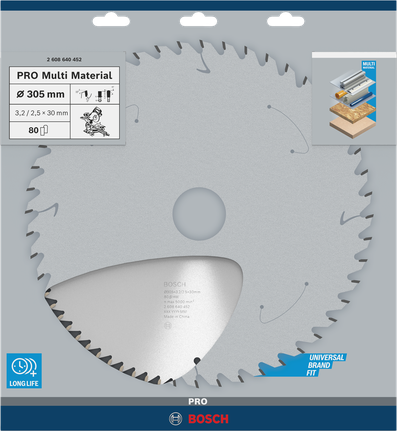

Part number 2608640452 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 305 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.5 |
Number of teeth | 80 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 5000 |
Cutting result | Fine Cut |
Hook angle ° α | -5 |
Relief angle ° β | 15 |

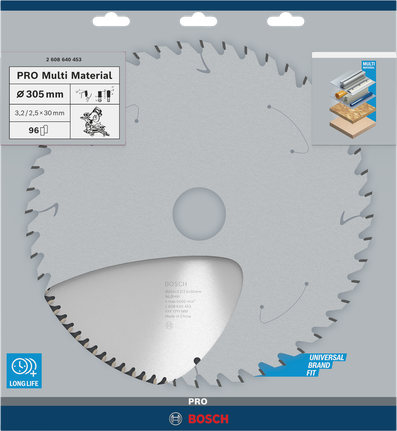

Part number 2608640453 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 305 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.5 |
Number of teeth | 96 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 5000 |
Cutting result | Fine Cut |
Hook angle ° α | -5 |
Relief angle ° β | 15 |

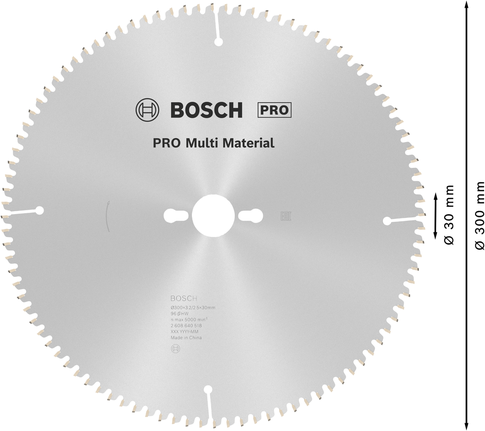

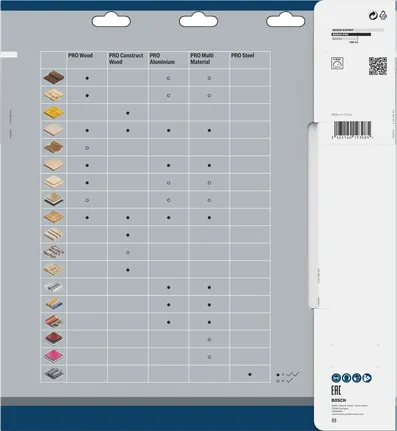

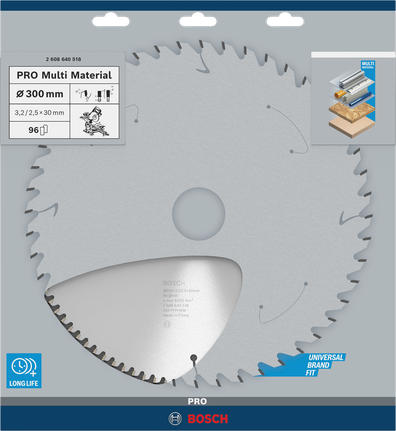

Part number 2608640518 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 300 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.5 |
Number of teeth | 96 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 5000 |
Cutting result | Fine Cut |
Hook angle ° α | -5 |
Relief angle ° β | 18 |
Pin hole/Pitch circle diameter | 7/42 / 10/60 |

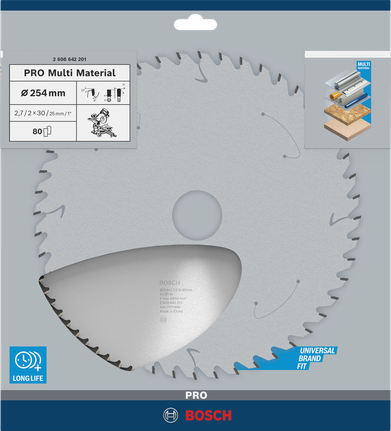

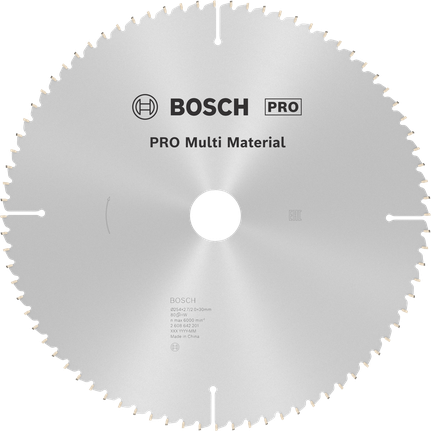

Part number 2608642201 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 254 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.7/2 |
Number of teeth | 80 |
Tooth shape | TCG |
Max. rotation speed (RPM) | 6000 |
Cutting result | Fine Cut |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
Outer diameter inch | 10 |
Bore with reduction ring mm | 25 |
Bore with reduction ring inch | 1 |
Pin hole/Pitch circle diameter | no |

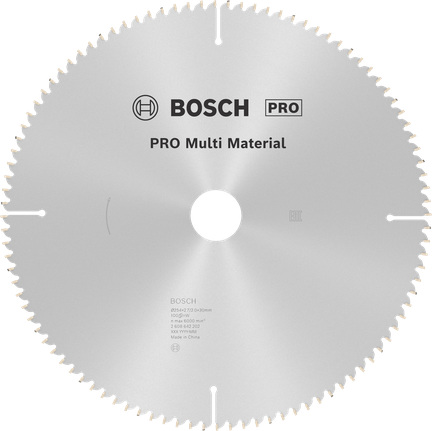

Part number 2608642202 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 254 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.7/2 |
Number of teeth | 100 |
Tooth shape | TCG |
Max. rotation speed (RPM) | 6000 |
Cutting result | Fine Cut |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
Outer diameter inch | 10 |
Bore with reduction ring mm | 25 |
Bore with reduction ring inch | 1 |
Pin hole/Pitch circle diameter | no |
Part number 2608642203 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 254 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.7/2 |
Number of teeth | 120 |
Tooth shape | TCG |
Max. rotation speed (RPM) | 6000 |
Cutting result | Fine Cut |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
Outer diameter inch | 10 |
Bore with reduction ring mm | 25 |
Bore with reduction ring inch | 1 |
Pin hole/Pitch circle diameter | no |

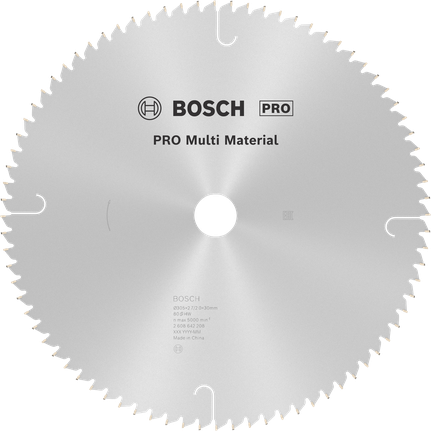

Part number 2608642208 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 305 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.7/2 |
Number of teeth | 80 |
Tooth shape | TCG |
Max. rotation speed (RPM) | 5000 |
Cutting result | Fine Cut |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
Outer diameter inch | 12 |
Bore with reduction ring mm | 20 / 25 |
Bore with reduction ring inch | 1 |
Pin hole/Pitch circle diameter | no |
Part number 2608642209 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 305 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.7/2 |
Number of teeth | 100 |
Tooth shape | TCG |
Max. rotation speed (RPM) | 5000 |
Cutting result | Fine Cut |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
Outer diameter inch | 12 |
Bore with reduction ring mm | 20 / 25 |
Bore with reduction ring inch | 1 |
Pin hole/Pitch circle diameter | no |

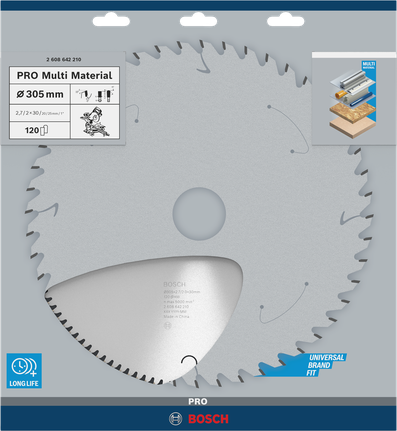

Part number 2608642210 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 305 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.7/2 |
Number of teeth | 120 |
Tooth shape | TCG |
Max. rotation speed (RPM) | 5000 |
Cutting result | Fine Cut |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
Outer diameter inch | 12 |
Bore with reduction ring mm | 20 / 25 |
Bore with reduction ring inch | 1 |
Pin hole/Pitch circle diameter | no |

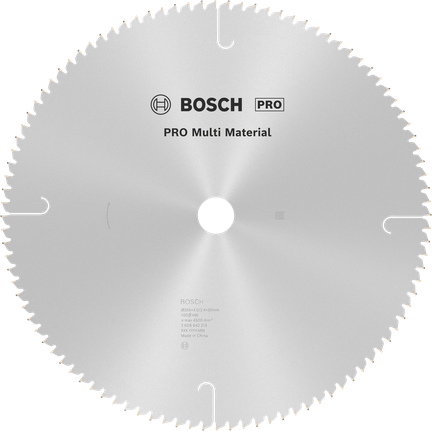

Part number 2608642213 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 355 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2.4 |
Number of teeth | 100 |
Tooth shape | TCG |
Max. rotation speed (RPM) | 4500 |
Cutting result | Fine Cut |
Hook angle ° α | -5 |
Relief angle ° β | 18 |
Outer diameter inch | 14 |
Bore with reduction ring mm | 20 / 25 |
Bore with reduction ring inch | 1 |
Pin hole/Pitch circle diameter | no |

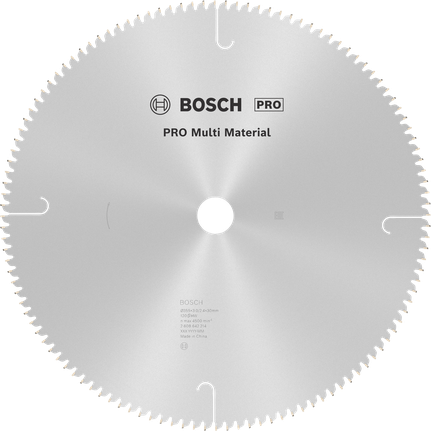

Part number 2608642214 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 355 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2.4 |
Number of teeth | 120 |
Tooth shape | TCG |
Max. rotation speed (RPM) | 4500 |
Cutting result | Fine Cut |
Hook angle ° α | -5 |
Relief angle ° β | 18 |
Outer diameter inch | 14 |
Bore with reduction ring mm | 20 / 25 |
Bore with reduction ring inch | 1 |
Pin hole/Pitch circle diameter | no |

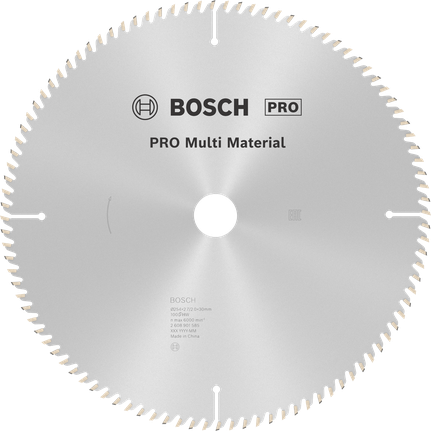

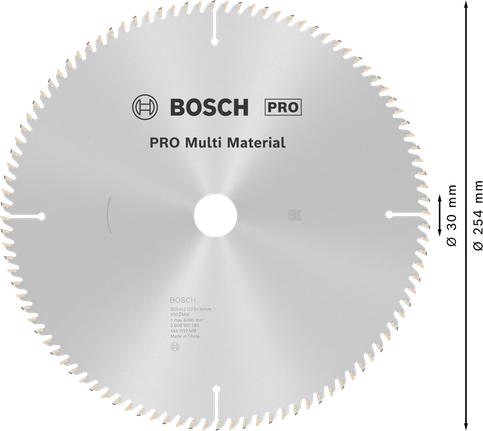

Part number 2608901585 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 254 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.7/2 |
Number of teeth | 100 |
Tooth shape | TCG |
Max. rotation speed (RPM) | 6000 |

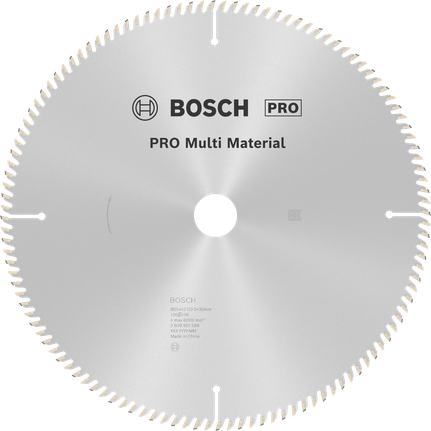

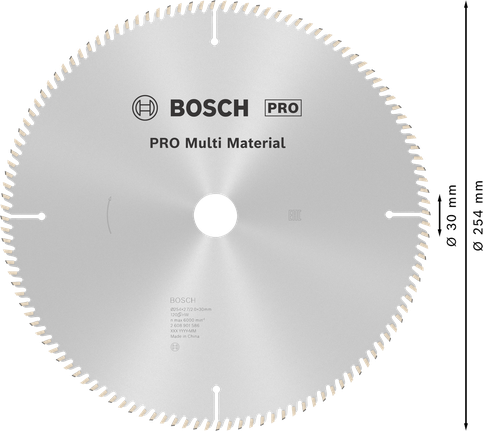

Part number 2608901586 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 254 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.7/2 |
Number of teeth | 120 |
Tooth shape | TCG |
Max. rotation speed (RPM) | 6000 |

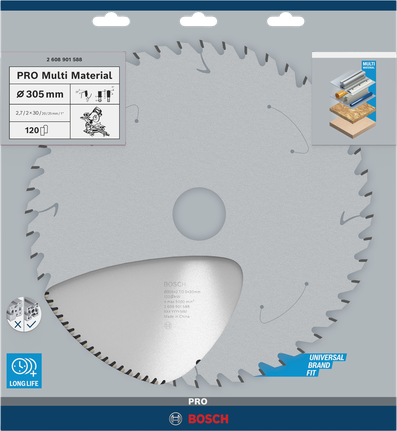

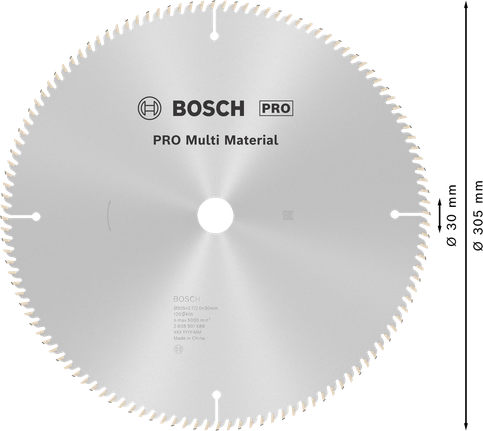

Part number 2608901588 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 305 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.7/2 |
Number of teeth | 120 |
Tooth shape | TCG |
Max. rotation speed (RPM) | 5000 |
Part number 2608901589 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 305 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.7/2 |
Number of teeth | 100 |
Tooth shape | TCG |
Max. rotation speed (RPM) | 5000 |
Part number 2608901592 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 355 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2.4 |
Number of teeth | 120 |
Tooth shape | TCG |
Max. rotation speed (RPM) | 4500 |
Part number 2608901593 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 355 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2.4 |
Number of teeth | 100 |
Tooth shape | TCG |
Max. rotation speed (RPM) | 4500 |
In order for the page to be displayed optimally, it must be reloaded. Please click the button below to reload the page.
Reload now
